Black Box Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver
Black Box

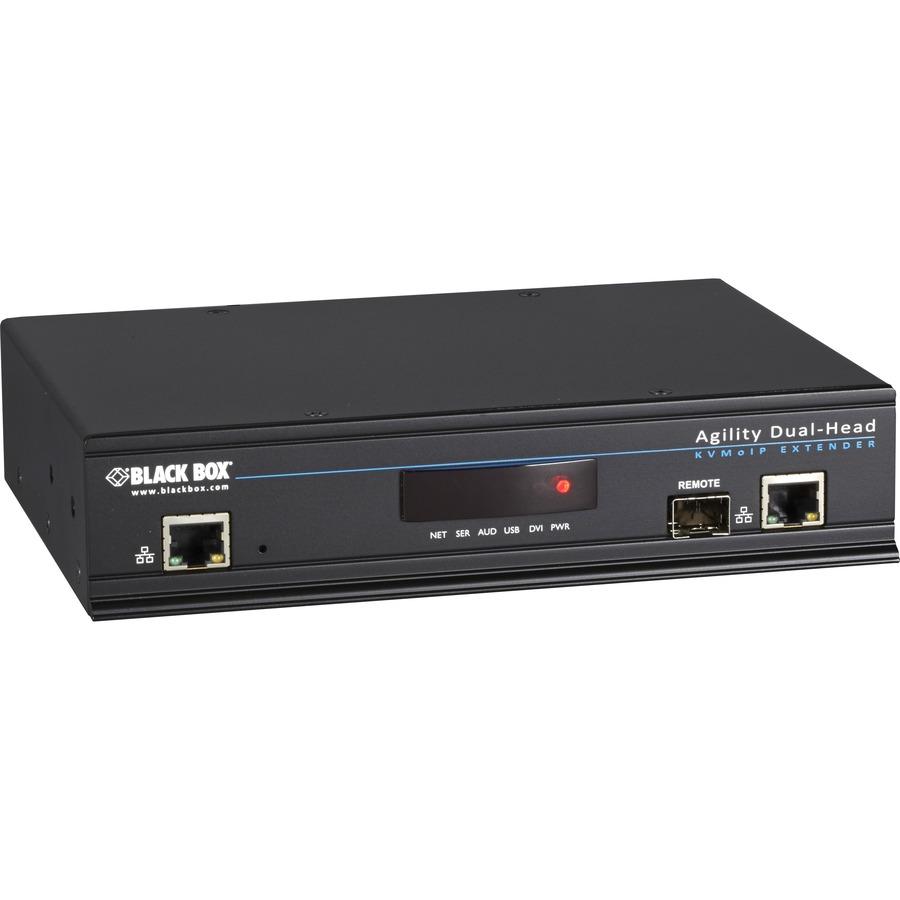

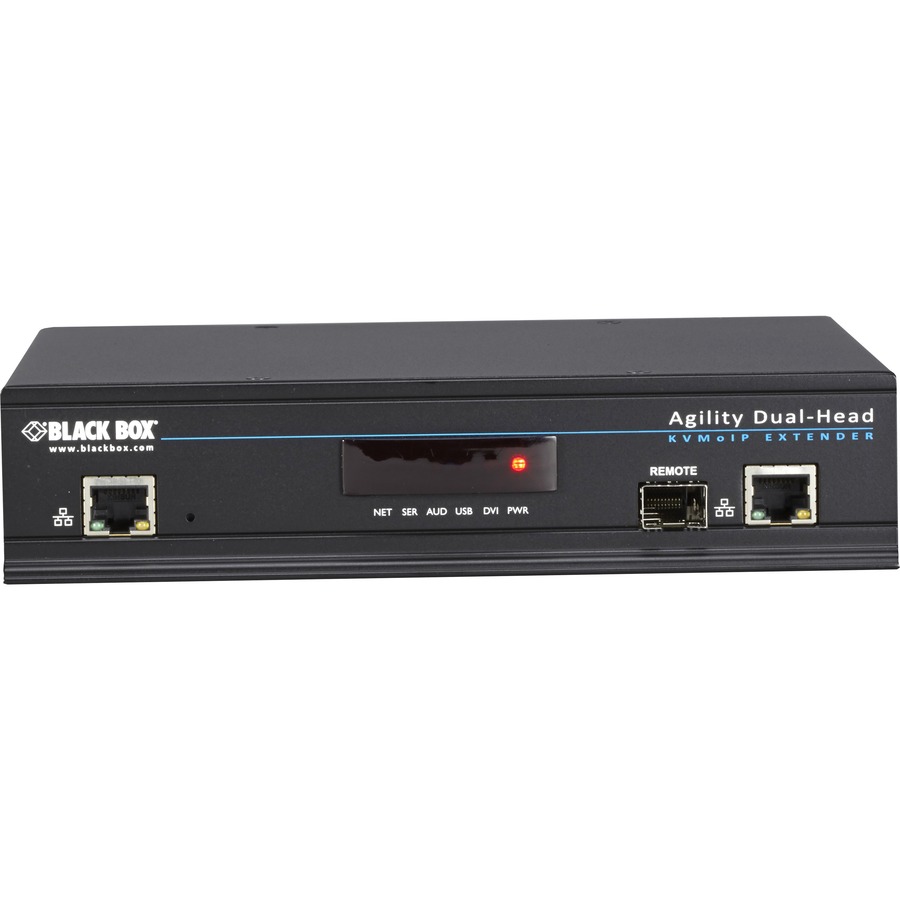

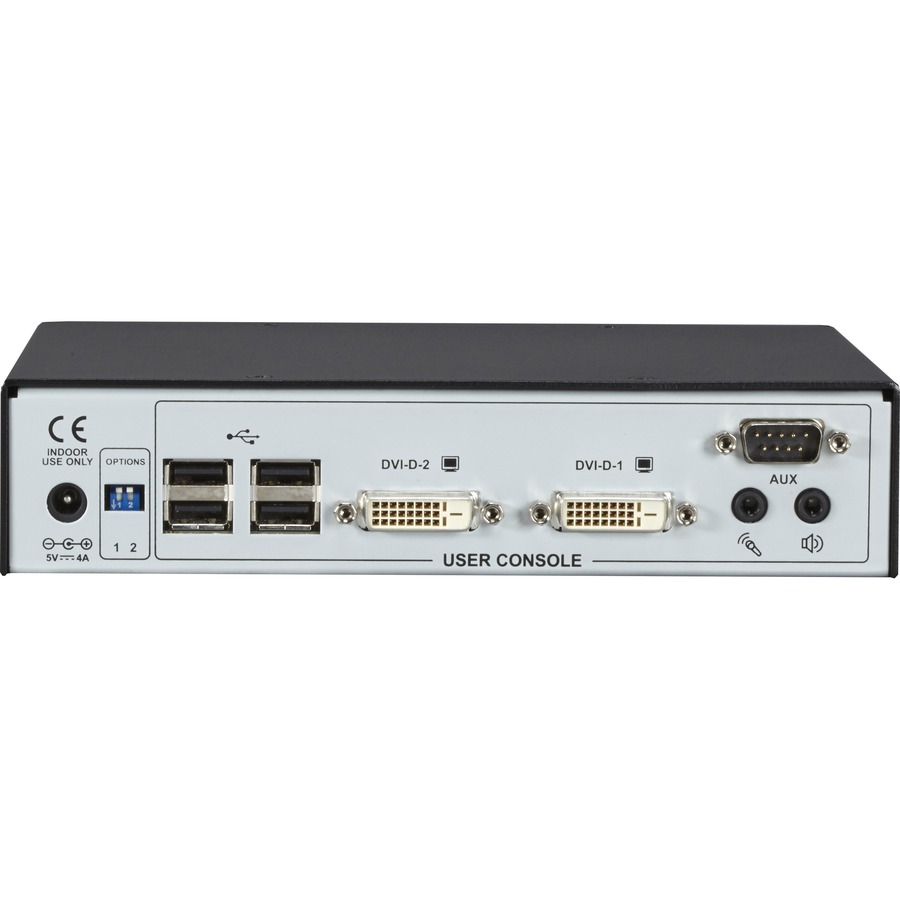

Black Box Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver

2 Local User(s) - 330 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x DVI - TAA Compliant

SKU
ACR1020A-R
Category
KVM Consoles/Extenders

MSRP$2,494.07

$2,252.00

Save 10%

In stock: 73

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
ACR1020A-R
Category
KVM Consoles/Extenders

Overview

The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.

Highlights

  • Dual-head with VNC port for remote access and management.
  • Maximum resolution is 1920x1080.
  • No-loss compression minimizes bandwidth use while maximizing the user experience.
  • Scalable high performance IP-Based KVM Extender and KVM Matrix system.
  • Magic Eye support to handle dithered video graphics.
  • Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth.
  • Data cyncryption via 128-bit AES.

Specifications

Product TypeKVM Extender Receiver
Manufacturer Part NumberACR1020A-R
Limited Warranty2 Year
Connectivity TechnologyWired
ManufacturerBlack Box Corporation
MicrophoneYes
Product NameAgility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver
Brand NameBlack Box
Country of OriginUnited Kingdom
Environmentally FriendlyYes
Maximum Video Resolution1920 x 1080
Graphic ModeFull HD
Maximum Operating Distance330 ft
USBYes
DVIYes
HeadphoneYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports4
Number of DVI Ports2
Number of Local Users Supported2
Receiver Height1.76"
Receiver Width7.92"
Receiver Depth4.80"
Receiver Weight (Approximate)1.76 lb
TAA CompliantYes
Device TypeKVM Extender
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
