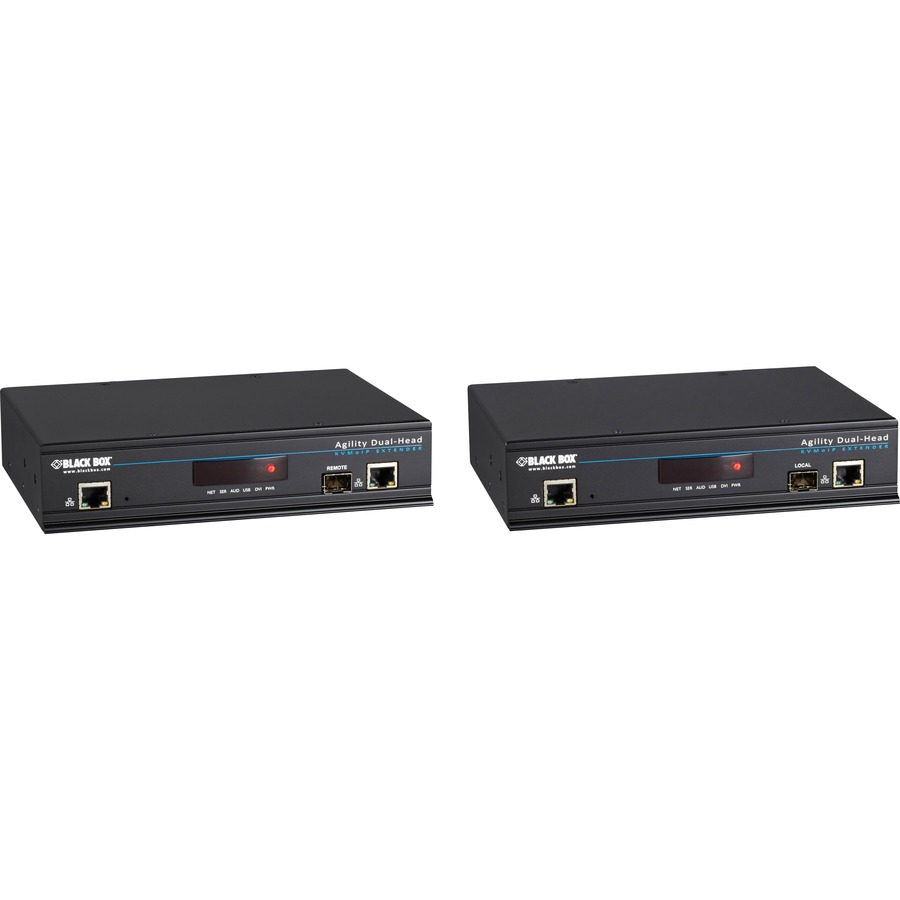

Black Box Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Extender Kit
2 Computer(s) - 2 Local User(s) - 330 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 4 x Network (RJ-45) - 5 x USB - 4 x DVI - TAA Compliant
SKU
ACR1020A
Category
KVM Consoles/Extenders
MSRP$4,770.00
$4,536.39
Save 5%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ACR1020A
Category
KVM Consoles/Extenders
Overview
The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
Warranty
Limited Warranty: 2 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Delivers perfect digital video with no loss.
Maximum resolution is 2 times 1920 x 1080 (1920 x 1200).
No-loss compression minimizes bandwidth use while maximizing the user experience.
Scalable high performance IP-Based KVM Extender and KVM Matrix system.
Magic Eye support to handle dithered video graphics.
Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth.
Data encryption via 128-bit AES.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
ACR1020A
Brand Name
Black Box
Product Name
Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Extender Kit
Product Type
KVM Extender
Interfaces/Ports
Network (RJ-45)
Yes
USB
Yes
DVI
Yes
Headphone
Yes
Microphone
Yes
Number of Network (RJ-45) Ports
4
Number of USB Ports
5
Number of DVI Ports
4
Physical Characteristics
Transmitter Height
1.76"
Transmitter Width
7.92"
Transmitter Depth
4.80"
Receiver Height
1.76"
Receiver Width
7.92"
Receiver Depth
4.80"
Transmitter Weight (Approximate)
1.76 lb
Receiver Weight (Approximate)
1.76 lb
Technical Information
Connectivity Technology
Wired
Number of Computers Supported
2
Number of Local Users Supported
2
Maximum Operating Distance
330 ft
Device Type
KVM Extender
Video
Graphic Mode
Full HD
Maximum Video Resolution
1920 x 1080
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
1 x Transmitter
1 x Receiver
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
