SKU
VP1421
Category
Video Switchboxes
Overview

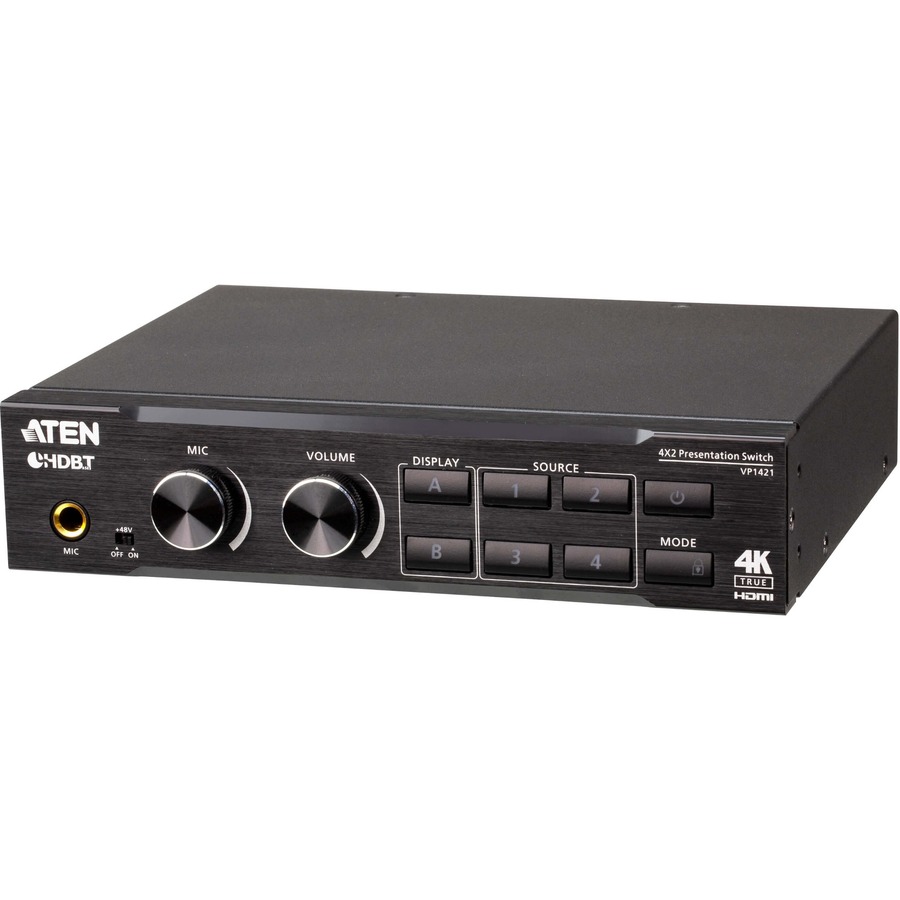

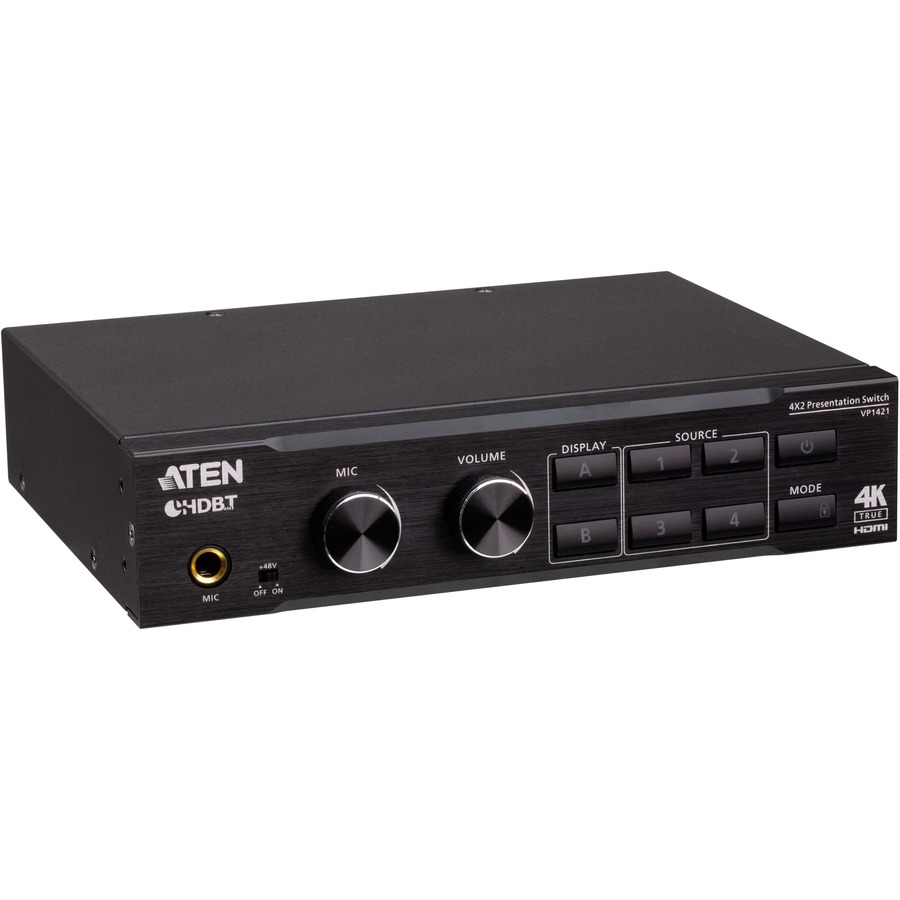

The VP1421 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, HDBaseT extender, audio DSP, and analog-to-digital converter functions into a single compact enclosure, ideal for meeting rooms and educational spaces.
True 4K, HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection
Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
HDBaseT Extended Transmission over One Cable
Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports).
Built-in Advanced Audio DSP
Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.
Flexible Audio Embedding/De-Embedding
Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.
Versatile Control, Streamlined Operations

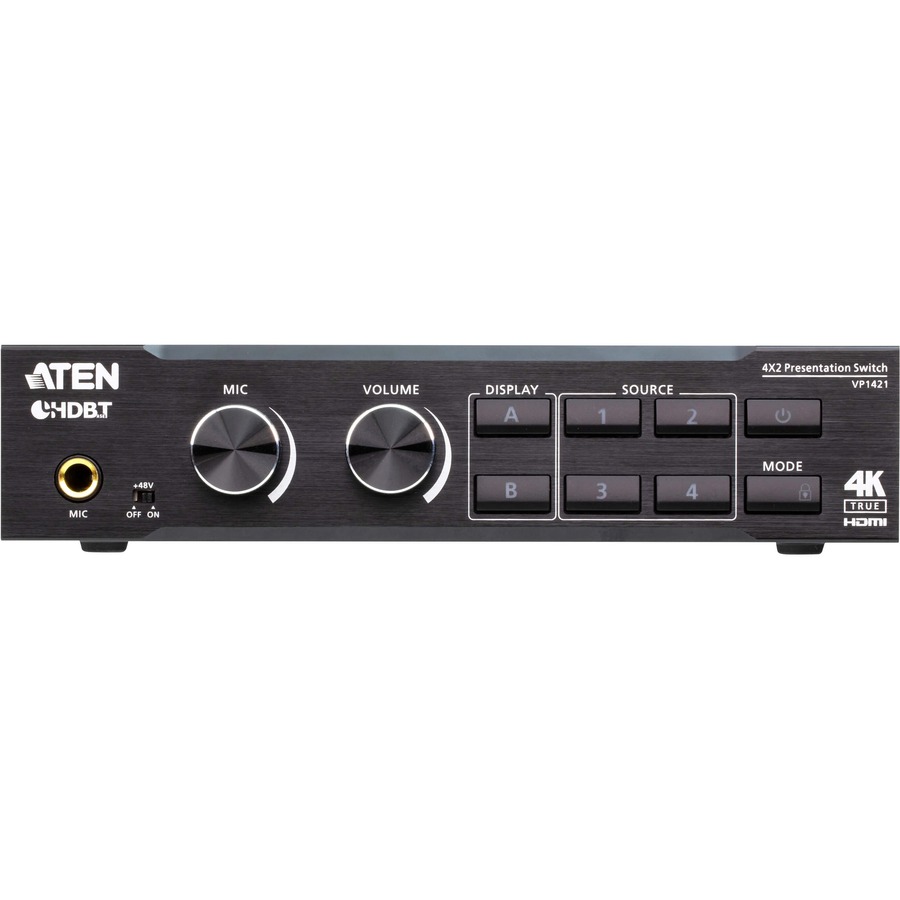

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
Highlights

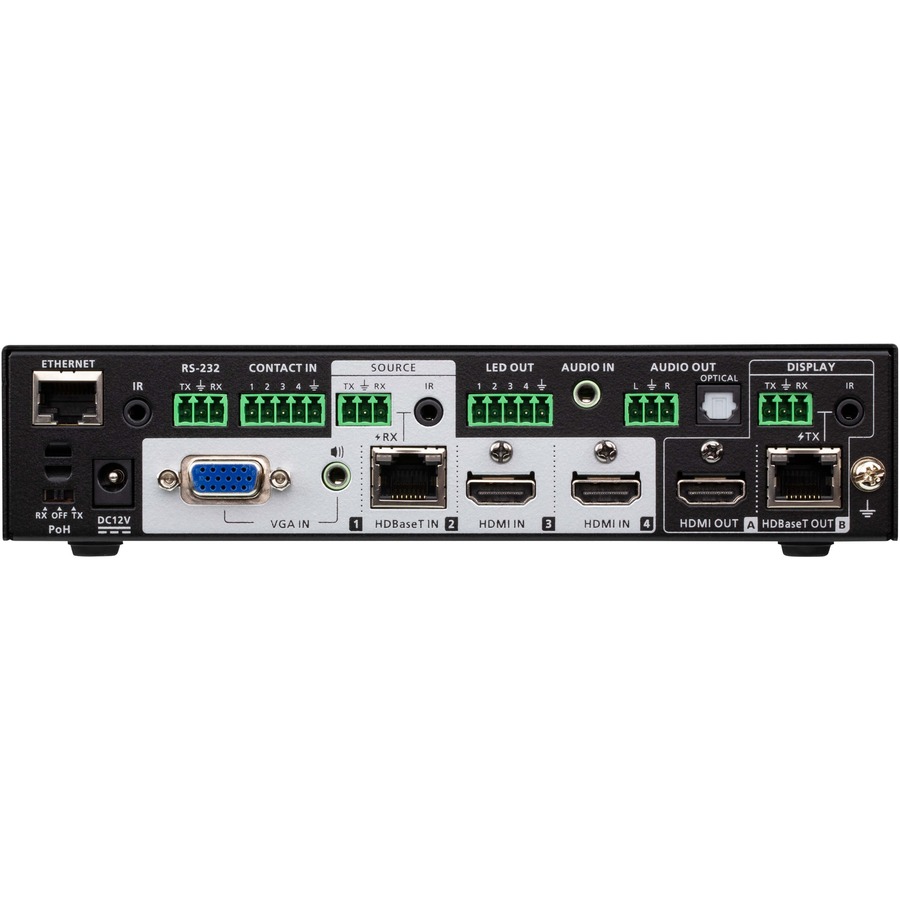

Multi-format AV Switching - switch among 1 HDBaseT, 2 HDMI and 1 VGA inputs to 1 HDBaseT and 1 HDMI outputs and support of audio DSP
HDBaseT-Lite technology - extends uncompressed AV, IR, RS-232, and power over one Cat 6/6a cable up to 70m
Superior video quality - True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI) / 4096 x 2160@60Hz (4:2:0) (HDBaseT); HDR support
Scaler - supports video upscaling to 4K for display A and downscaling to 1080p for display B
Specifications
Package Contents
4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
1x IR Receiver
1x IR Remote Control
4x 3-pole Terminal Blocks
2x 5-pole Terminal Blocks
1x Power Adapter
1x User Instructions
Product Type
Audio/Video Switchbox
Device Supported
Notebook, Media Player
Manufacturer Part Number
VP1421
Packaged Quantity
1
Weight (Approximate)
2.56 lb
Connectivity Technology
Cable
Form Factor
Under Table, Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VP1421
Product Name
4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
Brand Name
ATEN
Height
1.7"
Width
6.7"
Depth
7.9"
Graphics Modes
4K
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Maximum Operating Distance
459.32 ft
Number of HDMI Inputs
2
Number of HDMI Outputs
1
VGA In
Yes
HDMI In
Yes
HDMI Out
Yes
Media Type Supported
Twisted Pair
Number of Displays Supported
2
Number of Input Devices Supported
4
Number of VGA Inputs
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
