4 Computer(s) - 1 Local User(s) - 4096 x 2160 - 8 x USB - 1 x HDMI - 5 x DisplayPort - Desktop
MSRP$750.00
$564.82
Save 25%Special order — estimated available by September 29, 2026.
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.
More from the Manufacturer
Powered by GfK Etilize

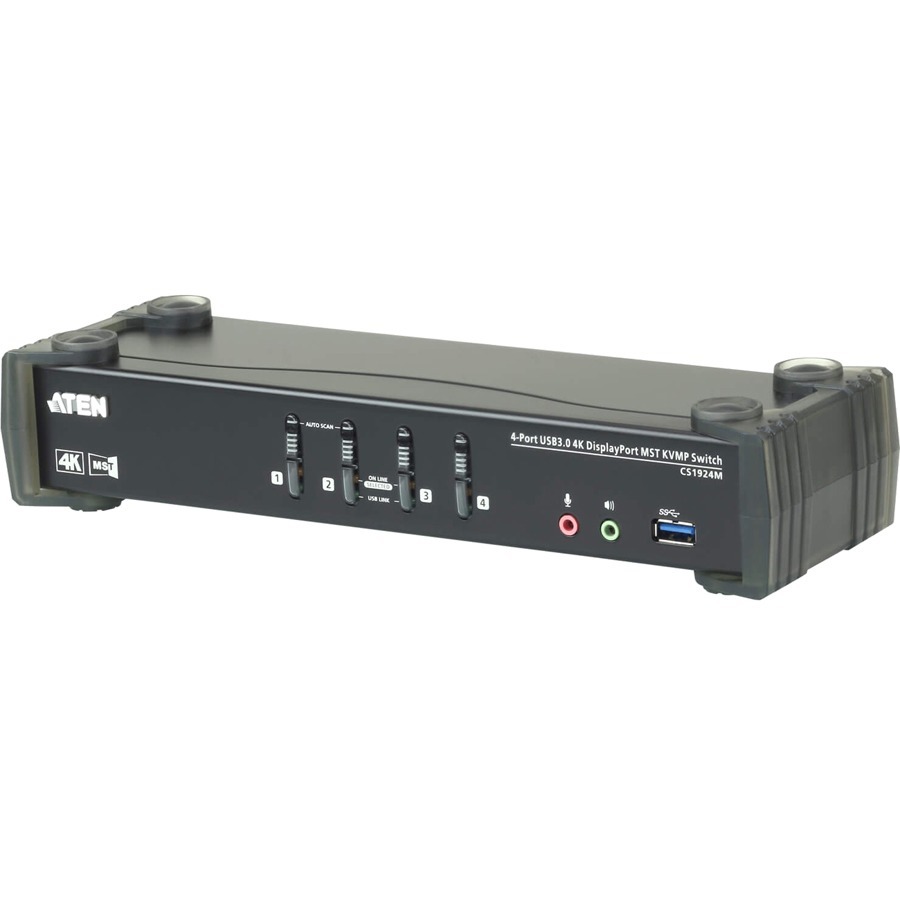

4-Port USB 3.0 4K DisplayPort MST KVMP ™ Switch
Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source
Supports superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
Computer selection via front panel pushbuttons, hotkeys, USB mouse, and RS-232 commands
DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
™ Switch" />
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1924M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1924M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1924M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.
World's First DisplayPort KVM Switch with Built-in MST Hub

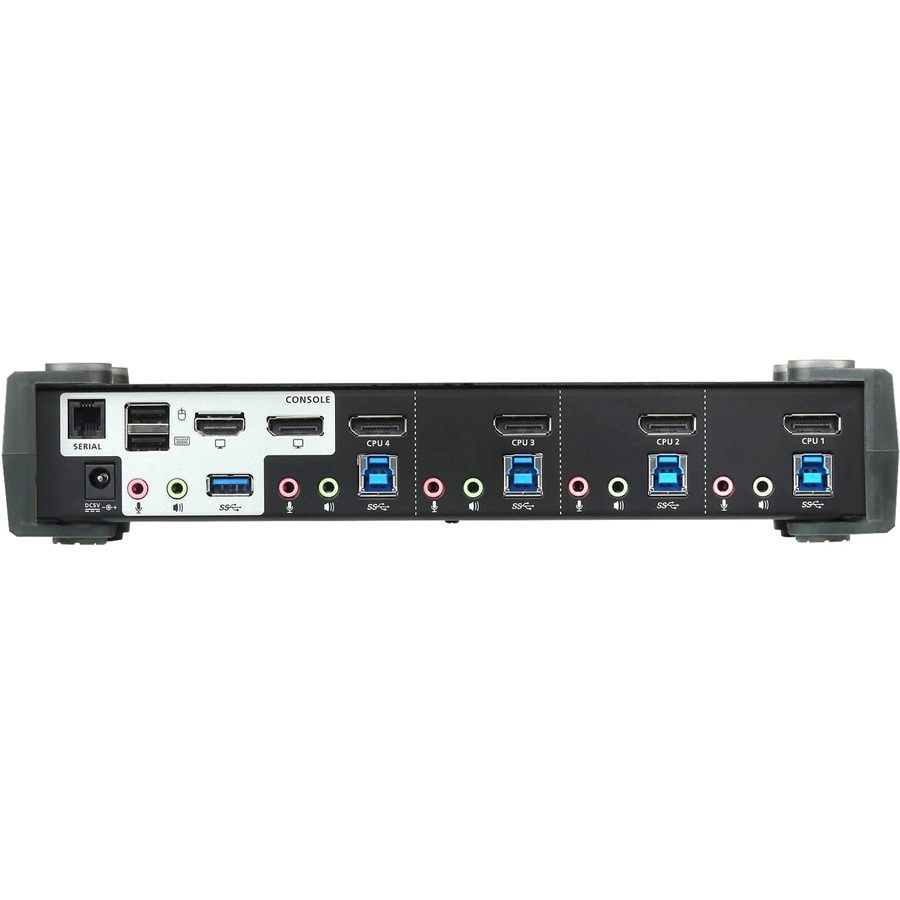

One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals
Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source *
Supports MST Mode, Splitter Mode, and Single Port Mode.
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter **
Firmware upgradeable
Hot pluggable - add or remove computers without powering down the switch
Remarkable Audio/Video Experience
Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
DisplayPort 1.2 compliant, HDCP compliant
Supports HD audio through DisplayPort ***
Full bass response for high-quality 2.1 channel surround sound systems
Intelligent Operation

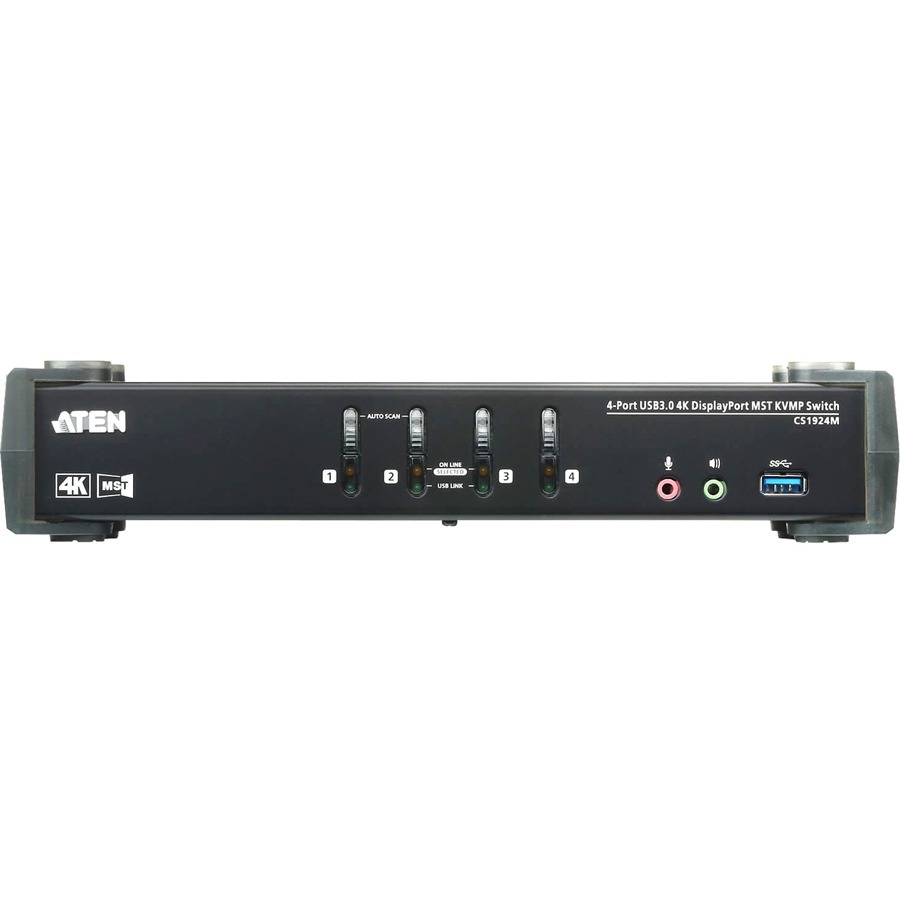

Computer selection via front panel pushbuttons, hotkeys, mouse ****, and RS-232 commands
Independent switching of KVM, USB hub, and Audio focus
Power On Detection - if a computer is powered off, the CS1924M automatically switches to the next powered-on computer
Auto Scan Mode for monitoring all computers
Versatile Compatibility
Keyboard emulation/bypass feature supports most gaming keyboards
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support - Windows, Mac and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Simply Better Connections ATEN Technology, Inc. is the technology leader and global manufacturer of KVM and Pro AV connectivity solutions, and the U.S. subsidiary of ATEN International Co., Ltd. (TWSE: 6277), established in 1979. A certified member of the HDBaseT Alliance, holding over 640 industry patents, ATEN offers integrated KVM, Professional Audio (Pro AV), and Intelligent Power solutions, across all industries including corporate , commercial, government , industrial, entertainment, educational and retail environments. A technology-first company, ATEN’s advanced ability to quickly develop customized solutions in KVM, Pro AV, PDU , USB , and data communication lines allows the company to build products that connect, manage and optimize electronics based on customer need. ATEN’s comprehensive portfolio of innovative, reliable products is available worldwide, with local U.S support. For more information, visit: http://www.aten.com/us/en/ Markets & Solutions Broadcasting & Media Today's broadcasting and media environment demands versatile, adaptable, and forward-thinking solutions. With media delivery and technology evolving at a rapid rate, media professionals are now looking toward multi-platform content support, efficient power management, and immersive image delivery. Professionals in the field require the power to access content remotely via stable, secure, and fast multimedia data channels. Corporate The corporate environment requires integrated solutions that are flexible, forward–thinking, and that make communication simple. Corporations need to be able to seamlessly and securely distribute information to key stakeholders around the world. They need KVM and A/V solutions that create a framework for effortless meetings, data sharing, and communication with customers. Education Teaching technology and techniques are evolving quickly. Technology has now become a critical educational resource that has helped lessons to become more personalized, collaborative, and interactive. Educators are taking advantage of various innovations to improve teaching effectiveness, learning outcomes, and even extend the reach of institutional resources.. Government Changes in technology have transformed the way government services operate. Today's tech-savvy citizens expect government agencies to maintain up-to-the-minute, secure, and reliable information that is readily available. To meet these challenges, government departments require a dynamic, scalable communication solution that seamlessly delivers information between different stakeholders and heterogeneous systems.
| General Information | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1924M |
| Brand Name | ATEN |
| Product Series | SOHO |
| Product Model | CS1924M |
| Product Name | 4-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 8 |
| Number of HDMI Ports | 1 |
| Number of DisplayPorts | 5 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.2" |
| Width | 3.5" |
| Depth | 10.6" |
| Weight (Approximate) | 2.03 lb |
| Power Description | |
| Input Voltage Range | 5V DC |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Miscellaneous | |

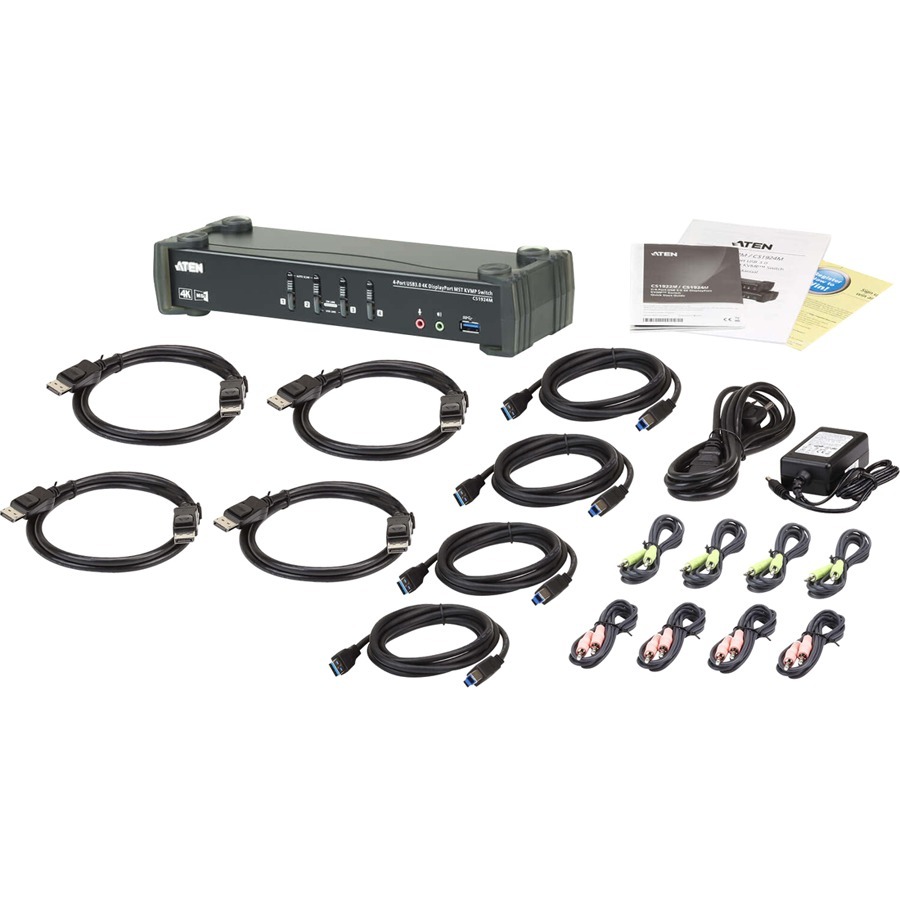

| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
