4 Computer(s) - 1 Local User(s) - 3840 x 2160 - 8 x USB - 5 - Desktop
MSRP$400.00
$302.27
Save 24%Special order — estimated available by September 29, 2026.
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

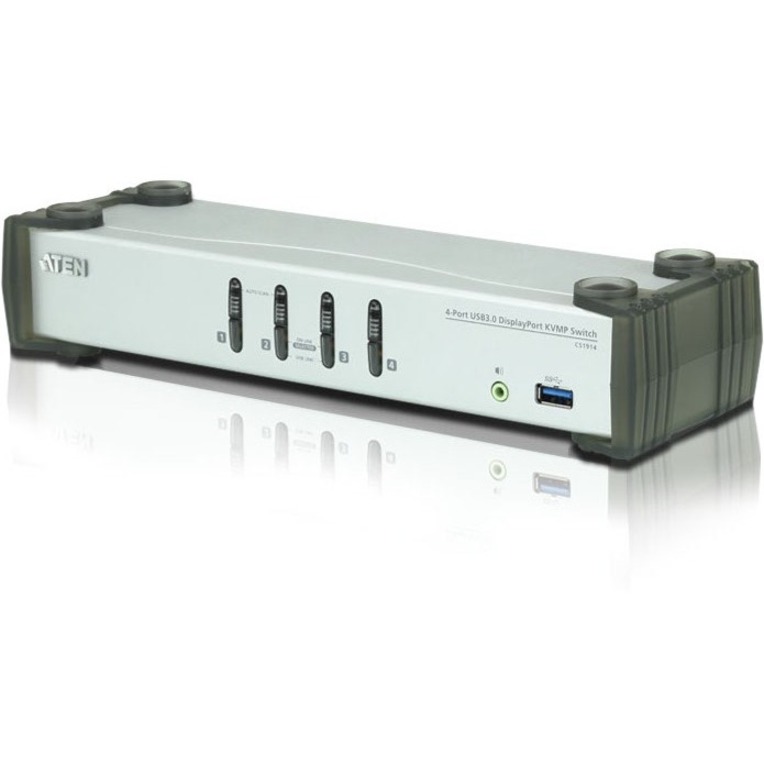

The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods - front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN's unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a printer server, modem or splitter.
With its rich feature set, the CS1914 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
More from the Manufacturer
Powered by GfK Etilize

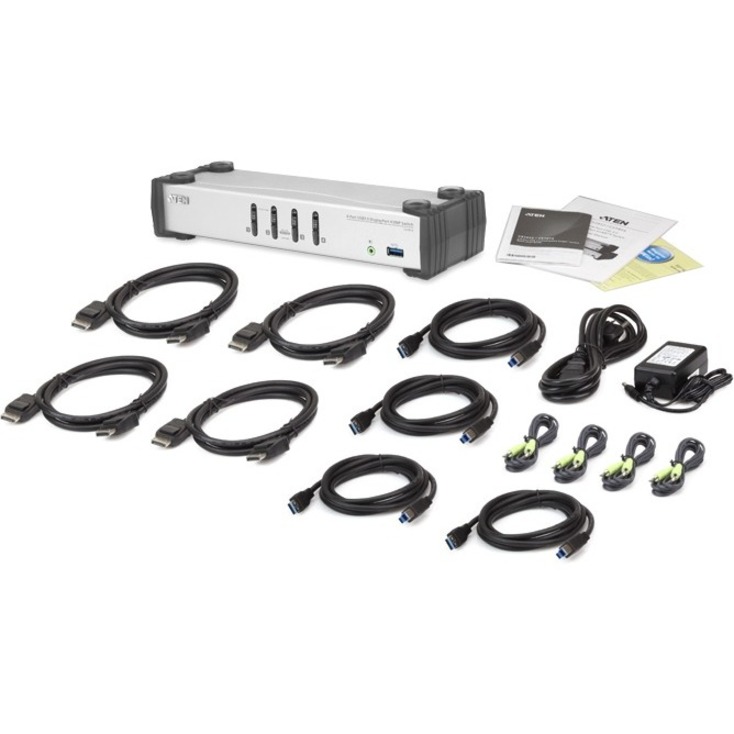

4-Port USB 3.0 DisplayPort KVMP ™ Switch (Cables included)
Supports superior video quality – up to 3840 x 2160 @ 30 Hz

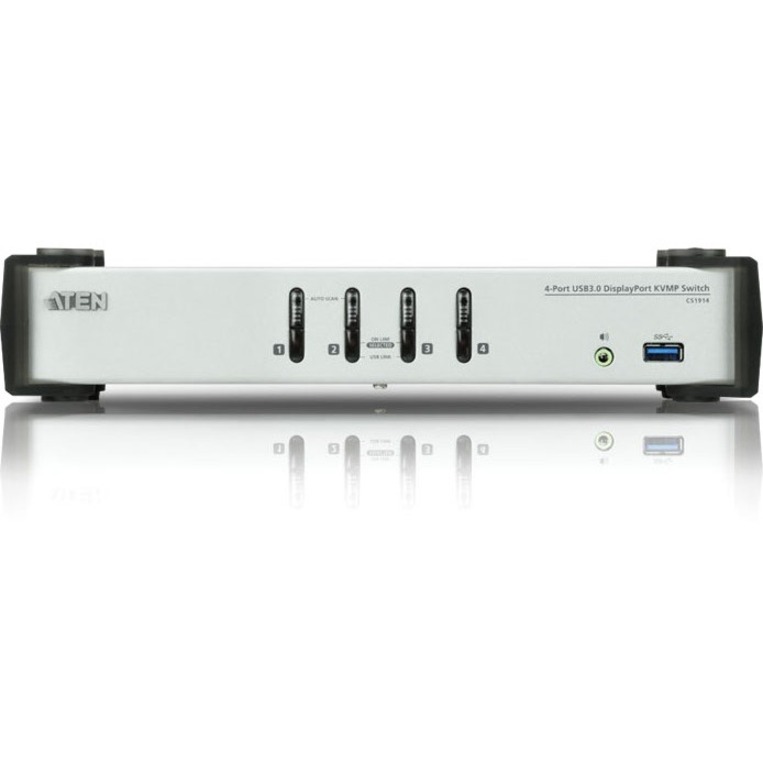

Computer selection via front panel pushbuttons, hotkeys and mouse
and 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
DisplayPort Dual – Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
™ Switch (Cables included)
" />
The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1914 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
Features

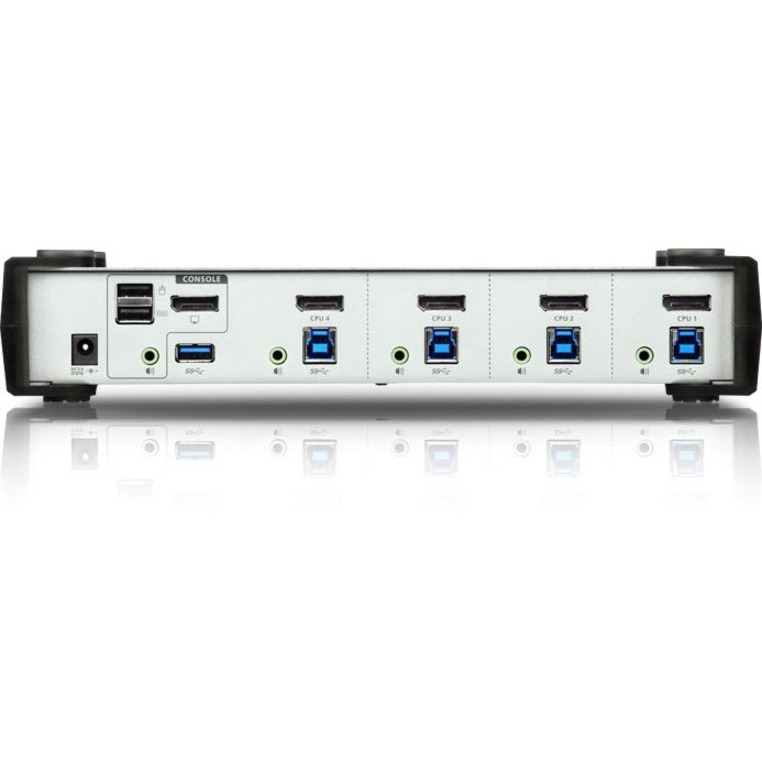

4-port DisplayPort KVMP ™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
One USB console controls 4 computers and 2 USB peripherals
Computer selection via front panel pushbuttons, hotkeys and mouse
Independent switching of KVM, USB, and Audio focus
Superior video quality – up to 3840 x 2160 @ 30 Hz
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
DisplayPort 1.1 compliant, HDCP compliant
Supports HD audio through DisplayPort
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection – if a computer is powered off, the CS1914 automatically switches to the next powered-on computer
DisplayPort Dual – Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
Hot pluggable – add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboards
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows, Mac, and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation
Auto Scan Mode for monitoring all computers
Firmware upgradable
Simply Better Connections ATEN Technology, Inc. is the technology leader and global manufacturer of KVM and Pro AV connectivity solutions, and the U.S. subsidiary of ATEN International Co., Ltd. (TWSE: 6277), established in 1979. A certified member of the HDBaseT Alliance, holding over 640 industry patents, ATEN offers integrated KVM, Professional Audio (Pro AV), and Intelligent Power solutions, across all industries including corporate , commercial, government , industrial, entertainment, educational and retail environments. A technology-first company, ATEN’s advanced ability to quickly develop customized solutions in KVM, Pro AV, PDU , USB , and data communication lines allows the company to build products that connect, manage and optimize electronics based on customer need. ATEN’s comprehensive portfolio of innovative, reliable products is available worldwide, with local U.S support. For more information, visit: http://www.aten.com/us/en/ Markets & Solutions Broadcasting & Media Today's broadcasting and media environment demands versatile, adaptable, and forward-thinking solutions. With media delivery and technology evolving at a rapid rate, media professionals are now looking toward multi-platform content support, efficient power management, and immersive image delivery. Professionals in the field require the power to access content remotely via stable, secure, and fast multimedia data channels. Corporate The corporate environment requires integrated solutions that are flexible, forward–thinking, and that make communication simple. Corporations need to be able to seamlessly and securely distribute information to key stakeholders around the world. They need KVM and A/V solutions that create a framework for effortless meetings, data sharing, and communication with customers. Education Teaching technology and techniques are evolving quickly. Technology has now become a critical educational resource that has helped lessons to become more personalized, collaborative, and interactive. Educators are taking advantage of various innovations to improve teaching effectiveness, learning outcomes, and even extend the reach of institutional resources.. Government Changes in technology have transformed the way government services operate. Today's tech-savvy citizens expect government agencies to maintain up-to-the-minute, secure, and reliable information that is readily available. To meet these challenges, government departments require a dynamic, scalable communication solution that seamlessly delivers information between different stakeholders and heterogeneous systems.
| General Information | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1914 |
| Brand Name | ATEN |
| Product Series | SOHO |
| Product Model | CS1914 |
| Product Name | 4-Port USB 3.0 DisplayPort KVMP Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 8 |
| Number of DisplayPorts | 5 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.2" |
| Width | 3.5" |
| Depth | 10.6" |
| Weight (Approximate) | 2.01 lb |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
