SKU
CS1922M
Category
KVM Switchboxes
Overview
Incorporating the latest Multi-Stream Transport (MST) technology, the CS1922M 2-Port USB 3.0 4K DisplayPort MST KVMP? Switch is the world's first DisplayPort KVM switch with a built-in MST hub. The CS1922M enables users to adopt two console displays from a single DisplayPort 1.2 video source, providing an extended desktop mode and splitter mode at resolutions up to 4K for multitasking across two displays while reducing bulky cable connections.
To meet the ever-increasing demand for high-speed peripheral data transmissions, the CS1922M integrates a USB 3.1 Gen 1 hub to deliver unprecedented data transfer rates up to 5 Gbps - allowing you to maximize multitasking operations.
The unique independent switching feature allows the KVM switch's focus to be on one computer while its USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer - such as a print server or splitter. Additionally, the switch allows you to share the audio from each of the connected computers and even allows HD audio transmitted through a DisplayPort source.
With a rich feature set, the CS1922M is designed to exceed the requirements such as excellent video quality and ultra-fast data transmission speed for gaming, graphic design, animation, and video-editing applications.
More from the Manufacturer
Highlights
One USB keyboard/mouse and DisplayPort or HDMI monitor control 2 computers and 2 USB peripherals
Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source
Supports MST Mode, Splitter Mode, and Single Port Mode.
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
Firmware upgradeable
Hot pluggable - add or remove computers without powering down the switch
Superior video quality - 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
DisplayPort 1.2 compliant, HDCP compliant
Supports HD audio through DisplayPort
Specifications

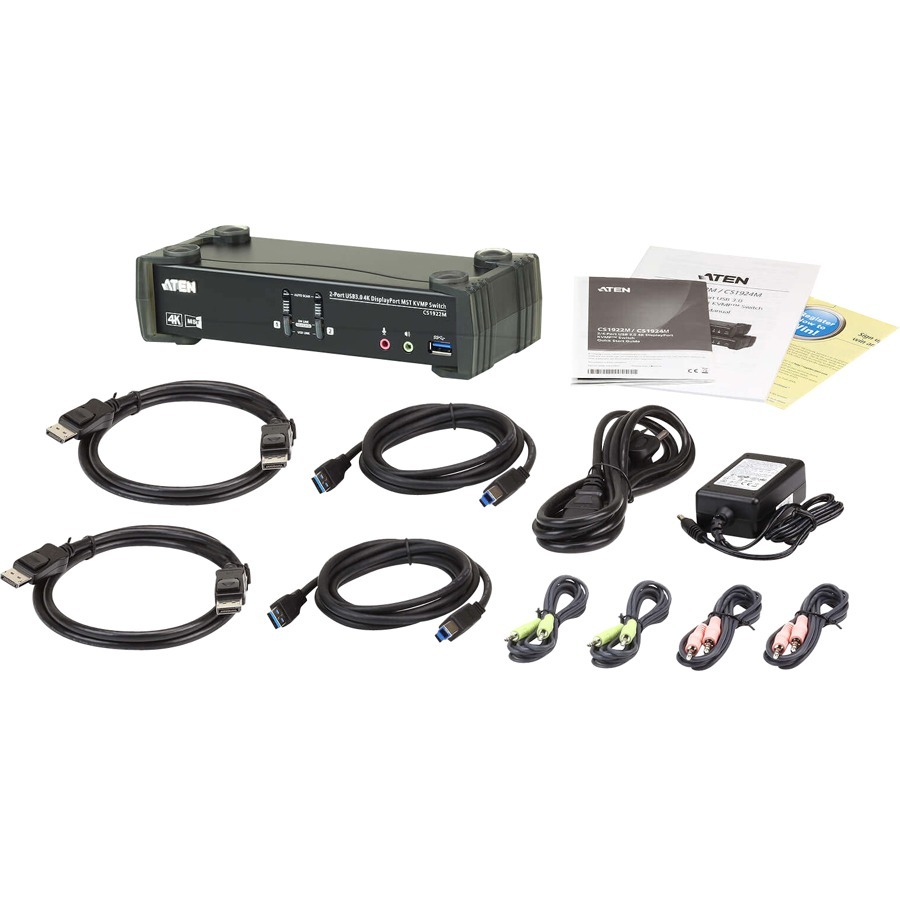

Package Contents
2-Port USB 3.0 4K DisplayPort MST KVMP Switch
2 x DisplayPort 1.2 Cables (1.5m/5ft)
2 x USB Cables (USB 3.0-A to USB 3.0-B; 1.8m/6ft)
4 x Audio Cables (1.8m/6ft)
1 x Power Adapter
1 x User Instructions
Product Type
KVM Switchbox
Manufacturer Part Number
CS1922M
Packaged Quantity
1
Weight (Approximate)
1.61 lb
Form Factor
Desktop
Manufacturer
ATEN Technology, Inc
Product Model
CS1922M
Product Name
2-Port USB 3.0 4K DisplayPort MST KVMP Switch (Cables Included)
Product Series
SOHO
Brand Name
ATEN
Input Voltage Range
5V DC
Country of Origin
Taiwan
Height
2.2"
Width
3.5"
Depth
8.3"
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
USB
Yes
HDMI
Yes
Number of HDMI Ports
1
Number of USB Ports
6
DisplayPort
Yes
Number of DisplayPorts
3
Number of Computers Supported
2
Number of Local Users Supported
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
