2 GB DDR3 SDRAM Maximum RAM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11a/b/g/n
$174.29
Special order — estimated available by September 10, 2026.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

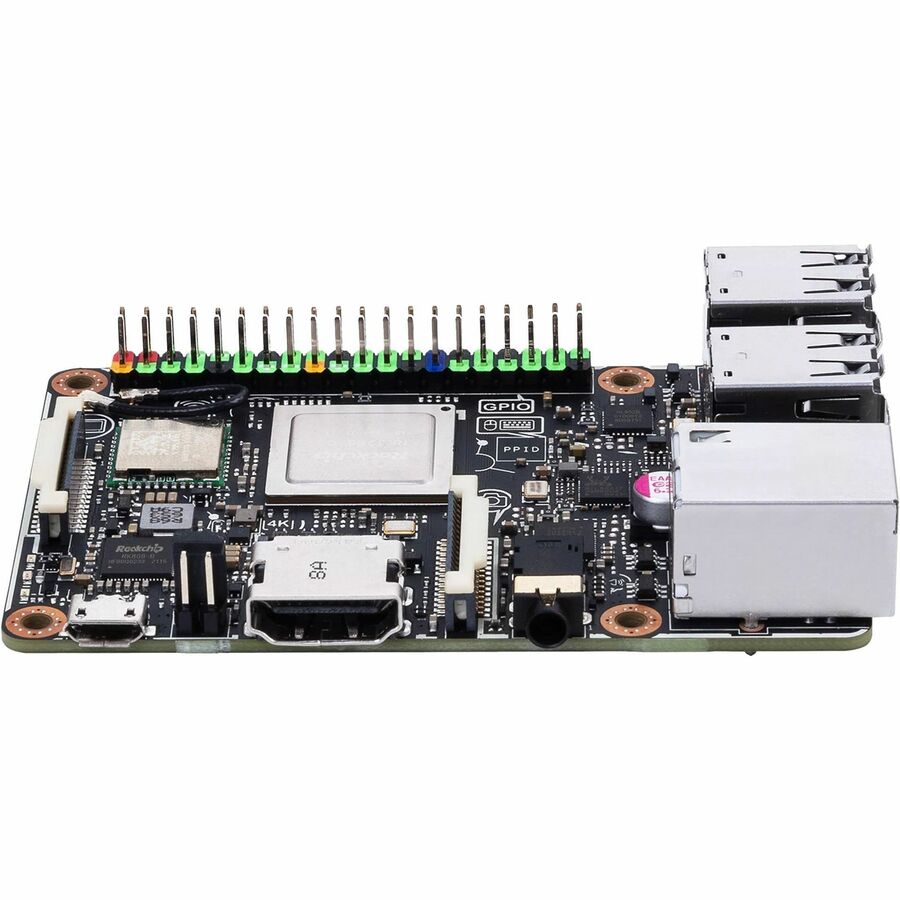

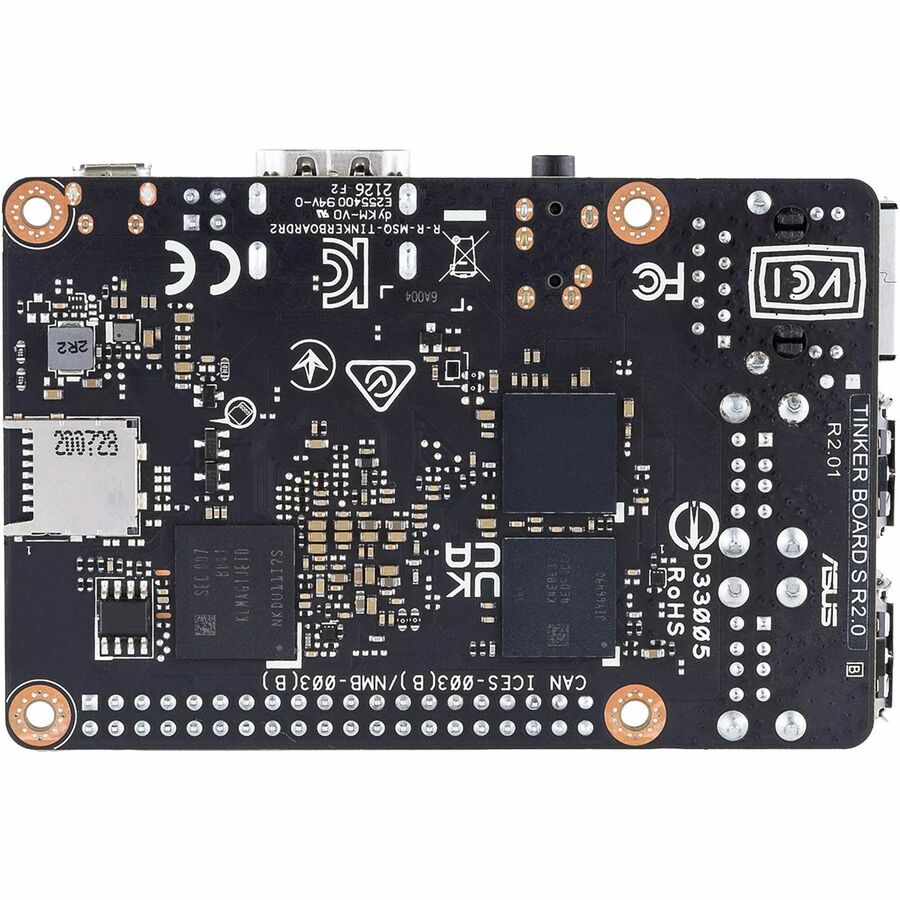

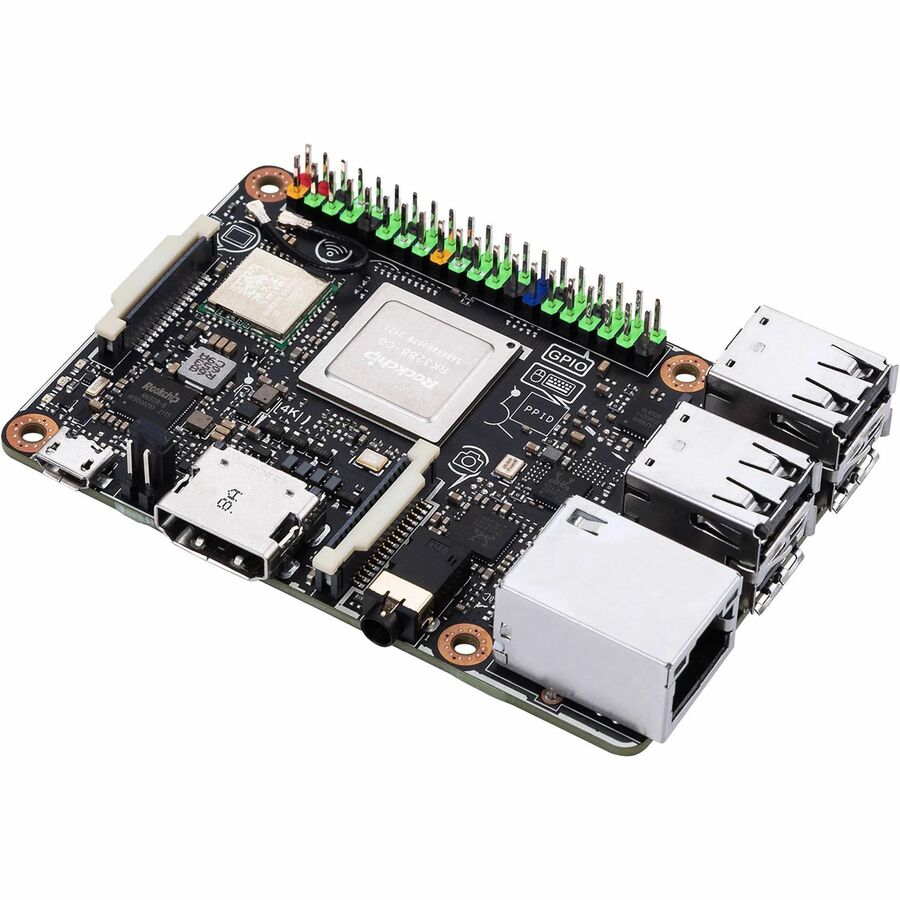

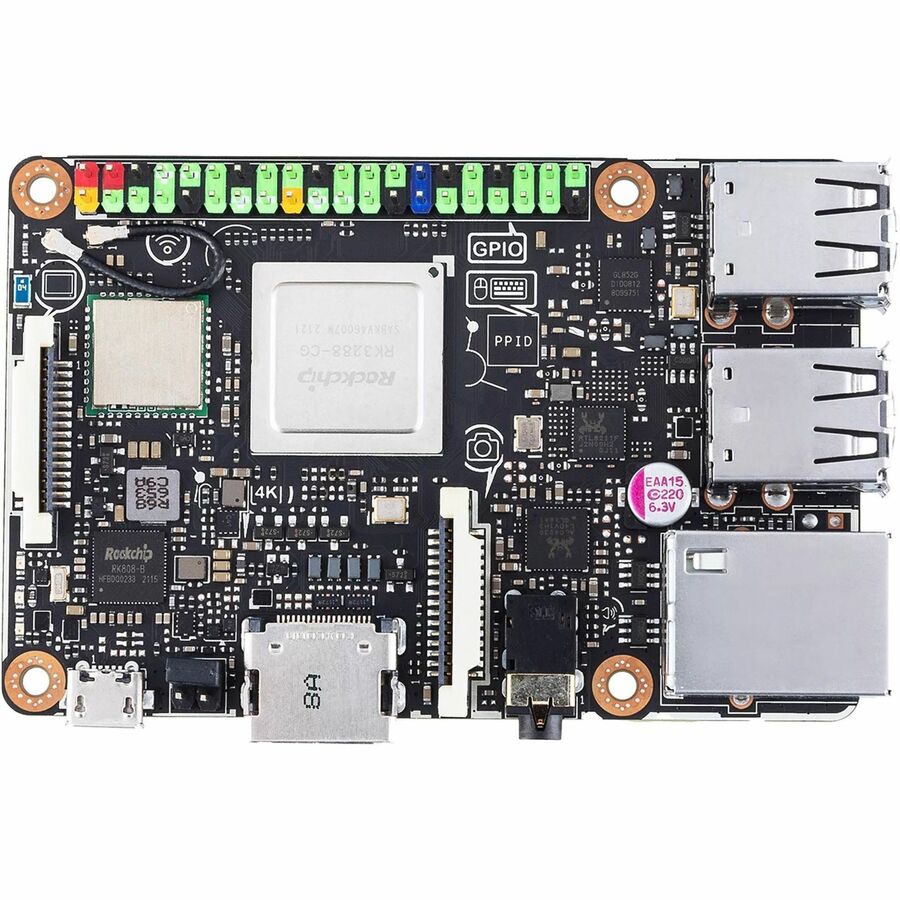

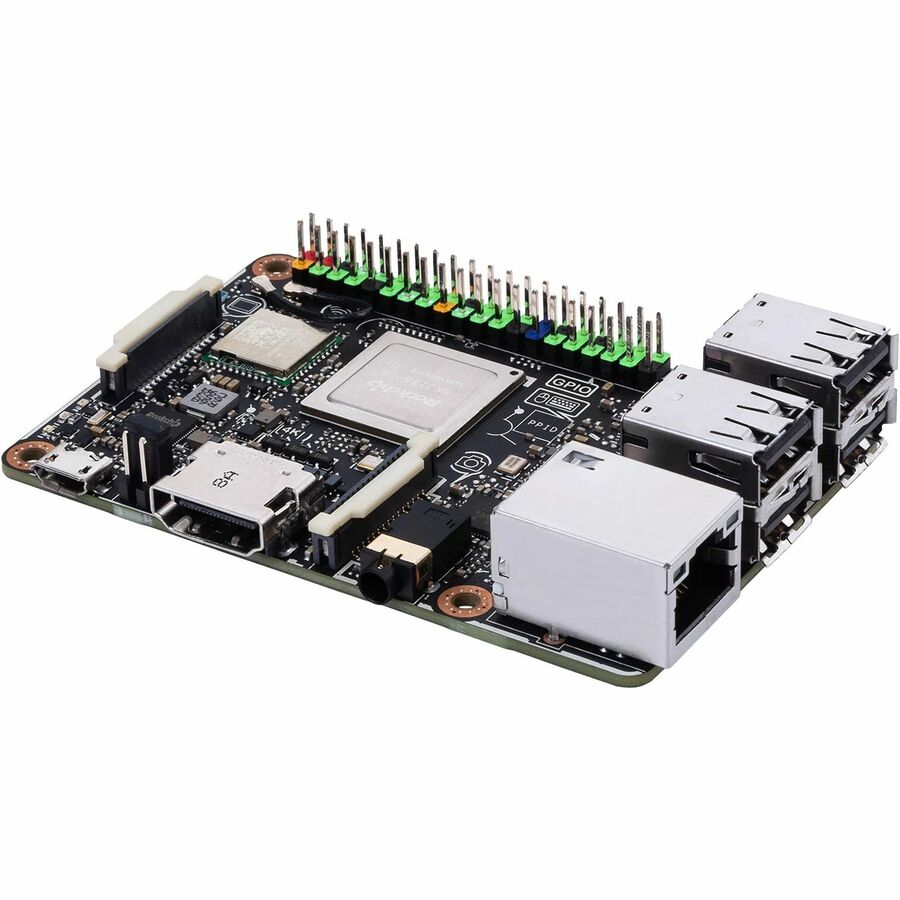

Tinker Board S R2.0
ARM-based SBC with enhanced and better compatibility
The new and improved Tinker Board S R2.0 is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.
CLASS-LEADING PERFORMANCE
With its powerful and modern quad-core ARM-based processor - the Rockchip RK3288-CG.W - Tinker Board S R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali?-T764 GPU, Tinker Board S R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
HD AUDIO QUALITY
Tinker Board S R2.0 series is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.
The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
STANDARD INTERFACE FOR IOT CONNECTIVITY
Tinker Board S R2.0 series features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs. Tinker Board S R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.
Tinker Board S R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.
Tinker Board S R2.0 series also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
A VARIETY OF ACCESSORIES AVAILABLE
The PCB dimensions and topology of the Tinker Board S R2.0 series aligns with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.
Tinker Board S R2.0 series also includes a heatsink, which provides better thermal solution under heavy loading or in hot ambient environments. Additionally, an optional metallic case is also available for market-ready solution. With hassle-free installation, the aluminum case helps dissipate heat in fanless design, ensuring Tinker Board has a top-notch performance.
Creating new possibilities and advantages, Tinker Board S R2.0 series supports MIPI Convert Board and PoE Splitter Board to enhance convenience and functionality in different scenarios.
About ASUS ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. About ROG Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world. © 2024 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TINKER BOARD S R2.0A2G16G |
| Brand Name | Asus |
| Product Line | Tinker Board S R2.0 |
| Product Name | Tinker Board S R2.0 Single Board Computer Motherboard |
| Product Type | Single Board Computer Motherboard |
| Interfaces/Ports | |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Number of Memory Slots | 2 |
| Maximum Memory Supported | 2 GB |
| Memory Technology | DDR3 SDRAM |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n |
| Physical Characteristics | |
| Width | 3.4" |
| Depth | 2.1" |
| Processor & Chipset | |
| Chipset Manufacturer | Rockchip |
| Chipset Model | RK3288 |
| Total Processor Supported | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | Mali-T764 |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
