1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Fast Ethernet - 10/100Base-T, 100Base-FX - 0.55 km - USB - Desktop, Wall Mountable
SKU
Category
Transceivers/Media Converters
MSRP$328.00
$224.90
Save 31%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
Genuine Allied Telesis through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Transceivers/Media Converters
Overview

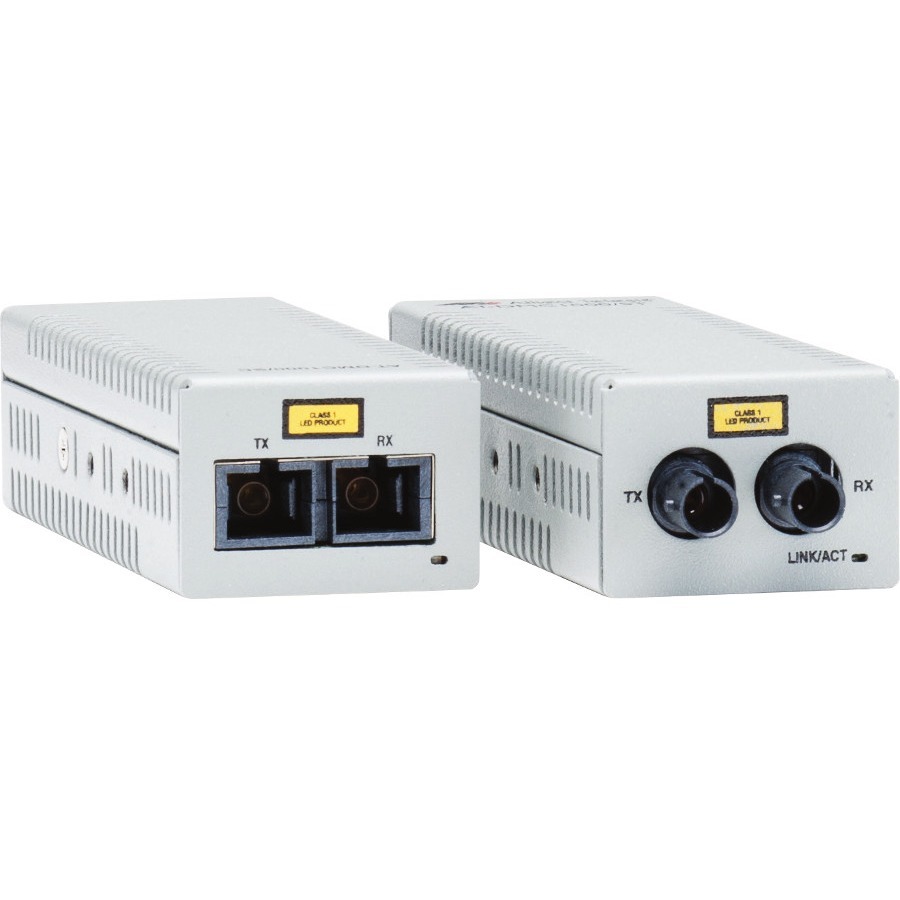

Desktop USB-Powered Media Converters
The Allied Telesis DMC Series of Gigabit mini media converters are among the smallest media converters in the market today.
Overview
At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact-with a small carbon footprint-the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements.
Fiber Connections
The Allied Telesis range of Gigabit media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting SC, ST and LC fiber connectors, these converters can be used to extend networks with up to 500m of multi-mode fiber.
Highlights
Auto Negotiation
Transparent to IEEE 802.1Q packets
Auto MDI/MDI-X
Smart MissingLink
Smart Link Restoration
Link test
RoHS Compliant
Wall-mountable using AT-DMCWLMT (sold separately)
Specifications
General Information
Manufacturer
Allied Telesis, Inc
Manufacturer Part Number
AT-DMC100/LC-90
Brand Name
Allied Telesis
Product Series
DMC
Product Model
AT-DMC100/LC-90
Product Name
DMC AT-DMC100/LC-90 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
DVI
No
USB
No
Management Port
No
Number of LC Ports
1
LC Port Type
Duplex
Number of Network (RJ-45) Ports
1
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Multi-mode
Maximum Distance Supported
0.55 km
Fiber Optic Cable Core/Cladding Specification
50/125 µm, 62.5/125 µm
Network & Communication
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T, 100Base-FX
Physical Characteristics
Form Factor
Desktop, Wall Mountable
Height
0.9"
Width
1.3"
Depth
3.6"
Weight (Approximate)
4 oz
Power Description
Power Source
USB
Miscellaneous
Package Contents
DMC AT-DMC100/LC-90 Transceiver/Media Converter
Micro USB to USB cable
Power Supply
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
