4 GB RAM DDR3L SDRAM - Gigabit Ethernet - 15" Active Matrix TFT LCD Touchscreen Display - Network (RJ-45) - 2 Total USB Port(s) - 1 USB 2.0 Port(s) - 1 USB 3.0 Port(s)
SKU
Category
Terminals/Thin Clients
$1,174.32
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Terminals/Thin Clients
Overview

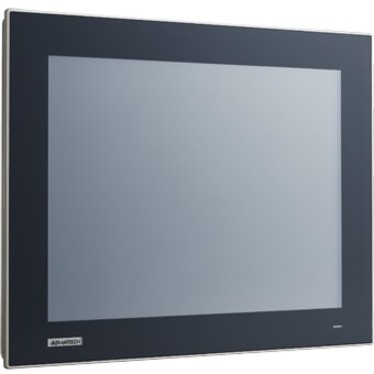

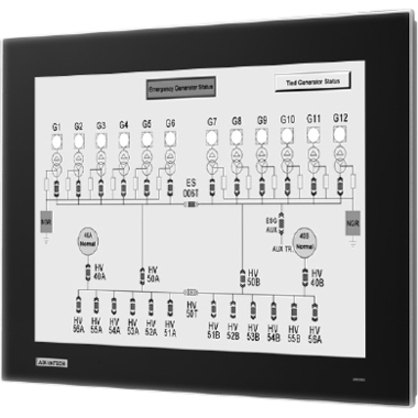

The TPC-1551T thin client terminal with a 15" XGA LCD, low power embedded Intel® Atom E3827 1.75 GHz Dual-core Processor and 4GB DDR3L SDRAM provides computing performance in a compact fanless system. To enhance its durability, the TPC-1551T is true-flat touchscreen designed with IP66 front protection, die-cast Al Alloy front bezel and 5-wire resistive touch. It supports wide operating temperatures -20~60°C and includes full size mini-PCIe slot to extend the functionality and meet a variety of automation applications needs. Through the Mini-PCIe slot, Advantech iDoor technology (optional) can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM.
Highlights
Compact Fanless Embedded System with Al Alloy Front Beze, Chassis Grounding Protection
Industrial 15" XGA TFT LCD with 50K Lifetime LED Backlight
Intel® Atom E3827 1.75 GHz Processor with 4GB DDR3L SDRAM
Support wide operating temperatures -20~60°C
True-flat with IP66 / non-flat with IP65 certified front panel protection
Front LED Indicator to Show Operating Status
Durable 5-wire Resistive Touch Screen

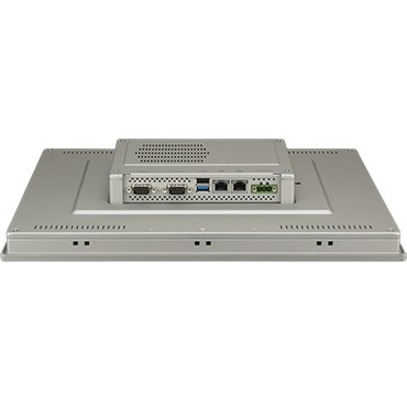

Full-size Mini PCIe Expansion Support
Supports iDoor technology for diverse applications (optional accessory required)
Supports Advantech SNMP Subagent
Specifications
Display & Graphics
Screen Size
15"
Display Screen Type
Active Matrix TFT LCD
Touchscreen
Yes
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
TPC-1551T-E3AE
Brand Name
B+B SmartWorx
Product Model
TPC-1551T
Product Name
15" XGA TFT LED LCD Intel Atom Thin Client Terminal
