SKU
ESRP-CMS-TPC1751
Category
Terminals/Thin Clients
Overview
Introduction
Realize the true value of thin client and centralized management technologies with Advantech's ThinManager compatible industrial thin clients. ACP's ThinManager, the leading thin client solution for the factory floor, and Advantech's industrially hardened thin client hardware provide a unique solution for centralized management of factory floor applications.

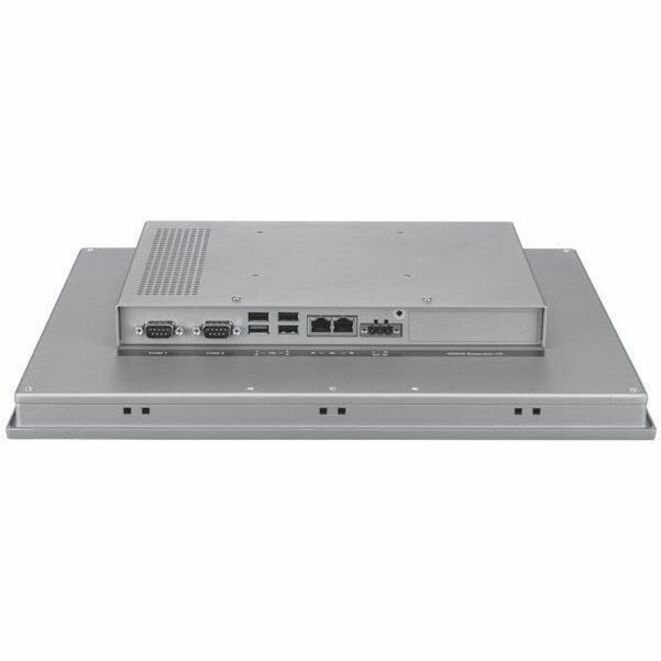

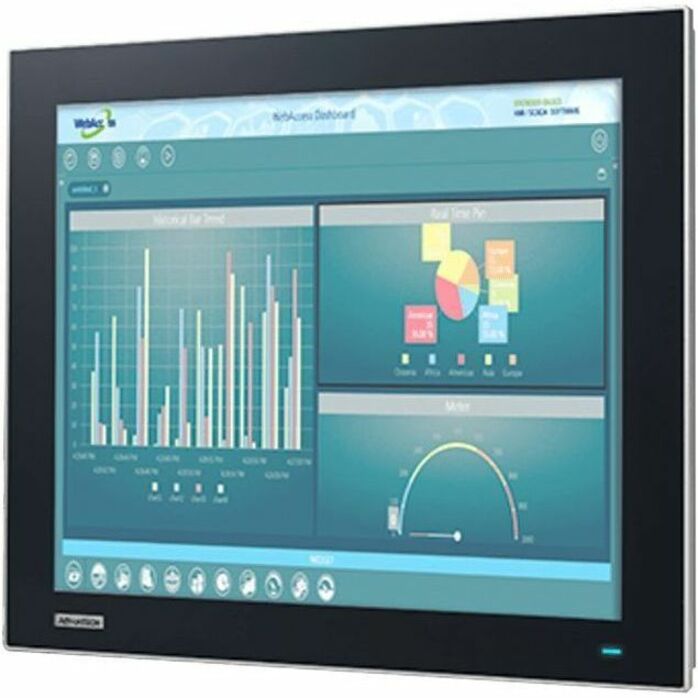

ESRP-CMS-TPC1751 is the next-generation model of Advantech's 17" industrial panel PC. Equipped with a 17" XGA TFT LED LCD, low-power Intel® Atom E3845, 1.91GHz, quadcore processor, and 4 GB of DDR3L SDRAM, TPC-1251T(B) delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, ESRP-ESRP-CMS-TPC1751 supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 100 x 100 VESA mount kit.
Highlights
Verified with ACP ThinManager, ACP BIOS enabled
Industrial-grade 17" XGA TFT LCD with 50K lifetime and LED backlight
Intel® Atom E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM
True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
Front-facing LED indicators to show operating status
Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
Supports VESA mount (100 x 100 mm)
Specifications
Chipset
Chipset Manufacturer
Intel
Display & Graphics
Screen Size
17"
Display Screen Type
Active Matrix TFT LCD
Screen Mode
SXGA
Screen Resolution
1280 x 1024
Touchscreen
Yes
Backlight Technology
LED
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
ESRP-CMS-TPC1751
Brand Name
Advantech
Product Model
ESRP-CMS-TPC1751
Product Name
17" Intel Atom Multi-Touch PC ACP Ready ThinClient
Product Type
Thin Client
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
4
Number of USB 2.0 Ports
3
Number of USB 3.0 Ports
1
Network (RJ-45)
Yes
Memory
Standard Memory
4 GB
Maximum Memory Supported
8 GB
Memory Technology
DDR3L SDRAM
Network & Communication
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Height
13.5"
Width
16.2"
Depth
2.2"
Weight (Approximate)
11.24 lb
Power Description
Maximum Power Supply Wattage
58 W
Processor
Processor Type
Atom
Processor Model
E3845
Processor Core
Quad-core (4 Core)
Processor Speed
1.91 GHz
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
