SKU
IDS-3212G-60XGA1E
Category
Touchscreen Monitors
Overview

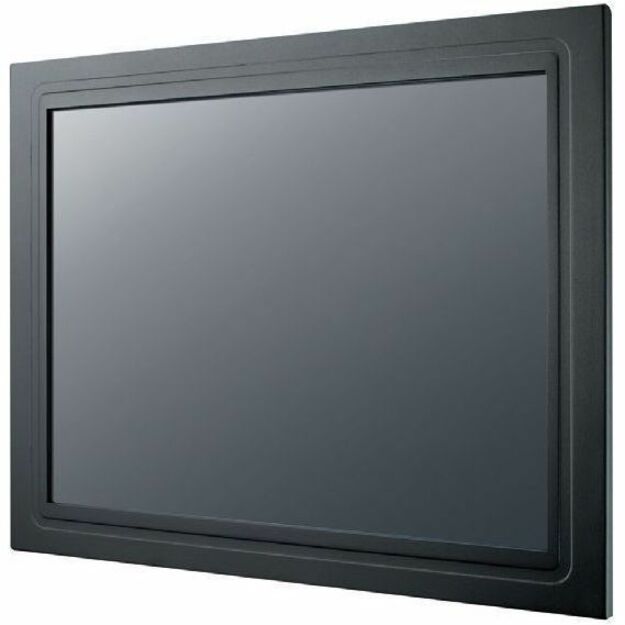

The Advantech IDS-3212 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation, and flexibility for different applications.
Warranty
Limited Warranty: 2 Year
Highlights
12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and environmental protection
-20° C ~ +60° C wide range operating temperature
5-wire resistive and P-cap touch screen solution or 3mm tempered smudge resistant protected glass
Combo touch interface, both RS-232 and USB
Dual signal interface with VGA & DVI
Standard integrated frame
Versatile mounting method for rear mounting and VESA mounting
Anti-Reflective treatment (optional)
Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IDS-3212G-60XGA1E
Brand Name
Advantech
Product Series
IDS-3212
Product Model
IDS-3212G-60XGA1E
Product Name
12.1" XGA 600 LED Panel Mount Monitor, 600nits w/Glass
Product Type
LED Touchscreen Monitor
Interfaces/Ports
USB
Yes
VGA
Yes
Number of USB Ports
1
DVI-D
Yes
Physical Characteristics
Height
10.3"
Width
12.7"
Depth
10.3"
Weight (Approximate)
5.51 lb
Power Description
Maximum Power Consumption
36 W
Technical Information
Screen Size Class
12"
Viewable Screen Size
12.1"
Screen Mode
XGA
Response Time
16 ms
Horizontal Viewing Angle
160°
Vertical Viewing Angle
140°
Mount Type
Panel Mount
Backlight Technology
LED
Features
Color Temperature Selection, On-screen Display (OSD), Anti-reflective
Touchscreen Information
Touchscreen Type
Tempered Glass
Multi-touch Screen
Yes
Number of Simultaneous Touchpoints
10
Video
Maximum Resolution
1024 x 768
Color Supported
16.2 Million Colors
Native Contrast Ratio
700:1
Brightness
600 Nit
Warranty
Limited Warranty
2 Year
Environmental Conditions
Operating Temperature Range
-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range
5% to 95% (Non-condensing)
Miscellaneous
Package Contents
12.1" XGA 600 LED Panel Mount Monitor, 600nits w/Glass
