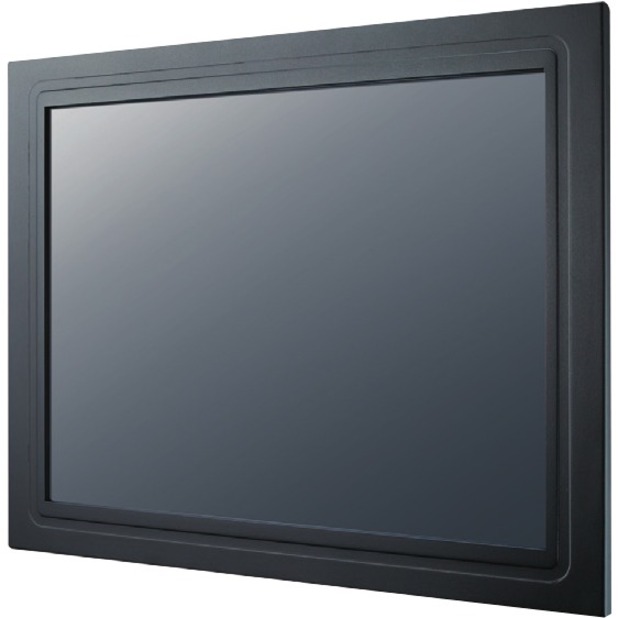

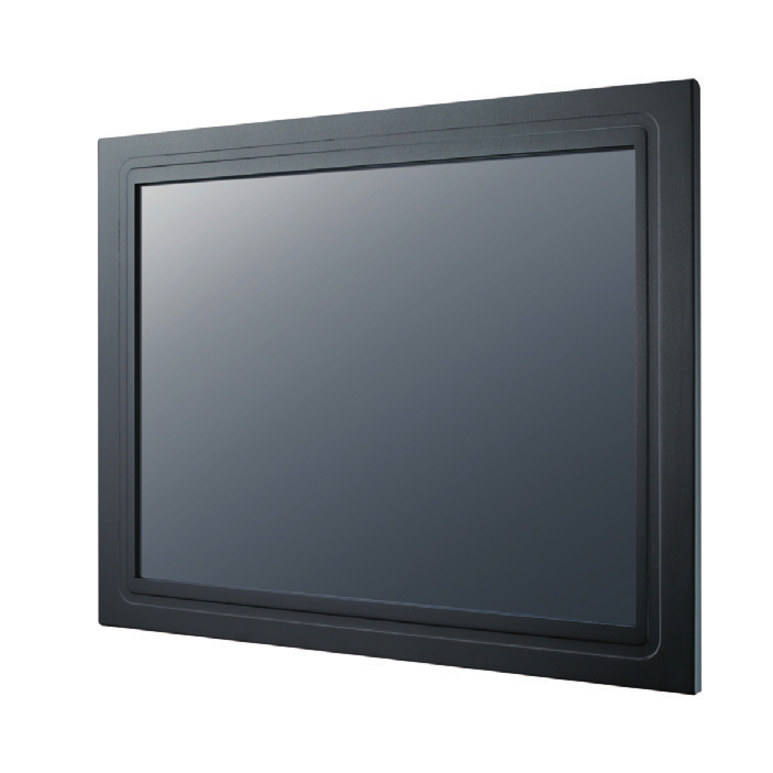

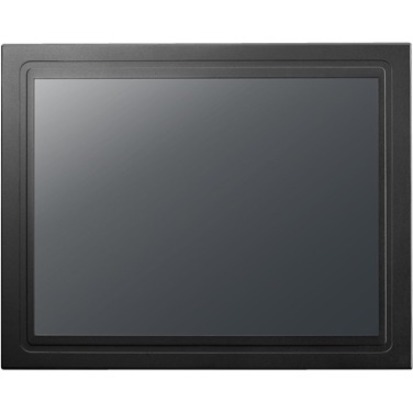

Advantech IDS-3212 LCD Touchscreen Monitor - 35 ms
Advantech

Advantech IDS-3212 LCD Touchscreen Monitor - 35 ms

12.1" Viewable - 5-wire Resistive - 800 x 600 - SVGA - 16.2 Million Colors - 700:1 - 450 Nit - LED Backlight

SKU
IDS-3212ER-45SVA1E
Category
Touchscreen Monitors

$467.29

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3212ER-45SVA1E
Category
Touchscreen Monitors

Overview

• 12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and environmental protection

• -20° C ~ +60° C wide range operating temperature

• 5-wire resistive touch screen solution or 3mm tempered smudge resistant protected glass

• Combo touch interface, both RS-232 and USB

• Dual signal interface with VGA & DVI

• Standard integrated frame

• Versatile mounting method for rear mounting and VESA mounting

• Anti-Reflective treatment (optional)

• Ultra high brightness solution of 1200 cd/m2 for utdoor applications (optional)

Highlights

  • The SVGA lcd touchscreen monitor is perfect for retail, hospitality, and point-of-sale applications
  • SVGA touchscreen supports SVGA resolution up to 800 x 600 pixels for simple, reliable display quality in standard applications
  • 5-wire Resistive technology works with almost any objectstylus, gloved hand, pen, or fingersfor versatile touch input
  • LED backlight technology reduces power use and hazardous materials for eco-friendly performance
  • View content easily in bright environments with 450 Nit brightness for uninterrupted touch control
  • The 700:1 contrast ratio offers superior shading for realistic images and smooth, responsive touch navigation

Specifications

Package Contents
  • 12" SVGA / XGA Industrial Panel Mount Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA cable 15P(M) 180 cm
  • 4 x Clamper
  • 4 x Screw of clamper M4_25L
  • 1 x Cable clamp
  • 1 x Screw of cable clamp
  • 1 x Cable tie
Product TypeLCD Touchscreen Monitor
Contrast Ratio700:1
Manufacturer Part NumberIDS-3212ER-45SVA1E
Packaged Quantity1
Response Time35 ms
Touchscreen Type5-wire Resistive
Weight (Approximate)5.51 lb
Brightness450 Nit
Color Supported16.2 Million Colors
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3212
Product Name12" SVGA / XGA Industrial Panel Mount Monitor
Viewable Screen Size12.1"
Maximum Resolution800 x 600
Brand NameAdvantech
Screen ModeSVGA
Country of OriginTaiwan
Height10.3"
Width12.7"
Depth1.4"
Environmentally FriendlyYes
Backlight TechnologyLED
