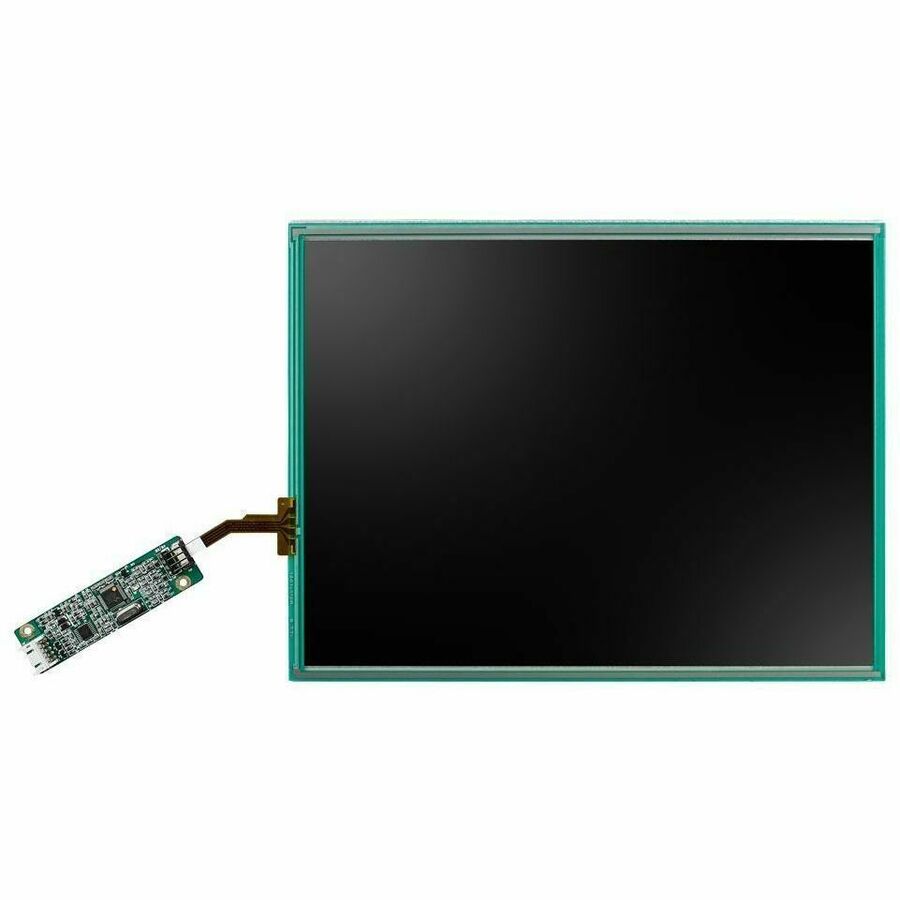

Advantech IDK-1110R-40SVA1E 10" Class LED Touchscreen Monitor - 4:3
10.4" Viewable - 4-wire Resistive - 800 x 600 - SVGA - 16.2 Million Colors - 400 Nit - LED Backlight - USB
- SKU
- IDK-1110R-40SVA1E
- Category
- Touchscreen Monitors
$211.06
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- IDK-1110R-40SVA1E
- Category
- Touchscreen Monitors
Overview

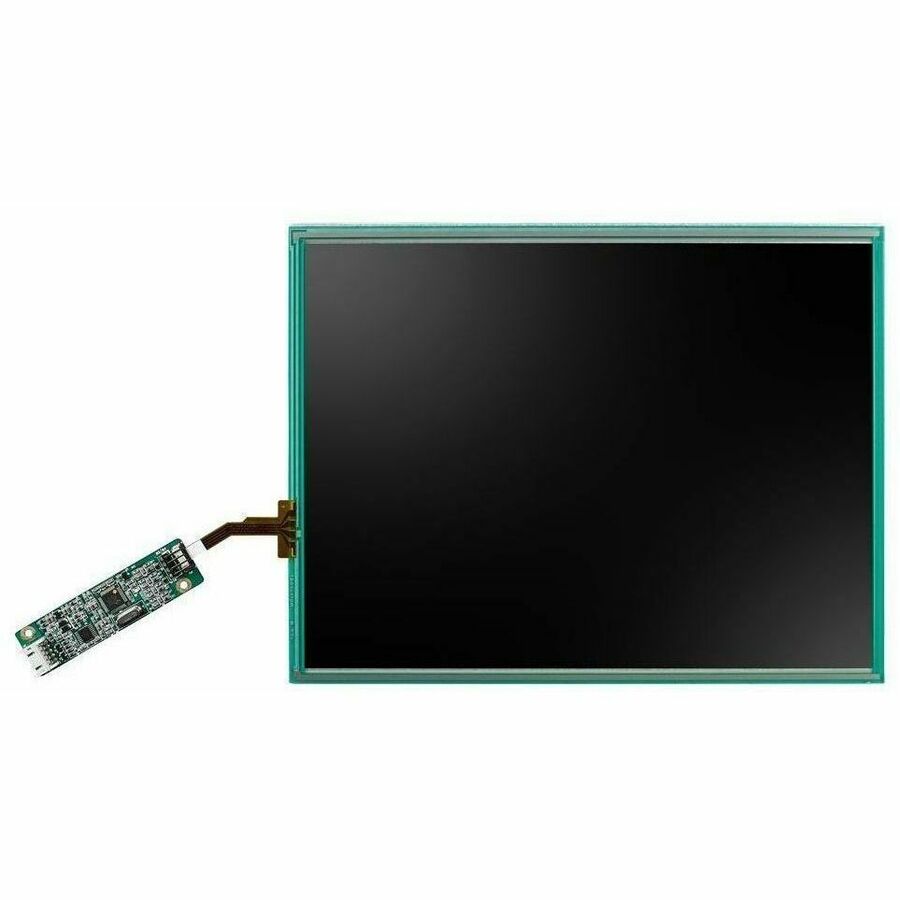

The Advantech IDK-1110 series comes with a 10.4" industrial grade LCD display with 4-wire resistive touch. The series is also available with flexible options for LCD screens enhanced treatment such as Anti-Reflection surface treatment and optical bonding solution. IDK-1110 series supports 4-wire resistive and projected capacitive touch with low power consumption. IDK-1110 series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
Highlights
- 10.4" LCD supports 800 x 600 and 1024 x 768 restitution

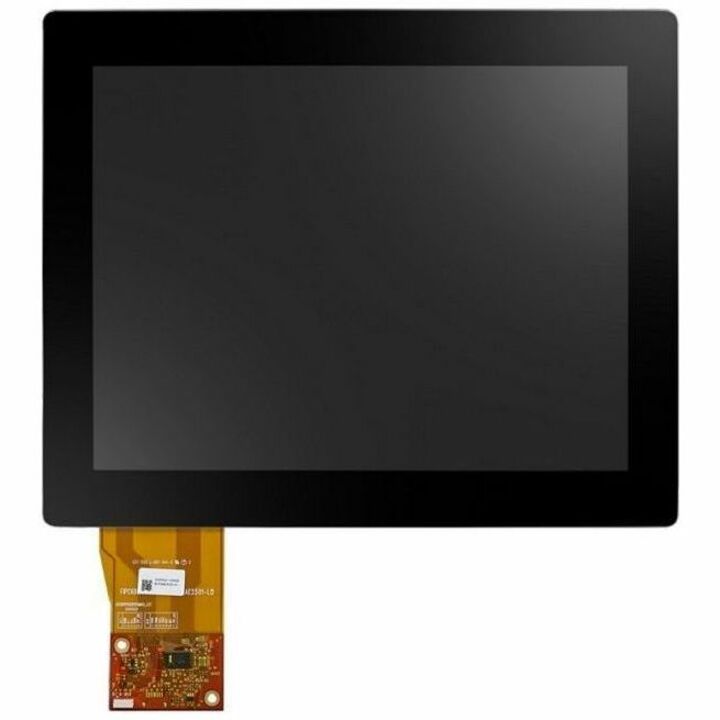

- 4-wire resistive and projected capacitive touch solutions
- LVDS signal interface
- LED driver board built in
- Touch controller included (USB)
- Anti-Reflection surface treatment (customized solution)
- Optical bonding (customized solution)
Specifications
| Aspect Ratio | 4:3 |
|---|---|
| Package Contents |
|
| Product Type | LED Touchscreen Monitor |
| Manufacturer Part Number | IDK-1110R-40SVA1E |
| Touchscreen Type | 4-wire Resistive |
| Brightness | 400 Nit |
| Color Supported | 16.2 Million Colors |
| Features | Anti-glare, Anti-reflective |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDK-1110R-40SVA1E |
| Product Name | IDK-1110R-40SVA1E Touchscreen LED Monitor |
| Product Series | IDK-1110 |
| Viewable Screen Size | 10.4" |
| Maximum Resolution | 800 x 600 |
| Brand Name | Advantech |
| Screen Mode | SVGA |
| Height | 7.2" |
| Width | 9.6" |
| Depth | 0.3" |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 130° |
| USB | Yes |
| Backlight Technology | LED |
| Native Contrast Ratio | 700:1 |
| Maximum Power Consumption | 2.88 W |
| Screen Size Class | 10" |
| Glass Hardness | 3H |
| Operating Temperature Range | 14°F (-10°C) to 140°F (60°C) |
