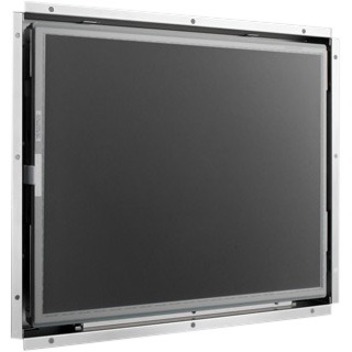

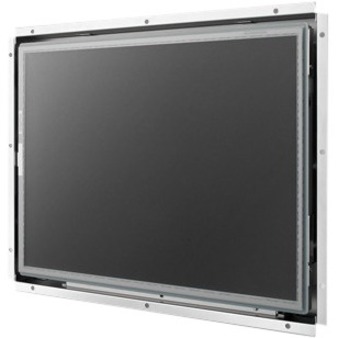

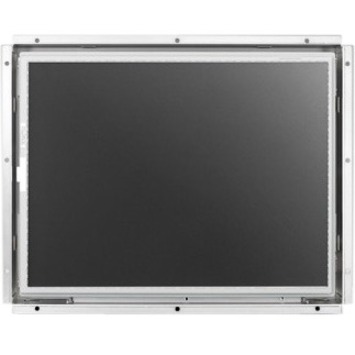

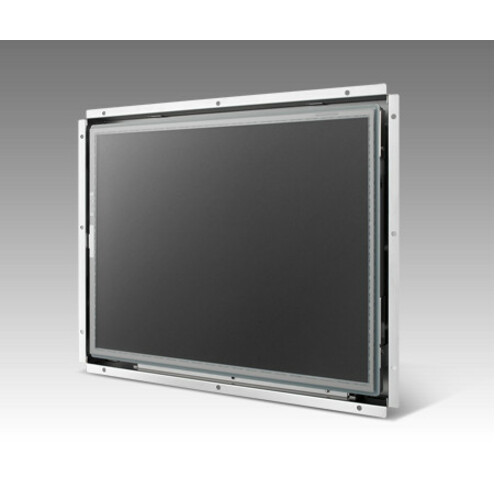

Advantech IDS-3112R-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 16 ms
Advantech

Advantech IDS-3112R-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 16 ms

12.1" Viewable - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 600 Nit - LED Backlight - DVI - USB - VGA - 2 Year

SKU
IDS-3112R-60XGA1E
Category
Touchscreen Monitors

$422.90

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3112R-60XGA1E
Category
Touchscreen Monitors

Overview

The Advantech IDS-3112 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets provide the benefits of easy installation, and flexibility for different applications.

Highlights

  • 12.1" 800 x 600 SVGA panel with LED backlight for 20% power saving and environmental protection
  • -20°C~+60°C wide operating temperature support
  • 5-wires resistive touchscreen solution
  • Combo touch interface of RS-232 and USB
  • Dual signal interface with VGA and DVI
  • Integrated bracket for easy installation

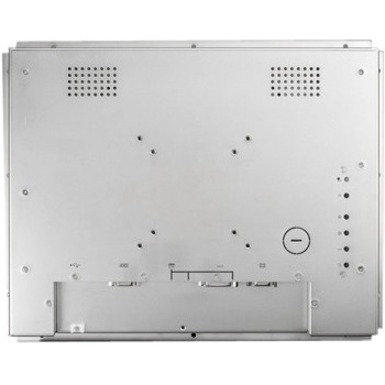

  • Versatile mounting methods for Rear mounting and VESA mounting

Specifications

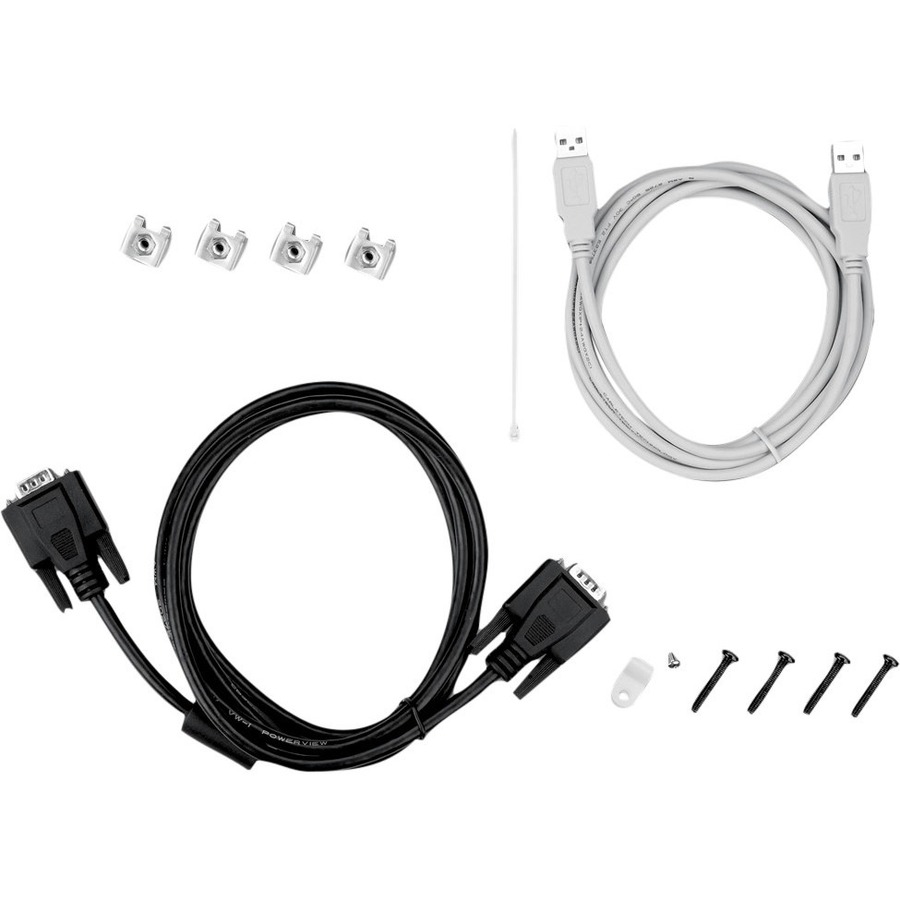

Package Contents
  • 12.1" XGA 600nits Open Frame Monitor with 5-Wire Resistive Touch
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA cable 15P(M) 180 cm
  • 4 x Clamper
  • 4 x Screw of clamper M4_25L
  • 1 x Cable clamp
  • 1 x Screw of cable clamp
  • 1 x Cable tie
Product TypeOpen-frame LCD Touchscreen Monitor
Manufacturer Part NumberIDS-3112R-60XGA1E
Response Time16 ms
Limited Warranty2 Year
Touchscreen Type5-wire Resistive
Weight (Approximate)4.70 lb
Brightness600 Nit
Color Supported16.2 Million Colors
Features3H Surface Hardness, Tempered Glass, On-screen Display (OSD)
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3112R-60XGA1E
Product Name12.1" XGA 600nits Open Frame Monitor with 5-Wire Resistive Touch
Mount TypeRear Mount
Product SeriesIDS-3112
Viewable Screen Size12.1"
Maximum Resolution1024 x 768
Brand NameAdvantech
Screen ModeXGA
Height9.9"
Width12.6"
Depth1.3"
Horizontal Viewing Angle160°
Vertical Viewing Angle140°
Environmentally FriendlyYes
USBYes
Backlight TechnologyLED
VESA Mount CompatibleYes
Native Contrast Ratio700:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class12"
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
