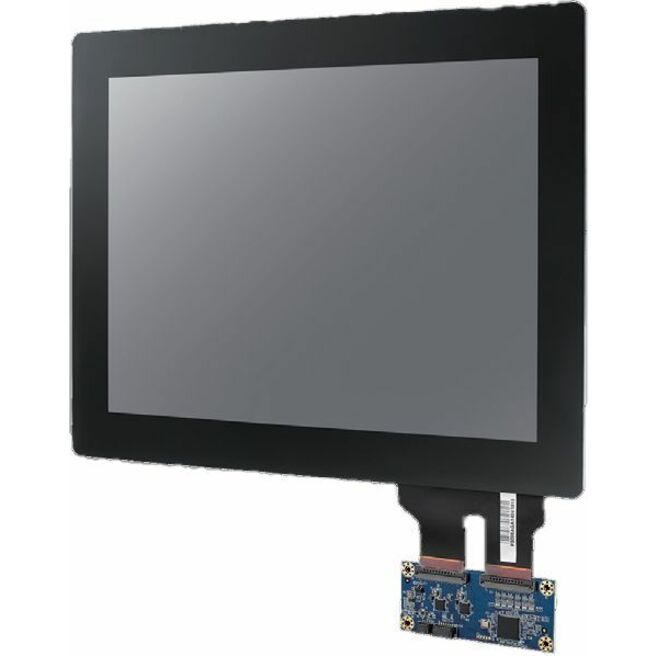

Advantech IDK-1110P-50XGA1E 10" Class LED Touchscreen Monitor
25 ms
10.4" Viewable - Projected Capacitive - 5 Point(s) Multi-touch Screen - 1024 x 768 - XGA - 16.2 Million Colors - 500 Nit - LED Backlight - USB
SKU
Category
Touchscreen Monitors
$400.67
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Touchscreen Monitors
Overview
Introduction

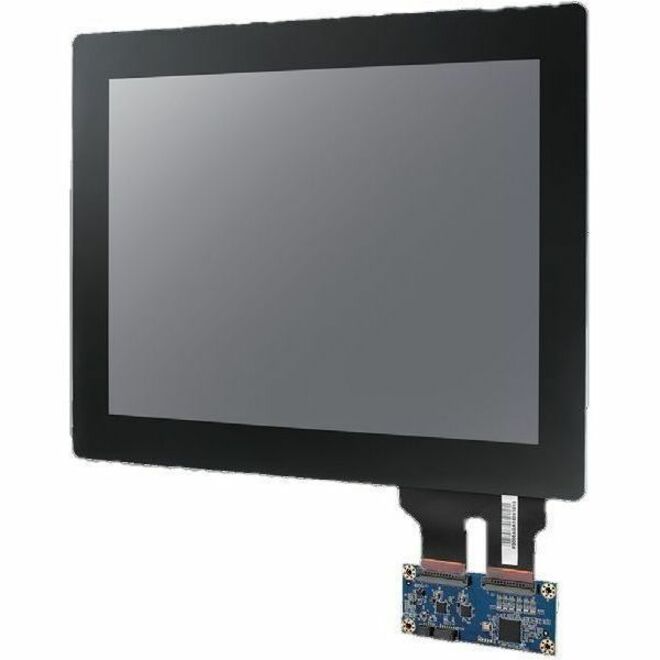

The Advantech IDK-1110P series comes with a 10.4" industrial grade LCD display with P-cap touch. The series is with touch with edge to edge design. IDK-1110P series supports P-cap touch with low power consumption at the maximum of 10 W. IDK-1110P series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
Highlights
10.4" LCD supports 1024 x 768 pixels and wide operating temperature (-20 ~ 70° C)
Brightness of 500 cd/m2 with LED backlight
Projected Capacitive touchscreen
High contrast ratio of 1000:1
High uniformity of 75%
LVDS signal interface
Low power consumption 10 W (panel only)
LED driver board built in
Touch controller included (USB/I2C/UART)
Touch support up to 5 points
Optical bonding (optional)
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IDK-1110P-50XGA1E
Brand Name
Advantech
Product Series
IDK-1110P
Product Model
IDK-1110P-50XGA1E
Product Name
10.4" XGA Industrial Display Kit With Touch Solution
Product Type
LED Touchscreen Monitor
Interfaces/Ports
USB
Yes
Physical Characteristics
Height
8"
Width
9.9"
Depth
0.4"
Weight (Approximate)
1.10 lb
Power Description
Maximum Power Consumption
10 W
Technical Information
Screen Size Class
10"
Viewable Screen Size
10.4"
Screen Mode
XGA
Response Time
25 ms
Horizontal Viewing Angle
176°
Vertical Viewing Angle
176°
Backlight Technology
LED
Features
Edge-to-Edge Glass Design
Touchscreen Information
Touchscreen Type
Projected Capacitive
Multi-touch Screen
Yes
Number of Simultaneous Touchpoints
5
Video
Maximum Resolution
1024 x 768
Color Supported
16.2 Million Colors
Native Contrast Ratio
1,000:1
Brightness
500 Nit
Environmental Conditions
Operating Temperature Range
-4°F (-20°C) to 158°F (70°C)
Miscellaneous
Package Contents
10.4" XGA Industrial Display Kit With Touch Solution
