Advantech DS-980GB-00A1E Digital Signage Appliance
Core i7 - HDMI - USB - SerialEthernet
SKU
Category
Digital Signage Systems
$962.79
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Digital Signage Systems
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

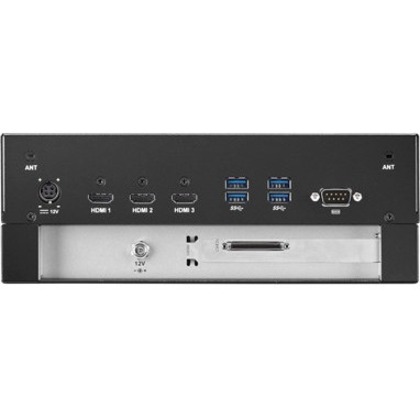

Advantech DS-980 is the first video wall solution of digital signage players, which is powered by the 6th generation Intel® Core i7/ i5/ i3/ Celeron rPGA processor (LGA 1151), and stackable design for PCI Express 3.0 x16 expansion which is used for optional graphic cards. DS-980 delivers the exceptional graphic performance by Intel HD Graphics 530 which supports HEVC/265, AVC/264, MPEG2, VC1/WMV9, VP8, JPEG/MJPEG, VP9 video format. Additionally, DS-980 adopts the latest interfaces to fulfill the customer's advanced requirements, such as HDMI2.0 supports 4096 x 2160 @60Hz maximum resolution, DDR4 2133MHz SO-DIMM with dual channel (maximum capacity for 32GB, 16GB per SO-DIMM), and M.2 (2230 E key) for wireless function. Total display outputs on the DS-980 motherboard are 3 x HDMI which are designed for 1 x HDMI2.0 (printed HDMI1); 2 x 1.4 (printed HDMI2 & HDMI 3; HDMI2 supports CEC function). The maximum resolution is true 4K (4096 x 2160 @ 60Hz). Not only 3 x HDMI outputs but also the extra outputs from PCI Express 3.0 x16 slot for optional graphic card further support up to 6 outputs and realize the video wall application in retails, public services, institute and etc..
Warranty
Limited Warranty: 3 Year
Highlights
Empowered by 6th Intel Core i7-6700TE/ i5-6500TE/ i3-6100TE/ Celeron G3900TE
Supports True 4K (4096 x 2130 @60Hz) resolution by HDMI2.0
Innovative stackable & expandable design for PCI Express x16 slot
Efficiently deploy multi-display configurations by WebAccess/IMM, any 1x6, 2x3, 3x2, 6x1
Supports Microsoft Windows 10 with proven compatibility
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
DS-980GB-00A1E
Brand Name
Advantech
Product Series
DS-980
Product Model
DS-980GB-00A1E
Product Name
DS-980GB-00A1E Digital Signage Appliance
Packaged Quantity
1
Product Type
Digital Signage Appliance
Interfaces/Ports
USB
Yes
HDMI
Yes
Serial
Yes
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
4
Number of HDMI Outputs
3
Network & Communication
Ethernet
Yes
Physical Characteristics
Height
3.5"
Width
10.5"
Depth
8.1"
Weight (Approximate)
7.94 lb
Power Description
Input Voltage
12 V DC
Processor & Chipset
Processor Type
Core i7
Technical Information
Video Wall Compatible
Yes
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
DS-980GB-00A1E Digital Signage Appliance
1 x 12V DC-in 150W power adapter
1 x Signage Software (WISE-PaaS/RMM & WebAccess/IMM) CD package
1 x China RoHS declaration
1 x Traditional & Simplified Chinese User Manual
1 x Warranty card
2 x Mounting brackets with 4 screws
4 x Stand rubber with 4 screws
1 x 2nd Storage module
1 x Bracket
4 x Damper
4 x Screws for installing on a bottom layer
4 x Step screws for installing storage on a bracket
