Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Digital Signage Systems
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

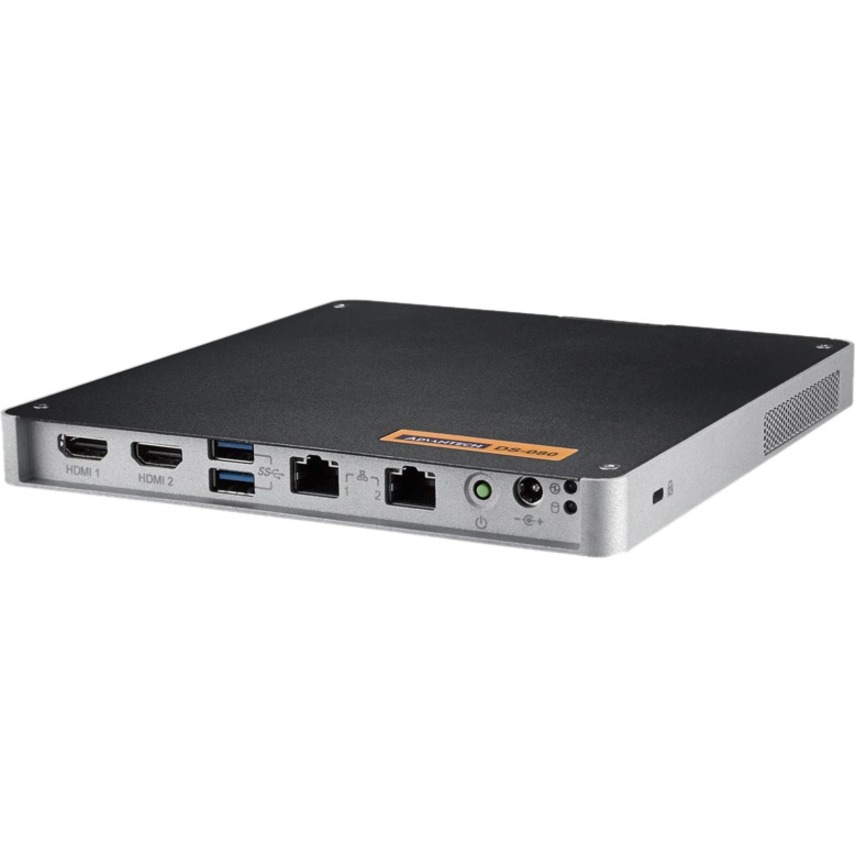

Measuring a mere 19 mm thick, DS-080 is undoubtedly the world's slimmest digital signage player powered by 5th generation Intel® Core i5/Celeron® processor.
This thin-and-powerful signage player is equipped with 2x HDMI display outputs; upto dual 4K ultraHD resolution that delivers a premium visual experience.
DS-080 comes pre-loaded with an embedded OS, and management software and APIs. Advantech has designed DS-080 in the smallest possible form factor, for optimized performance.
Warranty
Limited Warranty: 3 Year
Highlights
Power by 5th Generation Intel® Core i5-5350U/5200U/Celeron® 3765U processors
Adopts both embedded/non-embedded processors for different application needs
19mm-thin chassis ideal for space-limited installation

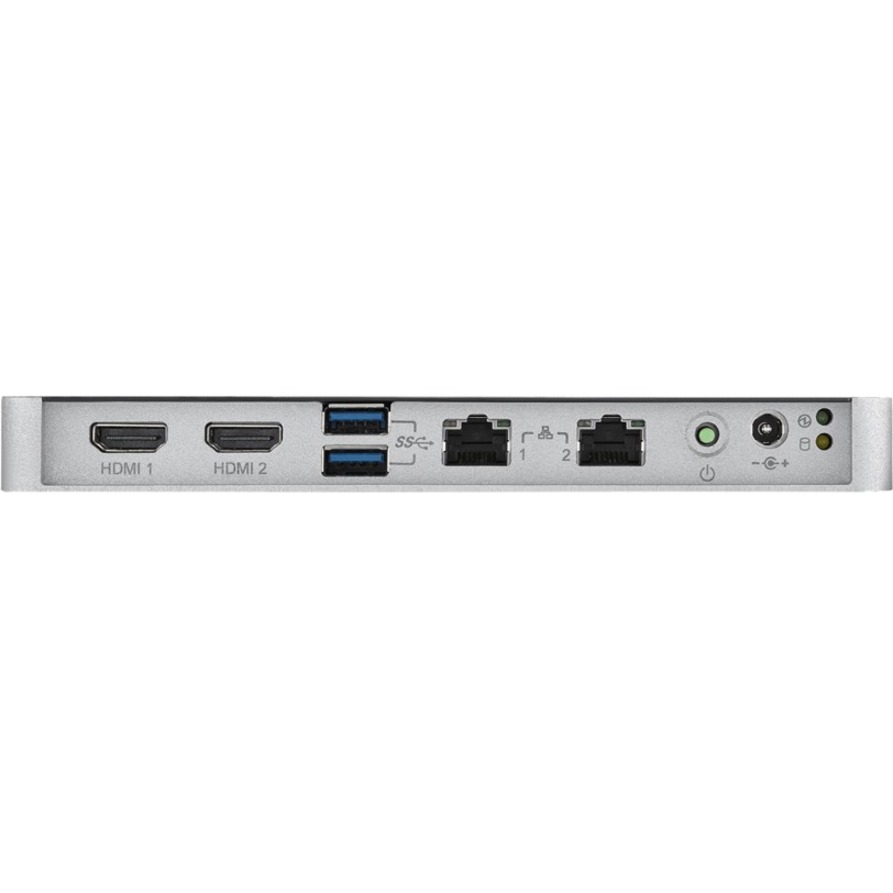

Dual HDMI display output, resolution up to 3840 x 2160 UHD
Fanless & Cable-less design for easy maintenance
Highly expandable via internal Mini-PCIe interface (M-SATA compliant)
Supports WISE-PaaS/RMM and Embedded Software APIs
Supports WebAccess/IMM for intuitive signage content managing, remote monitoring and control
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
DS-080GB-S8A1E
Brand Name
Advantech
Product Series
DS-080
Product Model
DS-080GB-S8A1E
Product Name
5th Generation Intel Core i5/Celeron Ultra-slim Fanless Digital Signage Player
Packaged Quantity
1
Product Type
Digital Signage Appliance
Interfaces/Ports
USB
Yes
HDMI
Yes
Serial
Yes
Number of USB 3.0 Ports
4
Number of HDMI Outputs
2
Network & Communication
Ethernet
Yes
Physical Characteristics
Height
0.7"
Width
7.1"
Depth
7.5"
Weight (Approximate)
1.92 lb
Power Description
Input Voltage
19 V DC
Processor & Chipset
Processor Type
Core i5
Processor Core
Single-core (1 Core)
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
5th Generation Intel Core i5/Celeron Ultra-slim Fanless Digital Signage Player
