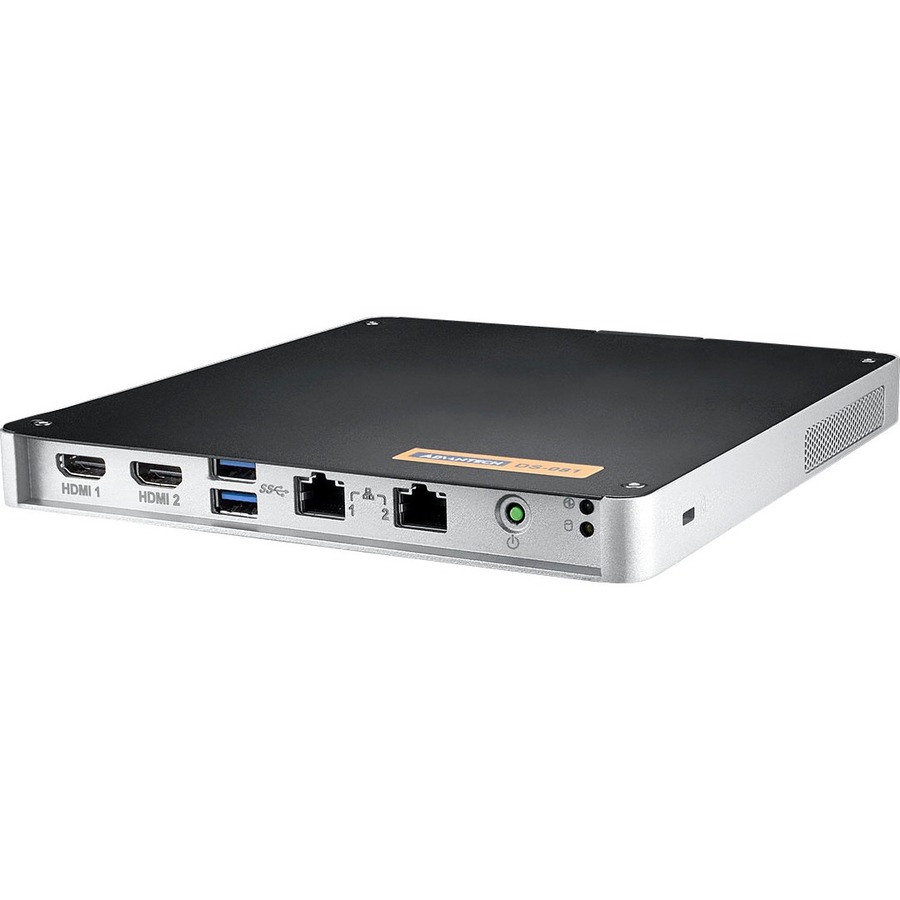

Advantech 6th Gen. Intel Core i3/i5 Ultra-slim Fanless Digital Signage Player
Core i3 - HDMI - USB - SerialEthernet
SKU
Category
Digital Signage Systems
$779.52
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Digital Signage Systems
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Measuring at 19 mm thick, DS-081 is the world's slimmest digital signage player powered by 6th Generation Intel® Core i3/i5 processors. This thin-and-powerful signage player is equipped with 2x HDMI display which is capable to achieve up to 4096 x 2304 UHD resolution, and delivers a premium visual experience when graphics performance really matters. Windows® Embedded OS, Linux are supported, and Advantech WebAccess/IMM, Web-based content management software, is also free on offer. We've designed the DS-081 in the smallest possible form factor, for optimized performance.
Warranty
Limited Warranty: 3 Year
Highlights
Power by Intel Core i5-6300U/6200U, Core i3-6100U processors
Adopts embedded/non-embedded processors for different application needs
19mm-thin chassis ideal for space-limited installation
Dual HDMI display output, resolution up to 4096 x 2304 UHD
Fanless & Cable-less design for easy maintenance
Highly expandable via internal Mini-PCIe interface (M-SATA compliant)
Supports WISE-PaaS/RMM and Embedded Software APIs
Supports WebAccess/IMM for intuitive signage content managing, remote monitoring and control
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
DS-081GB-U2A1E
Brand Name
Advantech
Product Series
DS-081
Product Model
DS-081GB-U2A1E
Product Name
6th Gen. Intel Core i3/i5 Ultra-slim Fanless Digital Signage Player
Packaged Quantity
1
Product Type
Digital Signage Appliance
Interfaces/Ports
USB
Yes
HDMI
Yes
Serial
Yes
Number of USB 3.0 Ports
4
Number of HDMI Outputs
2
Network & Communication
Ethernet
Yes
Physical Characteristics
Height
0.7"
Width
7.1"
Depth
7.5"
Weight (Approximate)
1.92 lb
Power Description
Input Voltage
19 V DC
Processor & Chipset
Processor Type
Core i3
Processor Core
Single-core (1 Core)
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
6th Gen. Intel Core i3/i5 Ultra-slim Fanless Digital Signage Player
