Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Digital Signage Systems
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Introducton

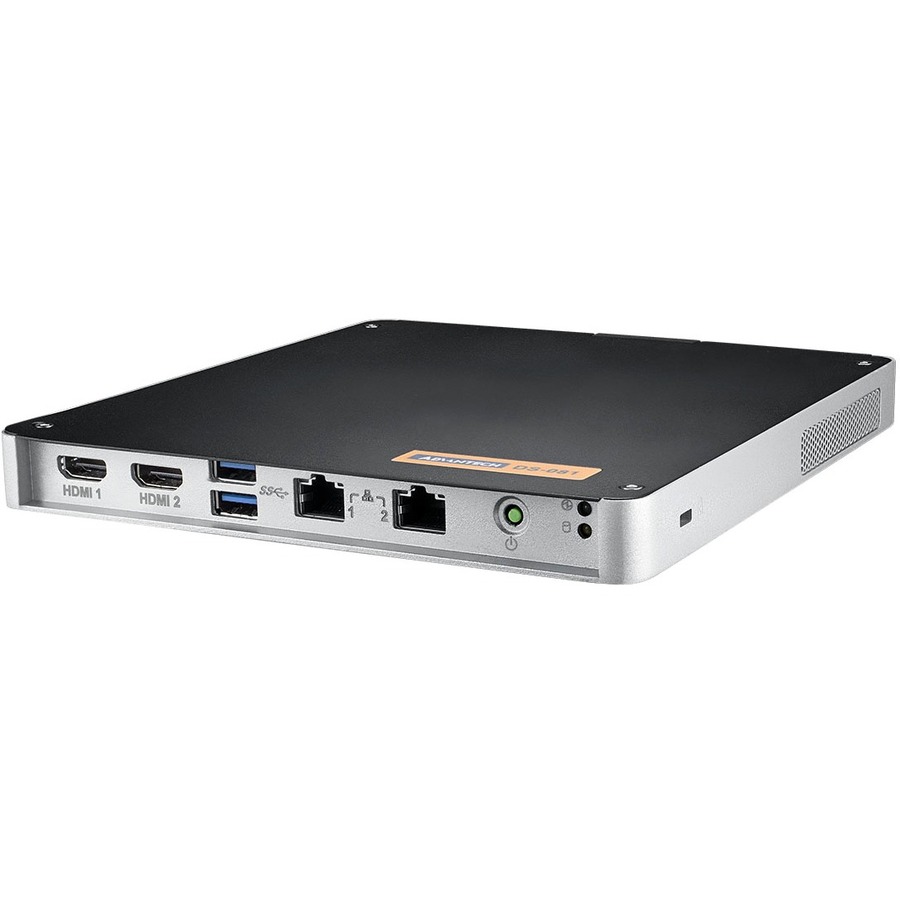

Measuring at 19 mm thick, DS-081 is the world's slimmest digital signage player powered by 6th/7th Generation Intel® Core and Intel® Celeron® Mobile-U processor. This thin-andpowerful signage player is equipped with 2x HDMI display which is capable to achieve up to 4096 x 2304 UHD resolution, and delivers a premium visual experience when graphics performance really matters. Windows® Embedded OS, Linux are supported, and Advantech WISE-PaaS/SignageCMS, Web-based content management software, is also free on offer. We've designed the DS-081 in the smallest possible form factor, for optimized performance.
Highlights
Power by 6th/7th Generation Intel® Core and Intel® Celeron® Mobile-U
processor
Adopts embedded/non-embedded processors for different application needs
19mm-thin chassis ideal for space-limited installation
Dual HDMI display output, resolution up to 4096 x 2304 UHD
Fanless & Cable-less design for easy maintenance
Highly expandable via internal Mini-PCIe interface (M-SATA compliant)
Supports WISE-PaaS/RMM and Embedded Software APIs
Supports WebAccess/IMM for intuitive signage content managing, remotemonitoring and control
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
DS-081GB-U1A1E
Brand Name
Advantech
Product Series
DS
Product Model
DS-081
Product Name
DS-081 Ultra-slim Fanless Digital Signage Player
Packaged Quantity
1
Product Type
Digital Signage Appliance
Interfaces/Ports
USB
Yes
HDMI
Yes
Serial
Yes
Number of USB 3.0 Ports
4
Number of HDMI Outputs
2
Network & Communication
Ethernet
Yes
Physical Characteristics
Product Color
Black, Silver
Height
0.7"
Width
7.1"
Depth
7.5"
Weight (Approximate)
1.92 lb
Power Description
Input Voltage
19 V DC
Processor & Chipset
Processor Type
Celeron
Storage
Total Hard Drive Capacity
32 GB
Miscellaneous
Package Contents
DS-081 Ultra-Slim Fanless Digital Signage Player
1 x 19V Power Adapter
2 x Wall Mount Brackets
1 x Installation DVD for Management Software
1 x Simplified Chinese Manual
1 x Traditional Chinese Manual
4 x Rubber Foot and Screws
Environmentally Friendly
Yes
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
