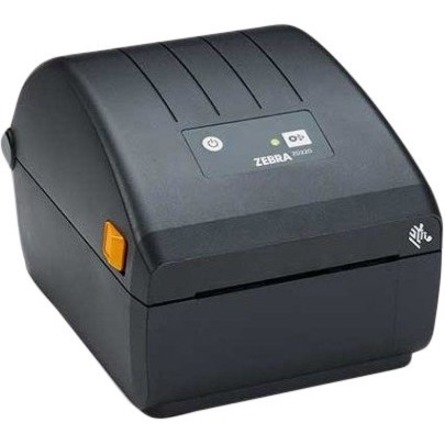

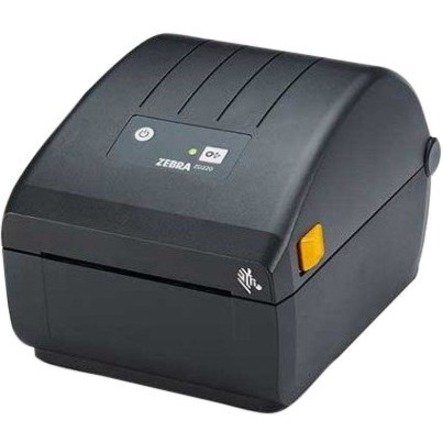

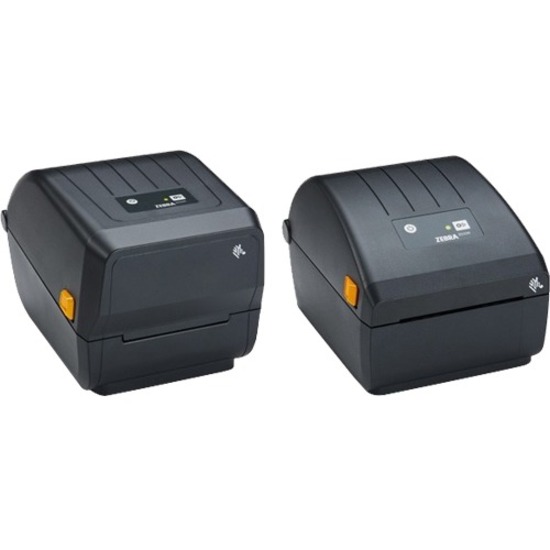

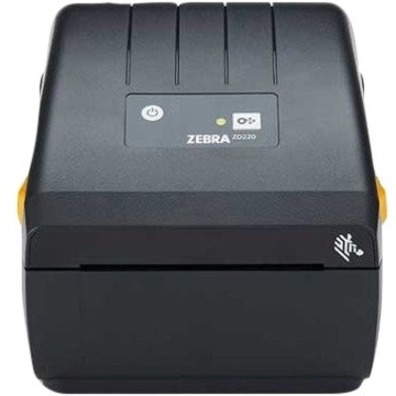

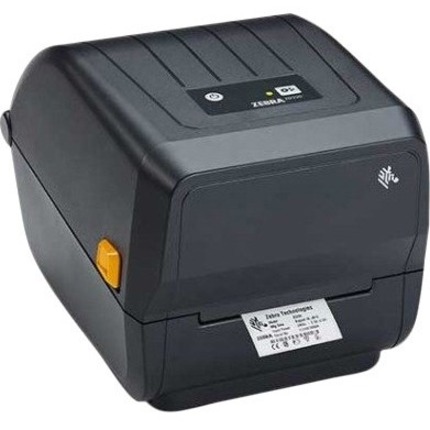

Zebra ZD230 Desktop Thermal Transfer Printer - Monochrome - Label/Receipt Print - Ethernet - USB - AR
4.09" Print Width - 5.98 in/s Mono - 203 dpi - 4.41" Label Width - 39.02" Label Length - ZPL II, EPL2, XML, EPL Emulation
- SKU
- ZD23042-305C00EZ
- Category
- Label/Receipt Printers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Zebra Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ZD23042-305C00EZ
- Category
- Label/Receipt Printers
Overview
Get More: Extra Features, Quality Construction, Exceptional Value
Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price-both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.
Get Printing Quickly
The ZD230 is simple to install and begin printing-right out of the box. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. USB, Ethernet, Wi-Fi and Bluetooth® connectivity options enable universal interoperability. The ZD230 can accommodate a 300 M ribbon roll to lengthen the time between media changes. And, Zebra's OpenACCESS? clamshell design expedites media replacement. It's also ENERGY STAR® qualified to reduce your operational expenses.
Just the Features You Need
This 4-inch printer produces labels quickly, up to 6" per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features Print DNA Basic, a core set of software applications and capabilities to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
Backed by Zebra's Worldwide Service and Support
Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare? provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more-all for a tiny fraction of the cost of a single repair.
Highlights
- Thermal Transfer or Direct Thermal print method
- ZPL and EPL programming languages
- Single LED status indicator
- Single button for feed/pause
- OpenACCESS? for easy media loading
- USB connectivity
- Dual-wall frame construction
- ENERGY STAR qualified
Specifications
| Application/Usage | Desktop |
|---|---|
| Barcode Symbology Supported | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC 2 or 5 Digit Extension, EAN With 2 or 5 Digit Extension, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, Planet Code, Codablock, PDF417, Code 49, Data Matrix, Maxi Code, QR Code, Micro PDF, AZTEC |
| Product Type | Thermal Transfer Printer |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | ZD23042-305C00EZ |
| Maximum Print Width | 4.09" |
| Power Source | AC Supply |
| Recommended Use | Label/Receipt Print |
| Maximum Roll Diameter | 5" |
| Limited Warranty | 12 Month |
| Standard Memory | 128 MB |
| Weight (Approximate) | 2.43 lb |
| Connectivity Technology | Wired |
| Features | Status Indicator |
| Language Emulation | ZPL II, EPL2, XML, EPL |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD230 |
| Product Name | ZD230 4-inch Value Desktop Printer |
| Product Series | ZD200 |
| Brand Name | Zebra |
| Media Type | Label, Receipt, Black Mark, Roll Fed, Fanfold, Die-cut Label, Continuous Label, Tag Stock, Continuous Receipt, Wristband |
| Height | 7.5" |
| Width | 7.8" |
| Depth | 10.5" |
| Maximum Mono Print Speed | 5.98 in/s |
| Ethernet | Yes |
| Media Sensor | Moveable Reflective/Black Mark Sensor, Gap Sensor |
| Ethernet Technology | Ethernet |
| USB | Yes |
| Maximum Label Width | 4.41" |
| Maximum Label Length | 39.02" |
| Print Color Capability | Monochrome |
| Energy Star | Yes |
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°F (-40°C) - 140°F (60°C) |
| Optional Connectivity | Bluetooth, Wireless LAN |
| Power Cable Localization | AR |
| Maximum Print Resolution (dpi) | 203 |
| Operating Temperature | 40°F (4.4°C) - 105°F (40.6°C) |
| Operating Relative Humidity | 10% - 90% |
