Genuine Zebra Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
223-801-00000
Category
Label/Receipt Printers
Overview

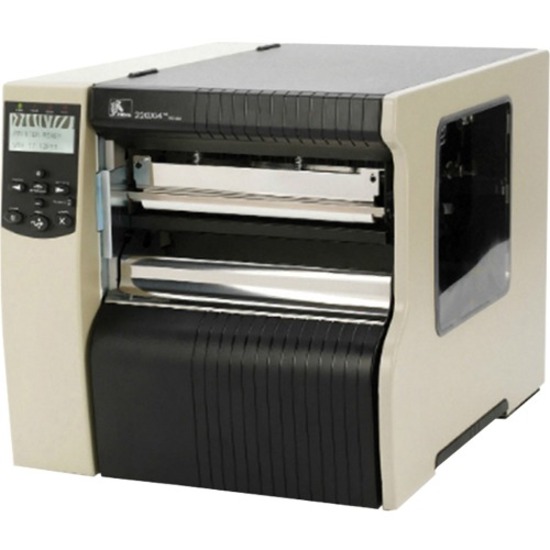

Designed to produce large labels at 300 dpi resolution, the 220Xi4 Thermal Label Printer is ideal for industrial applications such as chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.
Warranty
Limited Warranty: 1 Year
Highlights
Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
300 maximum print resolution (dpi) for better reliance and added usability
The printer is capable of printing sharp and detailed monochrome documents quickly
Enjoy the optimal performance in today's on-demand labeling applications
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
8.80" maximum label width to easily accommodate your needs with added productivity
12.50 ft maximum label length for your convenience and feasible usability
Supports black mark media type for dependable, efficient results with maximum productivity
LCD Display feature for maximum productivity with added dependability
Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
Specifications
General Information
Manufacturer
Zebra Technologies Corporation
Manufacturer Part Number
223-801-00000
Brand Name
Zebra
Product Series
Xi
Product Model
220Xi4
Product Name
220Xi4 Thermal Label Printer
Product Type
Direct Thermal/Thermal Transfer Printer
Interfaces/Ports
Parallel Port
Yes
Serial Port
Yes
USB
Yes
Media Types & Handling
Media Type
Black Mark, Continuous Form, Roll Fed, Die-cut Label, Fanfold
Media Sensor
Transmissive Media Sensor, Reflective Media Sensor
Media Thickness
12 mil
Maximum Roll Diameter
3.20"
Maximum Label Width
8.80"
Maximum Label Length
12.50 ft
Memory
Standard Memory
16 MB
Flash Memory
8 MB
Network & Communication
Ethernet
Yes
Ethernet Technology
Fast Ethernet
Physical Characteristics
Height
15.5"
Width
15.8"
Depth
20.4"
Power Description
Input Voltage
110 V AC
Technical Information
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
6 in/s
Maximum Print Resolution (dpi)
300
Maximum Print Width
8.50"
Barcode Symbology Supported
Code 11, Code 39, Code 93, Code 128, Code 128-B, Code 128-A, Code 128-C, Code 128 UCC, UPC-A, UPC-E, EAN-8, EAN-13, UPC 2 or 5 Digit Extension, EAN With 2 or 5 Digit Extension, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Planet Code, Codabar, Codablock, PDF-417, Code 49, Data Matrix, Maxi Code, QR Code, TLC 39, Micro PDF, Aztec Code, RSS, GS1 DataBar
