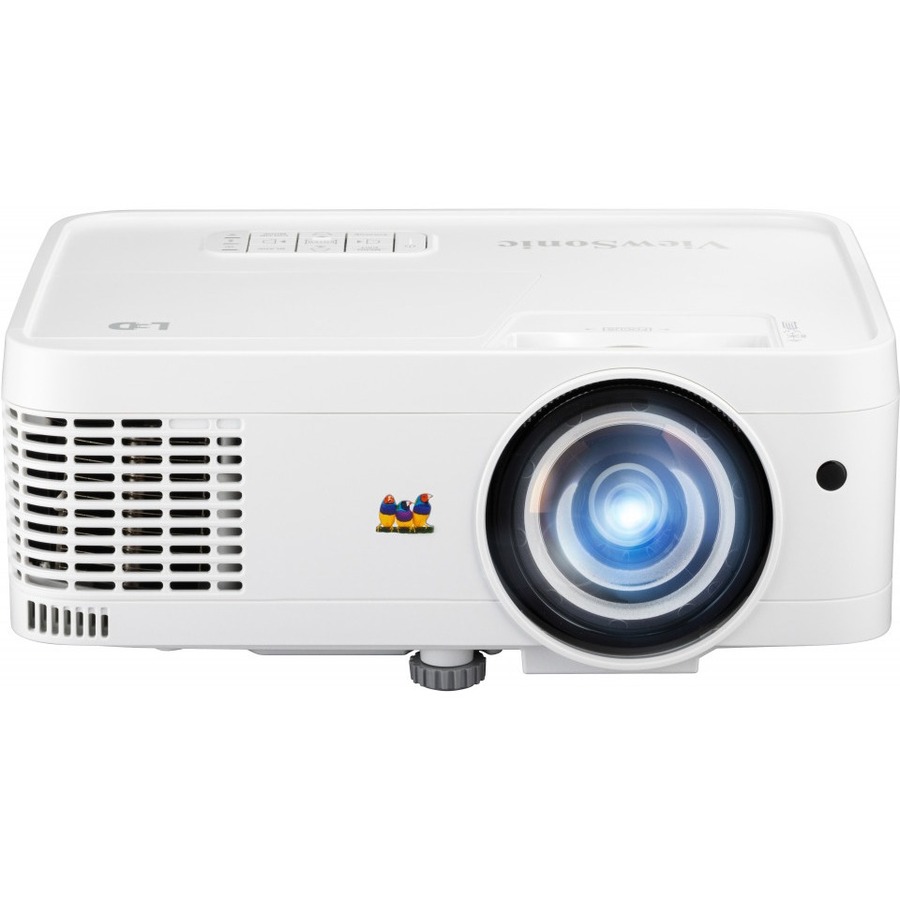

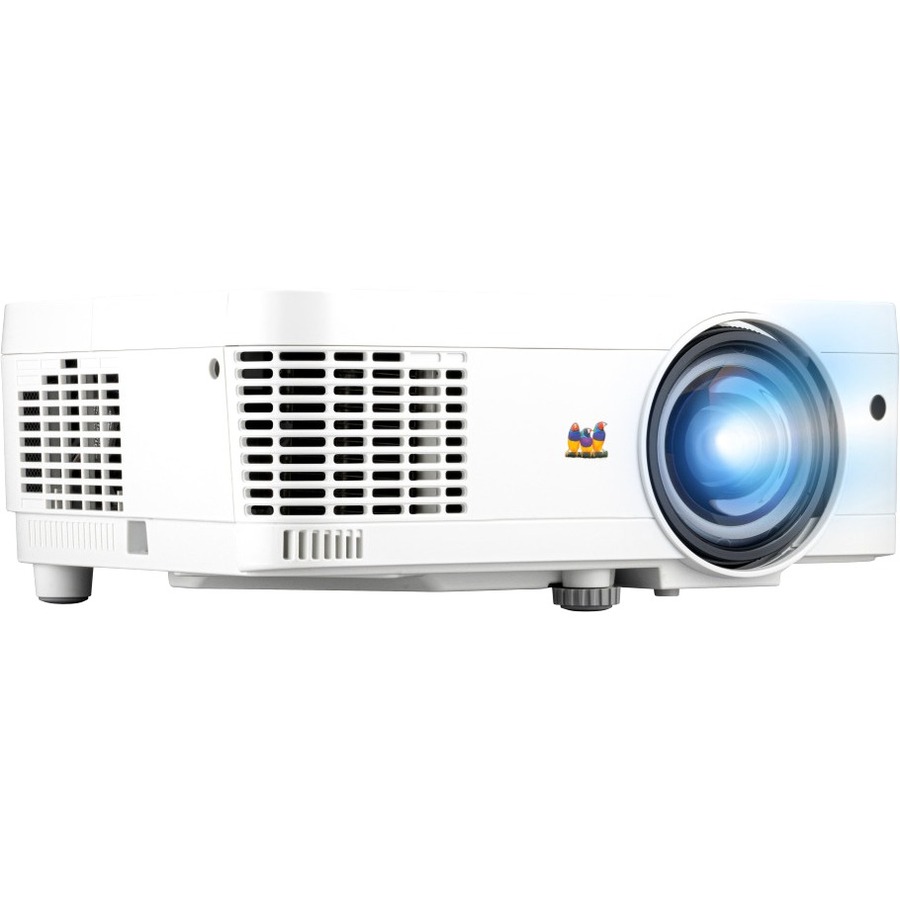

LS560WH - 3000 Lumens WXGA Short Throw LED Lamp Free Projector with HV Keystone and LAN Control
MSRP$1,049.00
$695.83
Save 34%Special order — estimated available by September 10, 2026.
Genuine ViewSonic through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The ViewSonic LS560WH short throw projector is ideal for both education and enterprise environments. Powered by lamp-free LED technology, this high-brightness projector can produce 3,000 ANSI lumens so that images and presentations can be easily viewed in environments with strong ambient light. Treat your audience to spellbinding presentations with vivid colors thanks to a wide color gamut. An eco-friendly, lamp-free design reduces maintenance and dramatically lowers your total cost of ownership, while a 0.49 short throw lens can create a 100"" screen from just 3.6 ft. away. Enjoy convenient features like instant power on/off, image correction, flexible setup and so much more. This projector comes equipped with comprehensive LAN control for compatibility with Crestron, AMX, Extron, PJ Link, ATEN and ViewSonic® vController systems.
More from the Manufacturer
ViewSonic LS560WH 3000 Lumens WXGA Short Throw LED Projector, High Brightness for Business and Education, H/V Keystone and 360-Degree Projection for Easy Setup, and LAN Control Inputs
The ViewSonic LS560WH short throw projector is ideal for both education and enterprise environments. Powered by lamp-free LED technology, this high-brightness projector can produce 3,000 ANSI lumens so that images and presentations can be easily viewed in environments with strong ambient light. Treat your audience to spellbinding presentations with vivid colors thanks to a wide color gamut. An eco-friendly, lamp-free design reduces maintenance and dramatically lowers your total cost of ownership, while a 0.49 short throw lens can create a 100"" screen from just 3.6 ft. away. Enjoy convenient features like instant power on/off, image correction, flexible setup and so much more. This projector comes equipped with comprehensive LAN control for compatibility with Crestron, AMX, Extron, PJ Link, ATEN and ViewSonic® vController systems.
WXGA (1280x800p) short-throw LED projector with 3,000 ANSI lumens
A low 16ms input latency and 120Hz refresh rate provides faster frame-by-frame action for smooth images with minimal delay
LAN Control allows you to schedule and manage the projector remotely via Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic’s vController
Projects screen sizes from 30" to 300" with a throw distance of 3.9 ft - 43 ft; displays a 100" image from 13 ft
This projector features instant power on/off and can be configured for automatic turn on and off
Setup options include 0.8x-2.0x digital zoom, H/V keystone, 360-degree projection, 4-corner adjustment, and auto keystone
This projector supports table placement or ceiling installation; compatible with ViewSonic mounts PJ-WMK-305 or PJ-WMK-007
ViewSonic LS560WH Projector
Stunning, Long-Lasting Clarity
Bright Images in Various Environments
Packed with 3,000 lumens of brightness, this projector produces bright images in a variety of lighting conditions.
Next-generation LED Technology
Featuring an IP5X-rated sealed optical engine and a long-lasting LED light source, this projector offers up to 30,000 hours of reliable, virtually maintenance-free performance.
Seamless AV Network Control
Easily manage and schedule the projector remotely via Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic vController for streamlined integration with pro AV control systems.
Golf All Year Round
Enjoy the thrill of teeing off on world-famous courses without leaving home. From the iconic fairways of Pebble Beach to the challenging links of St. Andrews,our projectors deliver stunning visuals that transport you to the heart of the action.
Large Images in Small Spaces
Delivering images measuring up to 150”, this projector offers an enormous screen size for less cost per square inch when compared to a digital display
Effortless Setup
Enjoy an easy setup experience with features like 1.1x optical zoom, 4 corner adjustment, 40-degree H/V keystone and 360º projection.
Versatile Connectivity
Enjoy versatile connectivity with HDMI, USB-A, and RJ45 Ethernet ports.
24/7 Operation
This industrial-grade projector features an extended lifespan and is designed for 24/7 operation
Additional Warranty Information: <p>Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service</p> Limited Warranty: 3 Year
About Us ViewSonic Corporation Founded in California in 1987, ViewSonic is a leading global provider of visual solutions and inspires the world to See the difference® between the ordinary and the extraordinary. With over 35 years of experience developing cutting-edge products and services, we help people visualize what a brighter future looks like, one display at a time. From enterprise, classroom, and commercial workspaces, to home offices and virtual learning environments, we make collaboration possible from anywhere. Monitors From USB-C docking monitors to high-performance gaming monitors, we offer the most complete line of innovative display solutions for work, play, and education. Projectors Our complete line of projection solutions deliver bright and versatile options for education, enterprise, and home entertainment. These projectors deliver amazing colors and incredible light source life for long-term, virtually maintenance-free usage for any classroom, boardroom or living room. ViewBoard Interactive Displays ViewBoard® interactive displays provide the ultimate digital whiteboard solution with seamless collaboration at your fingertips. With interactive touch capabilities and easy content sharing, these displays enhance presentations, brainstorming, and decision-making. Digital Displays Featuring purpose-built media players, easy-to-install mounting systems, and available in a range of sizes and resolutions, these displays deliver high-impact messaging whenever and wherever you need it. myViewBoard Software No matter which options you choose, all of our display solutions include the myViewBoard® Software Suite that allows users to present and collaborate, and IT teams to manage all products across the myViewBoard ecosystem.
| Display & Graphics | |
|---|---|
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Maximum Resolution | 1920 x 1080 |
| Native Aspect Ratio | 16:10 |
| General Information | |
| Manufacturer | ViewSonic Corporation |
| Manufacturer Part Number | LS560WH |
| Brand Name | ViewSonic |
| Product Model | LS560WH |
| Product Name | LS560WH DLP Projector |
| Product Type | DLP Projector |
| Image | |
| Standard Mode Brightness | 3000 lm |
| Contrast Ratio | 3,000,000:1 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | LED |
| Normal Mode Lamp Life | 30000 Hour |
| Physical Characteristics | |
| Product Color | White |
| Form Factor | Ceiling Mountable, Wall Mountable, Floor Mountable |
| Height | 4.5" |
| Width | 11.5" |
| Depth | 8.7" |
| Weight (Approximate) | 6.28 lb |
| Power Description | |
| Operating Power Consumption | 229 W |
| Projection Lens | |
| Throw Type | Short Throw |
| Maximum Focal Length | 6.90 mm |
| Maximum Diagonal Image Size | 25 ft |
| Minimum Projection Distance | 24.80" |
| Maximum Projection Distance | 62.20" |
| Technical Information | |
| Projection Method | Front, Ceiling |
| Video | |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service |
| Miscellaneous | |
| Application/Usage | Business, Education, Presentation, Class Room |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
