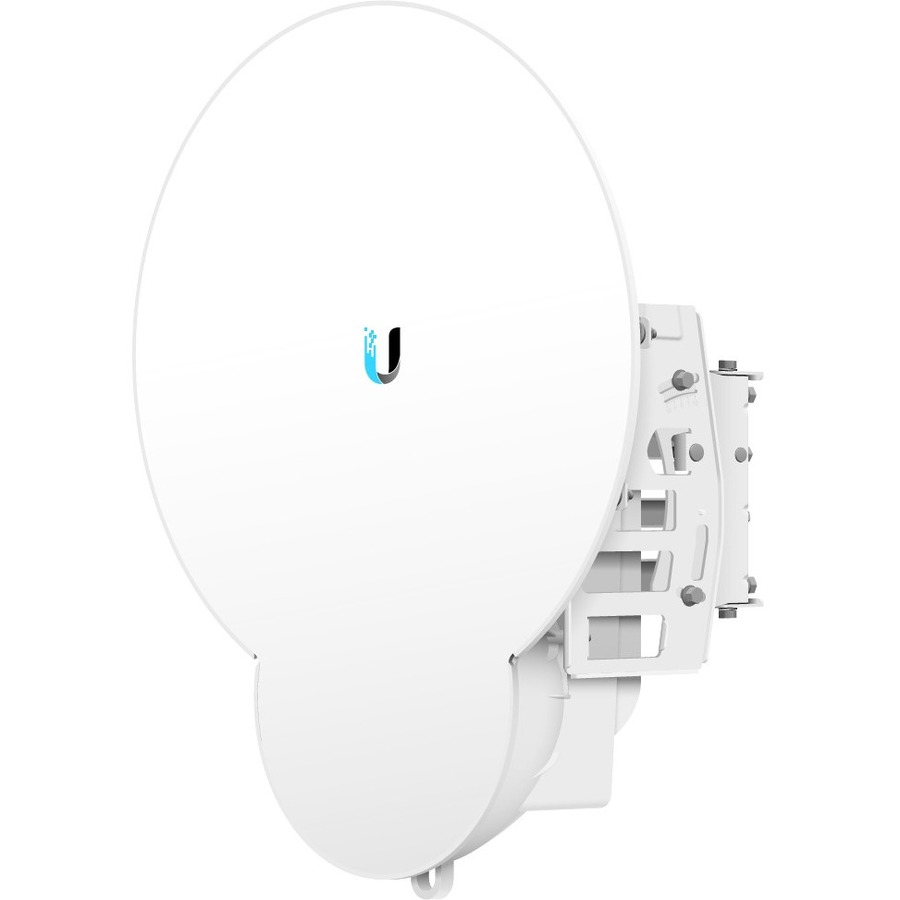

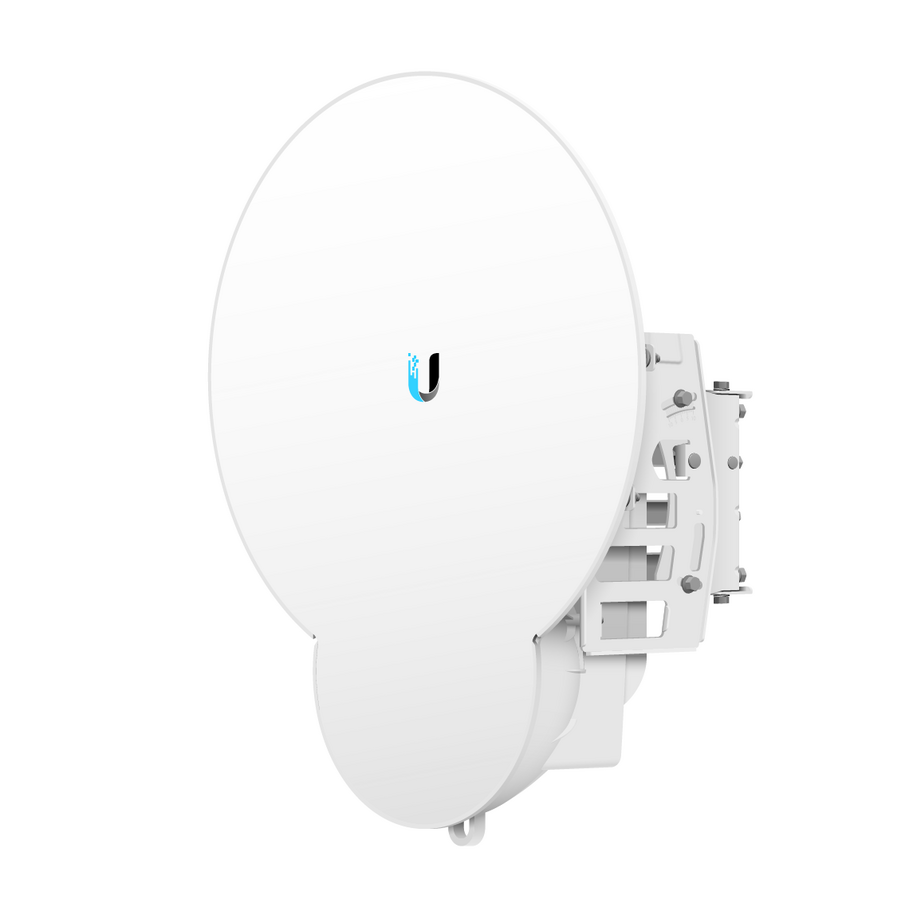

Ubiquiti airFiber AF24HD 2 Gbit/s Wireless Bridge
24 GHz - 12.4 Mile Maximum Outdoor Range - MIMO Technology - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Pole-mountable
- SKU
- AF-24HD-US
- Category
- Wireless Access Points/Bridges
$3,073.02
Back ordered — ships when restocked.
Genuine Ubiquiti through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AF-24HD-US
- Category
- Wireless Access Points/Bridges
Overview
Featuring our INVICTUS? custom silicon for 2+ million packets-per-second processing, the airFiber®24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.
Revolutionary Performance
Featuring the world's best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range - up to 20+ km - among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
Highlights
- High Performance Wireless Backhaul
- Extreme, Long-Range Links
- Worldwide License-Free Operation
Specifications
| Package Contents |
|
|---|---|
| Product Type | Wireless Bridge |
| Manufacturer Part Number | AF-24HD-US |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 38.14 lb |
| Form Factor | Pole-mountable |
| Manufacturer | Ubiquiti Inc. |
| Product Model | AF24HD |
| Product Name | airFiber AF24HD Wireless Bridge |
| Product Line | airFiber |
| Wireless Transmission Speed | 2 Gbit/s |
| Brand Name | Ubiquiti |
| Diameter | 30.2" |
| Country of Origin | China |
| Height | 14.6" |
| Width | 23.3" |
| Frequency Band | 24 GHz |
| Outdoor Antenna Range | 12.4 Mile |
| Ethernet Technology | Ethernet, Fast Ethernet, Gigabit Ethernet |
| USB | No |
| HDMI | No |
| VGA | No |
| Number of Network (RJ-45) Ports | 1 |
| Powerline | No |
| Management Port | Yes |
| PoE (RJ-45) Port | No |
| MIMO Technology | Yes |
| PoE PD Port | Yes |
