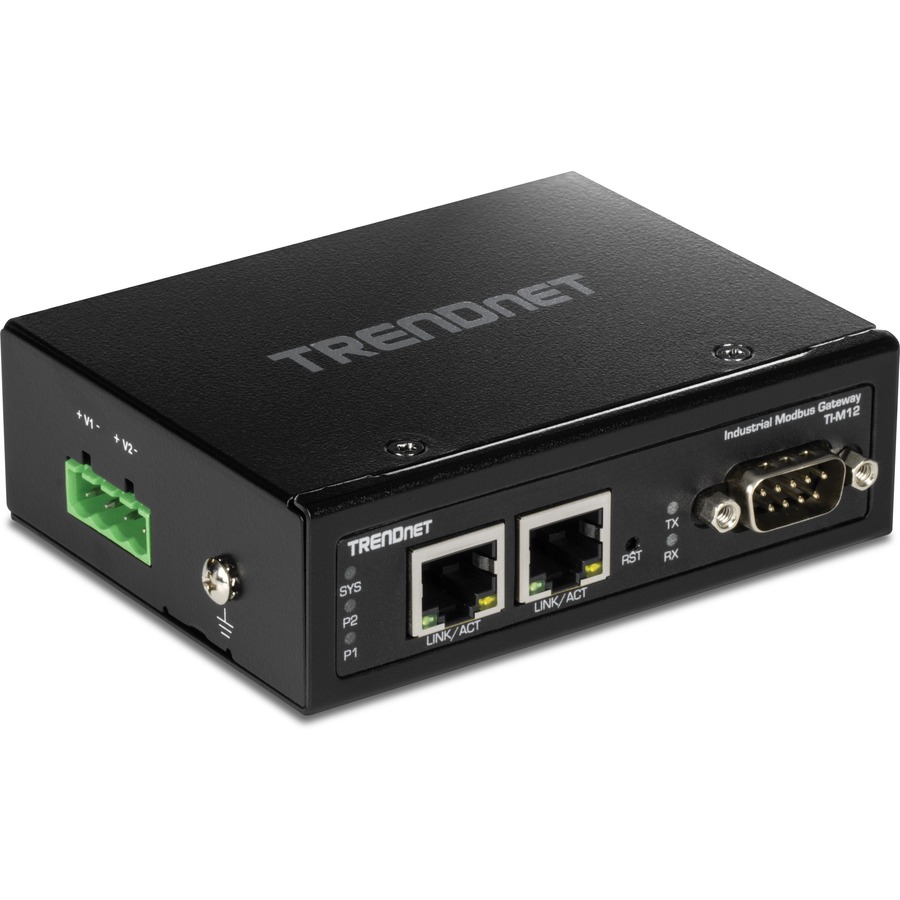

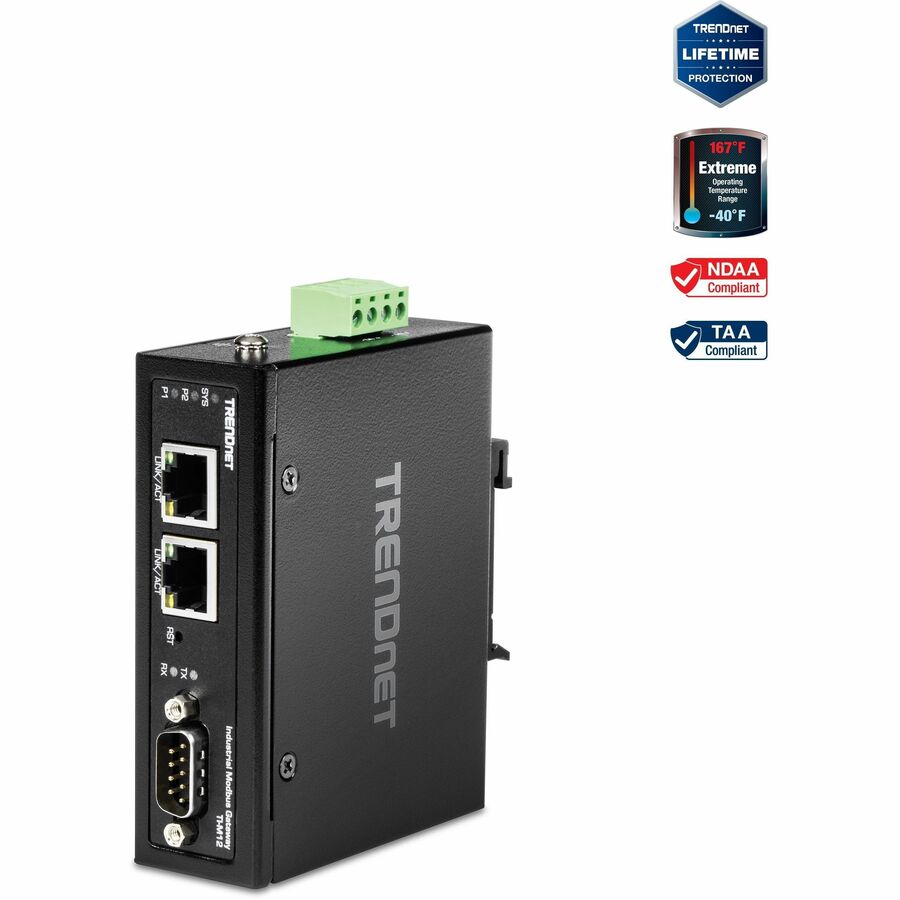

TRENDnet 1-Port Fast Ethernet Industrial Modbus Gateway, 1 x Serial DB-9 Port, 2 x Fast Ethernet Ports, Up to 100m (328 ft), IP30 Rated Housing, Extreme Temperature Protection, Black, TI-M12

TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.

• DEVICE INTERFACE: 1 x Serial (DB-9) port; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal block; LED indicators; DIN-Rail mount; Wall mount; Grounding point

• LIFETIME PROTECTION -We stand by the quality of our products. The TI-M12 1-Port Fast Ethernet Industrial Modbus Gateway with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Modbus Gateway, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• CONNECT ONE SERIAL DEVICE: The 1-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect one serial device such as a modem to a network.

• MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management

• IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° - 75° C (-40° - 167° F

• DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps

• Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol

• Auto-MDI/MDIX, RJ45 port with 10/100Mbps

More from the Manufacturer

OVERVIEW

TRENDnet’s Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.

Network

Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.

Serial Connector

Easily connect RS-232/RS-422/RS-485 serial devices to the network.

Industrial Design

Designed with a rugged IP30 rated housing, vibration and shock resistance, ESD/EMI/surge protection, and a wide operation temperature range (-40° - 75° C (-40° – 167° F)).

Network

This modbus converter features two fast ethernet ports that support distances up to 100m (328 ft.) using Cat5e cabling

Serial Connector

The modbus RTU to TCP gateway easily allows users to connect RS-232/RS-422/RS-485 serial devices to the network

Industrial Design

This modbus gateway is designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surges, and a wide operation temperature range (-40° - 75° C (-40° – 167° F))

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 854 Telnet

RFC 958 NTP

RFC 1591 DNS (client only)

RFC 1908 SNMP v2c

RFC 2068 HTTP

RFC 2131 DHCP Client

EIA / TIA RS-232 / RS-422 / RS-485

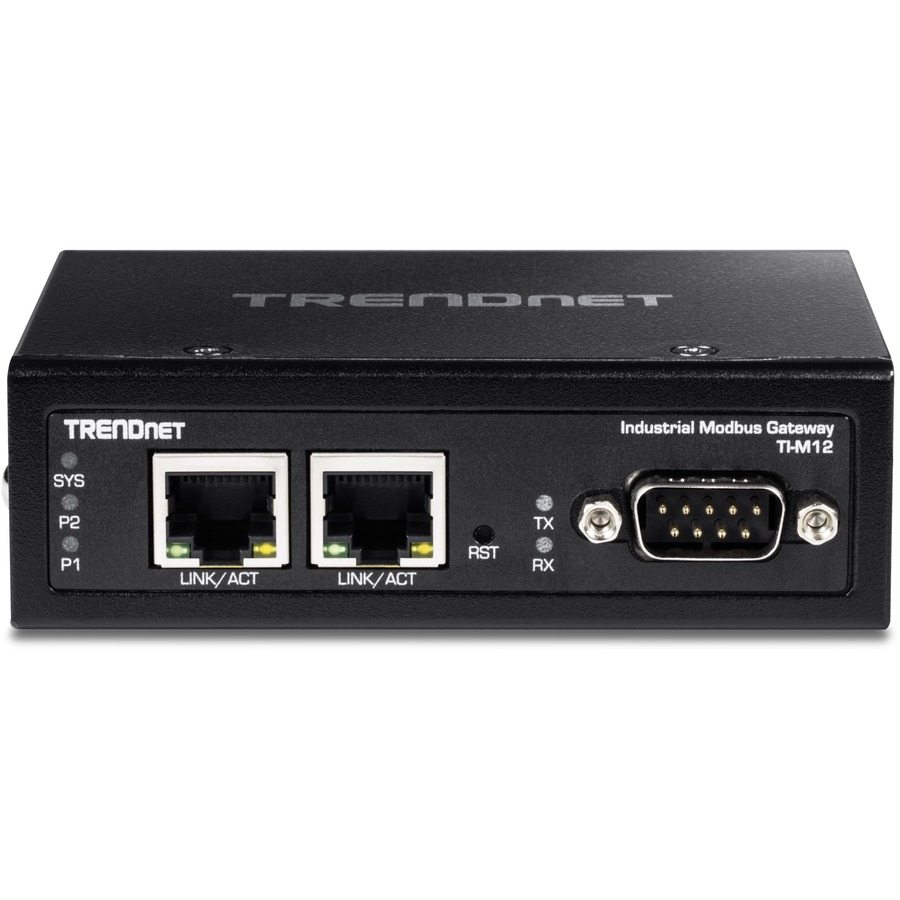

Device Interface

1 x Serial (DB-9) port

2 x 10/100Mbps ports

4-pin removable terminal block

LED indicators

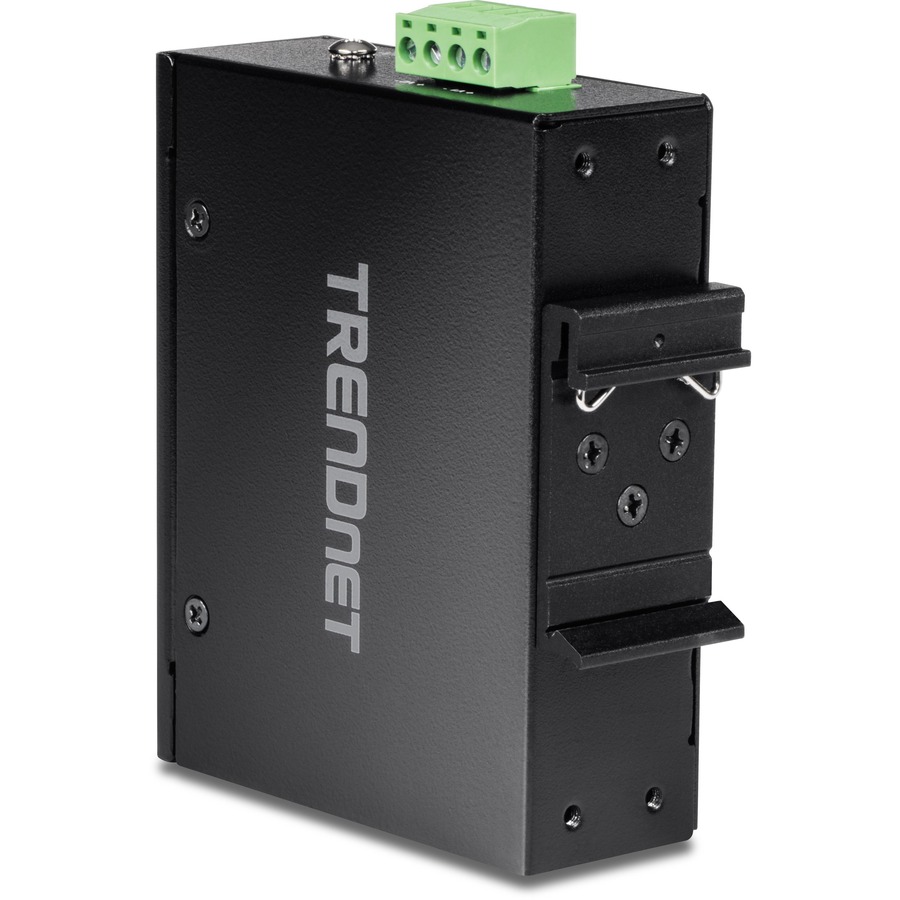

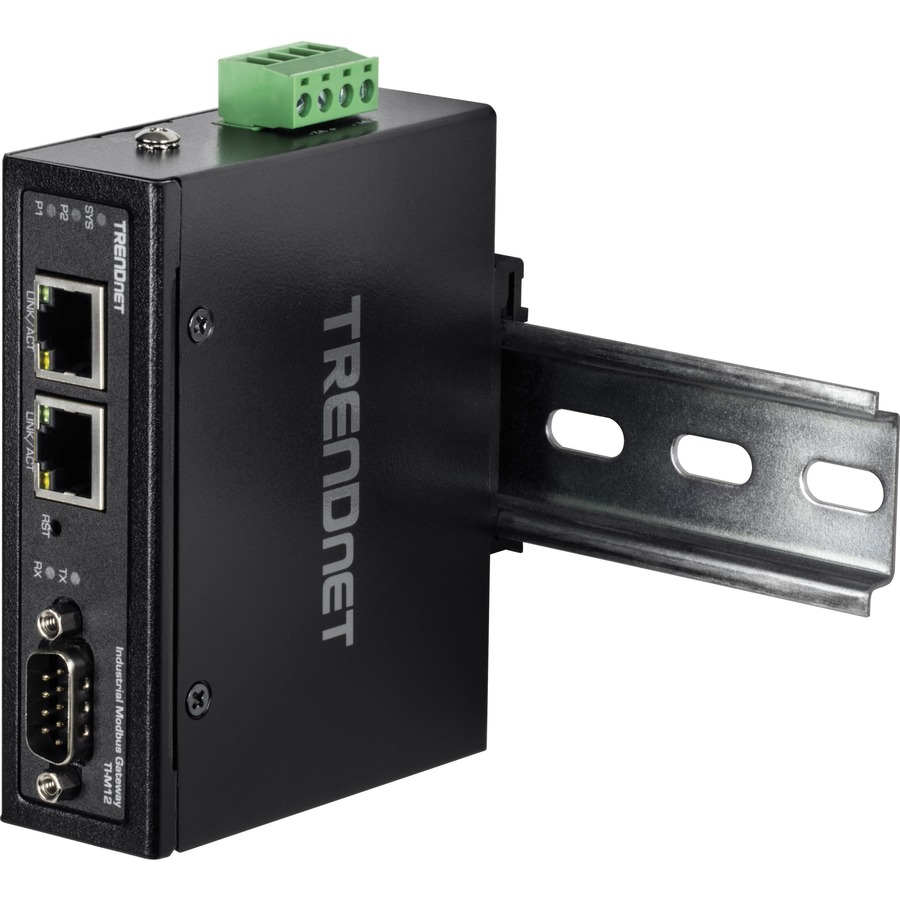

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

50bps – 921600bps

Performance

Data RAM Buffer: 8 Bit

MAC Address Table: 2K entries

Parity Type: Even, Odd, None, Space, Mark

Stop Bit: 1 or 1.5/2

Special Features

Supports RS-232, RS-422 and 2-wire RS-485

Web / Telnet / Windows ®-based management

Supports RTU Master / Slave and ASCII Master / Slave

Hardened components rated for extreme temperatures

Redundant power inputs

DC Power

Input: 12 – 56 V DC

Compatible power supply: TI-M6024 (sold separately)

Max. consumption: 3.84W @ 48V DC

Terminal Block

Redundant power inputs, 4-pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

MTBF

521,243 hours

Housing

IP30 metal case

DIN-Rail mount

Grounding point

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95 % non-condensing

Dimensions

103 x 80 x 31mm (4 x 3.14 x 1.22 in.)

Weight

154g (5.4 oz.)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

Lifetime Warranty

PACKAGE CONTENTS

TI-M12

Quick Installation Guide

Removable terminal block

DIN-Rail and wall mount kit

Industrial Modbus Gateway

1 x serial port, 2 x Fast Ethernet ports

Connects RS-232/RS-422/RS-485 serial device, such as a modem, to a network

Supports up to 32 RS-422/RS-485 TCP serial devices per port

Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol

Configure via web management or telnet

Auto-MDI/MDIX, RJ45 port with 10/100Mbps

Serial port baud rate from 50bps to 921.6Kbps

Wide operation temperature range -40° - 75° C (-40° – 167° F)

IP30 rated metal housing

NDAA / TAA compliant

Lifetime Warranty
