TRENDnet 2-Port Industrial Outdoor Gigabit UPoE Extender, Extends 100m…

TRENDnet's 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.

• DEVICE INTERFACE: 1 x IP67 weather rated gigabit UPoE input port;2 x IP67 weather rated gigabit UPoE output ports; LED indicators

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-EU120, 2-Port Industrial Outdoor Gigabit UPoE Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant 2-Port Industrial Outdoor Gigabit UPoE Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• UPoE Power: Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices**

• GIGABIT PORTS: Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.

• OUTDOOR RATED: Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°- 75° C (-40° - 167° F).

• POE POWERED: No external power required-saves installation time and cost

• DAISY CHAIN: Connect up to 4 units for a PoE network extension of up to 500m (1640 ft.).

• Built-in True Surge 6kV Protection

More from the Manufacturer

OVERVIEW

TRENDnet's 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.

UPoE Power

Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices

Gigabit Ports

Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.

Outdoor Rated

Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance

Extends a PoE/PoE+/UPoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

PoE/PoE+/UPoE

Auto detects a PoE (15.4W), PoE+ (30W), and UPoE (60W) network connections

Gigabit Ports

· 1 x gigabit UPoE input port, 2 x gigabit UPoE output ports, and 64W PoE budget with 95W UPoE input

· 1 x gigabit UPoE input port, 2 x gigabit PoE+ output ports, and 46W PoE budget with 60W UPoE input

Daisy Chain

Connect up to 4 units for a PoE network extension of up to 500m (1640 ft.).

LED indicators

LED indicators confirm network connectivity

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Extreme Temperatures

Hardened converter is rated for a wide operating temperature range of -40 to 75 °C (-40 to 167 °F)

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt draft

Device Interface

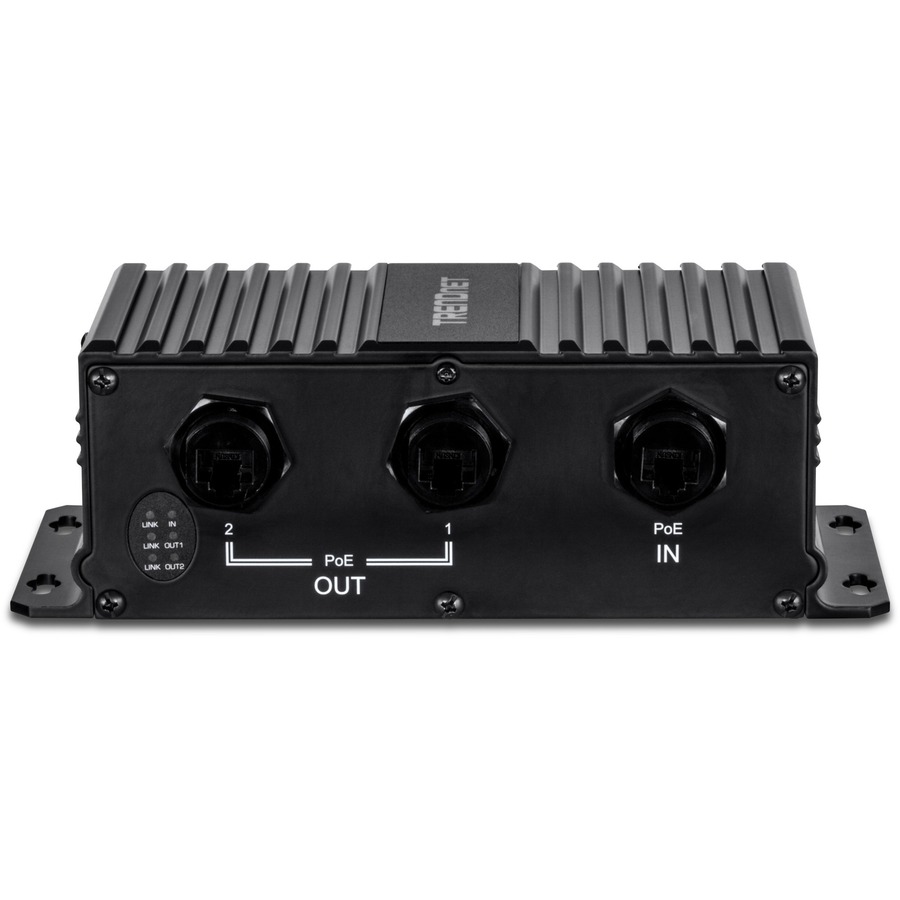

1 x IP67 weather rated gigabit UPoE input port

2 x IP67 weather rated gigabit UPoE output ports

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

Performance

RAM Buffer: 1MB

MAC Address Table: 8K

Jumbo Frame: 10KB

Special Features

IP67 rated housing

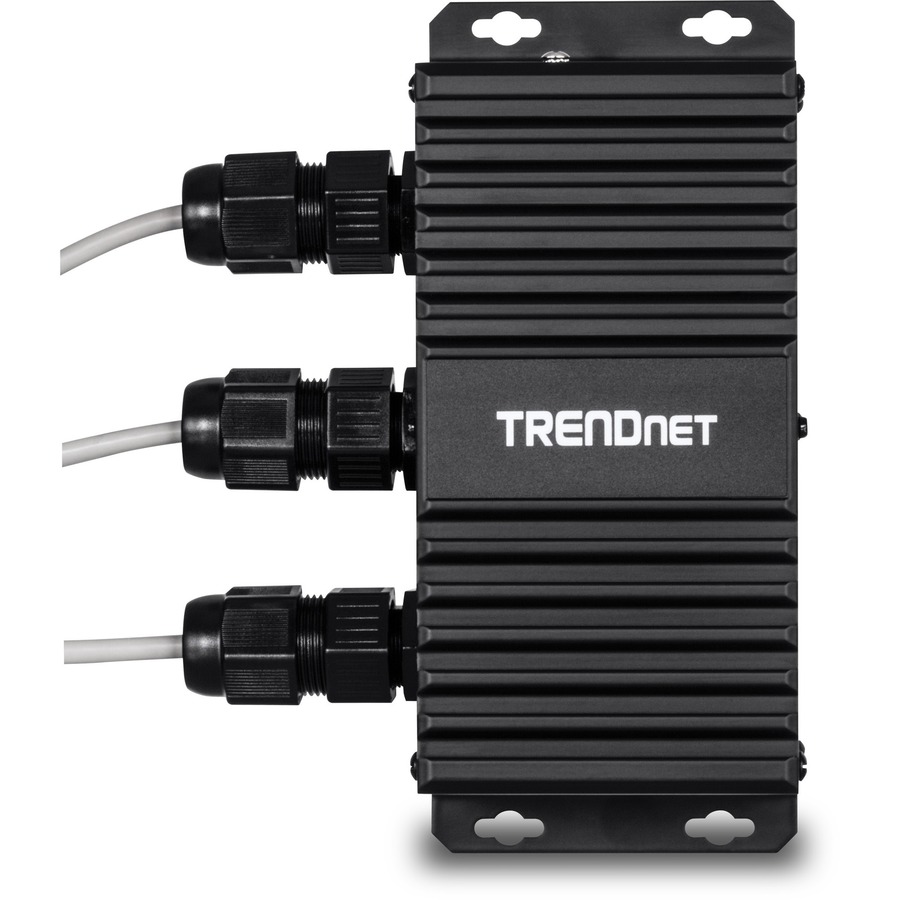

Wall mountable

UPoE support

Power

PD power input: 30W/60W/95W

PoE 15W/30W/60W per PSE

PoE Budget: 64W Max.

Consumption: 3W Max. (without PoE)

PoE Power Output

PoE Input

Max PoE Output

95W

60W

30W

64W

46W

22W

Single Port Daisy Chain

Number of Daisy Chains From PSE

Max. PoE Output

1 (up to 100m)

95W Input: 64W

60W Input: 46W

30W Input: 22W

2 (up to 200m)

95W Input: 45W

60W Input: 34W

30W Input: 16W

3 (up to 300m)

95W Input: 35W

60W Input: 28W

30W Input: 7W

4 (up to 400m)

95W Input: 29W

60W Input: 22W

30W Input: 0W

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

165 x 62 x 112mm (6.5 x 2.4 x 4.4 in.)

Weight

834g (29.4 oz.)

Certifications

CE

FCC

EN60950-1

IEC 60068-2-27 (Shock)

IEC 60068-2-32 (Freefall)

IEC 60068-2-6 (Vibration)

Warranty

3 year

PACKAGE CONTENTS

TI-EU120

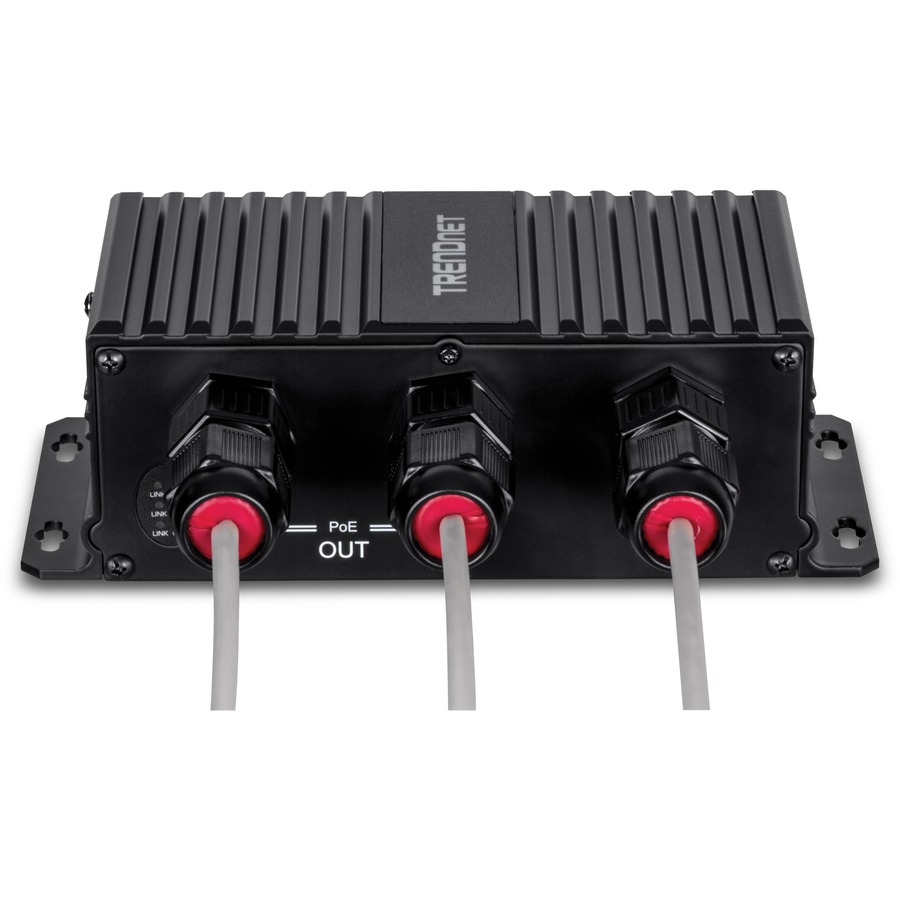

3 x IP67 weather rated cable glands

Wall mount screws

Quick installation guide

* Each additional extender added to the daisy chain will decrease the overall available PoE budget.

** To obtain the maximum PoE budget of 64W, the PoE extender must be powered by a 95W UPoE device.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.

2-Port Industrial Outdoor Gigabit UPoE Extender

Easy installation

Extends 100m for a total distance of up to 200m (656 ft.)

Daisy chain up to 4 units for a total PoE network extension of up to 500m (1640 ft.) *

Use a single UPoE connection to extend PoE for up to two devices

Supports PoE (15.4W), PoE+ (30W), UPoE (60W) devices

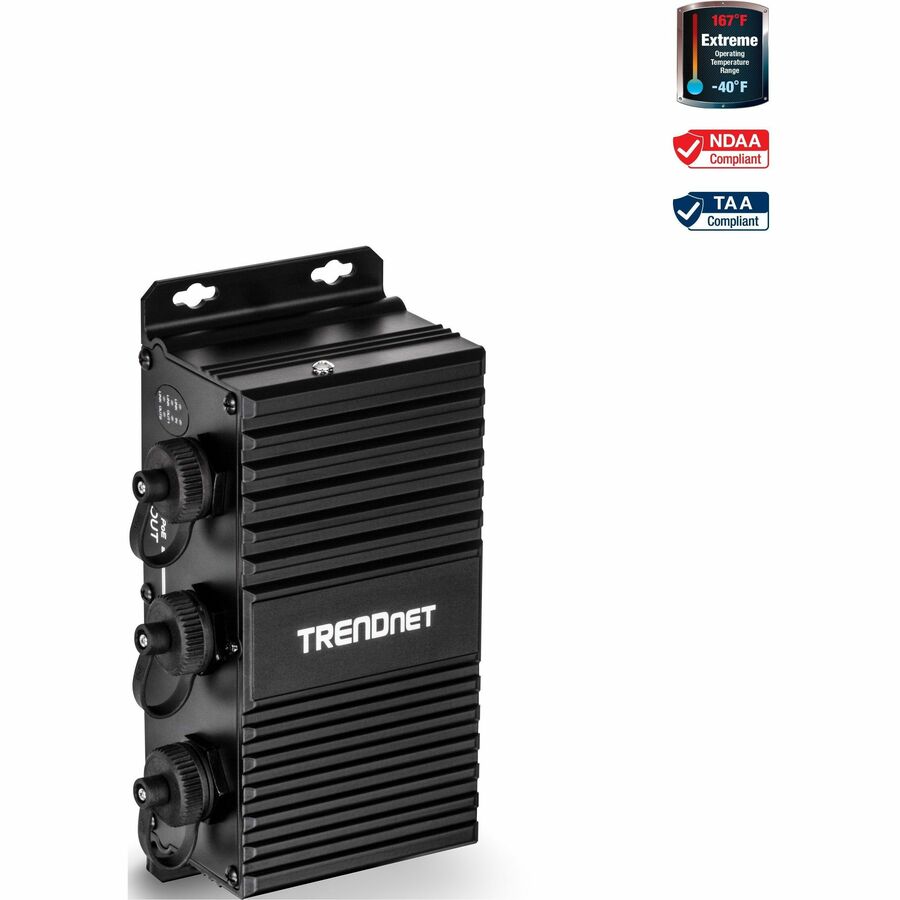

Wide operating temperature range of -40°– 75° C (-40° – 167° F)

IP67 outdoor weather rated housing

No external power adapter required

Built-in True Surge 6kV Protection

NDAA / TAA compliant
