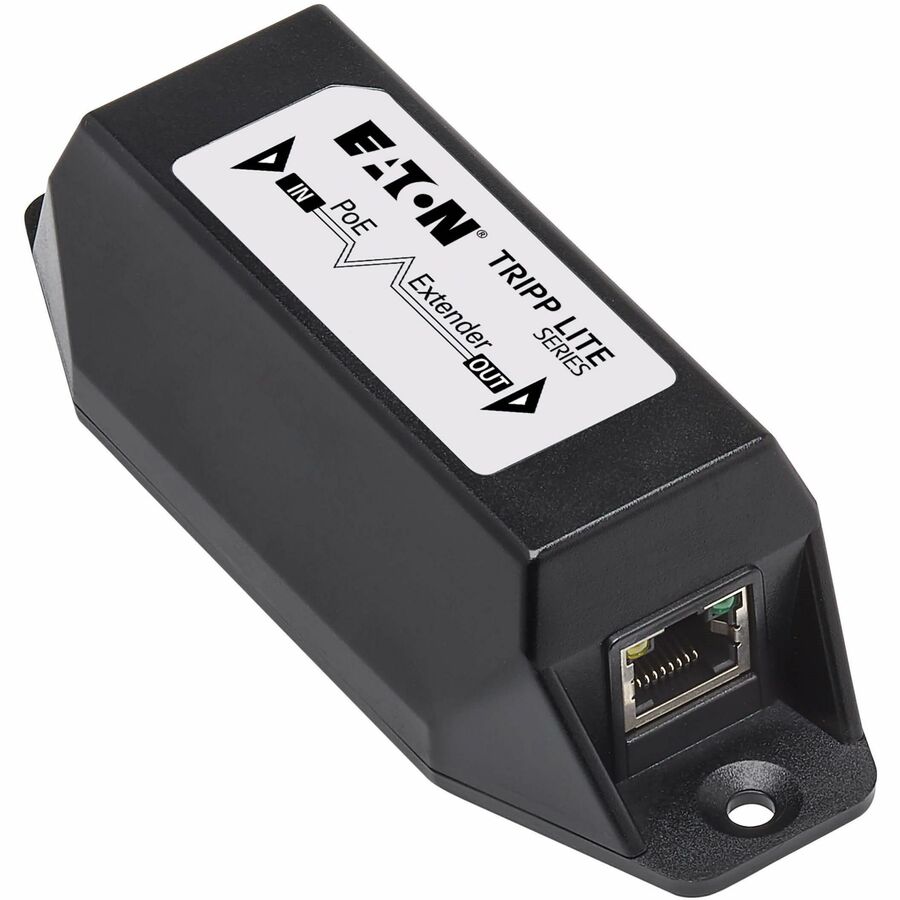

Eaton Tripp Lite Series 1-Port Gigabit Ethernet PoE+ Extender/Repeater - Cat5e/6/6a, 30W, 328 ft. (100 m)

Gigabit Extender Lets You Cascade Your Existing PoE/PoE+ Connection up to 500 Meters

This single-port connector allows you to extend the connection between your powered source device, such as a PoE (Power over Ethernet) switch, and a remote PoE device an extra 328 feet (100 meters). In addition, by cascading as many as four NPOE-EXT-1G30 extenders, you can extend that connection as far as 1,640 feet (500 meters) total. Just connect the extender between two sections of Cat5e/6/6a cable up to 328 feet each.

Saves You Time and Money on Unnecessary Equipment Updates

The compact PoE/PoE+ extender delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables, eliminating the need to install new AC power lines and electrical outlets. This cost-effective extender sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor. It also automatically detects PoE/PoE+ equipment and protects it from being damaged by incorrect installation.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

Because this extender supports PoE, it can supply the power to operate compatible IEEE 802.3at/af PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. It supports half/full-duplex 1 Gbps communication for sending and receiving data simultaneously, and protects your PoE device against short circuits and overloads.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes

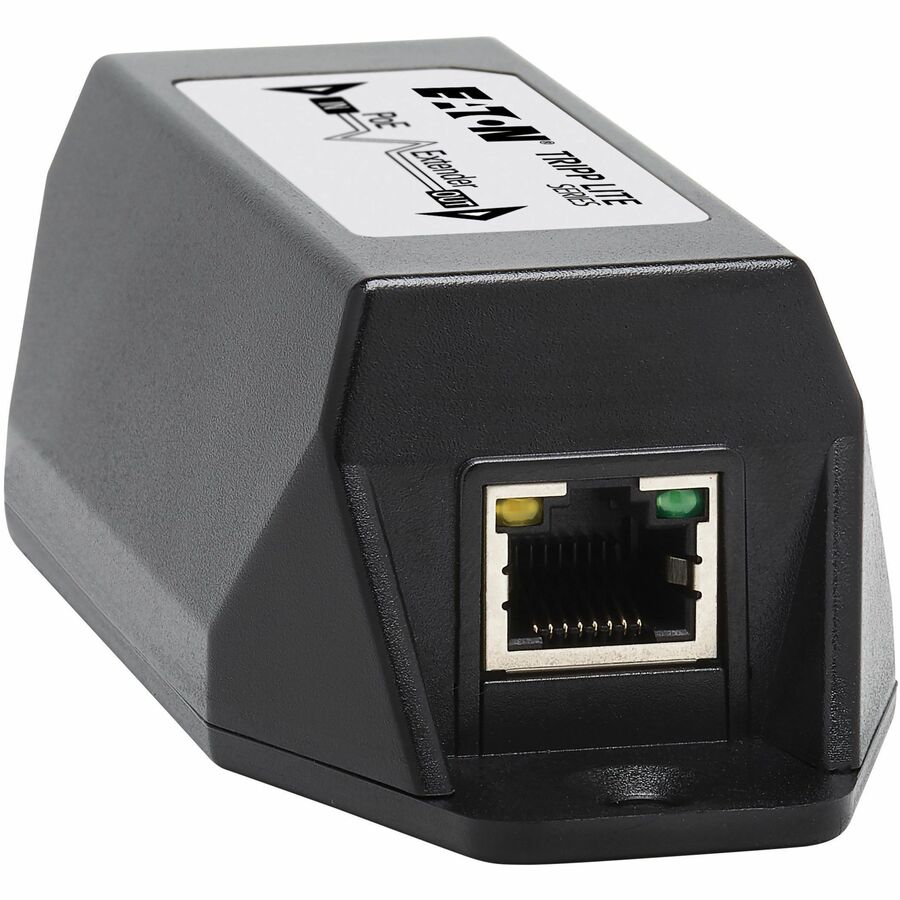

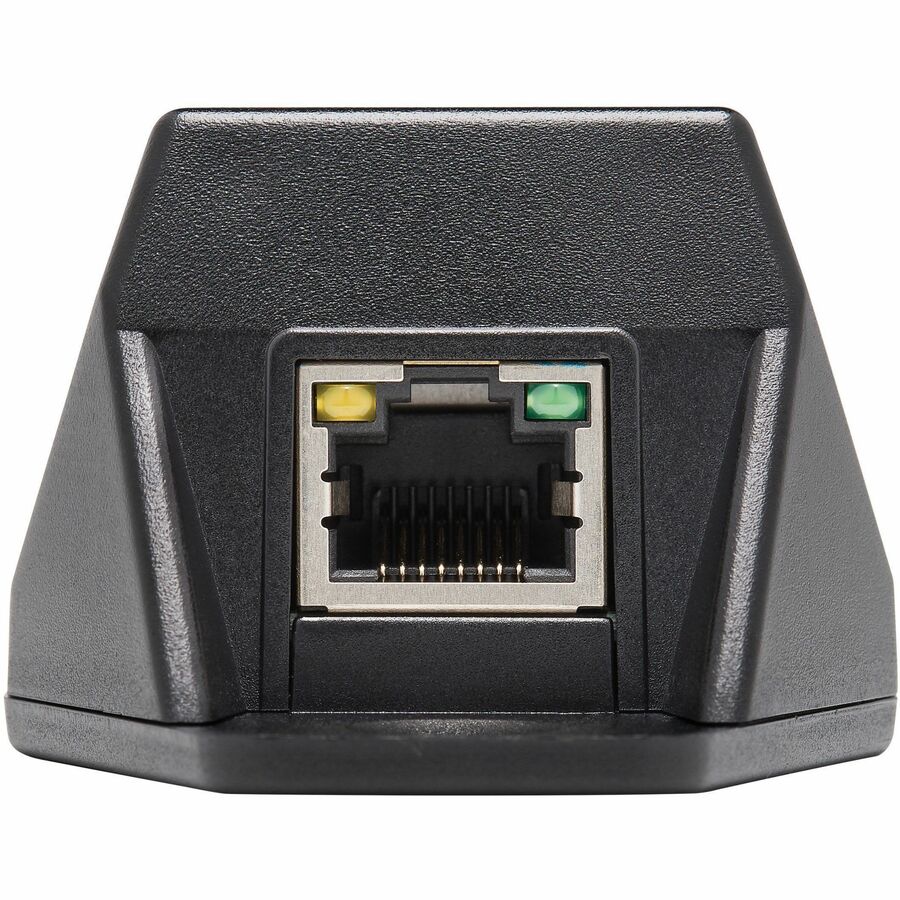

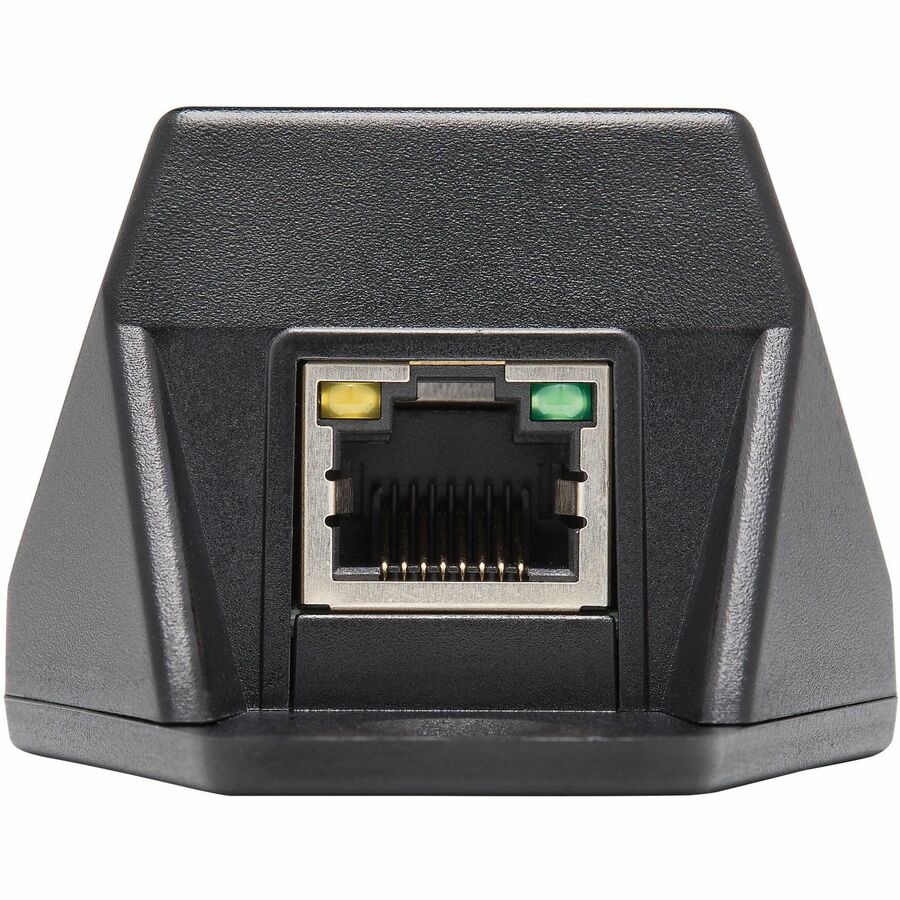

No configuration or software is required to add the NPOE-EXT-1G30 to your LAN. Just connect your switch or network jack and your PoE/PoE+ device to the shielded RJ45 Power + Data ports using existing Cat5e/6/6a cable. LEDs indicate the unit is receiving power and is ready to transmit data.

Designed for Installation Almost Anywhere

Mounting holes are featured for installing the extender on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

More from the Manufacturer

Gigabit Ethernet Extender Extends Your PoE/PoE+ Up to 1640 ft.

Designed for 10/100/1000 Mbps networks, Tripp Lite’s NPOE-EXT-1G30 extends the connection between a powered source device and a PoE/PoE+ device, like a security camera, VoIP telephone, credit card scanner or digital sign, an extra 328 ft. By cascading up to four units, you can take that distance even farther—up to 1640 ft. (500 m) in all. It fits right into your existing installation and takes almost no time to install.

Typical Applications

Install a security camera in a distant location

Connect unified communications equipment to a source located in a different room

Connect retail equipment, such as a credit card scanner or digital sign, to a source in a back office

Supports Power over Ethernet to Save Money and Provide Installation Flexibility

The NPOE-EXT-1G30 supports Power over Ethernet, giving it the ability to supply power to compatible IEEE 802.3at/af PoE and PoE+ devices. This saves you the expense of purchasing and installing separate power supplies for each device and lets you install equipment in locations that are nowhere near AC outlets.

Compatible with IEEE 802.3at/af PoE/PoE+ devices

Eliminates the need to purchase separate power supplies for each device

Allows you to install PoE equipment in far-away locations

Eliminates the Need to Install New AC Power Lines and Outlets

With the ability to deliver 10/100/1000 Mbps of data and up to 30W of power, this extender eliminates the need to upgrade your electrical infrastructure. It also cuts down on the cost of extra cable and equipment—not to mention installation time and labor.

Delivers 10/100/1000 Mbps of data

Delivers up to 30W of power

Eliminates the need to upgrade your electrical infrastructure

Ready to Use Right Out of the Package

With no software required for installation, this extender is completely plug and play. Use Cat5e/6/6a cabling to connect one end to your switch or jack and the other to your PoE or PoE+ device, and you’re ready for action. LEDs indicate the unit is receiving power and transmitting data.

Plug and play with no software or configuration required

Installs easily in a matter of minutes

Features LEDs to indicate power and transmission at a glance

Compact Design for Installation Almost Anywhere

The NPOE-EXT-1G30’s mounting holes enable installation on a desktop, wall, shelf or any smooth surface. Its plastic housing is small enough to fit in the palm of your hand.

Mounting holes enable flexible installation

Compact housing stays out of sight
