SKU
P580F-000
Category
Cable Extenders
Overview
Extends 8K Video Transmissions up to 328 ft.
This DisplayPort-to-MPO termination kit is recommended for data centers, medical imaging, stereoscopic 3D photography, military surveillance, security systems and other audio/video applications in which the source and display are placed far apart. Connect an included extender to both the DisplayPort source and display, and use the included adapters to connect the extenders to an MPO cable.
Transmits 8K Video with HDR and 4:4:4 Color
The P580F-000 supports Ultra HD 8K resolutions at 60 Hz with bandwidths up to 32.4 Gbps, as well as 4K resolutions at 120 Hz. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K or 8K display. HDCP 2.3 encryption allows you to stream 4K or 8K content with no loss in resolution. This termination kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Easy to Pair with Eaton Tripp Lite Series Fiber Cabling
The P580F-000 is compatible with N844A-Series multimode OM3 MPO fiber cables, including N844A-10M-8-P, N844A-15M-8-P, N844A-20M-8-P and N844A-30M-8-P (sold separately).
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Specifications
Package Contents

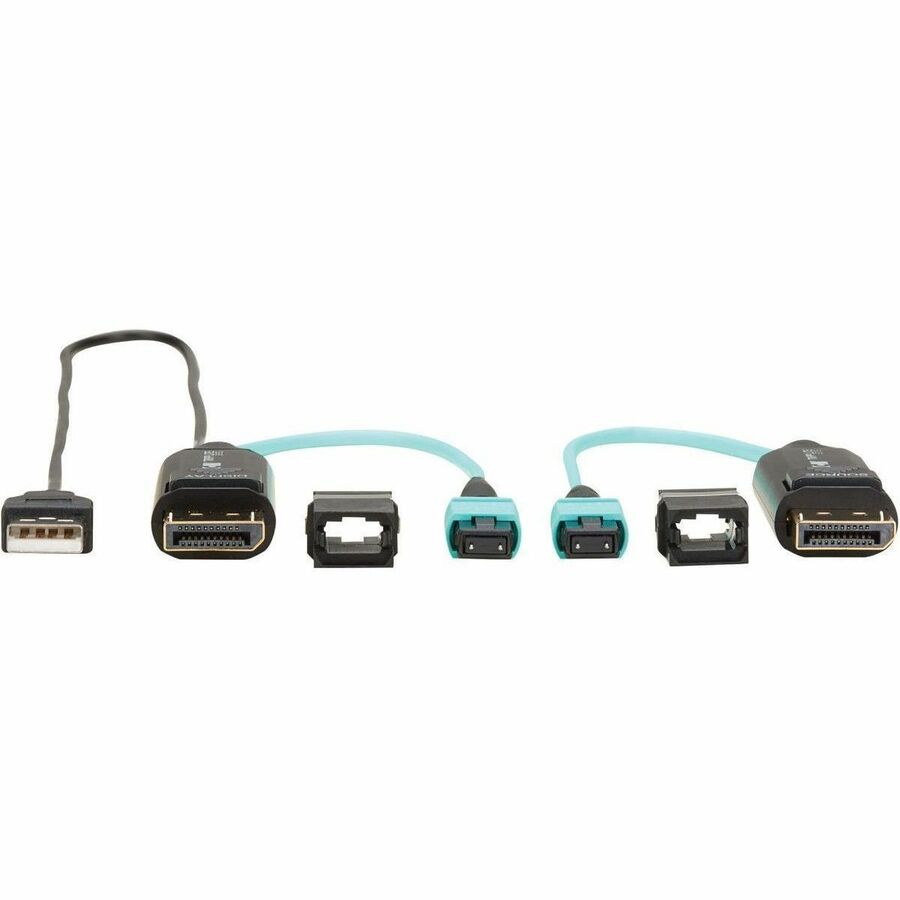

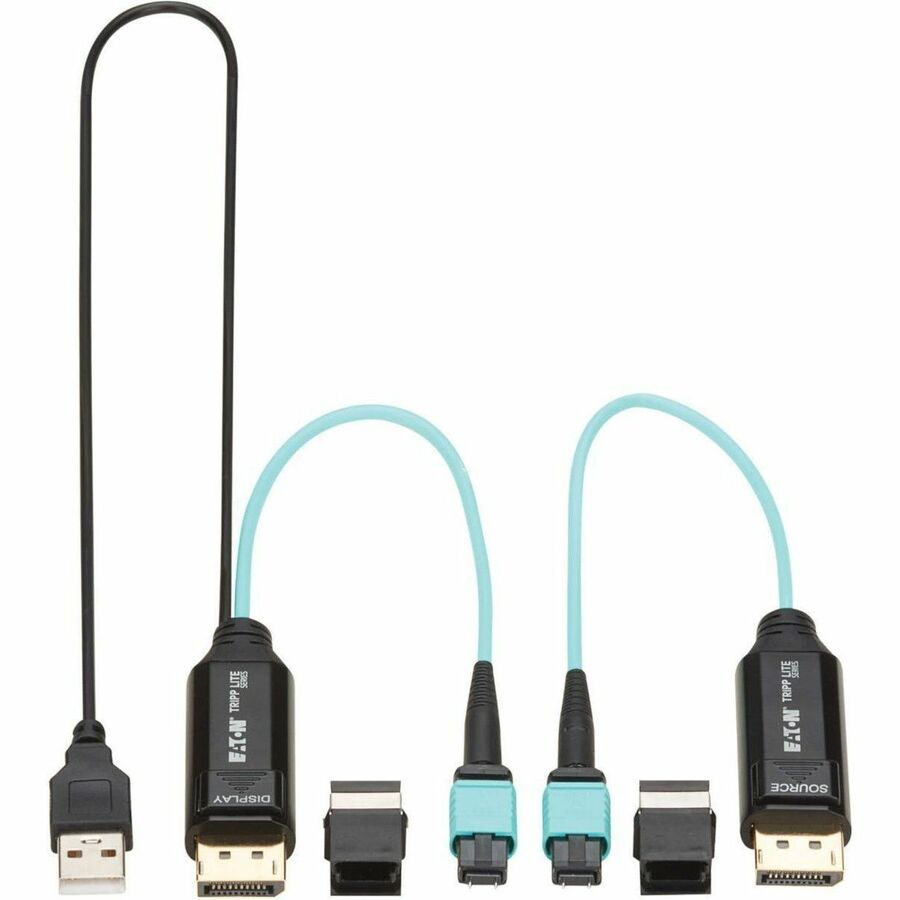

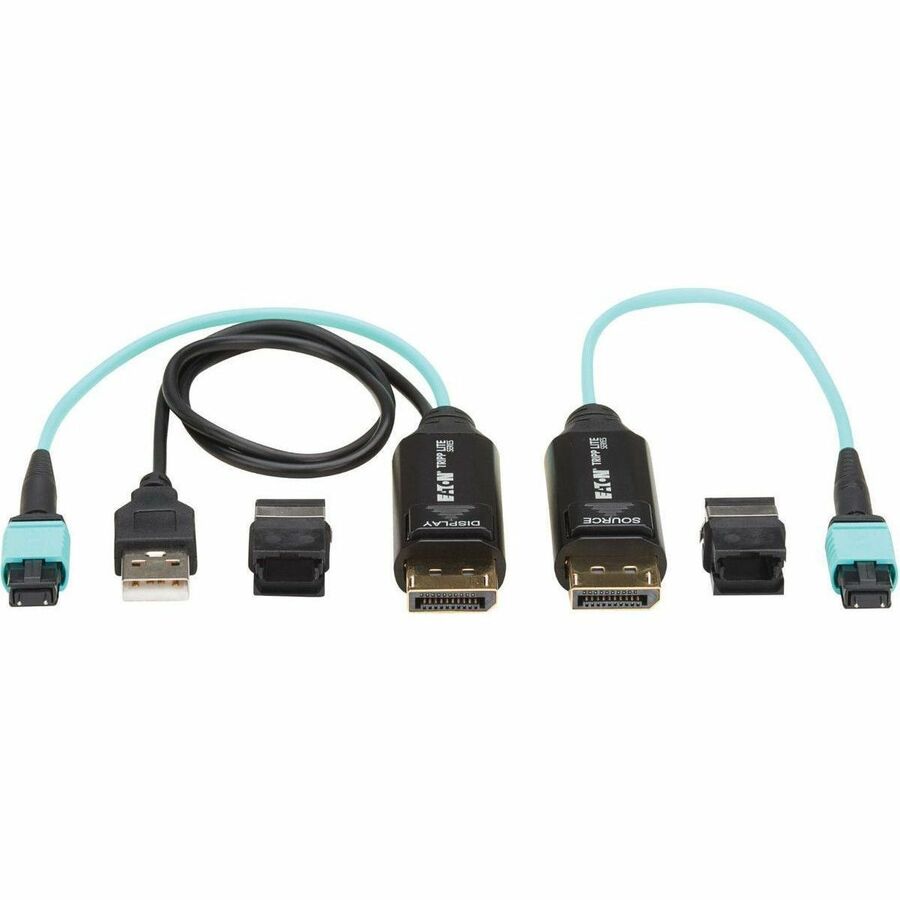

P580F-000 DisplayPort Fiber Extender Termination Kit with male MPO connectors
2 x MPO Adapters (M/F)
Installation Instructions
Product Type
Video Extender
Manufacturer Part Number
P580F-000
Limited Warranty
Lifetime
Manufacturer
Eaton Corporation
Product Model
P580F-000
Product Name
P580F-000 DisplayPort Fiber Extender Termination Kit with male MPO Connectors
Brand Name
Tripp Lite series
Maximum Data Transfer Rate
4.05 GB/s
Maximum Extended Range
328 ft
Product Color
Aqua, Black
Color Family
Dual Color
Product Material
PVC
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
