Power Over Ethernet, Supports PoE (15.4W) and PoE+ (30W), Extends 100m, Cascade 2 Units for Distance Up to 300m (984 ft.), IP30
Industrial Gigabit PoE+ Extender
$91.33*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine TRENDnet through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

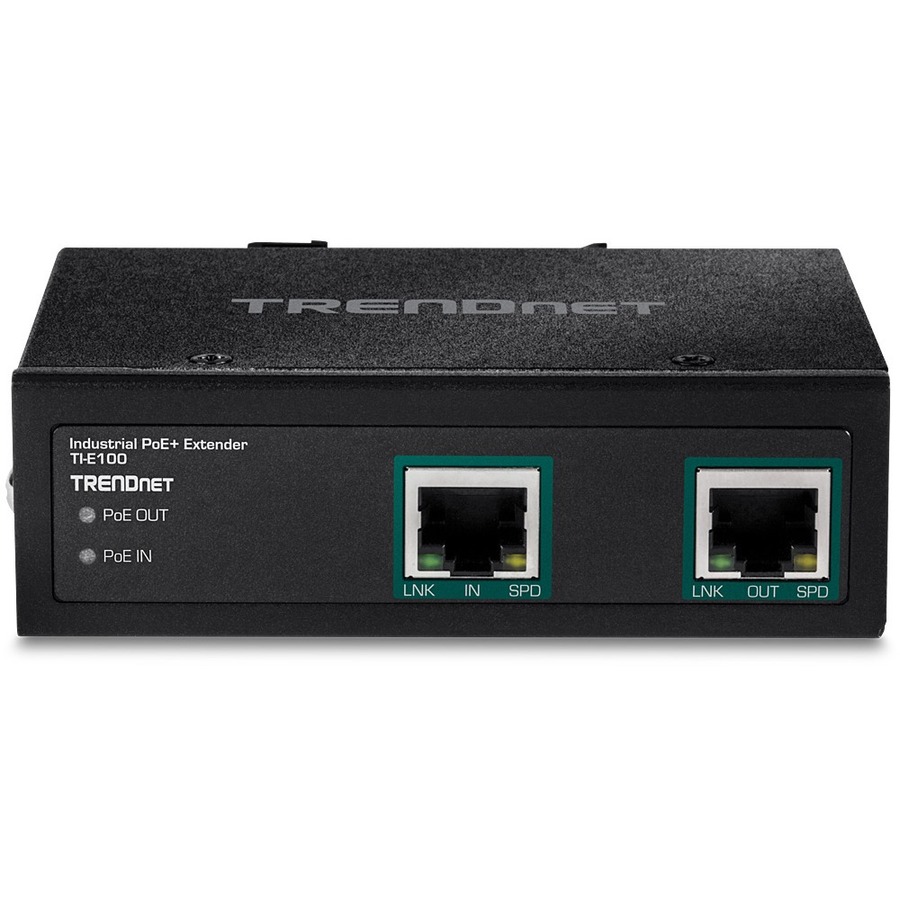

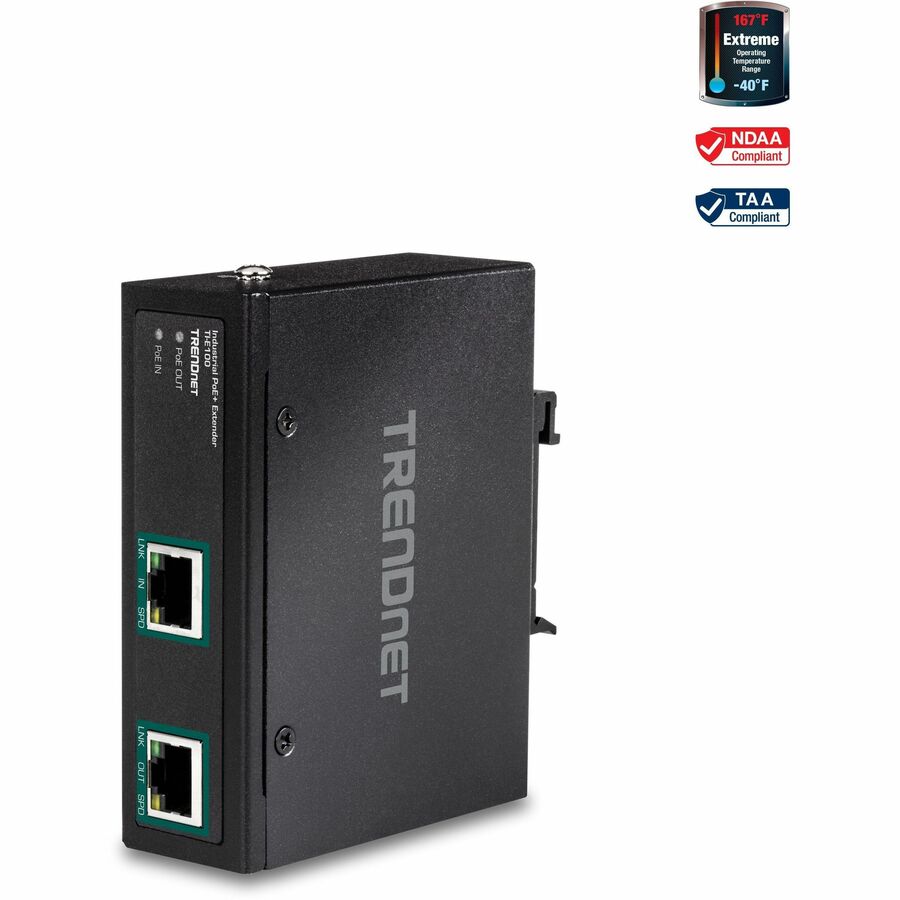

TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).

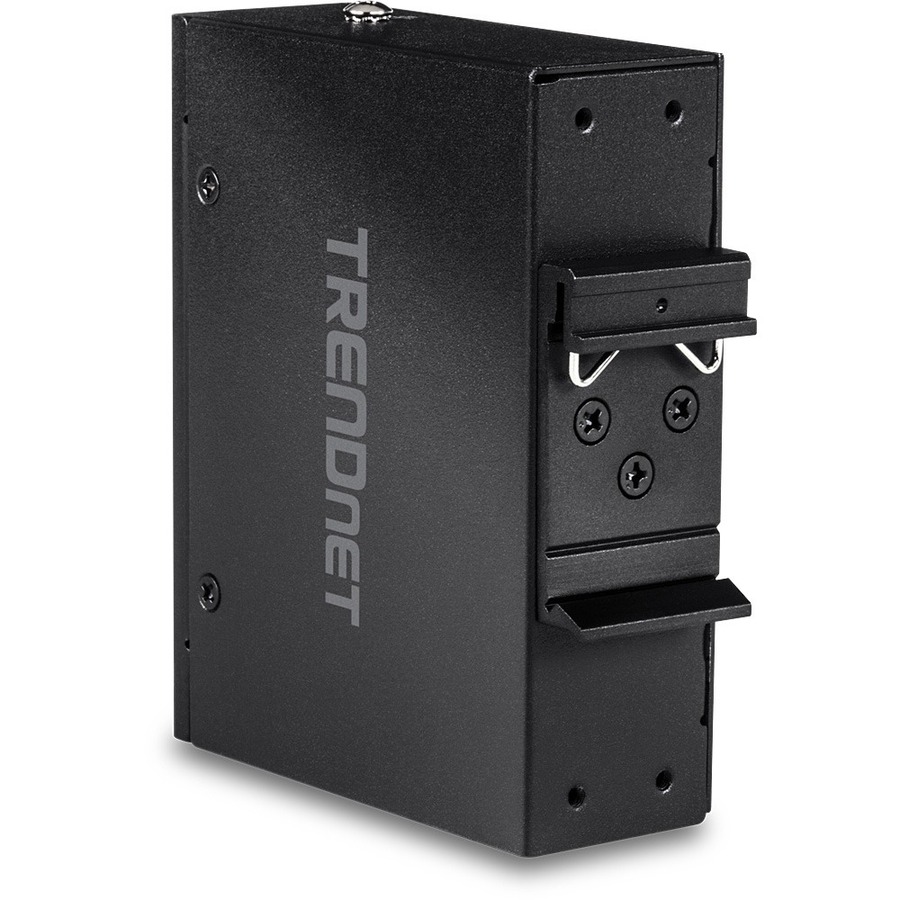

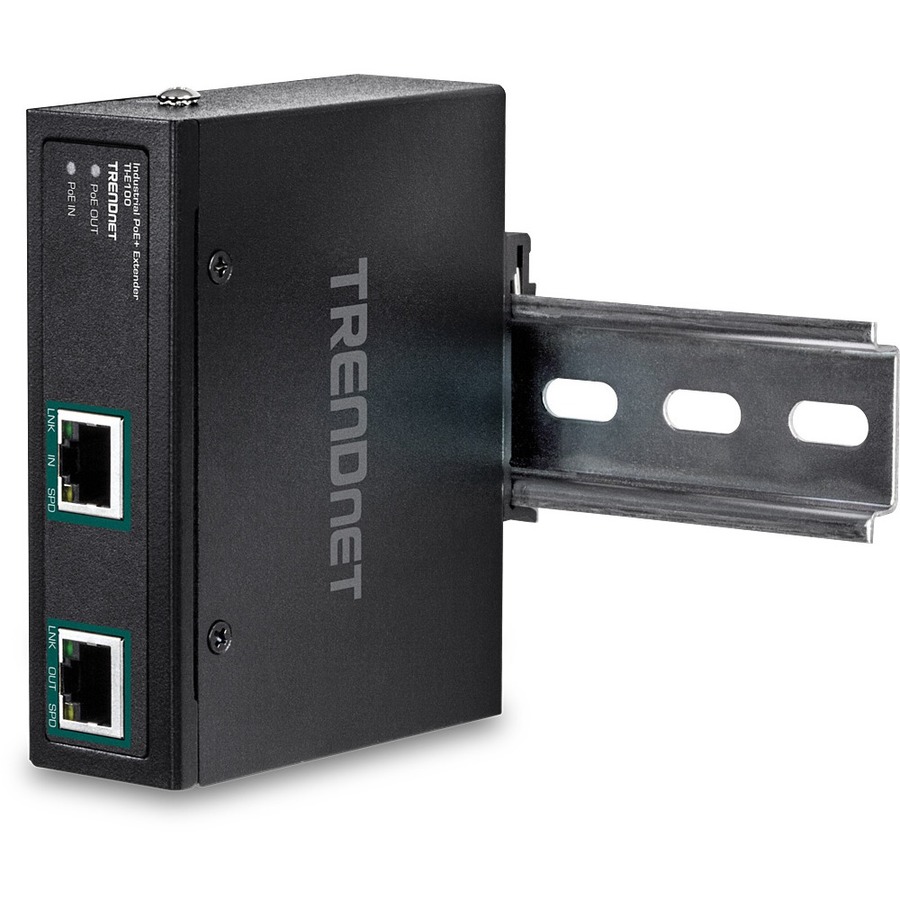

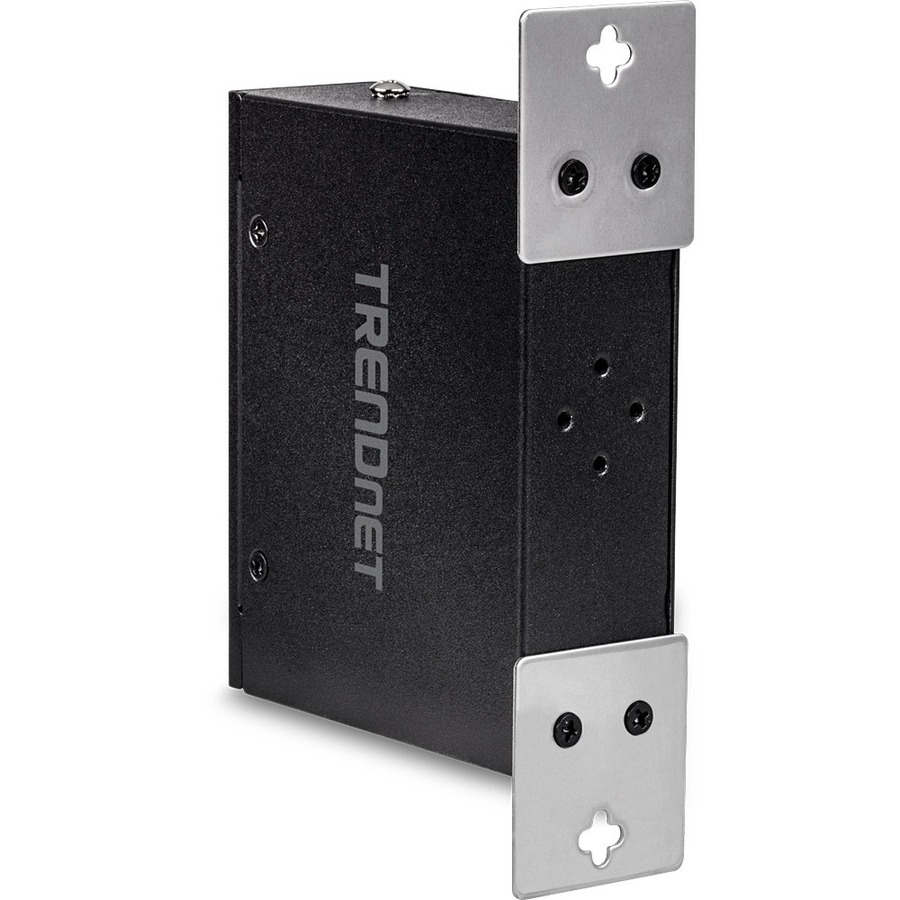

• DEVICE INTERFACE: 1 x Gigabit PoE+ in port; 1 x Gigabit PoE+ out port; LED indicators; DIN-Rail mount; Wall mount ;Grounding point
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Gigabit PoE+ Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-E100, Industrial Gigabit PoE+ Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.
• PoE POWERED:Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation. No external power required-saves on cost installation time
• DAISY-CHAINABLE: Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
• INDUSTRIAL GRADE DESIGN: Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°- 75° C (-40° - 167° F).
• PoE/PoE+: Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device
• LED INDICATORS: LED indicators to convey status
• EXTENSION DISTANCE: Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
More from the Manufacturer
OVERVIEW
TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation flexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
PoE Powered
Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation
Daisy-Chainable
Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.)
Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F)
Extension Distance
Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
PoE/PoE+
Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device
Gigabit Ports
The industrial PoE+ extender features one gigabit PoE+ input port and one gigabit PoE+ output port
PoE Powered
No external power required—saves on cost installation time
Daisy-Chain
Connect up to two TI-E100 industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.)
Industrial Grade Design
Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F)
LED Indicators
LED indicators to convey status
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Device Interface
1 x Gigabit PoE+ in port
1 x Gigabit PoE+ out port
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 128KB
MAC Address Table: 2K
Jumbo Frame: 9KB
Special Features
Extends a PoE/PoE+ network connection an additional 100 meters
Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input
Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input
ESD Contact 6kV/Air 8kV and Surge 2kV protection
PoE
Power input: 15.4W/30W/60W
Power output: 15.4W/30W
Max. consumption: 3.5W (no PoE)
Housing
IP30 metal case
DIN-Rail mount
Wall mount
Grounding point
Contact 6kV, Air 8kV ESD protection
2kV surge protection
Operating Temperature
- 40° — 75° C (-40° — 167° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
103 x 80 x 32mm (4 x 3.1 x 1.25 in.)
Weight
158g (5.6 oz.)
Certifications
CE
FCC
IEC EN60950-1
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
3-year
PACKAGE CONTENTS
TI-E100
Quick Installation Guide
DIN-Rail and wall mount kit
*Each additional extender added to the daisy chain will decrease the overall available PoE budget.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Industrial Gigabit PoE+ Extender
Easy installation
Extends 100m for a total distance of up to 200m (656 ft.)
Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft.)*
Supports PoE (15.4W) and PoE+ (30W)
Wide operating temperature range of -40°– 75° C (-40° – 167° F)
Durable IP30 rated metal housing
Convenient wall mountable design
No external power adapter required
NDAA / TAA compliant
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-E100 |
| Brand Name | TRENDnet |
| Product Model | TI-E100 |
| Product Name | Industrial Gigabit PoE+ Extender |
| Product Condition | New |
| Product Type | Network Extender |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Height | 4.1" |
| Width | 3.1" |
| Depth | 1.3" |
| Technical Information | |
| Maximum Extended Range | 984.25 ft |
| Maximum Data Transfer Rate | 250 MB/s |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Standards IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at Device Interface 1 x Gigabit PoE+ in port 1 x Gigabit PoE+ out port LED indicators DIN-Rail mount Wall mount Grounding point Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) Performance Data RAM Buffer: 128KB MAC Address Table: 2K Jumbo Frame: 9KB Special Features Extends a PoE/PoE+ network connection an additional 100 meters Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input ESD Contact 6kV/Air 8kV and Surge 2kV protection PoE Power input: 15.4W/30W/60W Power output: 15.4W/30W Max. consumption: 3.5W (no PoE) Housing IP30 metal case DIN-Rail mount Wall mount Grounding point Contact 6kV, Air 8kV ESD protection 2kV surge protection Operating Temperature - 40° - 75° C (-40° - 167° F) Operating Humidity Max. 90% non-condensing |
| Certifications & Standards | CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
