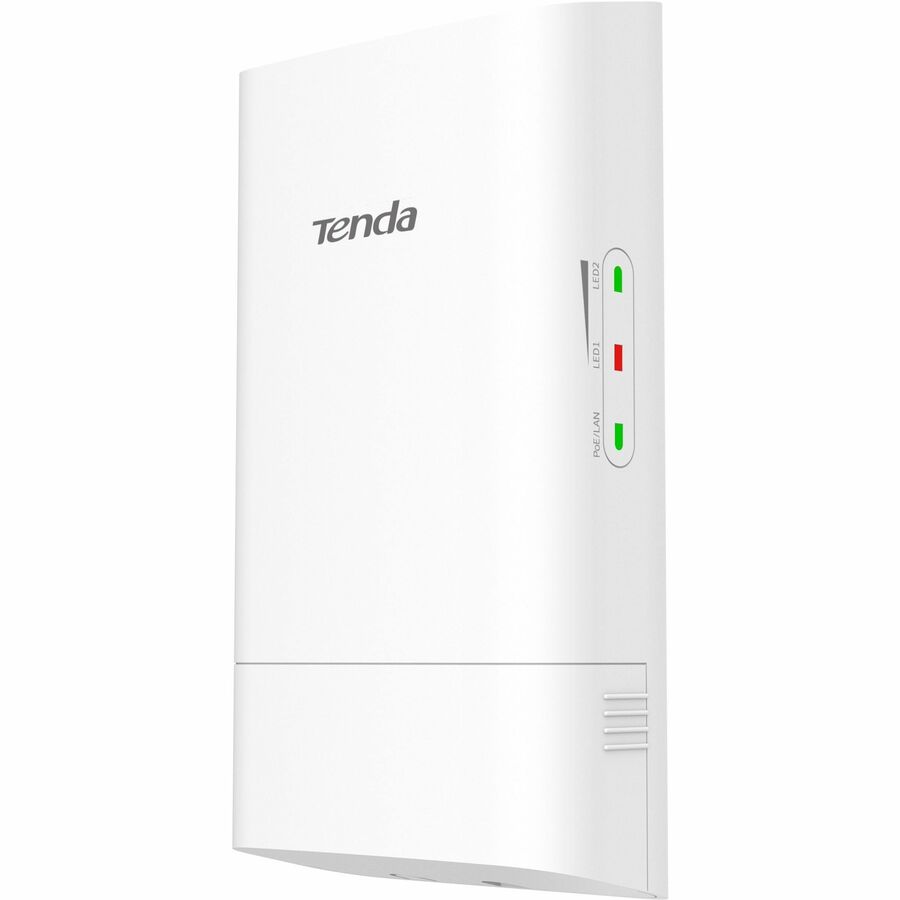

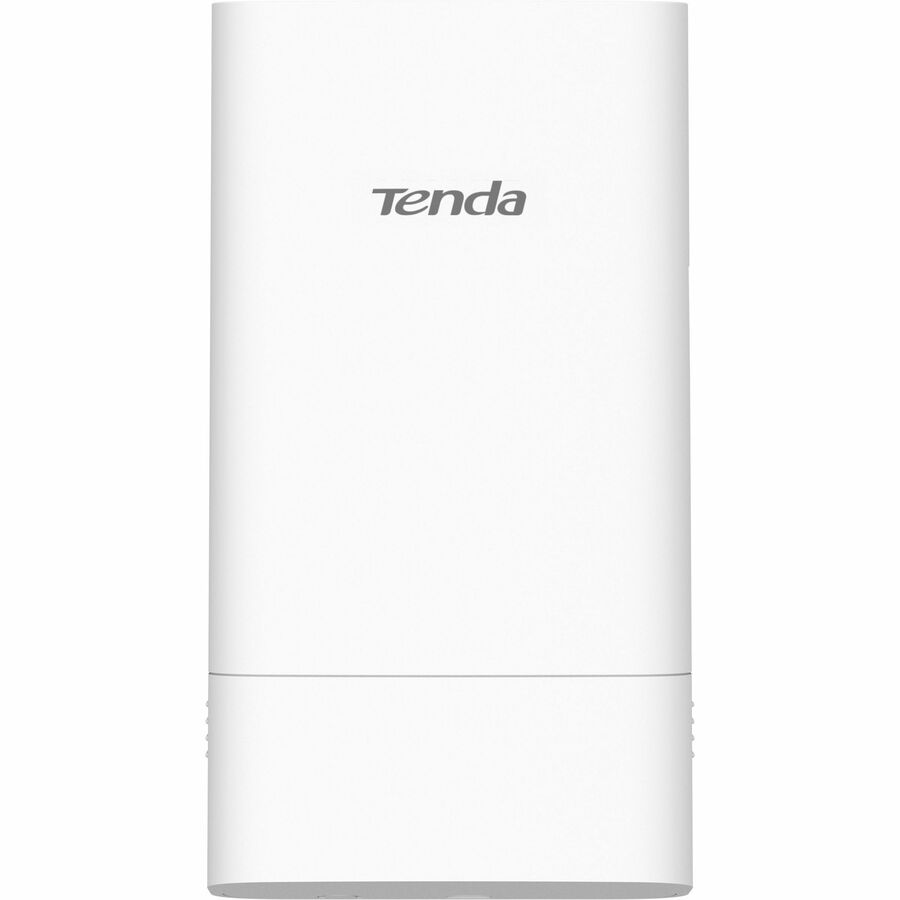

Tenda O1-5G Single Band Wi-Fi 5 IEEE 802.11a/n/ac 867 Mbit/s Wireless Range Extender - Outdoor
5 GHz - 3280.8 ft Maximum Outdoor Range - 1 x Network (RJ-45) - Fast Ethernet - 4.70 W - Pole-mountable, Wall Mountable - IP65 - 1
- SKU
- O1-5G
- Category
- Wireless Access Points/Bridges
MSRP$39.99
$37.93
Save 5%Back ordered — ships when restocked.
Genuine Tenda Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- O1-5G
- Category
- Wireless Access Points/Bridges
Overview
What it does
O1-5G 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 9dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
Key Features
• 5GHz 11AC 867Mbps
• 9dbi directional antenna
• One Fast Ethernet Port
• IP65 waterproof enclosure
• 12V 1A DC/12V 1A Passive PoE supported Product Features | 1+km transmission Range
O1-5G adopts of internal power amplifier and 9dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 1km.
Flexible power supply method enable it easy to deployment

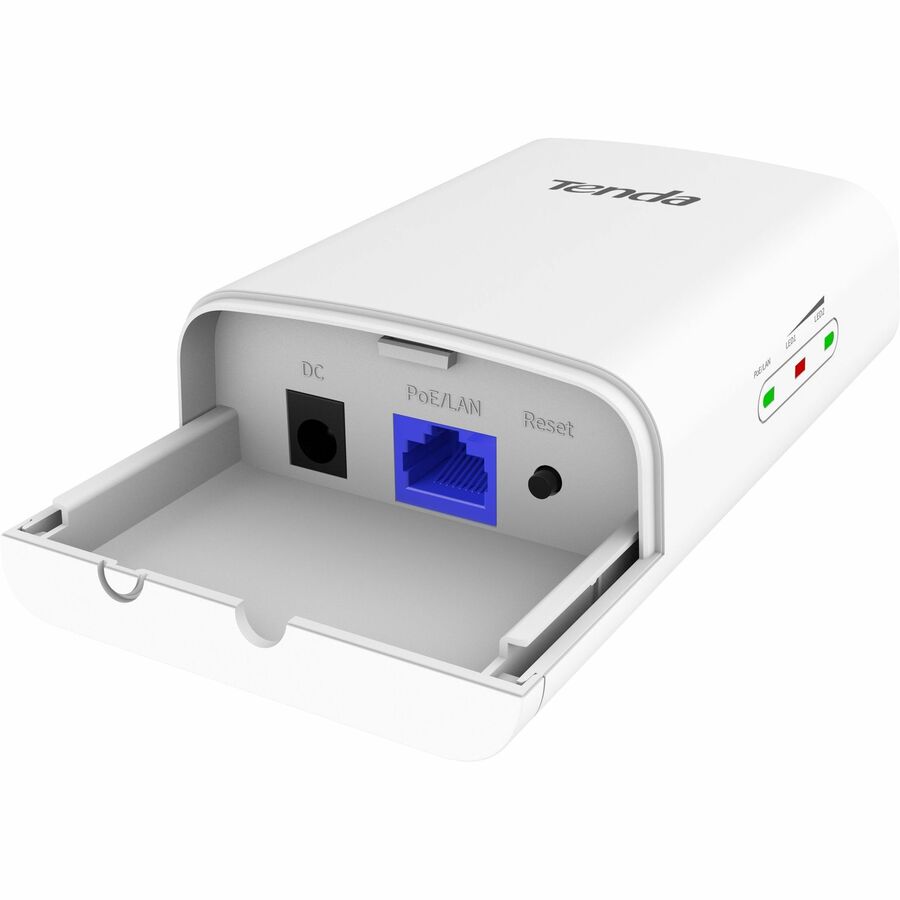

O1-5G supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexiblely.
Auto-bridge technology enable it to easy setup
O1-5G supports auto-bridge technology, It enables the CPE or basestation in factory default settings to connect to each other automaticaly after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.
Easy to Setup and Manage
O1-5G comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
Professional Outdoor Design
Equipped with IP65 waterproof enclouse and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
Multiple Application Scenarios | PtP Connection For CCTV Transmission
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance
PtP Connection For internet sharings
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for internet sharing between buildings or neighbors

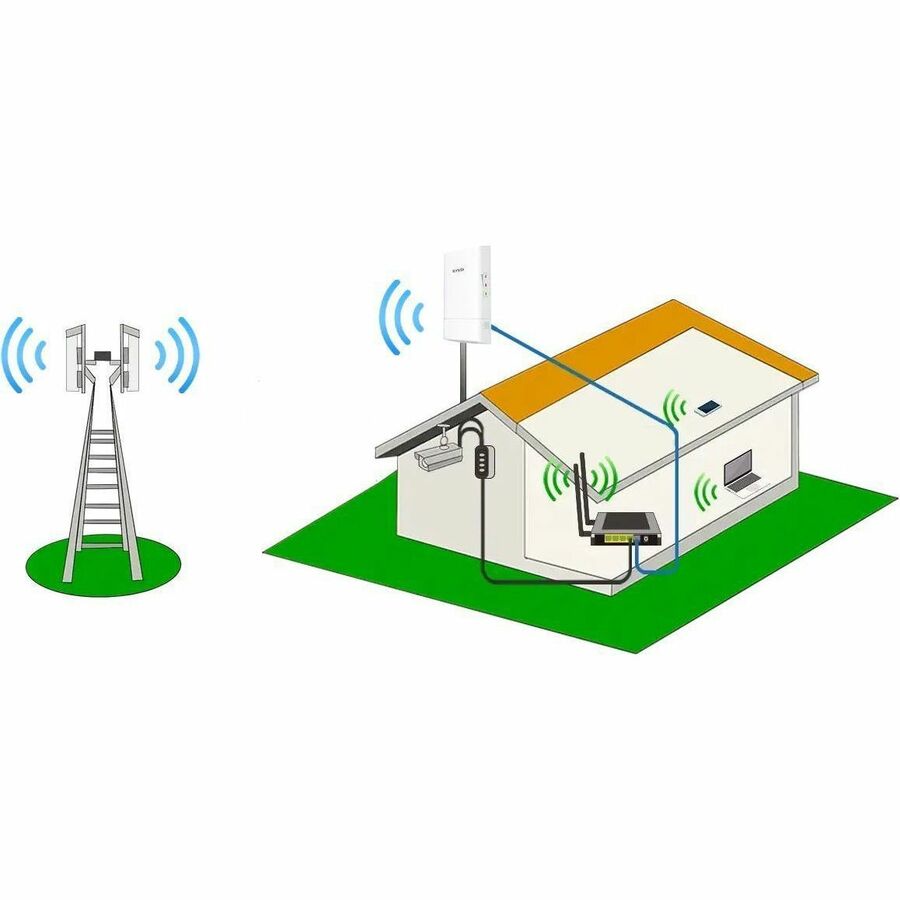

Wireless Internet Access for Private ISP
Wirelessly connect to Private ISP tower signal to share Internet to local wireless and wired network.
Highlights
- To get coverage in the areas where your router can not reach, use this wireless range extender
- 867 Mbit/s wireless transmission speed provides high and efficient communication with maximum efficiency
- IEEE 802.11a/n/ac wireless LAN standard ensures trouble-free and convenient connectivity
- Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
- 3280.8 ft outdoor antenna range for feasible connectivity and firm reception
- Data Encryption provides reliable and enhanced data security and management

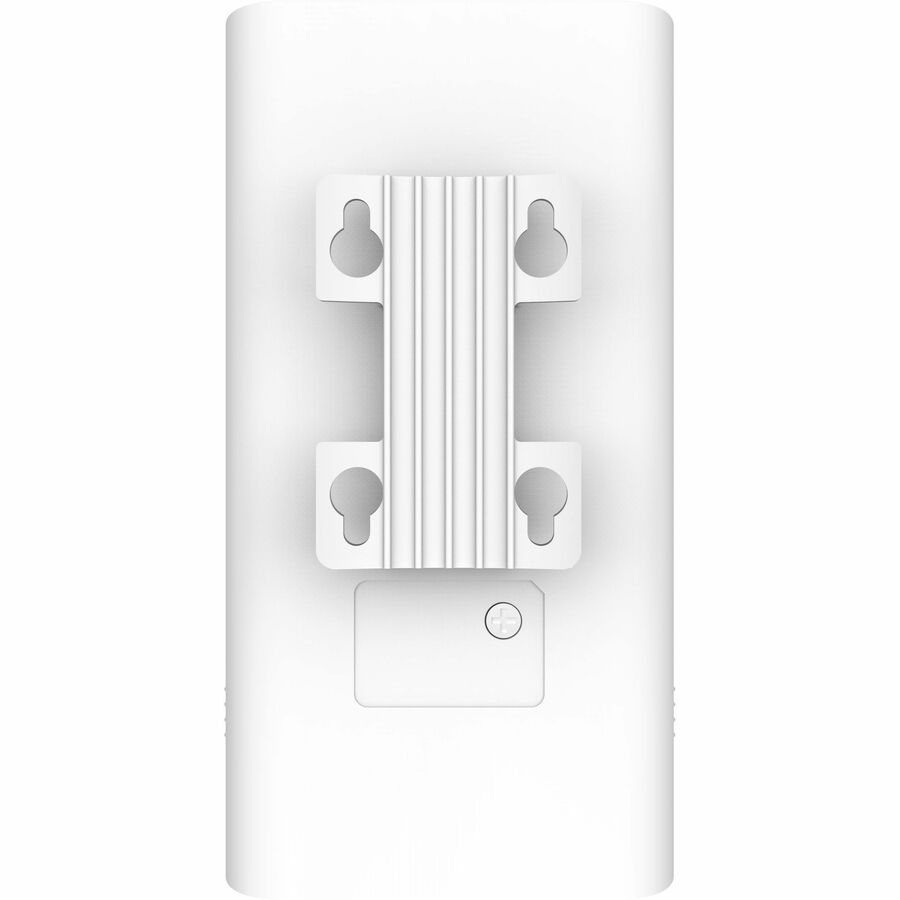

- Pole-mountable form factor offers comfortable usage for a longer duration
Specifications
| Product Type | Wireless Range Extender |
|---|---|
| Manufacturer Part Number | O1-5G |
| Packaged Quantity | 1 |
| Network Band | Single Band |
| Form Factor | Pole-mountable, Wall Mountable |
| Manufacturer | Tenda Technology Inc |
| Product Model | O1-5G |
| Product Name | 5GHz 9dBi 11AC 867Mbps Outdoor CPE |
| Power Consumption | 4.70 W |
| Wireless Transmission Speed | 867 Mbit/s |
| Brand Name | Tenda |
| Height | 5.2" |
| Width | 2.8" |
| Depth | 1.8" |
| Frequency Band | 5 GHz |
| Wireless LAN Standard | IEEE 802.11a/n/ac |
| Outdoor Antenna Range | 3280.8 ft |
| Encryption Standard | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Data Encryption | Yes |
| PoE PD Port | Yes |
| Indoor/Outdoor | Outdoor |
| Ingress Protection (IP) Rating | IP65 |
| Wi-Fi Generation | Wi-Fi 5 |
