Overview

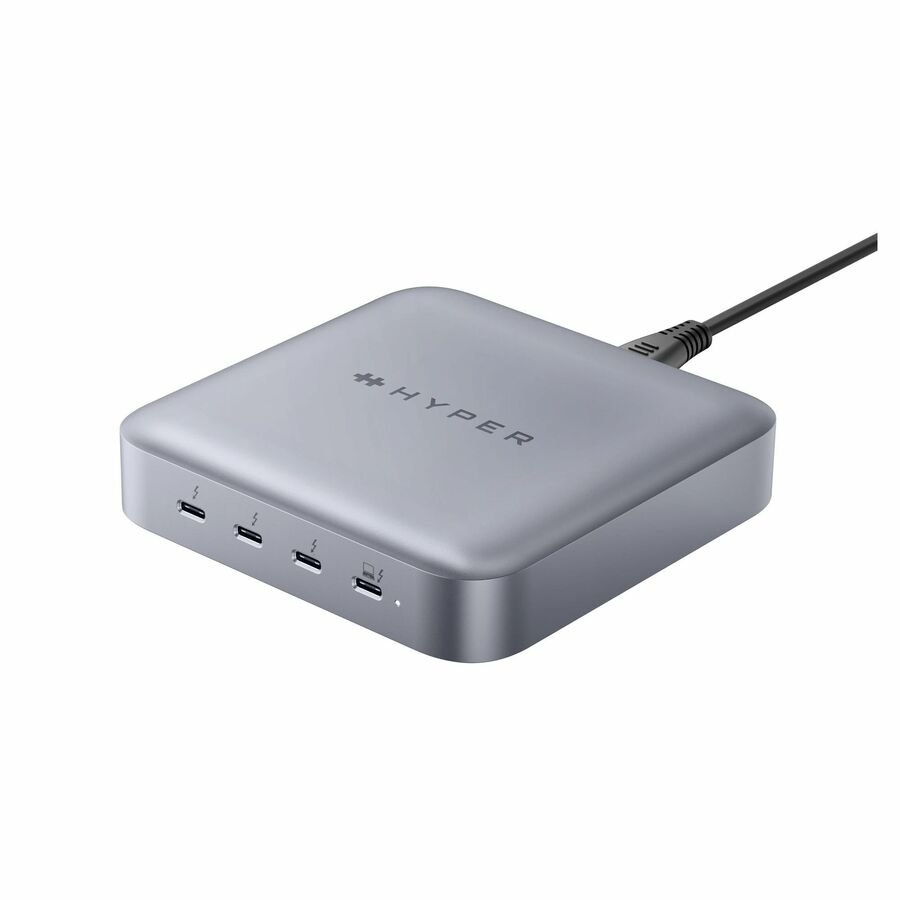

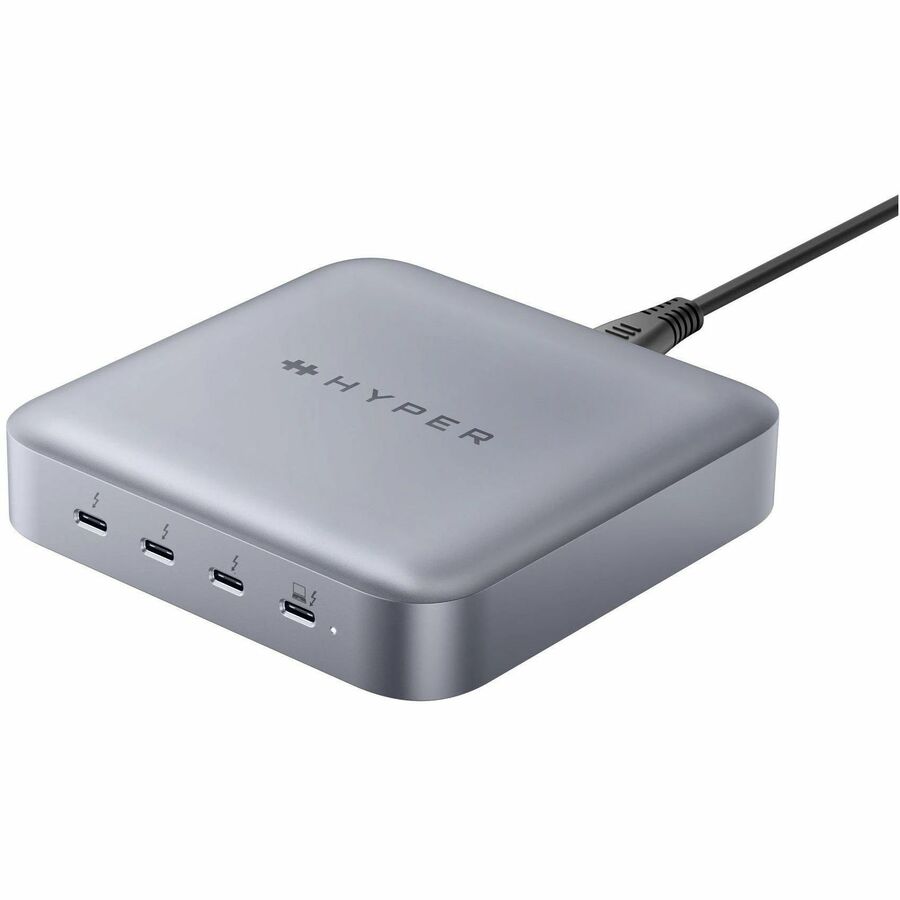

Designed for the most advanced video editors, designers and creatives, the Thunderbolt?4 Power Hub is the World's first Thunderbolt 4 hub with an integratedGaNpower source. By integrating the latestGaNtechnology, we've eliminated a large power brick and replaced it with a slim AC cord for improved portability and a cleaner workspace aesthetic.
It provides Three Thunderbolt 4 downstream ports that enable 40Gbps data transfers, 32GbpsPCledata transfers, and dual 4K 60Hz or single 8K 30Hz display connectivity. Additionally, the TB4 downstream ports are capable of 15W charging and the upstream port provides passthrough charging of up to 96W.
8K30Hz Single or 4K60Hz Dual Display Support
Connect to up to two displays.
Better Graphics Performance
32Gbps PCIe data transfer for 2x better graphics performance.
Power Your Workflow with Thunderbolt
Boost productivity with three Thunderbolt 4 ports offering 40Gbps data transfer, 32Gbps PCIe for enhanced graphics, and 15W charging. Stay efficient with 96W passthrough power and broad compatibility across Mac, PC, and USB-C devices, ensuring a seamless and versatile creative experience.
Warranty
Limited Warranty: 2 Year
Highlights

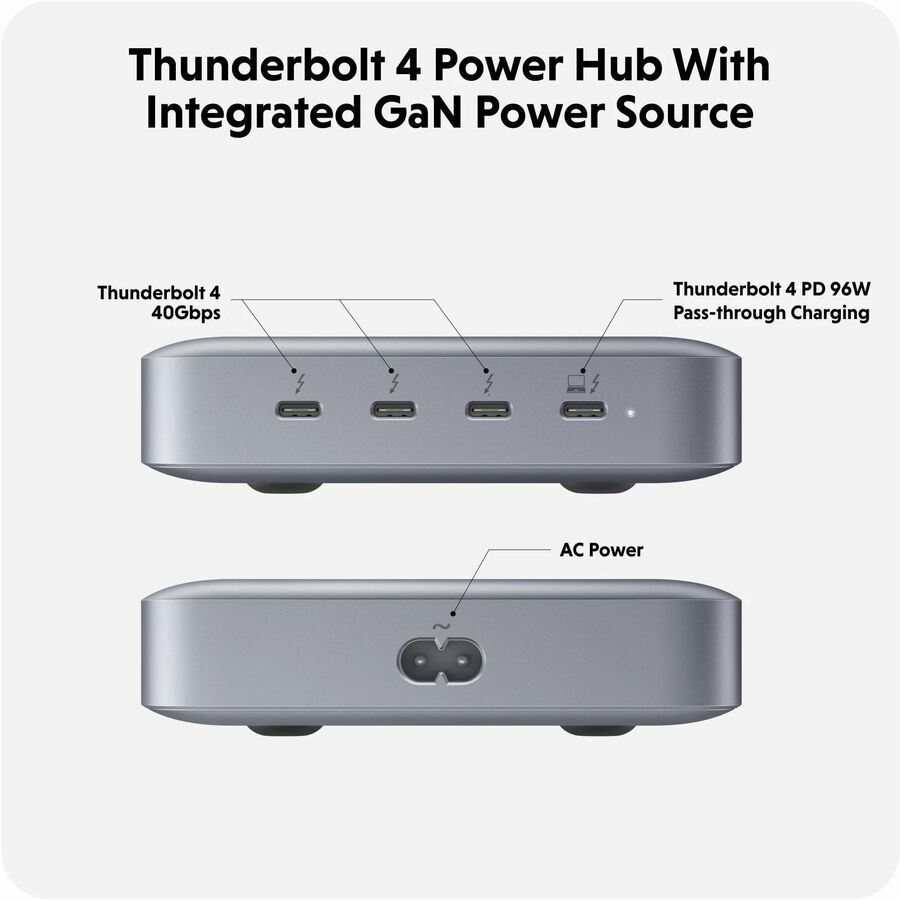

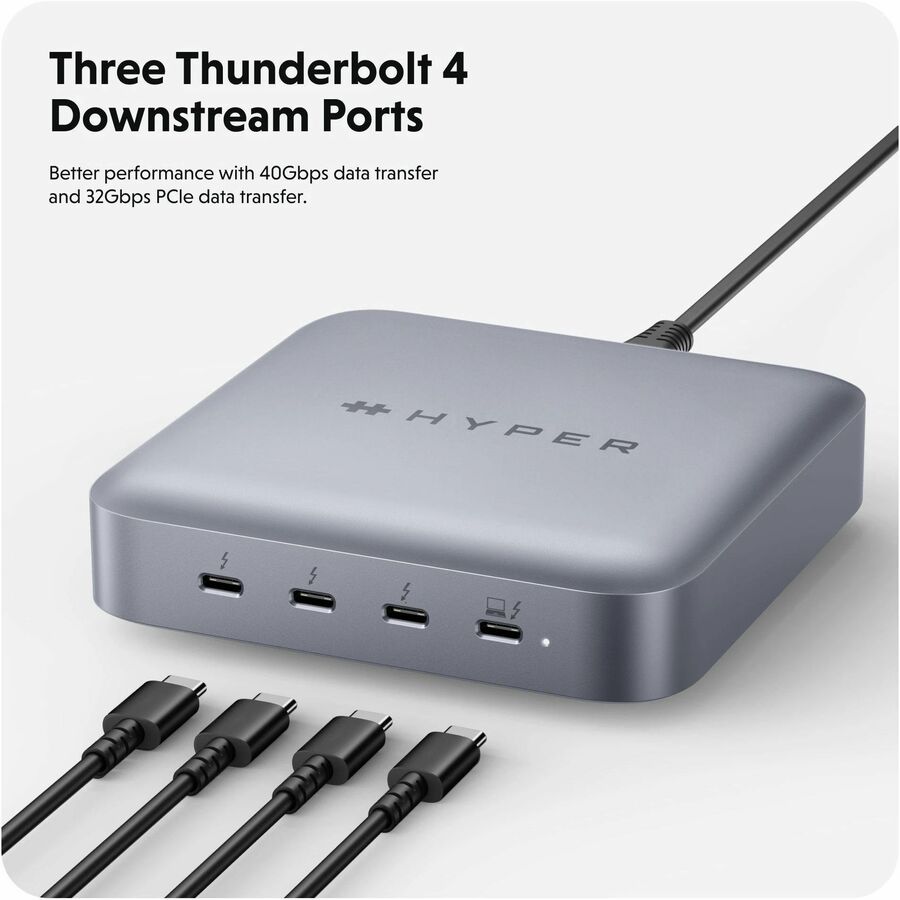

Three Thunderbolt 4 Downstream Ports: Three Thunderbolt 4 downstream ports provide up to 40Gbps data transfer, 32Gbps PCIe data transfer for better graphics performance, and 15W charging.

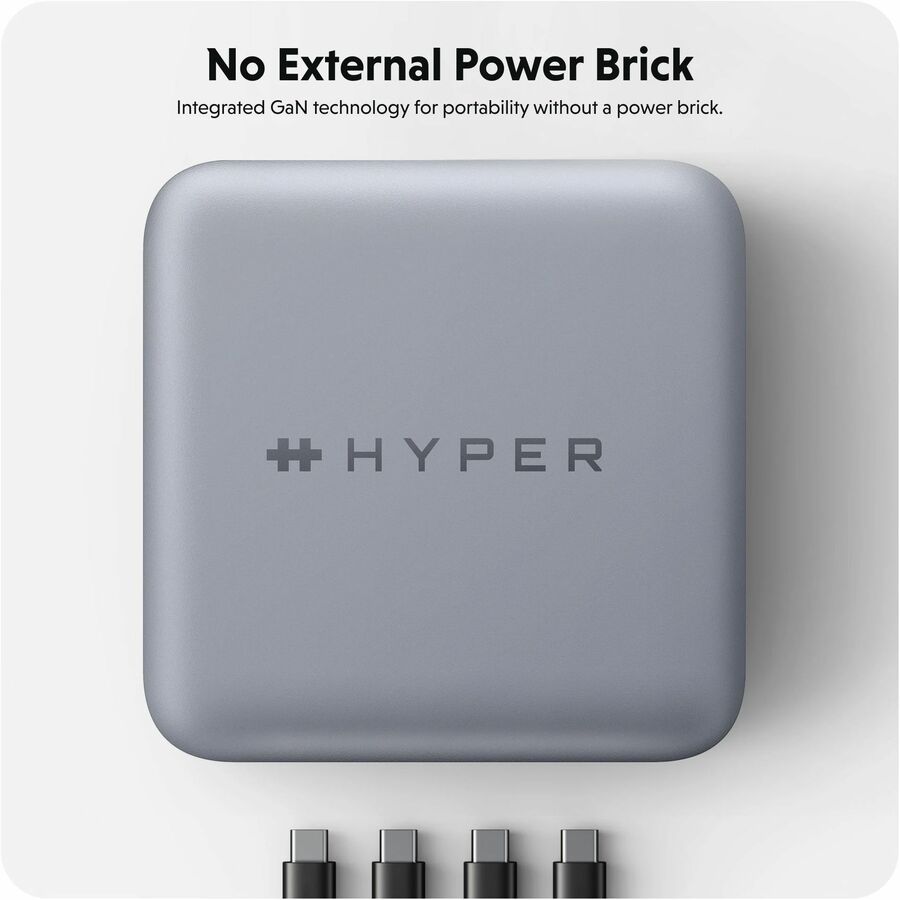

No External Power Brick: Integrated GaN technology provides a more portable solution that creates a cleaner setup with no bulky power brick.
Better Graphics Performance: 32Gbps PCIe data transfer provides 2x better graphics performance from TB4 enabled eGPUs.

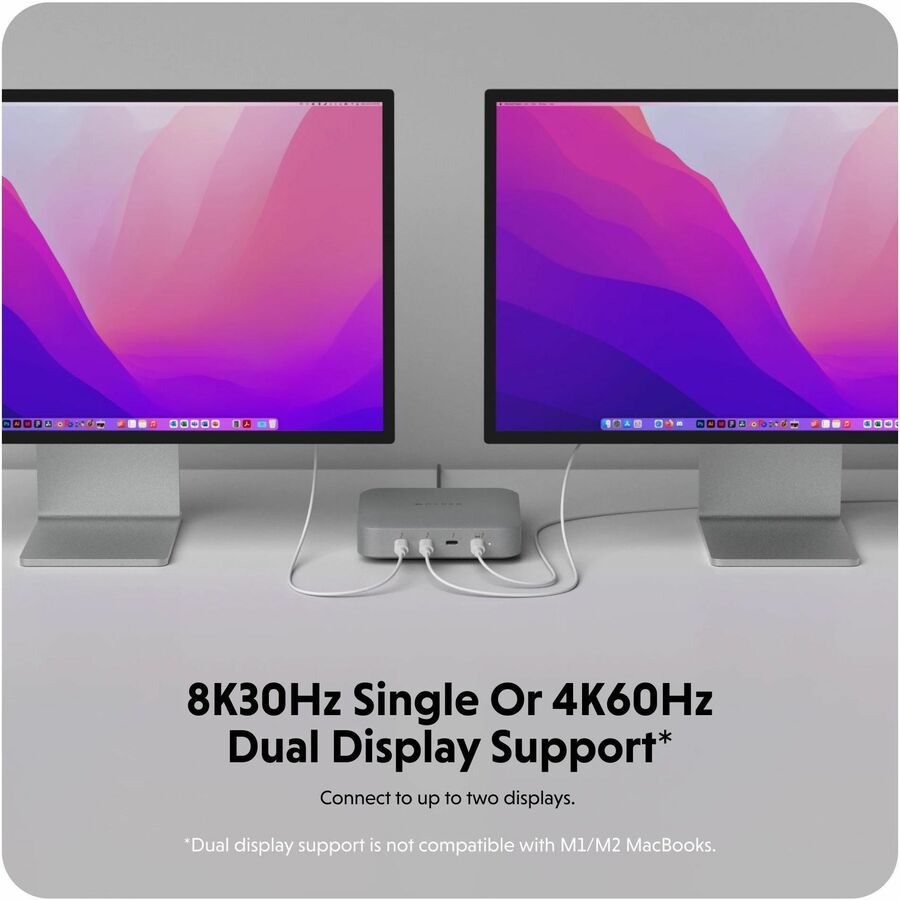

8K 30Hz Single Or 4K 60Hz Dual Display Support: Connect to one display with up to 8K 30Hz HDMI video or connect to two displays with 4K 60Hz HDMI video. *Dual display support is not compatible with M1/M2/M3 MacBooks.
96W Passthrough Charging: 1x Thunderbolt upstream port provides PD 96W passthrough charging. Compatible with TB4, TB3, and all USB-C interfaces.
Compatible With: Mac or Windows PC Thunderbolt 3 devices, Thunderbolt 4 devices, USB4 devices, USB-C devices.
Specifications
General Information
Manufacturer
Targus Group International
Manufacturer Part Number
HDTB4PH-US
Brand Name
HyperDrive
Product Model
HDTB4PH-US
Product Name
Thunderbolt 4 Power Hub with Integrated GaN Power Source
Product Type
Docking Station
Interfaces/Ports
Host Interface
Thunderbolt 4
Thunderbolt
Yes
Thunderbolt 4
Yes
Thunderbolt Ports Quantity
4
Number of Thunderbolt 4 Ports
4
USB Power Delivery
96W
Total Number of Ports
4
Physical Characteristics
Form Factor
Portable
Height
4.90"
Width
4.90"
Depth
1.20"
Weight (Approximate)
1.28 lb
Software
Operating System Supported
Windows, ChromeOS
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Number of Displays Supported
2
Device Supported
Notebook, Tablet PC, MacBook, iPad
Supported Resolutions
3840 x 2160, 7680 x 4320
Screen Mode Supported
4K, 8K, 4K @ 60Hz, 8K @ 30Hz
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Thunderbolt 4 Power Hub with Integrated GaN Power Source
AC Power Cord
Thunderbolt 4 Cable (2.6FT / 0.8M)
Compatibility
Compatible Devices: MacBook Pro 2016 or Later MacBook Air 2018 or Later MacBook 2015, 2016 iPad Pro 2018 or later iPad Air 2020 or later Windows OS laptop with Thunderbolt 3/4, USB4, USB 3.0 OR later Type C with DP Alt-Mode Chrome OS laptop with Thunderbolt 3/4, USB4, USB 3.0 OR later Type C with DP Alt-Mode Any other device with USB-C
