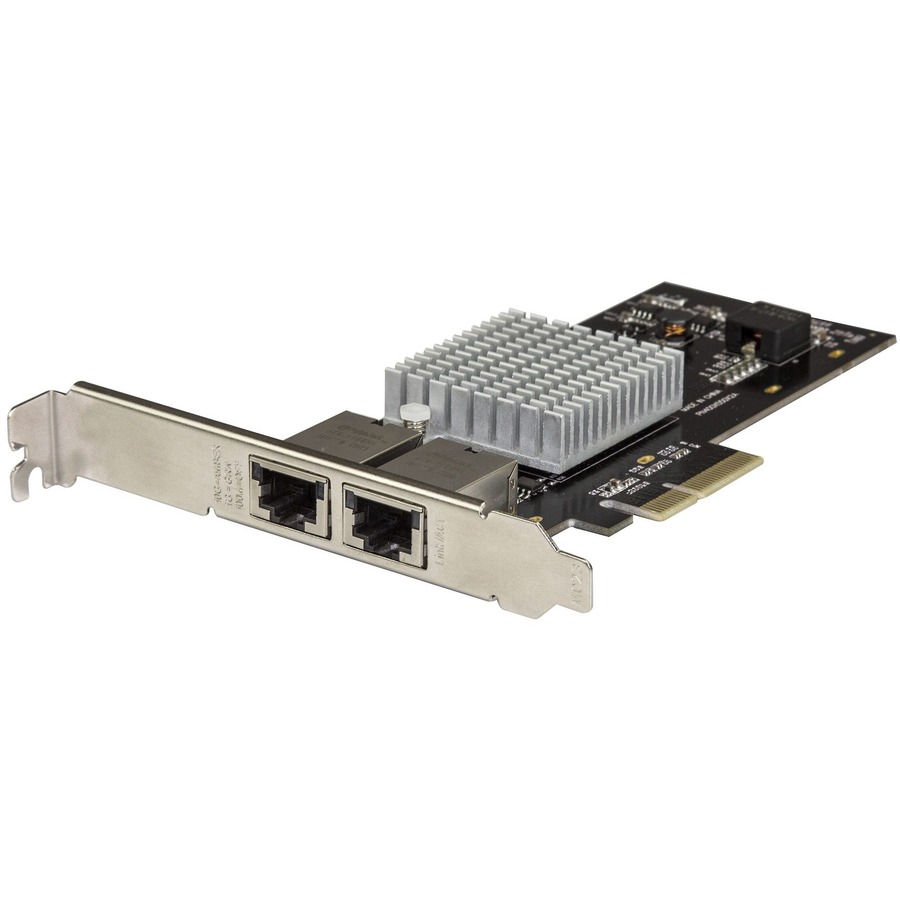

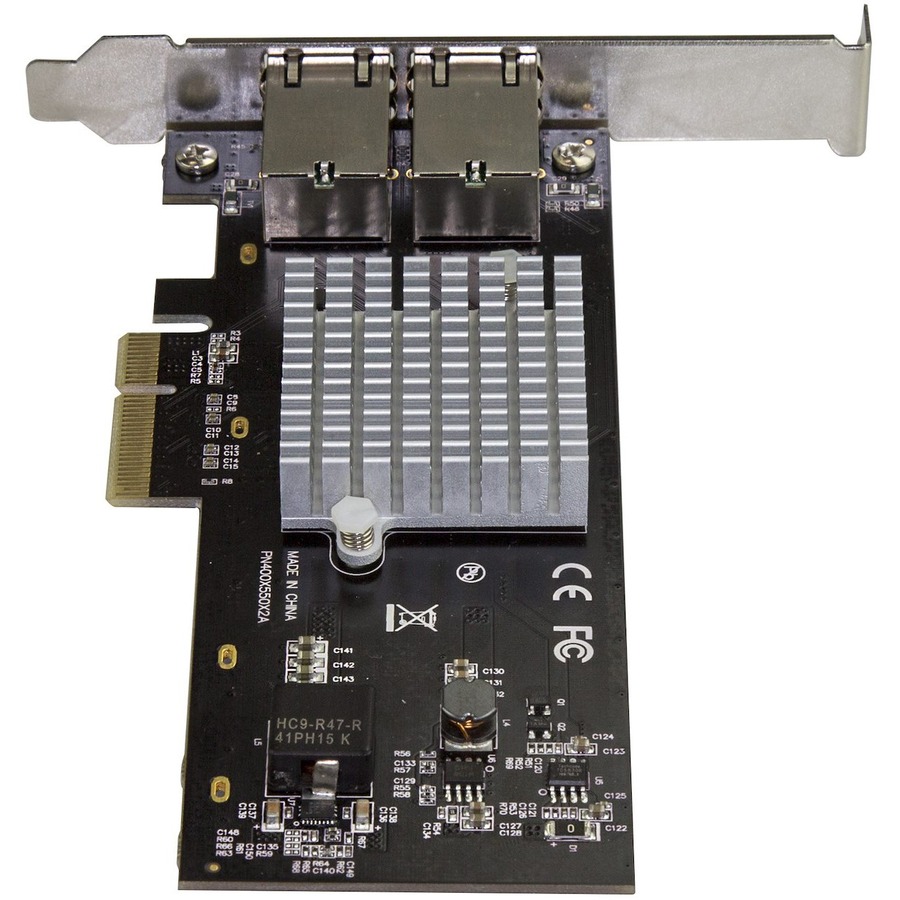

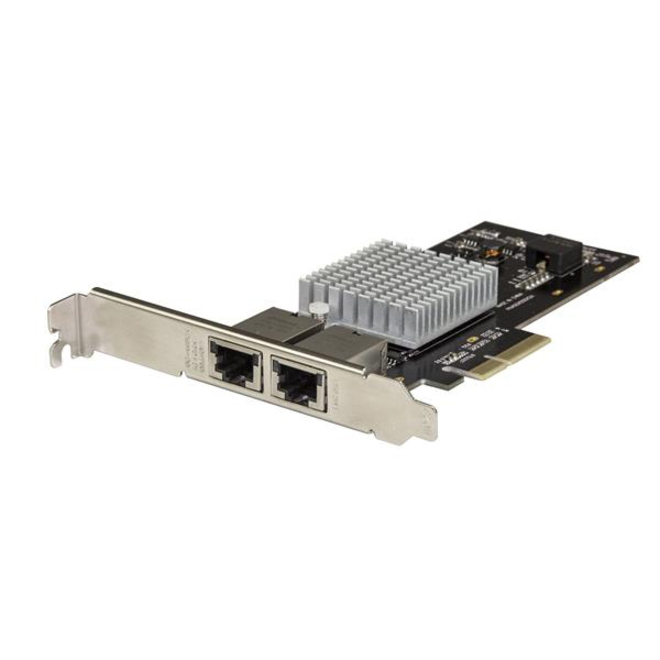

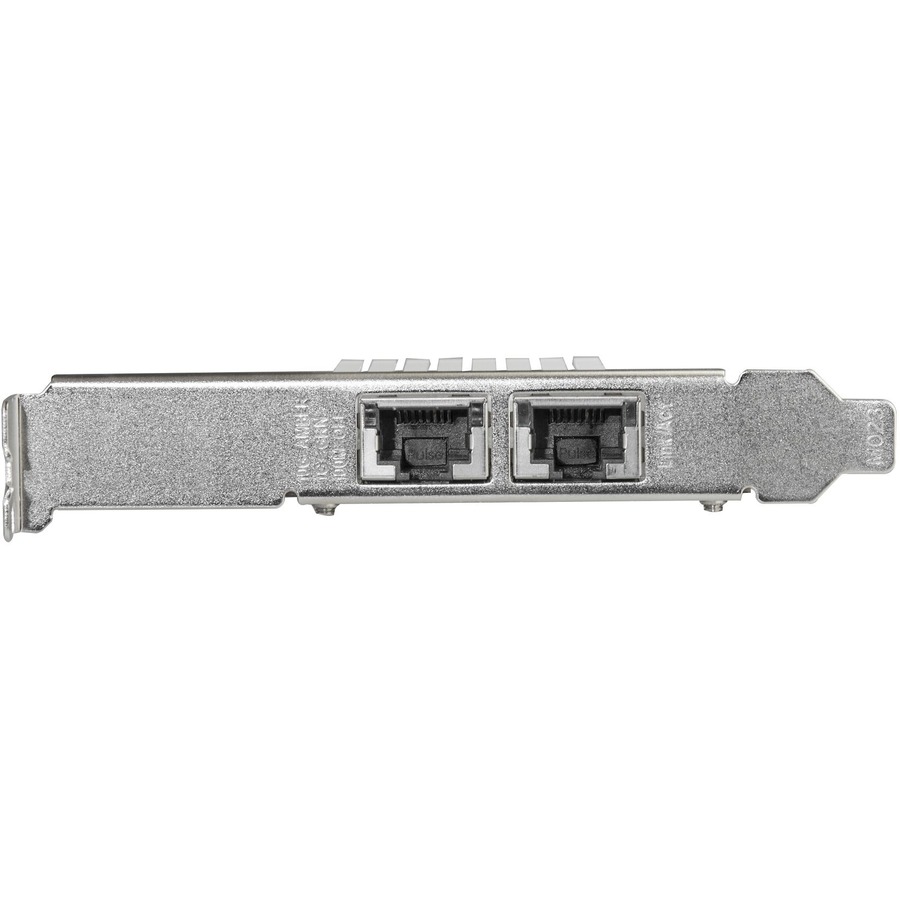

StarTech Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port
PCIe Network Adapter Card Dual NIC ports Network Interface Card 2x 10 GbE RJ45 Ports - Intel X550AT2 Chip - 10GBASE-T / NBASE-T, Muli-Gigabit 1/2.5/5/10 Gbps, PCIe 3.0 x4, 15K Jumbo Frames, VLAN, PXE - Supports FCoE & iSCSI - 2 year warranty
- SKU
- ST10GPEXNDPI
- Category
- Network Interface Cards
MSRP$484.81
$465.79
Save 4%In stock: 1
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ST10GPEXNDPI
- Category
- Network Interface Cards
Overview
This Thunderbolt?3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports. Reliable, high-performance and versatile multimode connectivity This 10G network card utilizes the Intel® X550 chipset with Intel® Virtualization Technology for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections. Install and assemble with ease Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer. Change up your chassis The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly. The TB31PCIEX16 and ST10GPEXNDPI are backed by a StarTech.com 2-year warranty. More from the Manufacturer More from the Manufacturer
Highlights
- DUAL PORT 10GbE NETWORK INTERFACE CARD: 10Gbps Dual port PCIe Network Adapter Card copper combines high data transfer rates to provide redundancy or independent connections to multiple networks
- TECH SPECS: 10 Gbps | 2x RJ45 Ports |Intel X550AT | 10GBASE-T & NBASE-T | Muli-Gigabit 1 / 2.5 / 5 / 10 Gbps | PCI Express 3.0 x4 | 15K Jumbo Frames |VLAN |VT-c |PXE |Full & low profile |2Yr Warranty
- TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits validation tools to validate performance; compatible with major operating systems & hypervisor/virtualization platforms
- ADVANCED FEATURES: Workstation NIC Supports SAN (Storage Area Network) advanced features including iSCSI offload and Fibre Channel over Ethernet (FCoE)
- WIDE HYPERVISOR & OS COMPATIBILITY: Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+
Specifications
| Package Contents |
|
|---|---|
| Host Interface | PCI Express 3.0 x4 |
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | ST10GPEXNDPI |
| Packaged Quantity | 1 Each |
| Weight (Approximate) | 3.60 lb |
| Form Factor | Plug-in Card |
| Manufacturer | StarTech.com |
| Product Name | 2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip |
| Network Technology | 10GBase-T |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Height | 3.2" |
| Width | 5.6" |
| Depth | 11" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | X550AT |
| Number of Network (RJ-45) Ports | 2 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
