Add a 10/100Mbps Ethernet port to a desktop computer through a PCI Express slot - pci express ethernet adapter - pcie ethernet card - pci express ethernet nic -10/100 adapter card
SKU
PEX100S
Category
Network Interface Cards
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
PEX100S
Category
Network Interface Cards
Overview

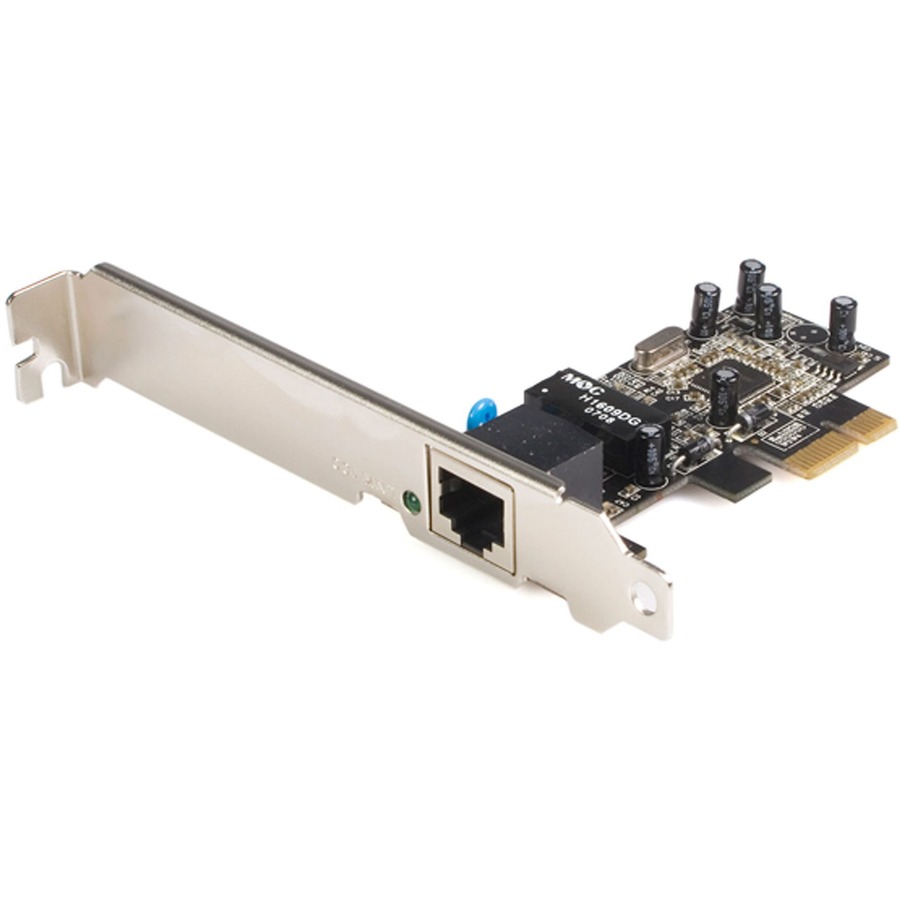

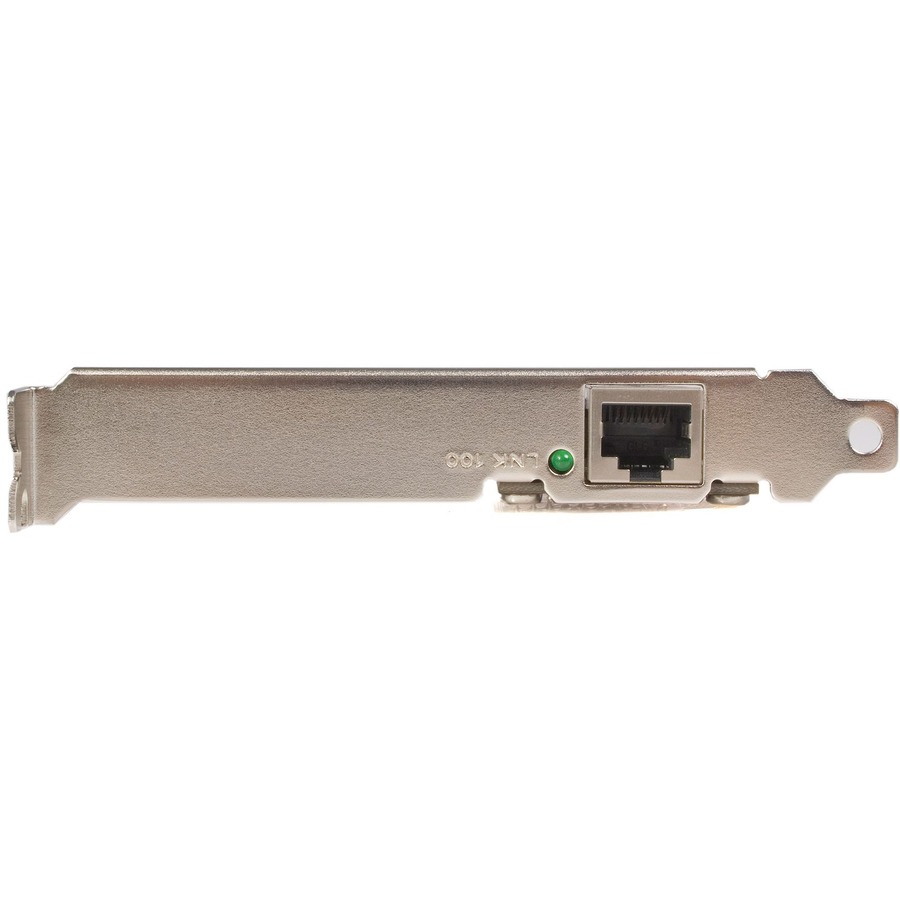

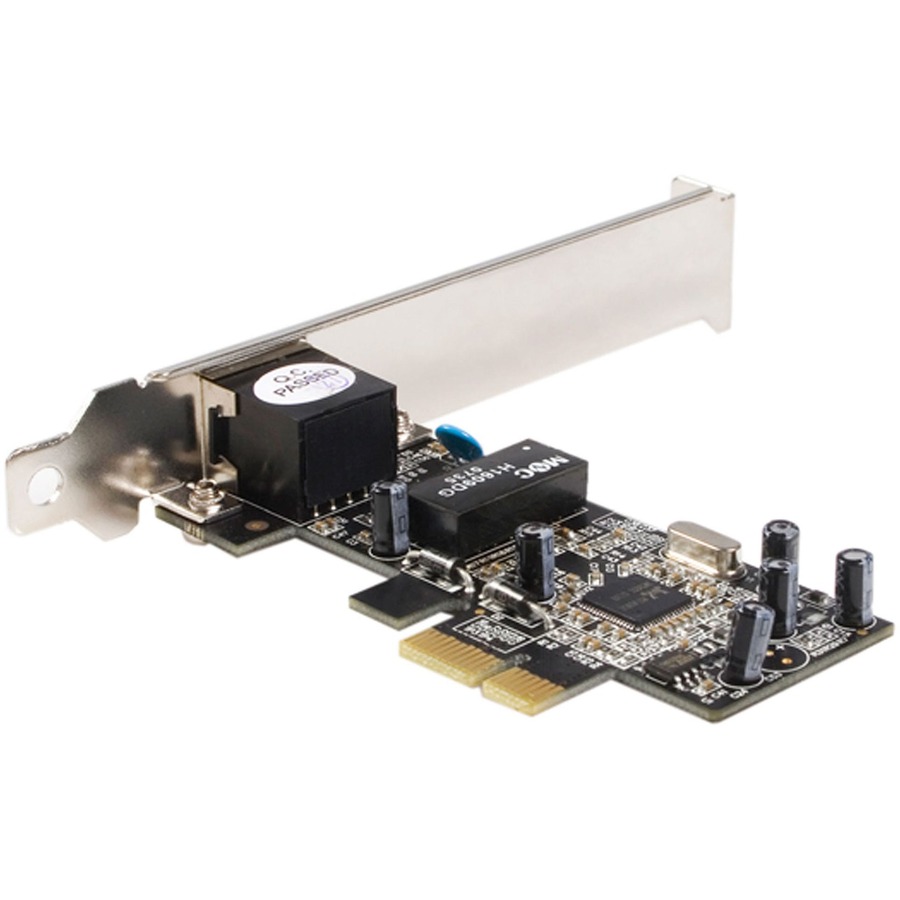

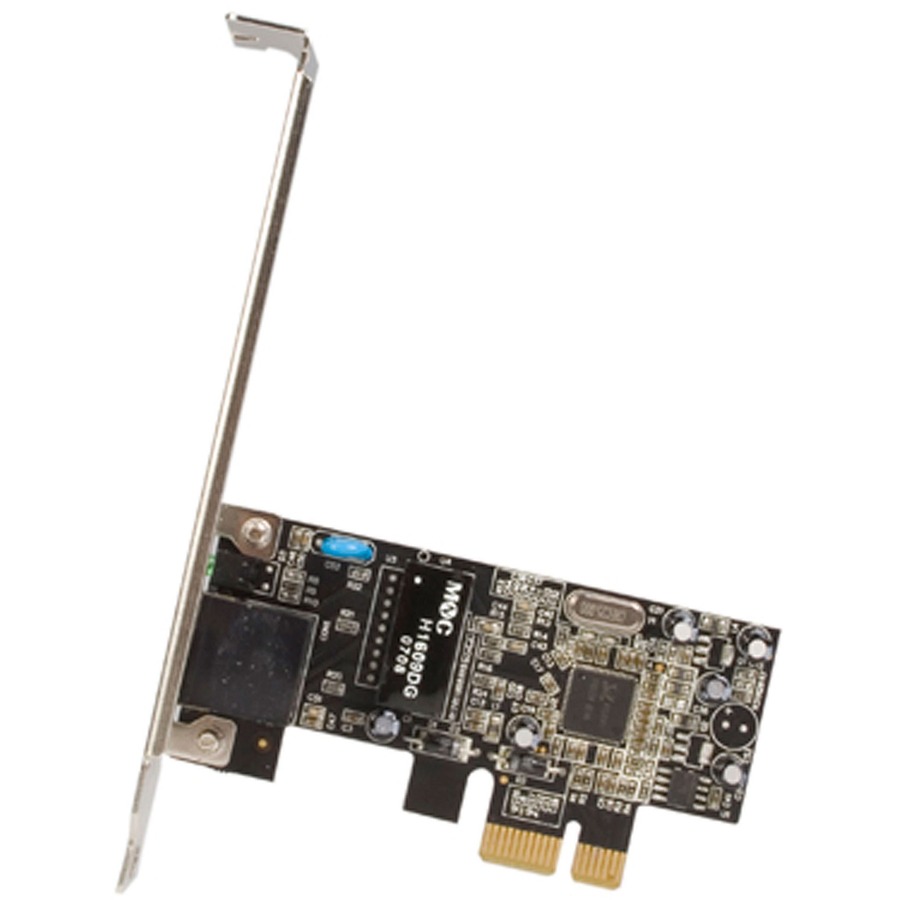

This PCI Express based 10/100 Ethernet Card provides a simple way to connect a PCIe enabled server or workstation to a 10/100 Ethernet network and offers a broad range of features and functions, including support for both Full and Half Duplex operation as well as Wake On LAN (WOL) Power Management.
The PEX100S Ethernet Card includes both standard and low profile brackets and is compatible with most mATX (Slimline) and ATX system form factors, and features Auto MDI/MDIX automatic configuration, which helps to simplify installation and configuration.
More from the Manufacturer
More from the Manufacturer
Highlights
This Fast Ethernet card supports an impressive data transfer rate of up to 100Mbps
Enjoy superfast data transfer of up to 250 MB/s with PCI Express card, between the network card and motherboards
Add your computer to your home or office network with this single port fast ethernet card conveniently
Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
With the 10/100Base-TX technology get up to 100Mbps data transfer rate over the twisted pair cable
Specifications
Package Contents
1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
1 x Low Profile Bracket
1 x Instruction Manual
1 x Driver CD
Host Interface
PCI Express
Product Type
Fast Ethernet Card
Manufacturer Part Number
PEX100S
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
1.10 oz
Form Factor
Plug-in Card
Manufacturer
StarTech.com
Product Name
1 Port PCI Express 10/100 Ethernet Network Interface Adapter Card
Network Technology
10/100Base-TX
Brand Name
StarTech.com
Country of Origin
China
Height
0.8"
Width
4.7"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Chipset Manufacturer
Realtek
Chipset Model
RTL8101E
Maximum Data Transfer Rate
100 Mbit/s
Number of Network (RJ-45) Ports
1
Media Type Supported
Twisted Pair
Total Number of Ports
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
