SKU
MCMGBSCSM10
Category
Transceivers/Media Converters
Overview
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks. Extend your GbE network cost-effectively The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
Provides a cost-effective Ethernet to fiber/copper to fiber link
Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
Compact design and wall mountable
Non-blocking full wire-speed forwarding rate
Provides DIP switch supporting Link Fault Pass-through function

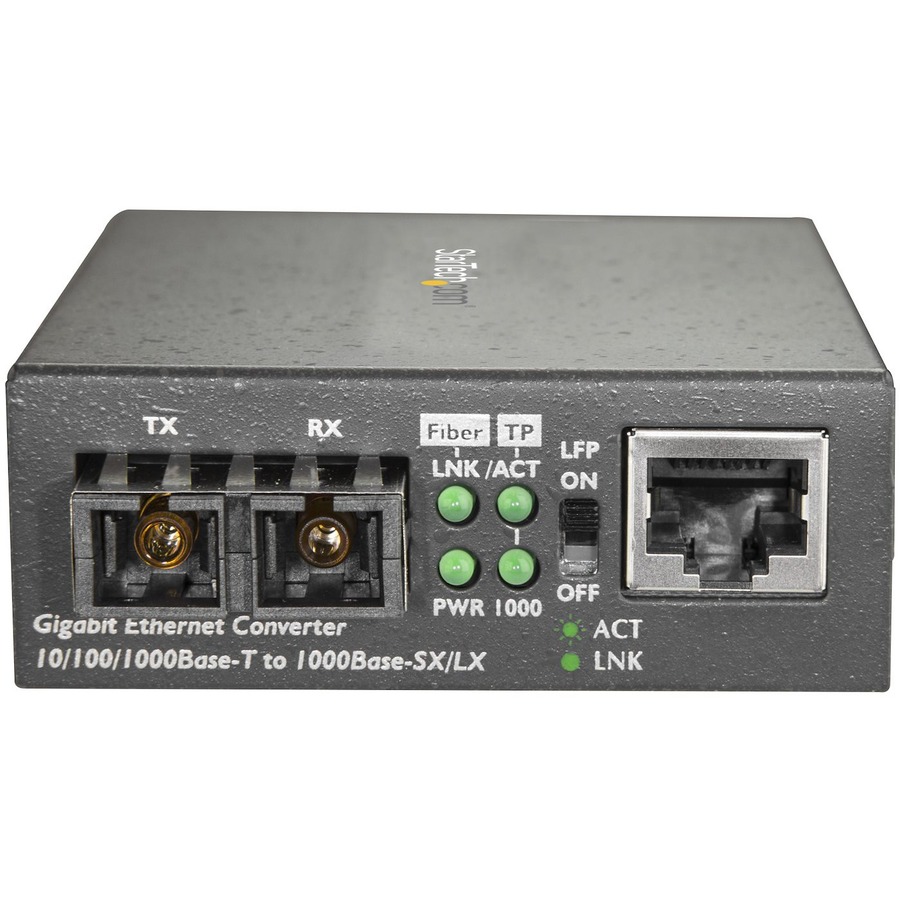

LED Indicators for simple Ethernet/fiber network link monitoring
1310 nm wavelength
Supports IEEE 802.1q Tag VLAN pass through
Specifications

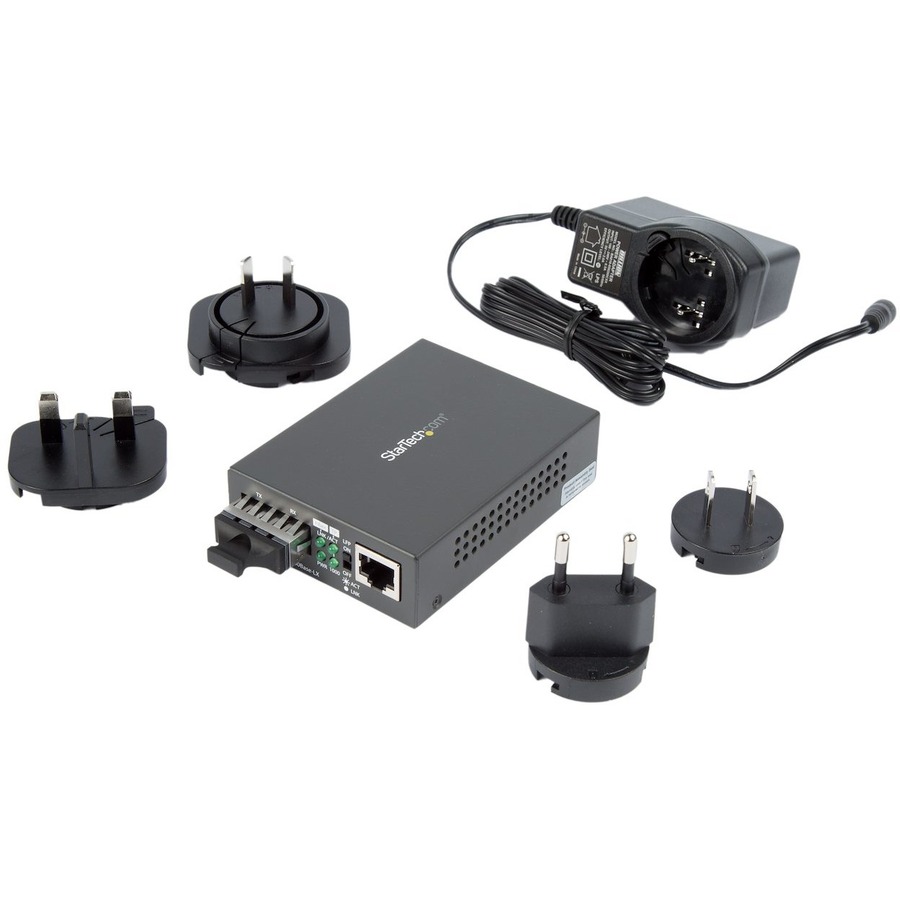

Package Contents
Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
1 x Quick-start Guide
Product Type
Transceiver/Media Converter
Manufacturer Part Number
MCMGBSCSM10
Maximum Distance Supported
10 km
Packaged Quantity
1 Each

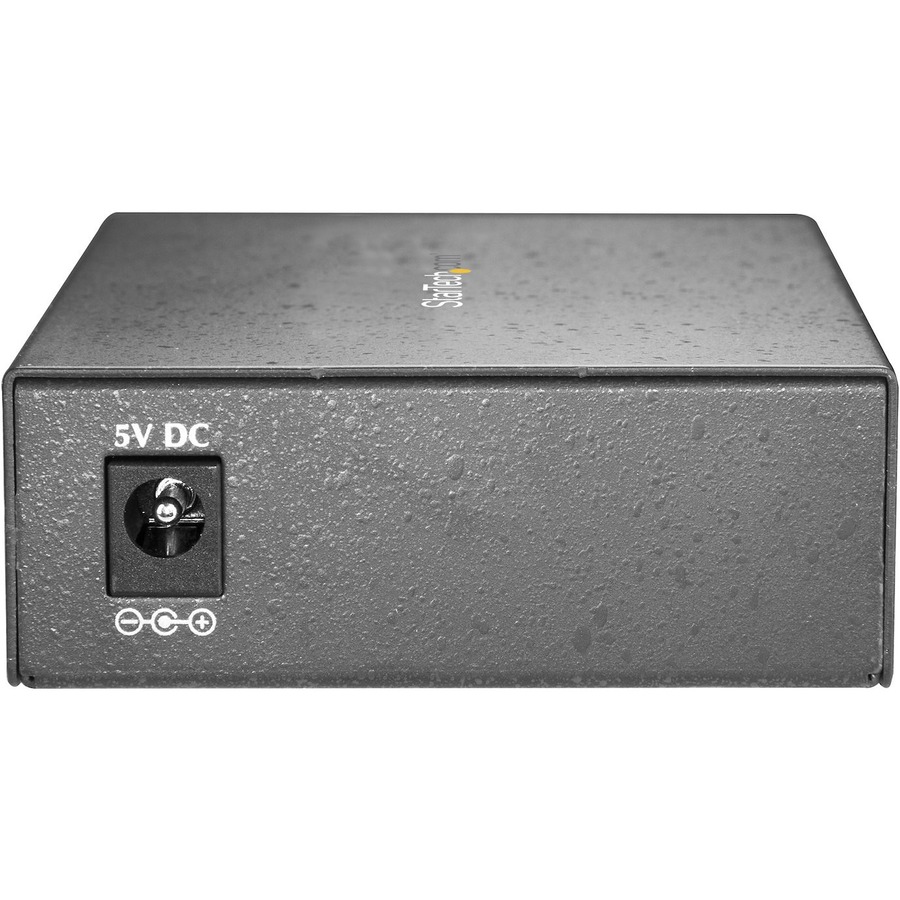

Power Source
AC Adapter
Limited Warranty
2 Year
Weight (Approximate)
6.90 oz
Form Factor
Wall Mountable
Manufacturer
StarTech.com
Product Name
Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
Network Technology
1000Base-T, 1000Base-LX, 10Base-T, 100Base-LX
Power Consumption
10 W
Brand Name
StarTech.com
Plug/Connector Type
Type N
Country of Origin
Taiwan
Height
1"
Width
4.1"
Depth
2.8"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of SC Ports
1
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode
Total Number of Ports
2
SC Port Type
Duplex
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
