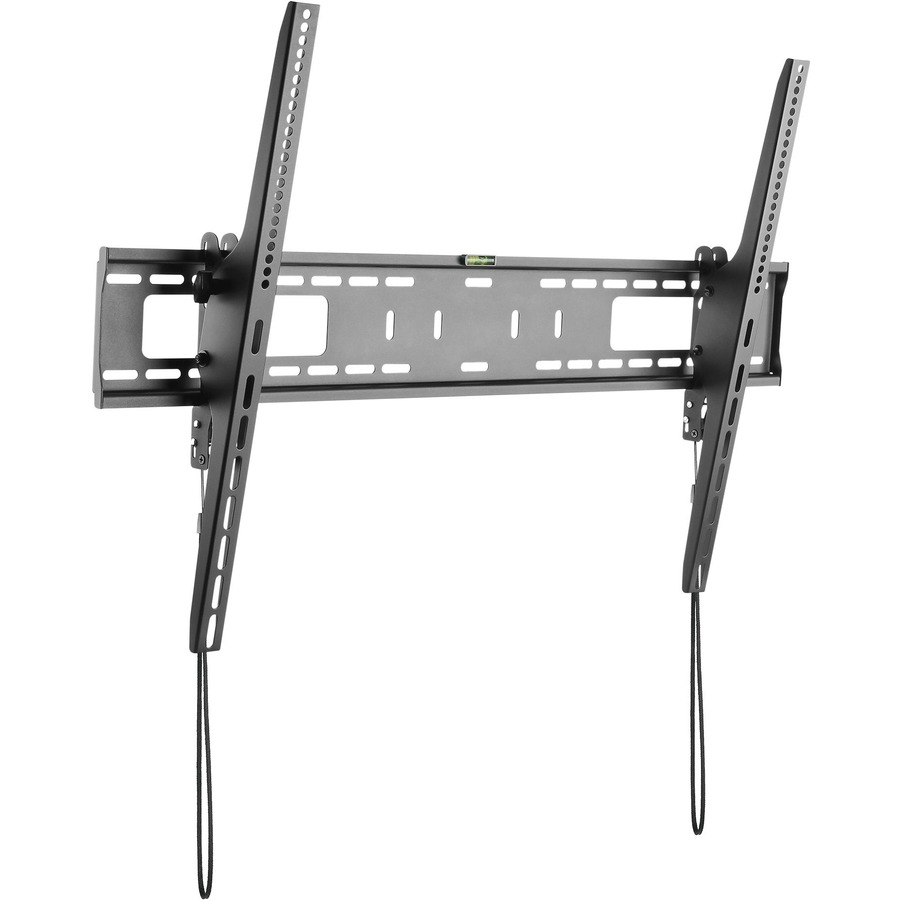

StarTech TV Wall Mount for 60-100 inch VESA Displays (165lb) - Heavy Duty Tilting Universal TV Mounting Bracket for Large Flat Screens
Heavy duty large TV wall mount for up to 100 inch (165lb) VESA displays - Adjustable tilting TV mount w/ adjustment knobs for ideal angle - Low profile (3.3in) - Bubble level/Click-in Lock - Universal flat screen mount (screws/spacers incl) - Steel
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FPWTLTB1
Category
Mounting Kits
Overview
Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100" and features an attractive low-profile design. Create an Engaging Display for Digital Signage Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces. The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600. Tilting Design for Optimal Viewing Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease. Low-Profile Design Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from the wall. Robust Steel Construction and Easy Installation The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires. FPWTLTB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
LARGE 100" TV WALL MOUNT: Heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100inch (165lb/75kg) w/ a durable steel frame and a powder-coated finish

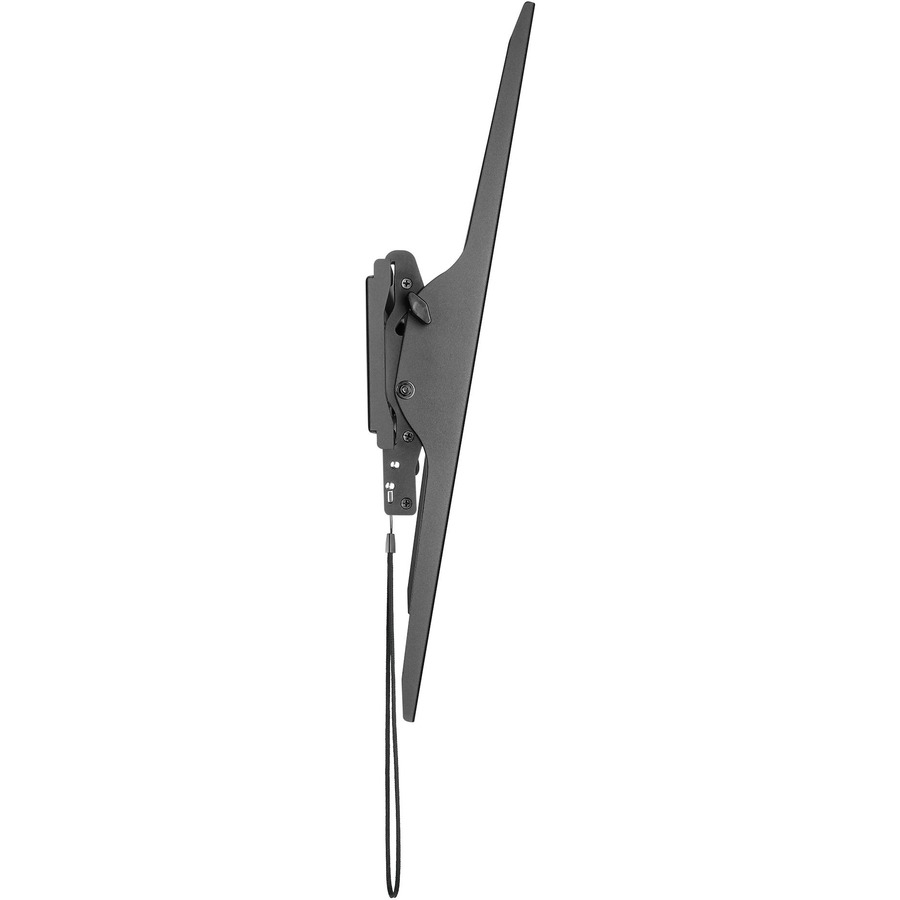

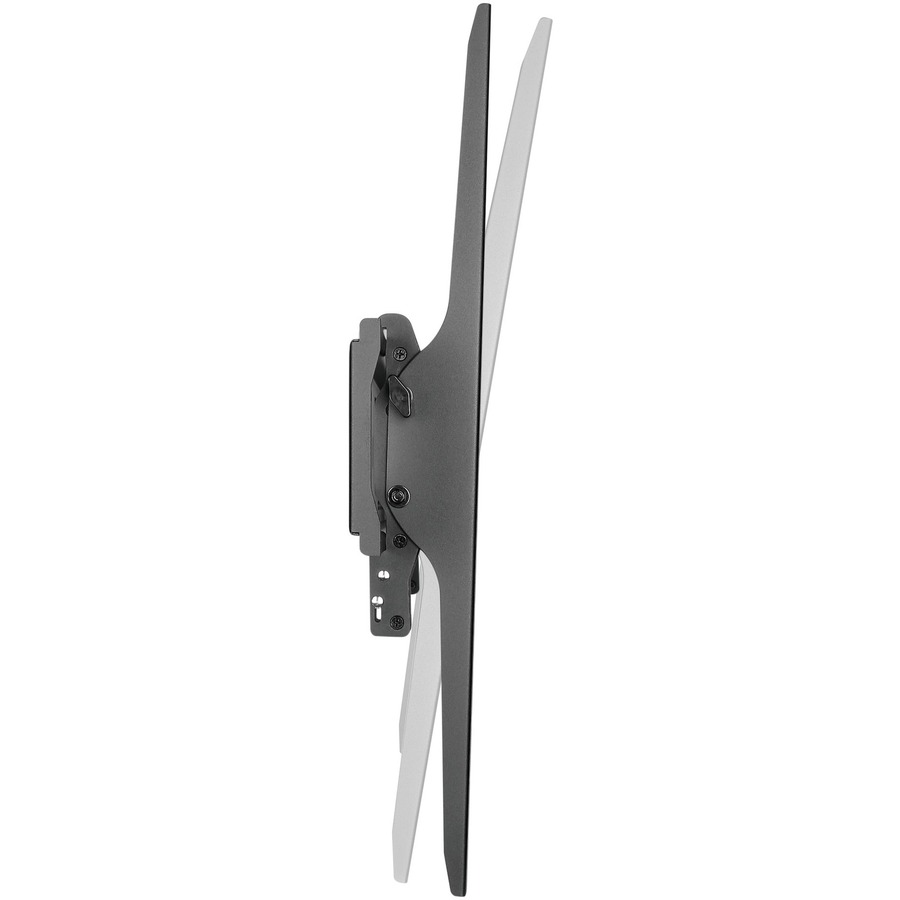

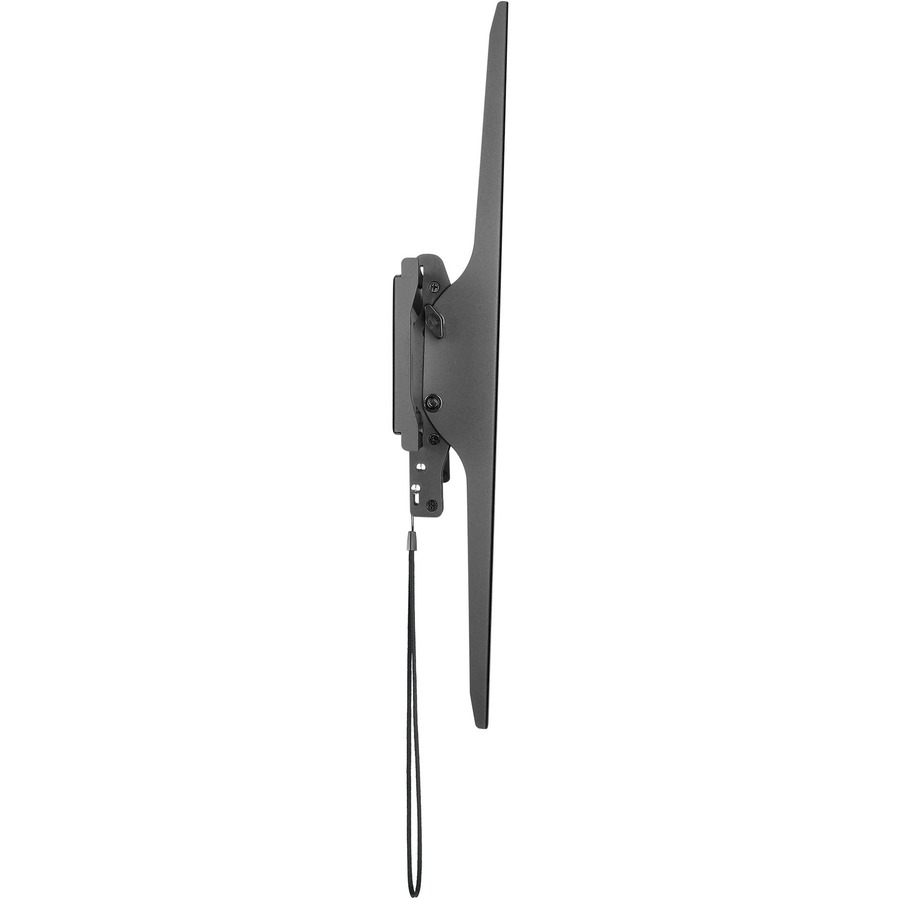

EASY ADJUSTMENT: Tilting TV wall mount offers +5/-10° precise tilt; Tilt is adjustable by hand using the tilt adjustment knobs, making it easier to position larger displays for an ideal viewing angle
COMPATIBILITY: Universal TV wall mount supports LG, Samsung and others (screws/spacers incl) & VESA hole patterns 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400, 600x600, 800x400, 800x600, 900x600
EASY INSTALLATION: Features a hook-on bubble level for proper alignment; Click-in Spring Lock helps TV mounting brackets snap into place for added safety & can be released by pulling on the straps
LOW PROFILE DESIGN: A low profile design that sits just 3.3" (85mm) from the wall to complement the professional look of ultra-thin flat screen LCD/LED televisions
Specifications

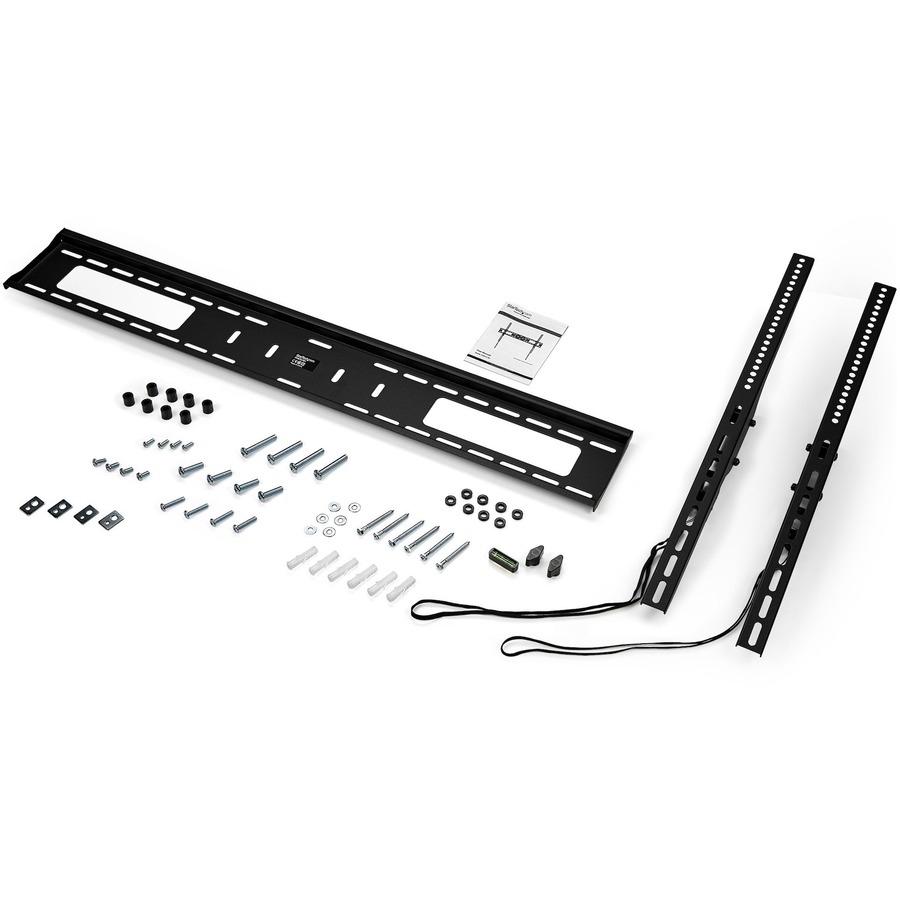

Package Contents
1 x Wall Bracket
2 x Vertical Brackets
2 x Tilt-Adjustment Knobs
1 x Bubble Level
4 x (M5 x 14) Screws
4 x (M6 x 14) Screws
4 x (M6 x 30) Screws
4 x (M8 x 30) Screws
4 x (M8 x 50) Screws
4 x Rectangular Washers
8 x Small Spacers
8 x Large Spacers
6 x Wall Screws
6 x Concrete Anchors
6 x Round Washers
1 x User Manual
Product Type
Wall Mount
Device Supported
Flat Panel Display, Curved Screen Display, LCD Display, LED Display
Manufacturer Part Number
FPWTLTB1
Packaged Quantity
1 Each
Limited Warranty
5 Year
Weight (Approximate)
7.72 lb
Features
Heavy Duty, Tilt, Adjustable, Bubble Level, Space Saving Design, Robust, Spring Lock, Quick Release Mechanism, Durable
Length
37.60"
Manufacturer
StarTech.com
Product Model
FPWTLTB1
Product Name
Flat-Screen TV Wall Mount - Tilting
Maximum Load Capacity
165.35 lb
Brand Name
StarTech.com
Country of Origin
China
Height
3.30"
Width
24.60"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Minimum Screen Size Supported
60"
Maximum Screen Size Supported
100"
Number of Displays Supported
1
Mounting Pattern
400 x 300, 300 x 200, 600 x 600, 600 x 400, 900 x 600, 400 x 200, 800 x 600, 300 x 300, 200 x 200, 200 x 300, 200 x 400, 400 x 400, 600 x 200, 600 x 300, 800 x 440, 200 x 100, 100 x 100, 100 x 200, 800 x 400
Product Color
Black
Color Family
Black
Product Material
Steel
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
