Genuine SMART Technologies through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Collaboration Displays
Country of origin
Mexico
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Warranty
Limited Warranty: 3 Year
About SMART Technologies
We’ve been innovating and advancing technology focused on the connections that matter since we invented the original SMART Board ® in 1987. We’re proud that our interactive displays and software solutions are trusted by teachers, students, and business leaders all around the world. We offer the best interaction and collaboration.
Specifications
Audio
Speakers
Yes
Number of Speakers
2
Microphone
Yes
Number of Microphone Array Elements
6
RMS Output Power
30 W
Display & Graphics
Viewable Screen Size
55"
Screen Size Class
55"
Display Screen Type
LCD
Backlight Technology
LED
Screen Mode
4K UHD
Screen Resolution
3840 x 2160
Scan Format
2160p
Aspect Ratio
16:9
Response Time
8 ms
Brightness
300 Nit
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Tempered Glass
Yes
General Information
Manufacturer
SMART Technologies, Inc
Manufacturer Part Number
MX555-V5-PW
Brand Name
SMART Board
Product Series
MX (V5) Pro
Product Model
MX055-V5
Product Name

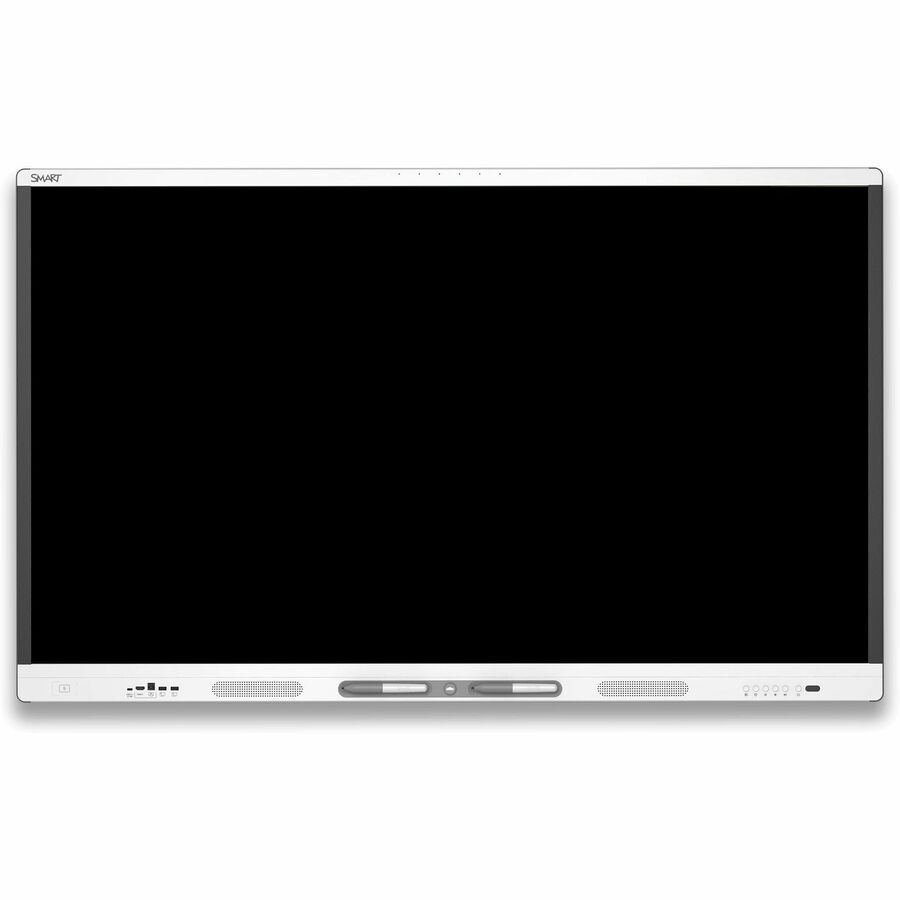

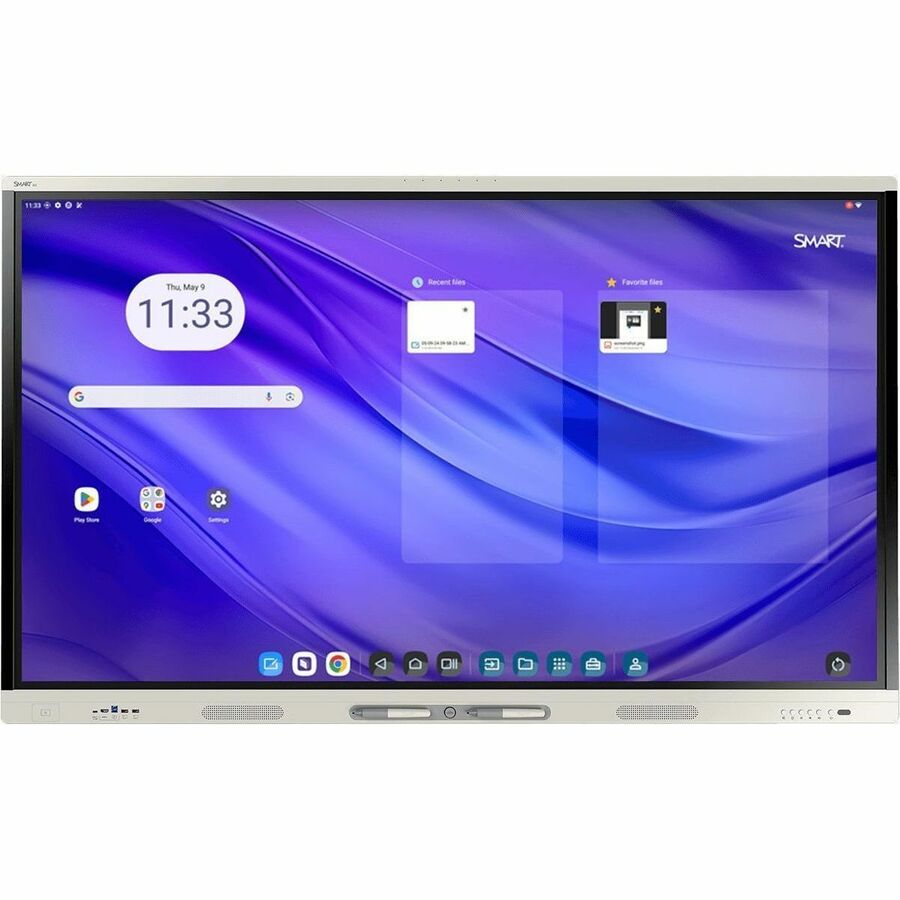

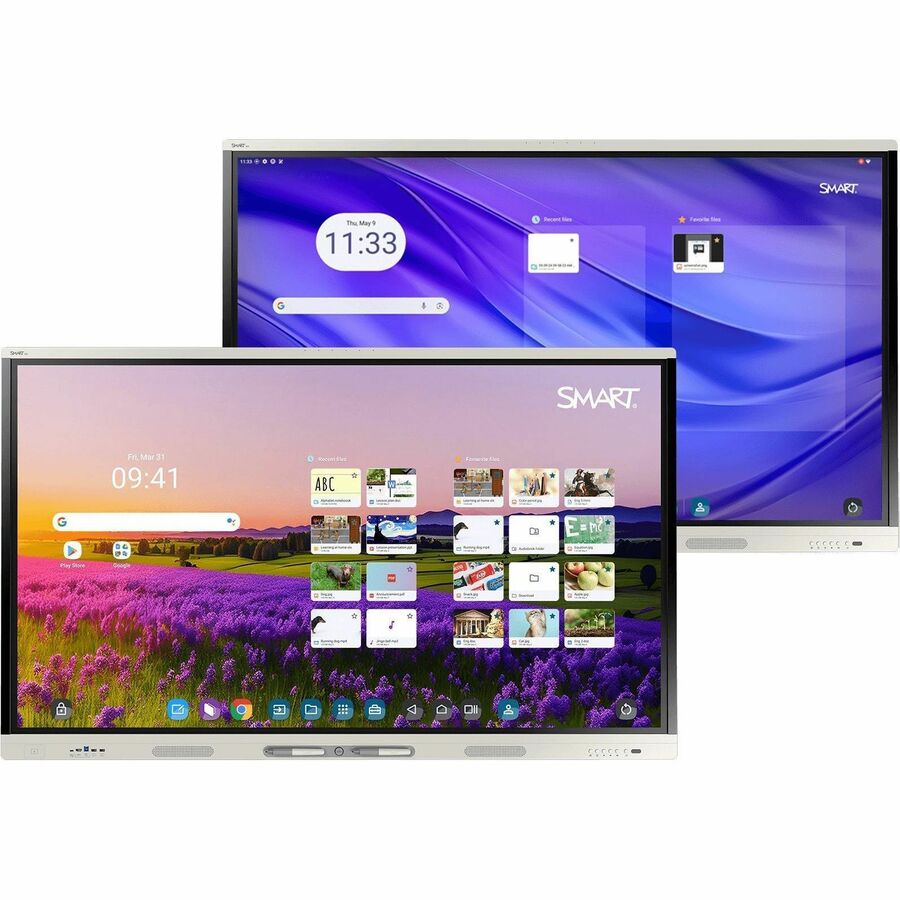

MX055-V5 Collaboration Display
Product Type
Collaboration Display
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
12
USB
Yes
Network (RJ-45)
Yes
Audio Line In
Yes
Audio Line Out
Yes
VGA
Yes
DisplayPort
Yes
Serial
Yes
S/PDIF Out
Yes
Memory
Standard Memory
8 GB
Network & Communication
Ethernet
Yes
Wireless LAN
Yes
Bluetooth
Yes
Near Field Communication
Yes
Physical Characteristics
Color Family
White
Product Color
White
Product Material
Magnet
VESA Mount Compatible
Yes
VESA Mount Standard
400 x 400
Height
32.2"
Width
51.2"
Depth
3.8"
Weight (Approximate)
70.55 lb
Processor & Chipset
Processor Core
Octa-core (8 Core)
Software
Operating System Platform
Android
Operating System
Android 13
Software Included
IQ embedded Android OS
SMART Meeting Pro Room license
SMART Meeting Pro Personal licenses
SMART Remote Management
Touchscreen Information
Touchscreen
Yes
Multi-touch Screen
Yes
Number of Touch Points
50
Touchscreen Technology
HyPr Touch Technology
Warranty
Limited Warranty
3 Year
Power Description
Input Voltage
120 V AC, 230 V AC
Power Consumption
72 W
Standby Power Consumption
200 mW
Storage
Flash Memory Capacity
64 GB
Miscellaneous
Package Contents
MX055-V5 Collaboration Display
1 x Country-specific power cable
1 x 16' 5" (5 m) USB 2.0 A to B cable
1 x 6' (1.8 m) USB 3.2 Gen 1 Type-C cable, 5A
2 x Pens
2 x External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth® (2.4 GHz) antennas
1 x Remote control
1 x AAA batteries
1 x Illustrated installation instructions
1 x Important information document
Energy Star
Yes
Country of Origin
Mexico
TAA Compliant
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
