Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
USB/Firewire Adapters
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

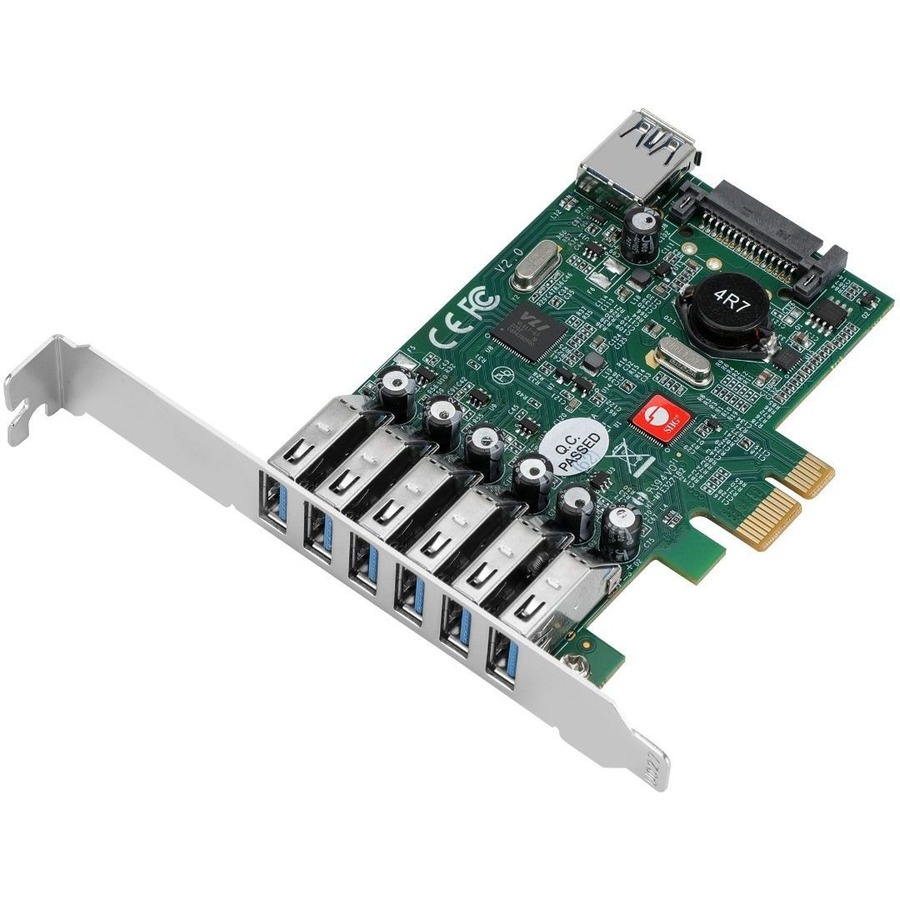

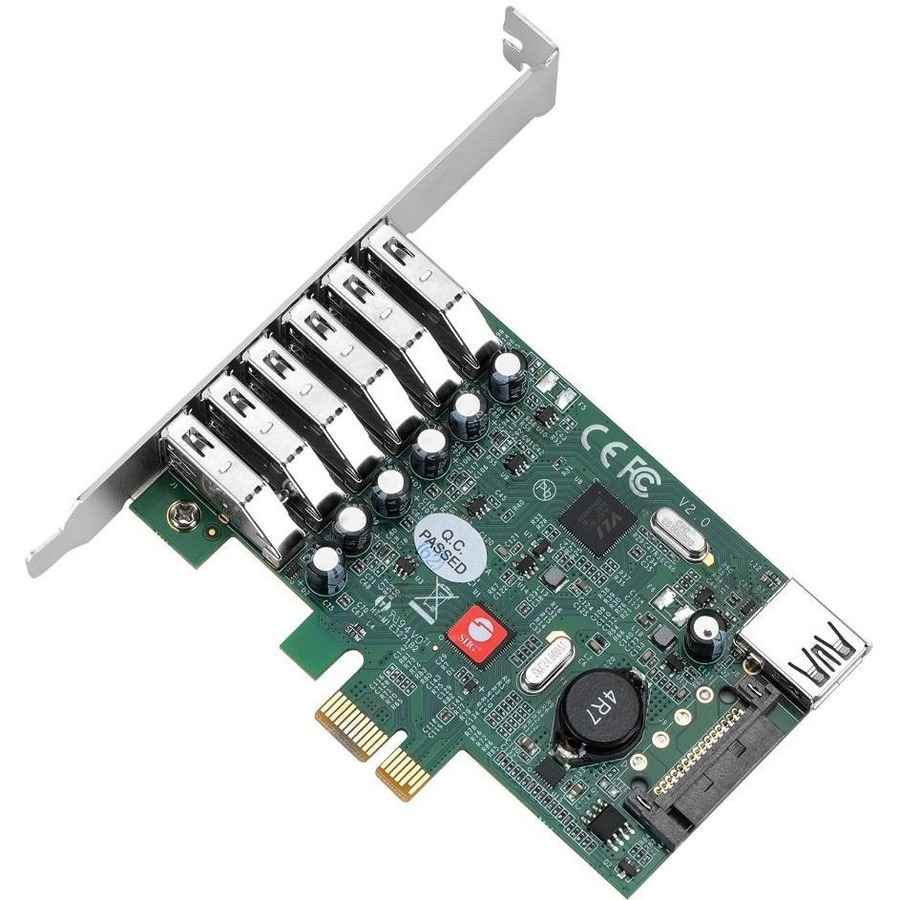

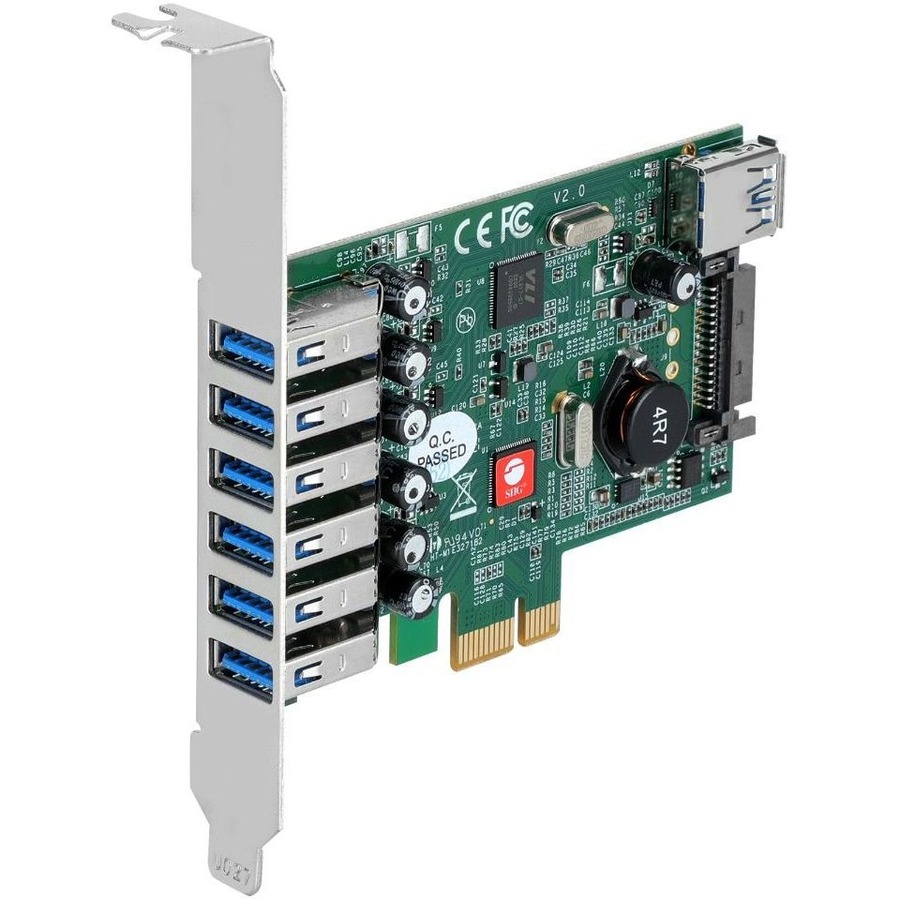

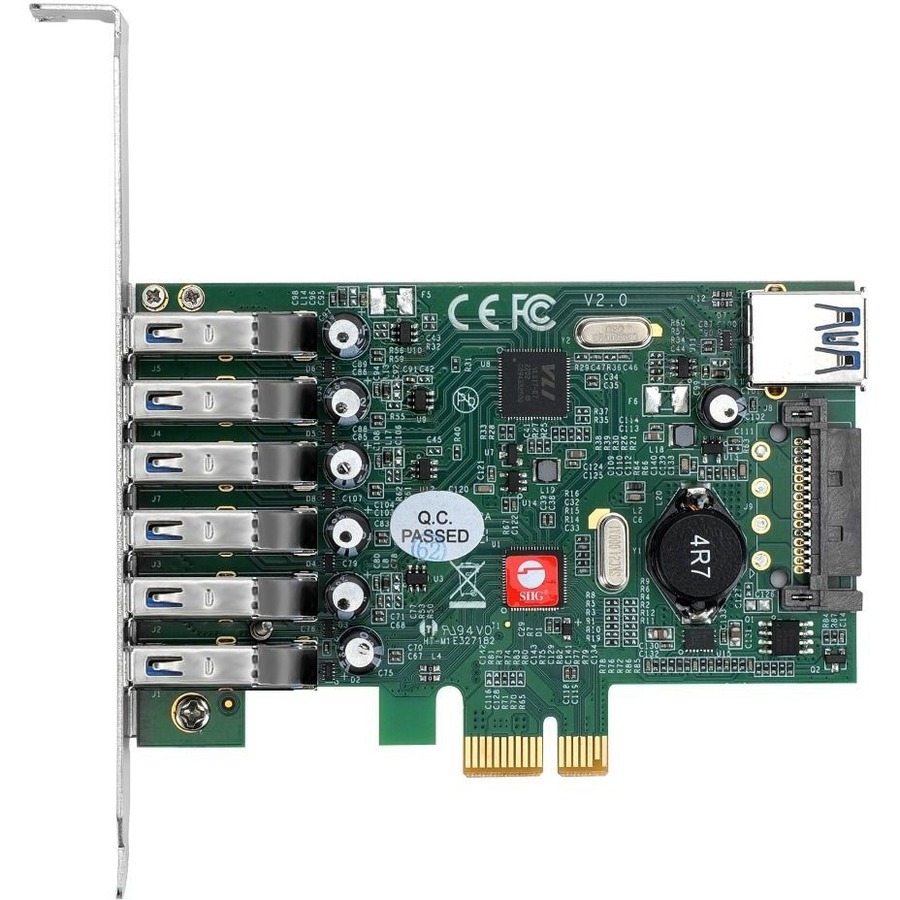

Adds six external and one internal SuperSpeed USB 3.2 Gen 1 Type-A 5Gbps ports to your PCIe enabled desktop computer, PCIe 2.0 standard
Adds seven SuperSpeed USB 3.2 Gen 1 Type-A 5Gbps ports, 6 external and one internal, to your desktop system
Industry recognized high performance Renesas uPD720201 + VL817 chipset
Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
Complies with PCIe 2.0 standard; Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
Supports PCI Bus Power Management Interface Specification Revision 1.2

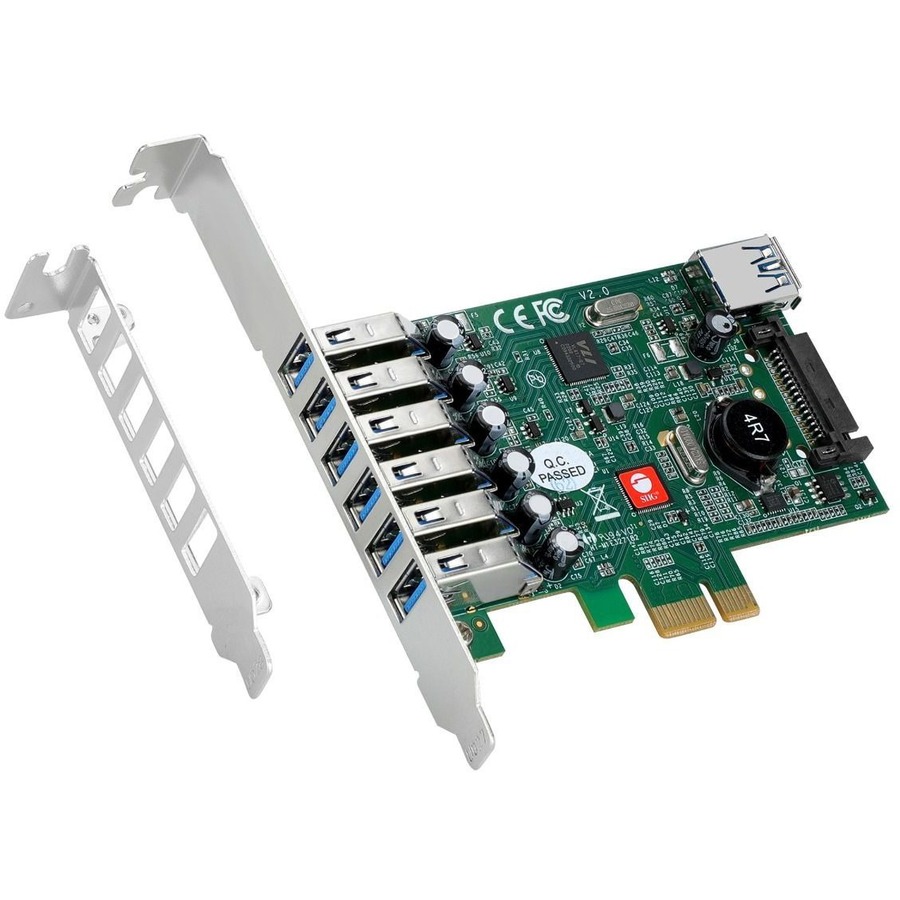

Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
Specifications
General Information
Manufacturer
SIIG, Inc
Manufacturer Part Number
JU-P70011-S2
Brand Name
SIIG
Product Name
DP USB 3.0 7-Port PCIe i/e
Product Type
USB Adapter
Interfaces/Ports
Total Number of USB Ports
7
Number of USB 3.0 Ports
7
Number of SATA Ports
1
Physical Characteristics
Product Color
Green
Form Factor
Plug-in Card
Height
4.7"
Width
4.4"
Depth
0.9"
Weight (Approximate)
2.40 oz
Technical Information
Host Interface
PCI Express 2.0 x1
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
DP USB 3.0 7-Port PCIe i/e
Low Profile Bracket
Quick Start Guide
Platform Supported
PC
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
