5Gbps Data Transfer Rates - 7x USB-A 5Gbps 5V/900mA - 2x USB-C 5Gbps 5V/1.5A - 1x USB-A Fast Charging up to 5V/2.4A - 3-pin Terminal Block for 5V to 19V power input or DC power supply input - Metal housing - ESD/OCP/OPP/OVP/SCP safety protection - Wall & DIN Rail Mount Support - Compliant with Windows & Mac system - 2 years warranty
$179.98
In stock: 62
Genuine SIIG through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Add 9 SuperSpeed USB 3.1 ports and a dedicated 5V/2.4A charging port to your system
Features
• Adds 9 USB 3.1 Gen 1 ports and one dedicated high power 5V/2.4A USB-A charging port for your system
• Provides seven USB 3.1 Gen 1 Type-A ports and two USB 3.1 Gen 1 USB-C ports
• Supports ultra-fast USB 3.1 data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 and USB 1.1 devices
• Works with high-bandwidth USB 3.1 Gen 1 Type-A and USB-C devices, such as external hard disks, high resolution webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio and more
• Dedicated 5V/2.4A USB Type-A charging port to charge your Mobile or Tablet devices quickly
• Industrial grade rugged aluminum housing design to withstand harsh industrial environments, and provides excellent heat dissipation for reliable performance and long life
• Over-current detection and protection circuit design to protect the hub and connected devices
• The included 19V/3.42A power adapter provides sufficient power output to all ports 900mA power output on each USB 3.1 Gen 1 Type-A port and 1.5A power output for each USB 3.1 Gen 1 USB-C port
• Power input surge protection (600W) for each port
• Wall and DIN rail mount support
• Supports UASP function (with Windows 10 / 8 native USB 3.0 Host driver only)
More from the Manufacturer
Overview
Add 9 SuperSpeed USB A&C 5Gbps ports and a dedicated 5V/2.4A charging port to your system
Features
Industrial-grade metal hub with safety protection to safeguard all of your connected devices and has a vertical and horizontal design suitable for the home or work environment. Easily expand 2x USB-C 5Gbps ports, 7x USB-A 5Gbps ports, and 1 USB Type-A fast charging port to connect devices simultaneously for the best performance
USB 5Gbps Data Transfer
Delivers seven USB-A and two USB-C devices, such as external hard disks, webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio, and more. Data transfer rate up to 5Gbps for smooth and stable performance
USB Fast Charging
One ultra-fast USB-A that built-in smart charging IC to automatically detect your connected device and deliver the optimal power output. Supports data transfer rates of up to 5Gbps (5V/2.4A) and backward compatible with USB 2.0 and USB 1.1 devices
Multiple Connectivity Port

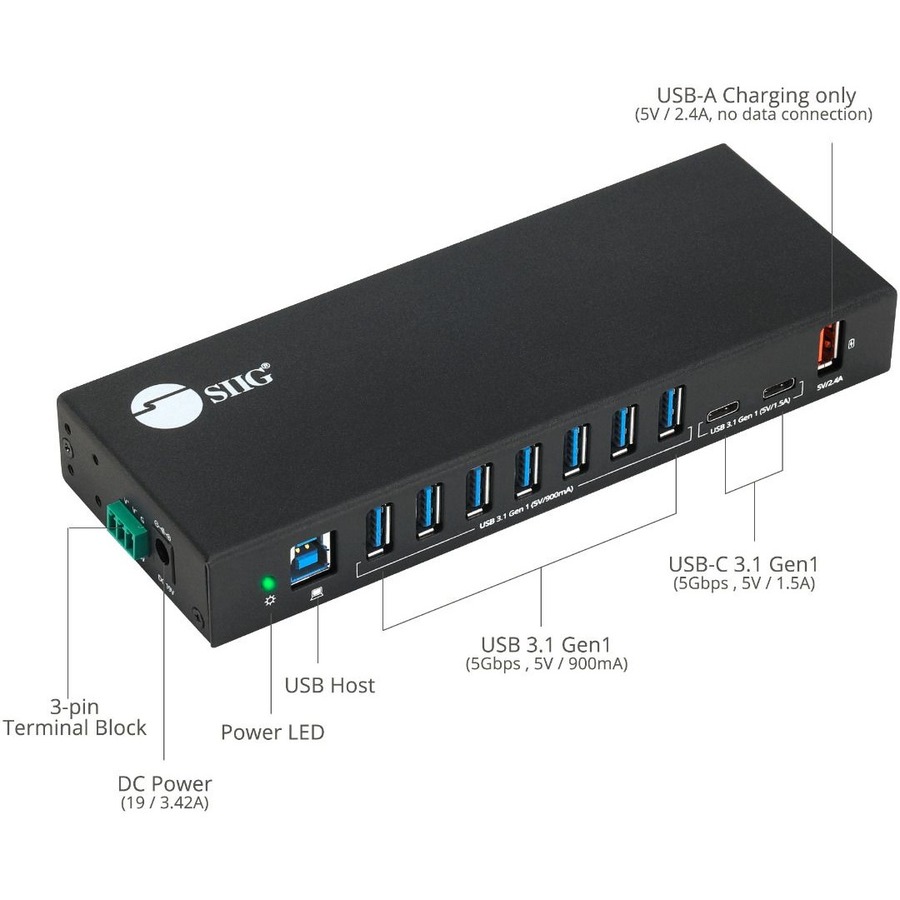

Comes with one USB Type-B port (Host/System, includes USB 3.1 Gen 1 Type-A to Type-B cable), seven USB-A 5Gbps ports, two USB-C 5Gbps ports, one USB-A charging port only, one terminal block for extra power input, and one DC power jack (19V/3.42A)
Connection
Uninterruptible 65W Power Supply
Includes a 65W (19V/3.42A) power adapter to provide enough power for the connected USB peripherals, such as laptop, notebook, tablet, and smartphone
Maximum Compatibility
Supports UASP (USB Attached SCSI Protocol) function (with Windows 11/10/8 native USB 3.0 host drive only)
Plug-n-Play, no driver installation required
Safety Protection
Built-in over-current protection to protect the hub and connected devices. An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device
Metal Hosing Design
Industrial grade rugged metal housing design to withstand harsh industrial environments and provides efficient heat dissipation for reliable performance and long life Built-in wall-mounted and DIN rail mount to secure the hub to rack, wall, or under a table
Limited Warranty: 2 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | ID-US0811-S1 |
| Brand Name | SIIG |
| Product Name | 10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging |
| Product Type | USB Hub |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 3.1 Ports | 9 |
| Media & Performance | |
| UASP Support | Yes |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Wall/DIN Rail Mountable |
| Height | 1" |
| Width | 2.6" |
| Length | 7.2" |
| Weight (Approximate) | 13.28 oz |
| Technical Information | |
| Host Interface | USB Type B |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |

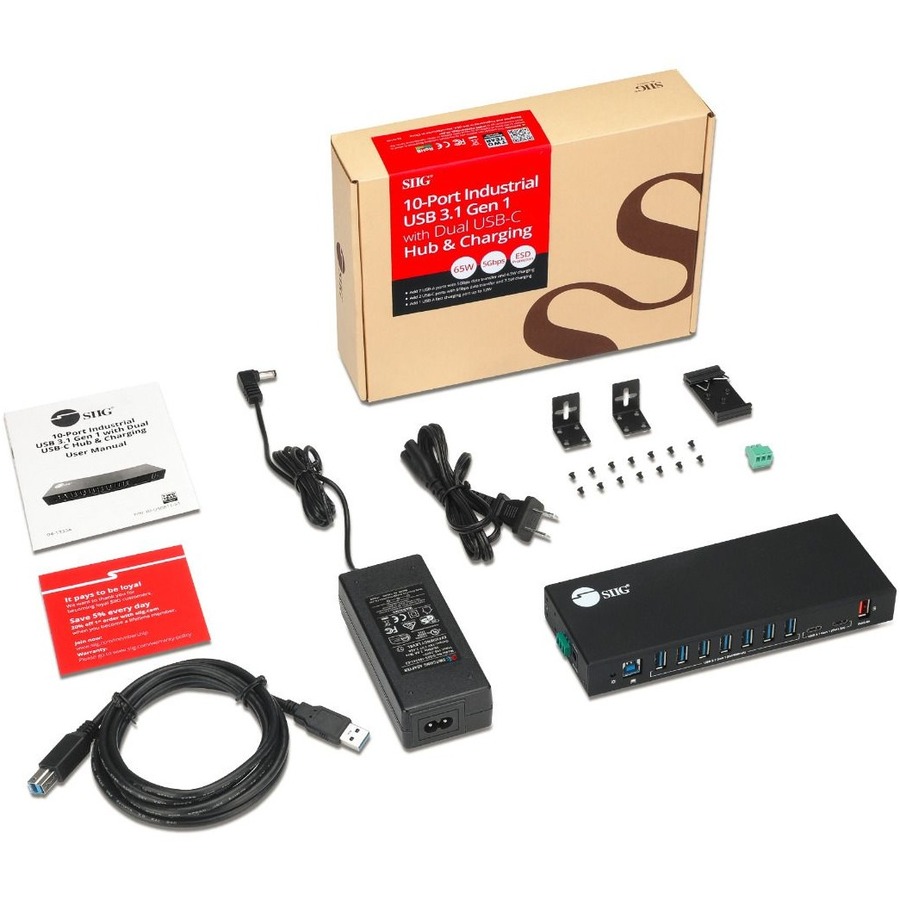

| Package Contents |
|
| Platform Supported | PC, Mac |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
