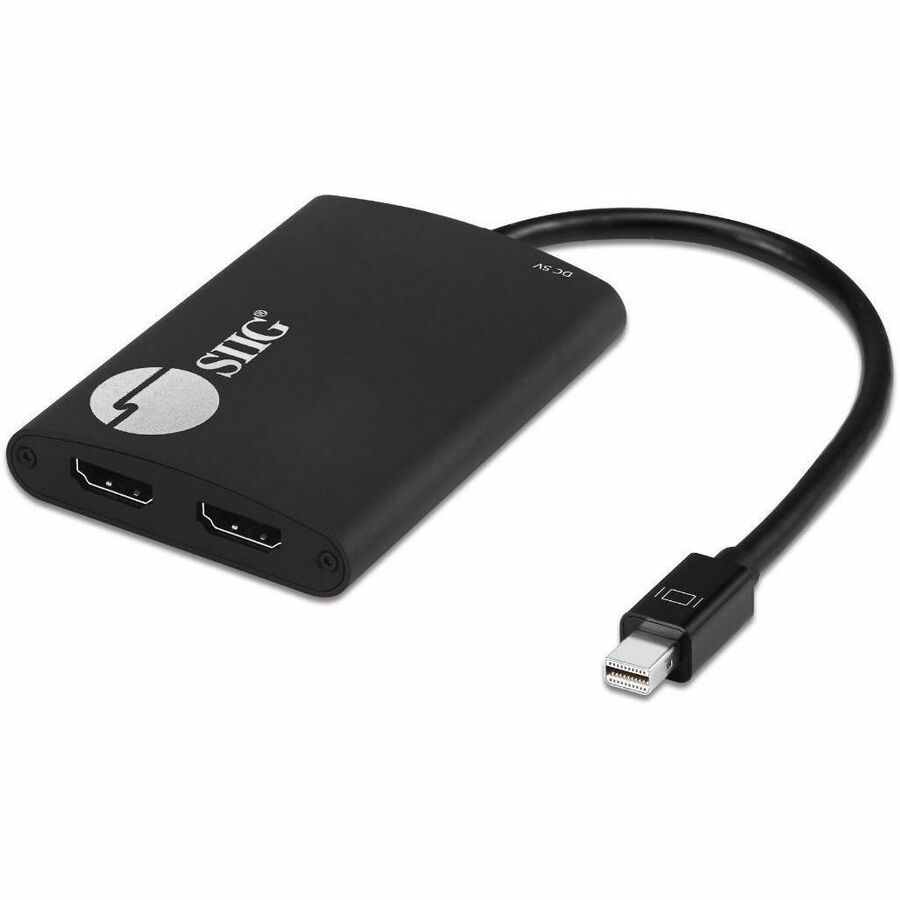

Mini DP to 2x HDMI output - 21.6Gbps video bandwidth - Supports 4K HDR and HDCP 2.2 - Dual 4K Mini DisplayPort to HDMI MST Hub Splitter - Dual 4K 30Hz HDMI Monitors - Video Splitter for Extended Desktop Mode - DP 1.2 Multi-Stream Transport Hub / HBR2 / 7.1 ch audio - 3 years warranty - MST for Windows PCs Only - Mac OS does not support MST function - ESD protection - TAA Compliant
MSRP$99.99
$39.00
Save 61%In stock: 427
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Overview
Allows you to connect 2 HDMI monitors to a single Mini DisplayPort 1.2 port with MST technology. TAA compliant
Features
Boost your productivity by connecting two HDMI displays to single Mini DisplayPort 1.2 output with Multi-Stream Transport (MST) technology - Mirror mode, Extended mode, and Panoramic Video Wall display mode
What is Multi Stream Transport (MST)?
Enables the source system to send multiple independent Video Signals over a single DisplayPort 1.2 or Mini DisplayPort 1.2 output. An MST Splitter allows the use of three different modes for multi-monitor displays, such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
Note:
1. Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays
2. Panoramic Video Wall mode requires an AMD Eyefinity, NVIDIA Surround, or Intel Collage technology graphics adapter
3. AMD and NVIDIA video cards support up to 4 displays, while Intel supports up to 3 displays (AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays)
4. Surface products only support up to 3 displays total, including the Surface screen
High Resolution

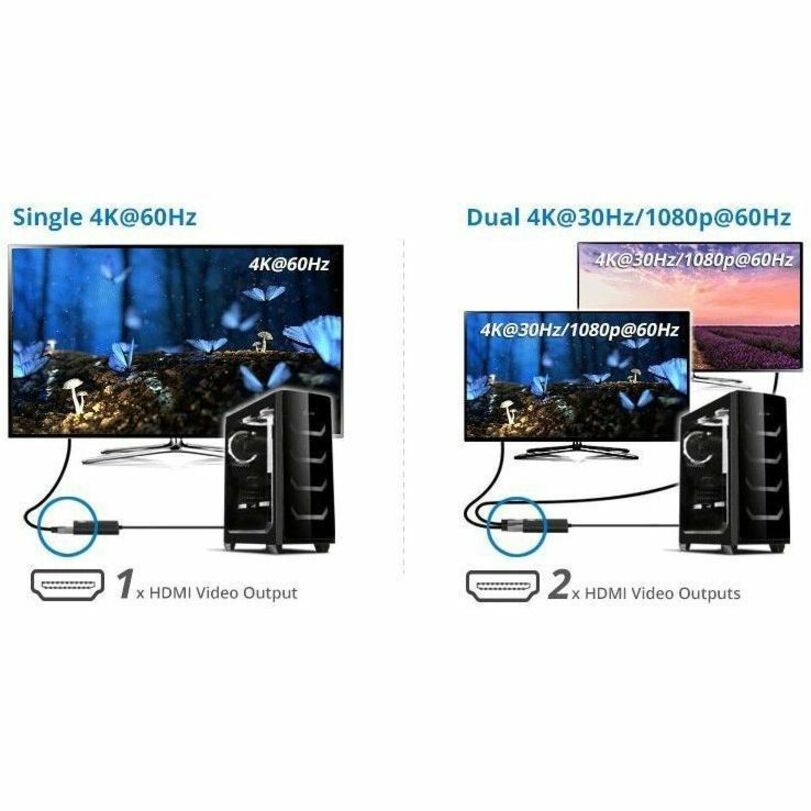

Supports UHD video resolutions up to single 3840x2160 (4Kx2K) @60Hz display or Dual 3840x2160 (4Kx2K) @30Hz displays
Mini DisplayPort (mDP) resolution can display the same maximum resolution as the original size DisplayPort (DP)
High Performance
Offers a true 21.6Gbps video bandwidth and supports 7.1ch surround sound up to 192KHz sampling rate
Bandwidth Limitation
Total Available Bandwidth 21.6Gbps for 3840x2160 @60Hz (100%) *. 3840x2160 @30Hz (40%), 2560x1600 @60Hz (38%), 2560x1440 @60Hz (35%), 1920x1200 @60Hz (30%), 1920x1080 @60Hz (22%)
Note: Make sure the total combined resolution bandwidth among all displays do NOT exceed 100%
Note:
- When the resolution of Display A and Display B is set to 3840 x 2160 @60Hz, one of them will be disabled
- If you use a 4K monitor to display in 1080p, there is a possibility that the link still gets 4K bandwidth and reduces the overall bandwidth for the other displays
Connectivity Port

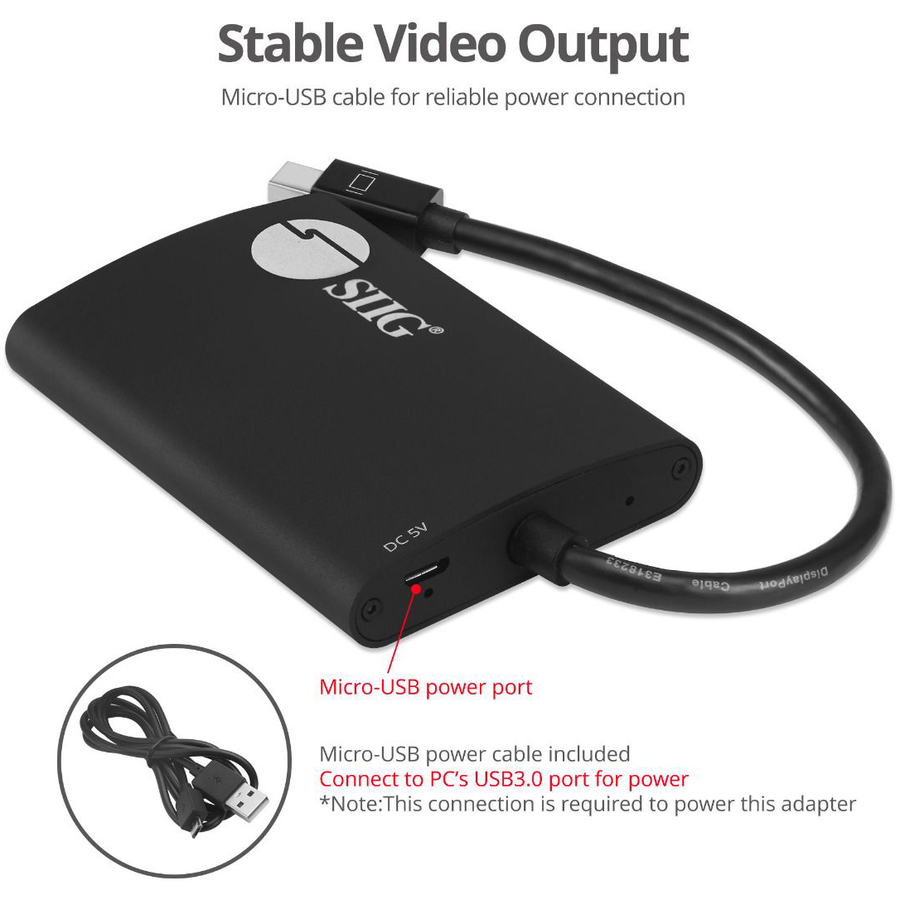

Comes with one 20-pin Mini DisplayPort 1.2 input port, two 19-pin HDMI video output ports, one Micro USB for power input port (at least 5V/300mA)
Maximum Compatibility
Compatible with Mini DisplayPort 1.2 graphics cards with AMD Eyefinity, NVIDIA Surround, or Intel Collage technology
Note: Requires GPU graphics cards to support at least 2 external displays to use both video ports at the same time with extended mode
Supports Plug-n-Play, hassle-free set up without complicated hardware or driver installation
ESD Protection
An ESD protection device protects a circuit from an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device
TAA Compliant
Completely manufactured in a TAA designated country

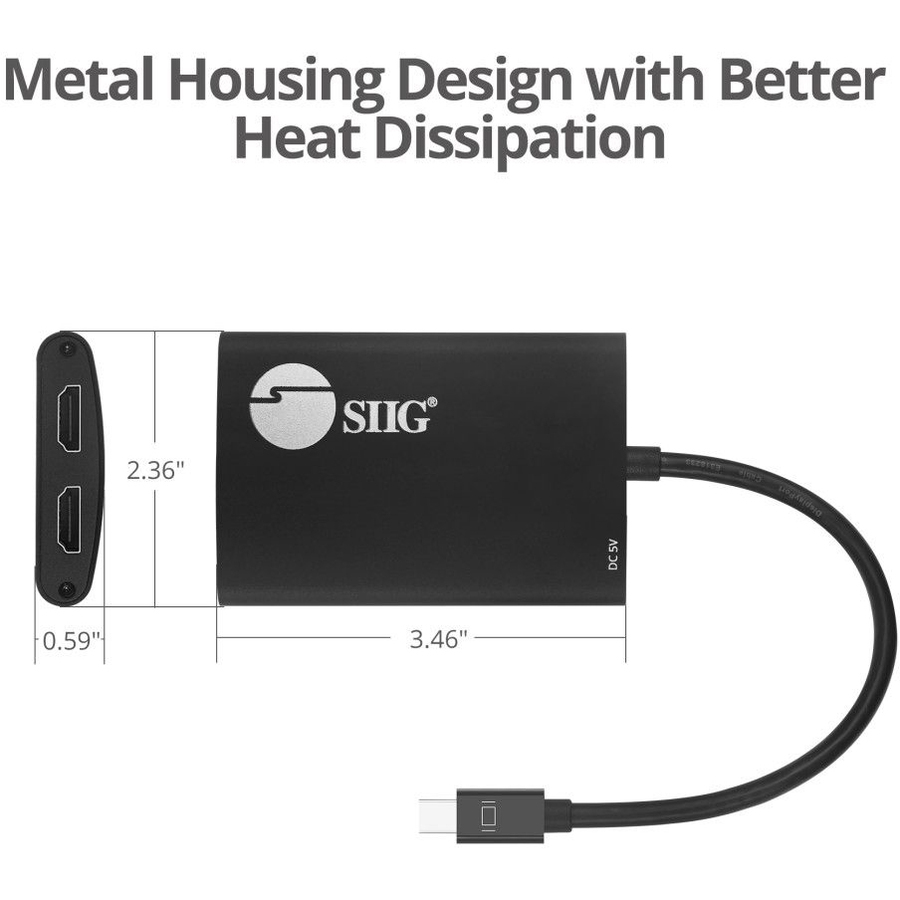

Aluminum Housing Design
Premium aluminum housing provides efficient heat dissipation for reliable performance and long life
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-DP0L11-S1 |
| Brand Name | SIIG |
| Product Name | 4K 1x2 Mini DisplayPort 1.2 to HDMI MST Splitter |
| Packaged Quantity | 1 |
| Product Type | HDMI Splitter |
| Interfaces/Ports | |
| DisplayPort | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Aluminum |
| Height | 0.6" |
| Width | 2.4" |
| Length | 3.5" |
| Weight (Approximate) | 3.04 oz |
| Power Description | |
| Input Voltage | 5 V DC |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |

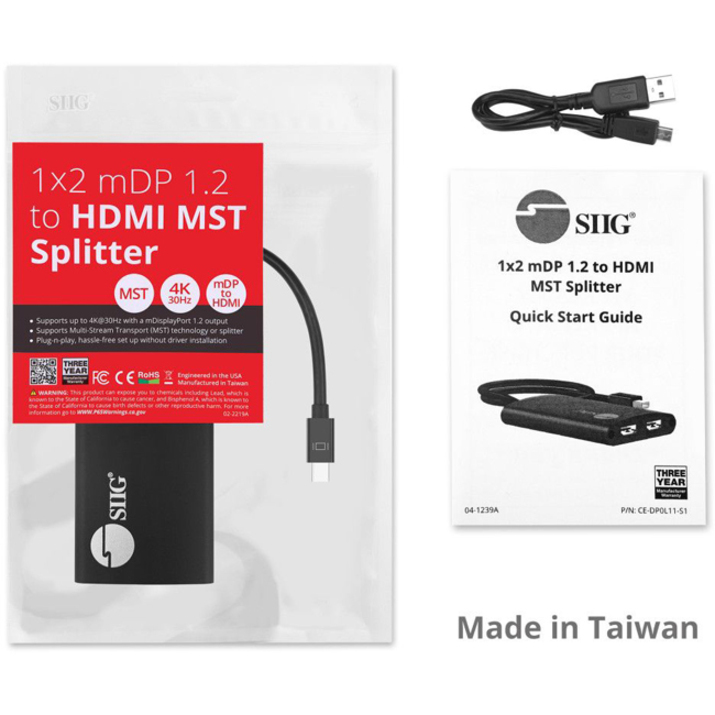

| Package Contents |
|
| Application/Usage | Monitor, PC, Notebook, Restaurant, Store, Conference Room, Medical Office, Workstation, Seminar, Lab |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
