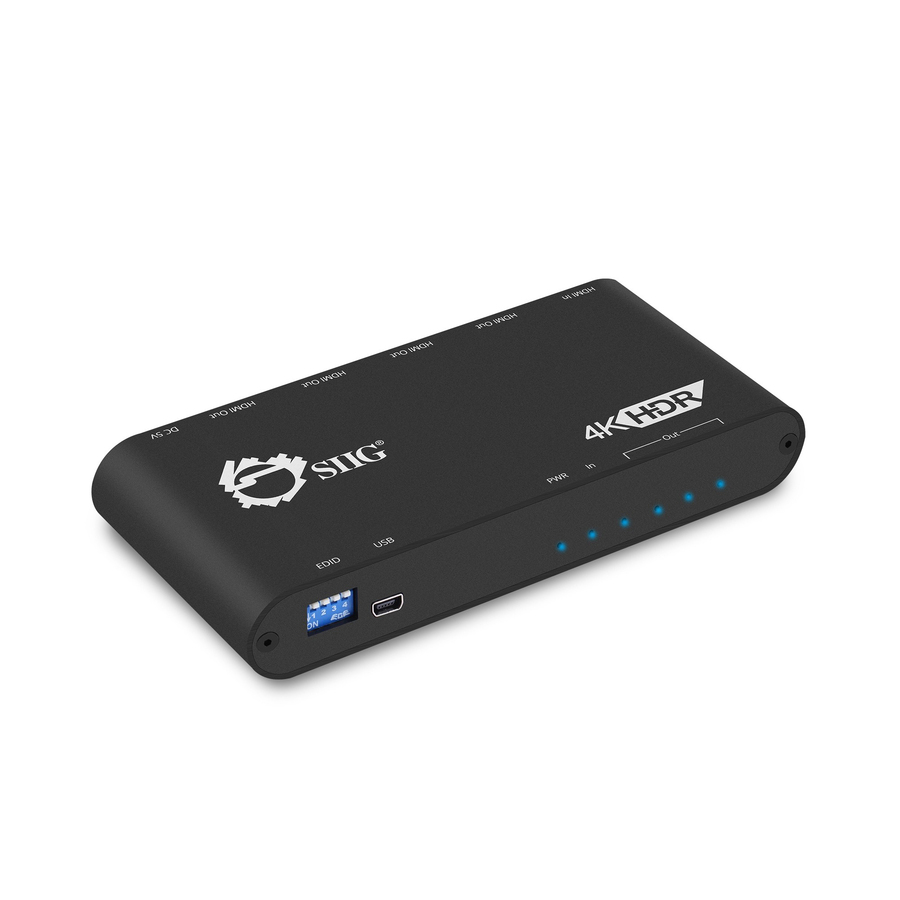

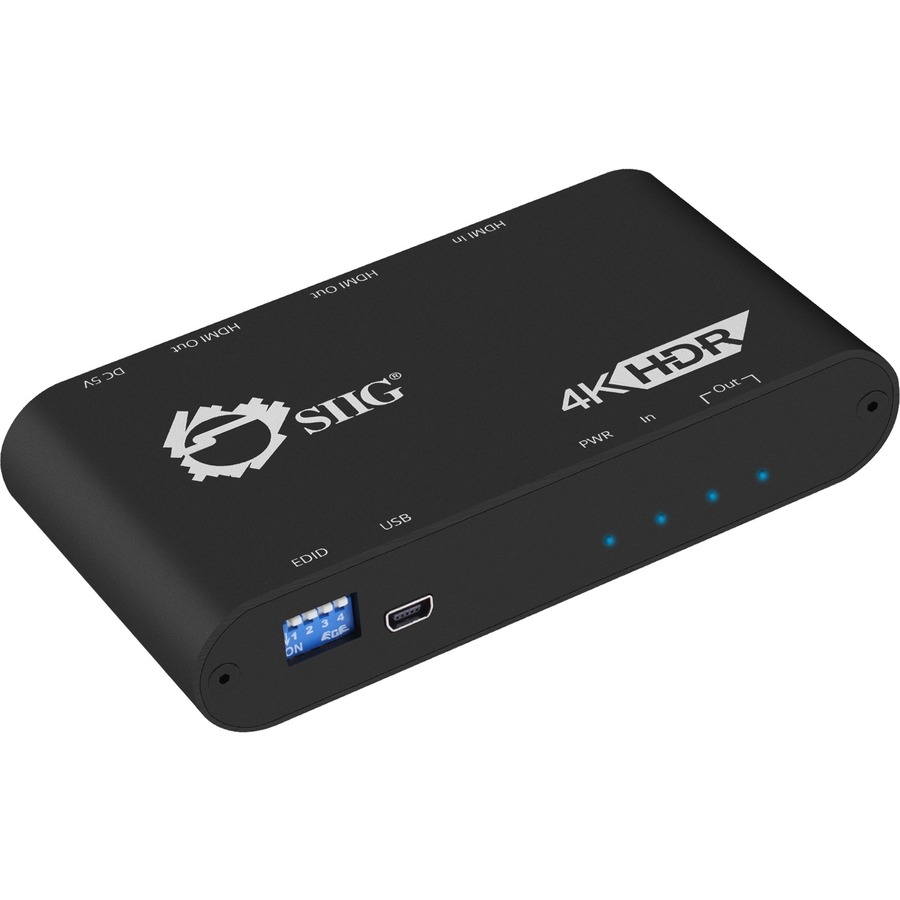

3840x2160 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID- 2 Port 4K HDMI Splitter 1 in 2 out Auto Video Scaling - 7.1-ch Surround Sound Audio - 4K to 1080p downscaling - HDMI Splitter Aliminum Metal Housing - HDCP 2.2/1.4 - 18Gbps Video bandwdith - DIP EDID management - Support firmware update - ESD Protection - Power LED Indicator - 3 years warranty - TAA Compliant
$88.69
Special order — estimated available by September 10, 2026.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

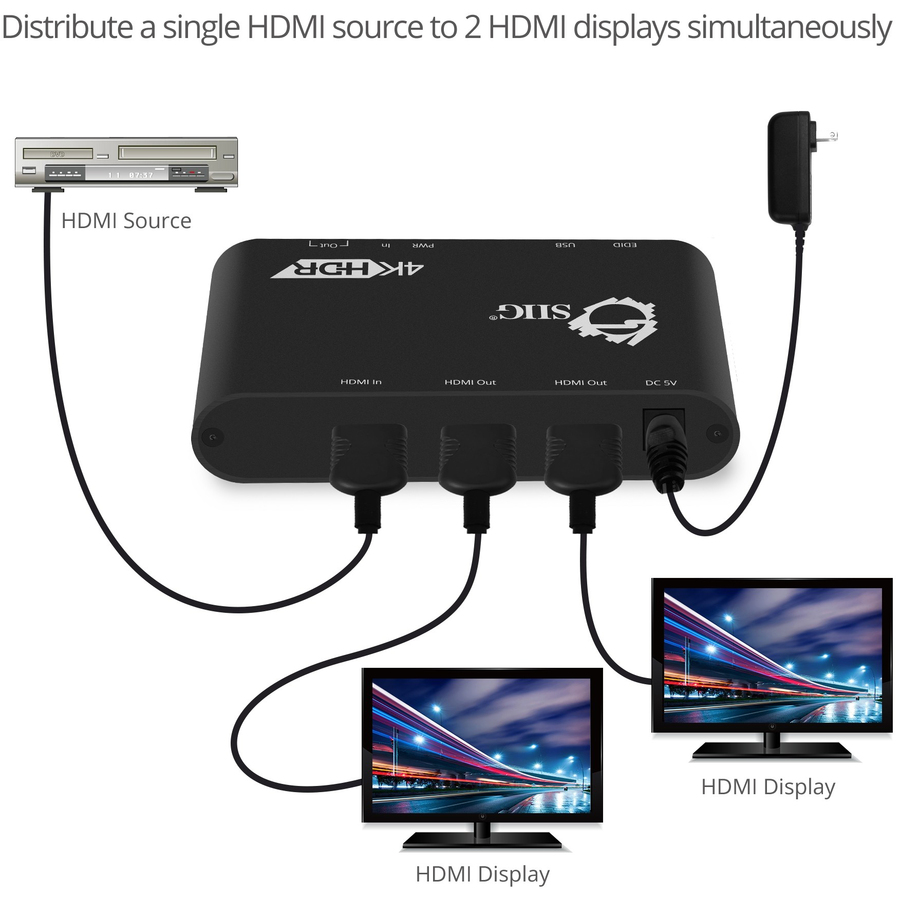

Distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality
• Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
• Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

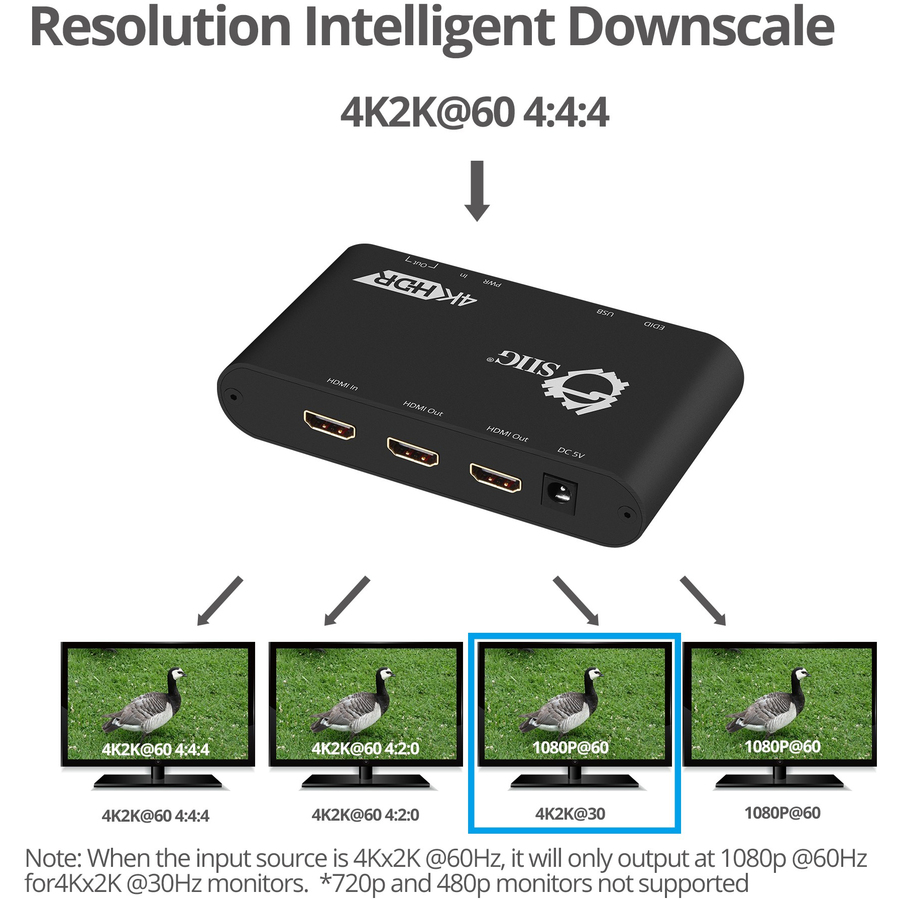

• Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.

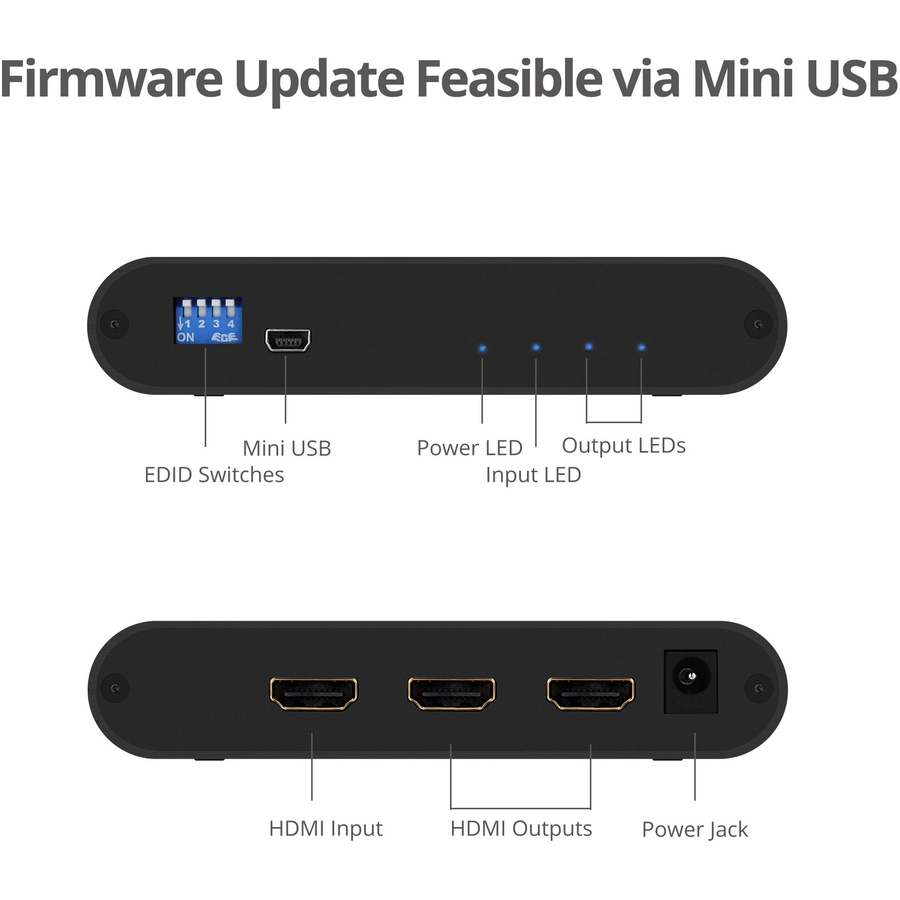

• EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
• Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
• Easy to cascade multiple splitters for more displays. Supports up to 10 layers
More from the Manufacturer
1x2 HDMI 2.0 Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR
Distributes HDMI video and audio from a single source to 2 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
Supports Dolby Atmos, Dolby Digital, DTS-HD and Dolby TrueHD audio
Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
Captures game play in 1080p while playing in 4K - use Elgato or other game capture devices to record game play in 1080p while simultaneously playing in 4K
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Distributes HDMI video/audio signals from one HDMI source to two HDMI displays while maintaining signal quality
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H22X11-S1 |
| Brand Name | SIIG |
| Product Name | 1x2 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz |
| Product Type | Audio/Video Distribution Amplifier |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| Media & Performance | |
| Maximum Operating Distance | 49.21 ft |
| Physical Characteristics | |
| Product Material | Aluminum, Metal |
| Height | 0.9" |
| Width | 2.4" |
| Length | 4.7" |
| Weight (Approximate) | 13.44 oz |
| Power Description | |
| Input Voltage | 5 V DC |
| Technical Information | |
| Minimum Frequency | 25 MHz |
| Maximum Frequency | 600 MHz |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
