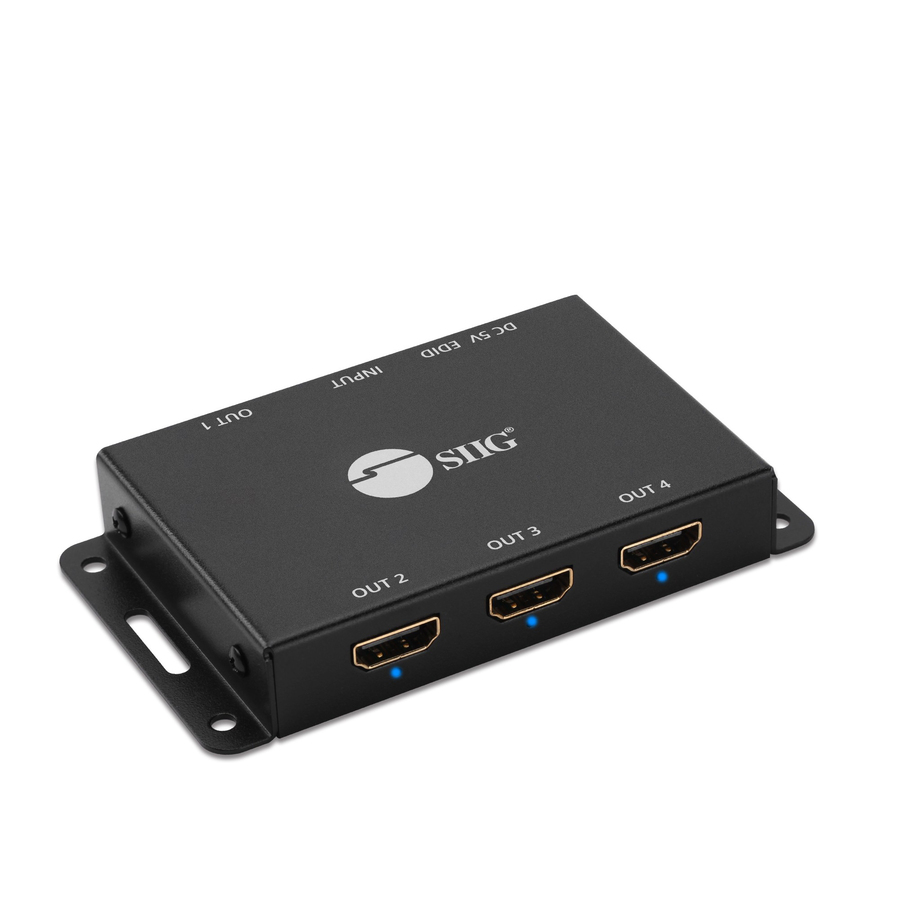

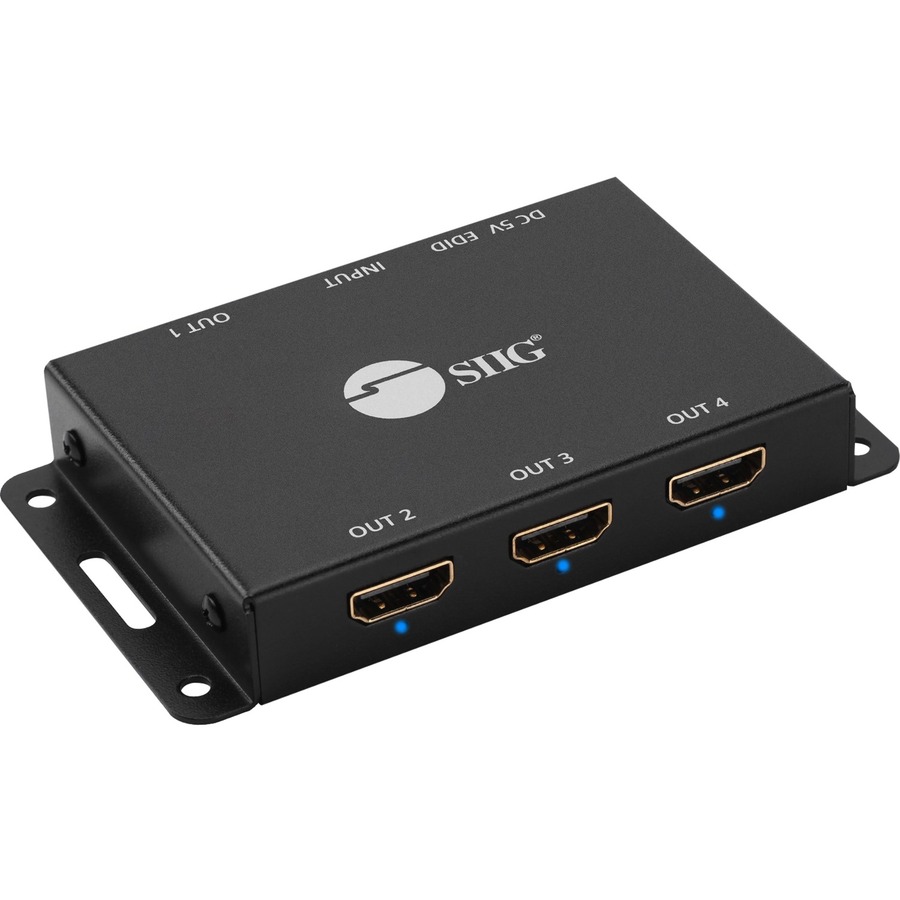

4 Port HDMI Splitter- 4K60Hz- 1x4 HDMI Splitter- HDR- HDCP 2.2- HDMI 4K Splitter with EDID management - 4 Port 4K HDMI Splitter 1 in 4 out Video auto downscaling- 7.1-ch Audio- HDMI Splitter Metal Housing - 3840x2160 60Hz - Power LED Indicator - USB-A to Micro USB Power Cable - Wall Mountable- TAA Compliant - 3 years warranty
MSRP$99.99
$80.29
Save 20%Special order — estimated available by September 10, 2026.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

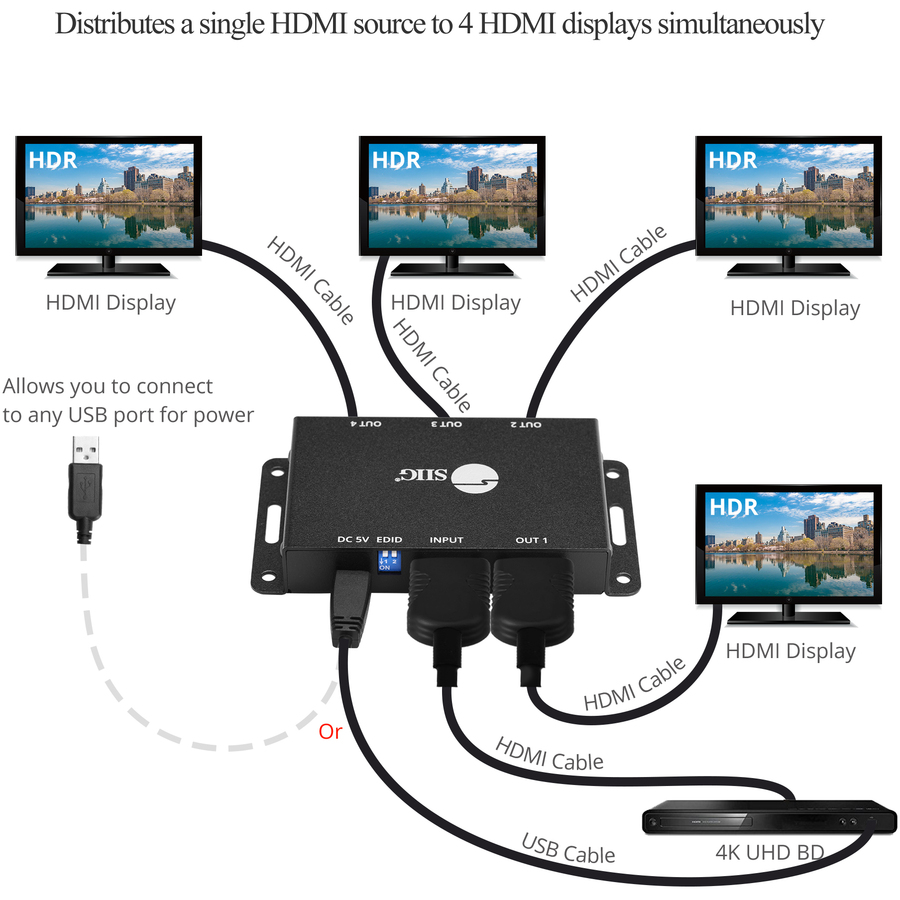

Distributes HDMI video/audio signals from one HDMI source to 4 HDMI displays while maintaining signal quality
• Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
• Compliant with HDMI 2.0 and HDCP 2.2
• Supports 18Gbps bandwidth
• Supports 4K (3840x2160) @60Hz (YUV 4:4:4 8bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10bit), 3D, xvYCC, x.v.Color & Deep Color
• Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
• Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
• Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.

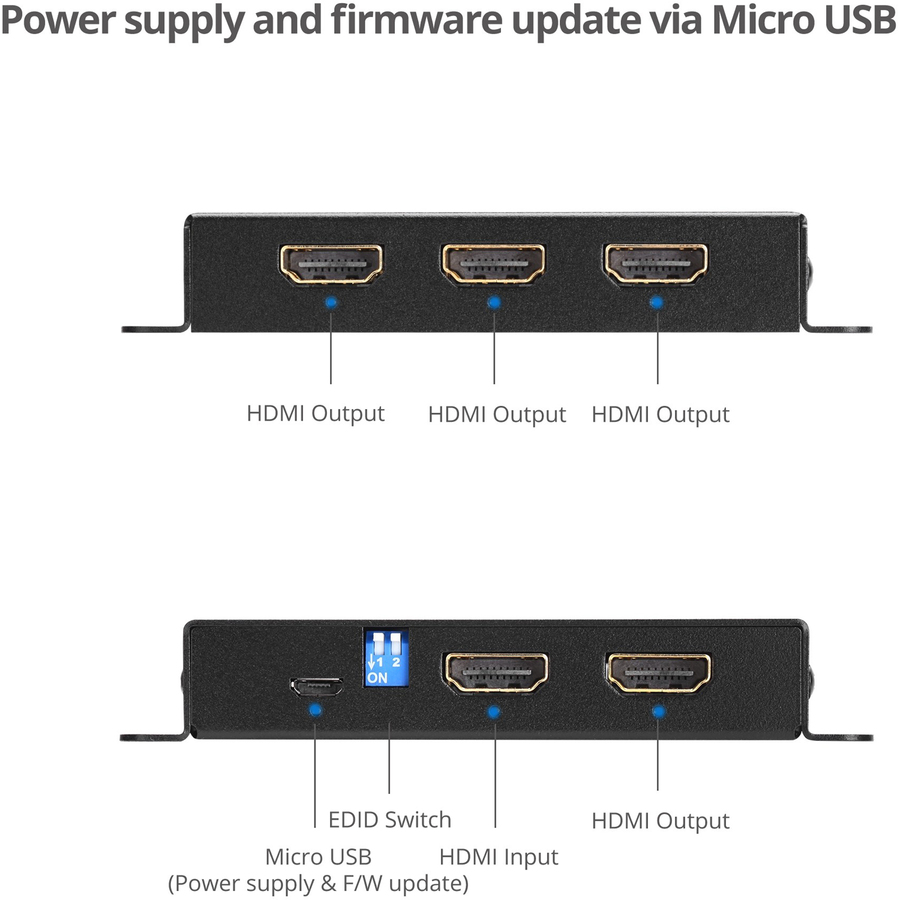

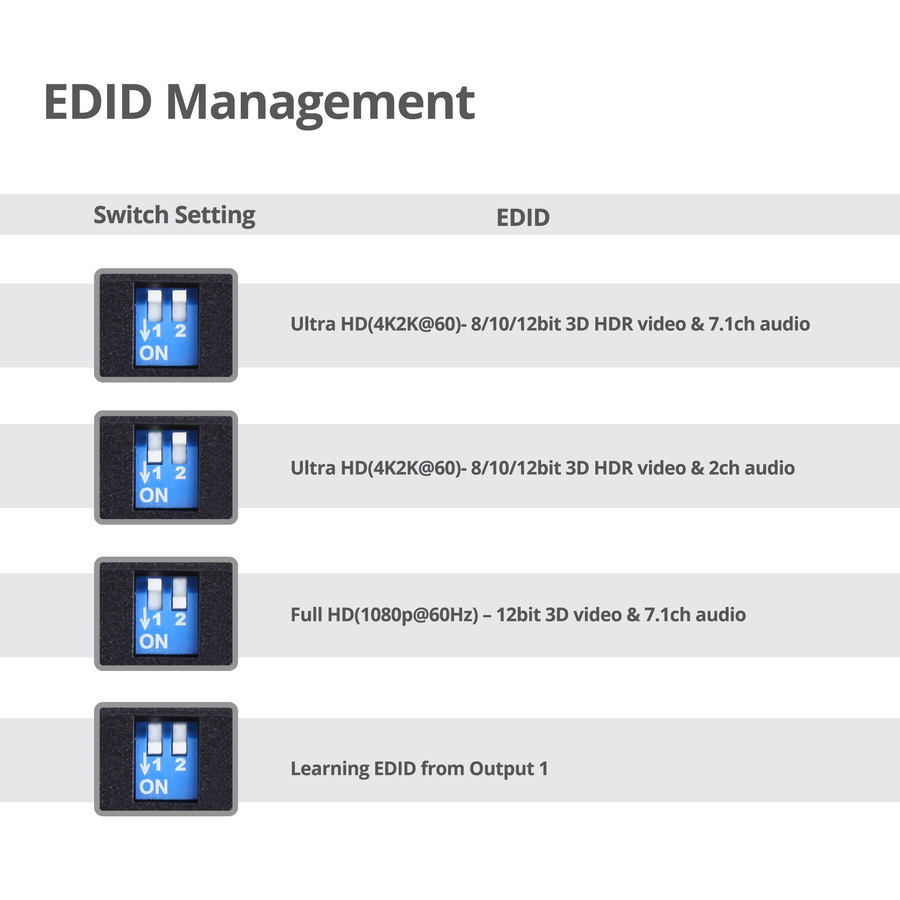

• EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
• Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
More from the Manufacturer
4-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management
Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0 and HDCP 2.2
Supports 18Gbps bandwidth
Supports 4K (3840x2160) @60Hz (YUV 4:4:4 8bit), HDR 4K (3840x2160) @60Hz (YUV 4:2:0 10bit), 3D, xvYCC, x.v.Color & Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Resolution downscaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations
EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Distributes HDMI video/audio signals from one HDMI source to 4 HDMI displays while maintaining signal qualit
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H23L11-S1 |
| Brand Name | SIIG |
| Product Name | 4-Port HDMI 2.0 HDR Mini Splitter Amplifier with EDID Management |
| Product Type | Signal Splitter |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Maximum Operating Distance | 49.21 ft |
| Physical Characteristics | |
| Product Material | Metal |

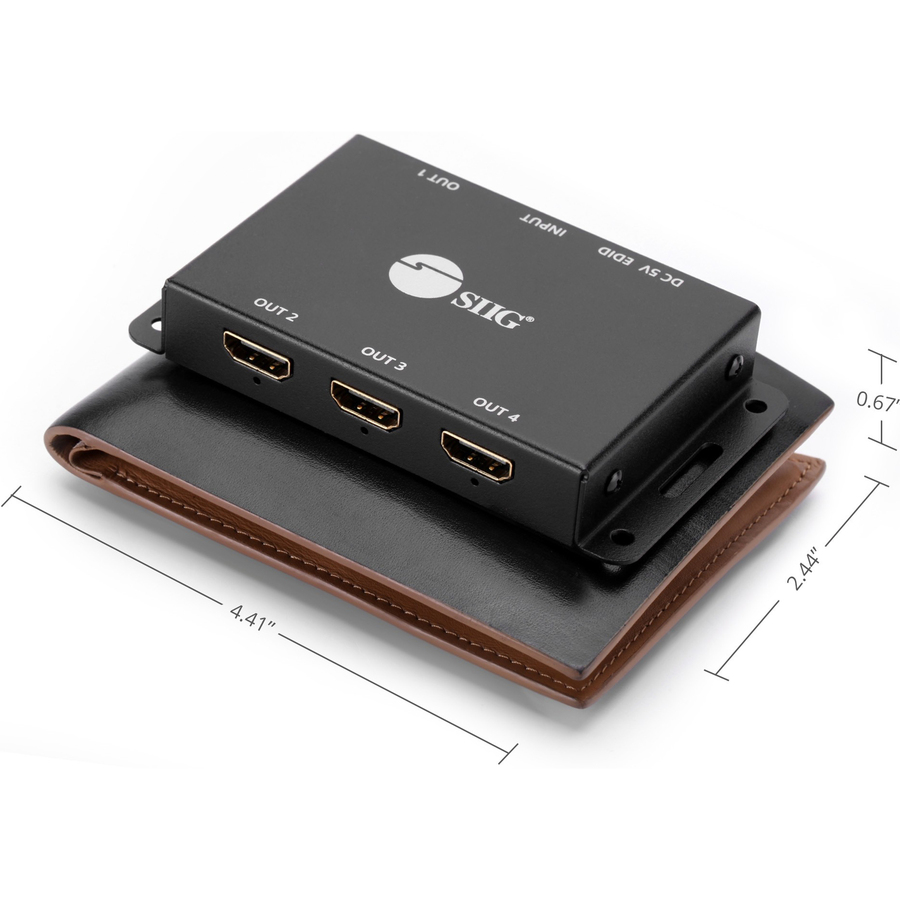

| Height | 0.7" |
| Width | 2.4" |
| Length | 3.6" |
| Weight (Approximate) | 6.40 oz |
| Power Description | |
| Input Voltage | 5 V DC |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Maximum Video Bandwidth | 600 MHz |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
