5G - LTE, HSDPA+, LTE Cat 20, HSPA+ - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 300 MB/s Wireless Speed - 3 x Network Port - 1 x Broadband Port - USB - 5 Gigabit Ethernet - VPN Supported - DIN Rail Mountable
Genuine Sierra Wireless through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Wireless Routers
Overview

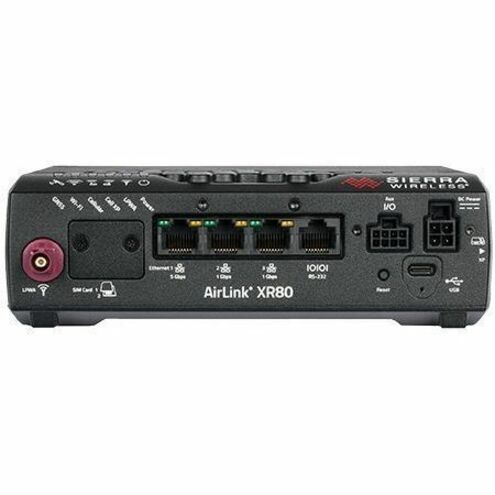

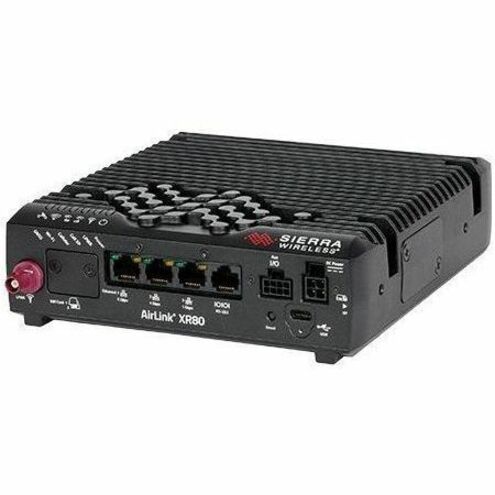

The supercharged AirLink XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5×4 MU MIMO Wi-Fi 6 delivers flexibility for customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridge-based design, enables long-term expandability and upgradability.
• Single or Dual 5G
• Single 5×4 MU-MIMO Wi-Fi 6
• Single 5G: 3x Ethernet
• (2×1 Gbps + 1×5 Gbps)
• Dual 5G: 4x Ethernet
• (3×1 Gbps + 1×5 Gbps)
• Single/Dual Serial
• GNSS with Dead Reckoning
• IP64 Rated
• AirLink OS with AirLink Complete
Warranty
Additional Warranty Information: Extended hardware warranty up to 5 years with current subscription Limited Warranty: 1 Year
Highlights
Savor simultaneous downloading and seamless streaming
Uses ISM Band to connect your computers, wireless printers, game consoles, and other Wi-Fi devices for a smooth network experience
Access USB-compatible peripherals accross the wireless network via built-in USB port
Specifications
General Information
Manufacturer
Sierra Wireless
Manufacturer Part Number
1105213
Brand Name
Sierra Wireless
Product Line
AirLink
Product Model
XR80
Product Name
AirLink XR80 Modem/Wireless Router
Product Type
Modem/Wireless Router
Interfaces/Ports
Total Number of Network Ports
4
Number of Network (RJ-45) Ports
3
USB
Yes
Number of Broadband (RJ-45) Ports
1
Network & Communication
Ethernet Technology
5 Gigabit Ethernet
VPN Supported
Yes
Multi-SIM Supported
Yes
Number of SIM Card Supported
2
SIM Size Supported
Mini
Physical Characteristics
Product Material
Aluminum
Form Factor
DIN Rail Mountable
Height
2.1"
Width
8.7"
Depth
6.7"
Weight (Approximate)
4.41 lb
Storage
Flash Memory Capacity
750 MB
Technical Information
Wi-Fi Generation
Wi-Fi 6
Network Band
Dual Band
Processor Core
Quad-core (4 Core)
Standard Memory
200 MB
MU-MIMO Technology
Yes
Warranty
Limited Warranty
1 Year
Additional Warranty Information
Extended hardware warranty up to 5 years with current subscription
Wireless Specifications
Broadband Transmission Technology
Ethernet, Cellular
Wireless LAN Standard
IEEE 802.11ax
ISM Band
Yes
UNII Band
Yes
ISM Maximum Frequency
2.40 GHz
UNII Maximum Frequency
5 GHz
Cellular Generation
5G
Cellular Data Connectivity Technology
LTE, HSDPA+, LTE Cat 20, HSPA+
Total Wireless Transmission Speed
300 MB/s
Miscellaneous
Package Contents
AirLink XR80 Modem/Wireless Router
DC Power Cable
LPWA Antenna
Quick Start Guide
AirLink Complete Leaflet
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
