5G - LTE, HSDPA+ - 2.40 GHz ISM Band - 5 GHz UNII Band - 4 x Network Port - USB - 5 Gigabit Ethernet - VPN Supported
SKU
Category
Wireless Routers
$2,274.58
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Sierra Wireless through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Wireless Routers
Overview

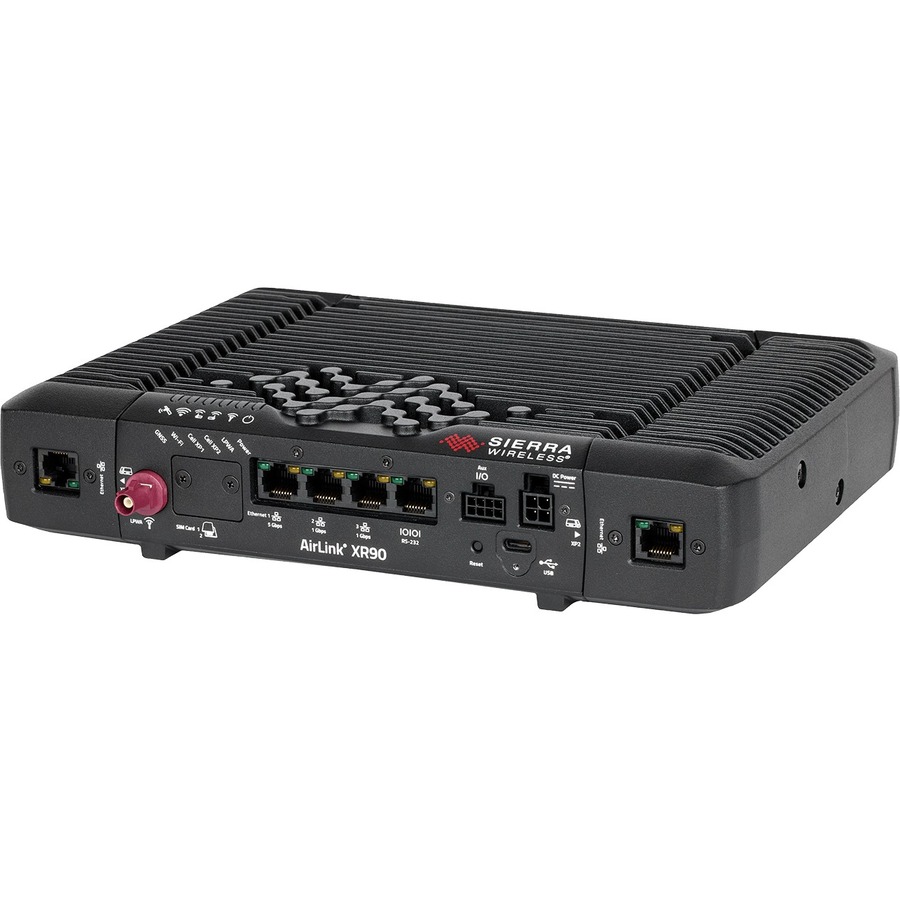

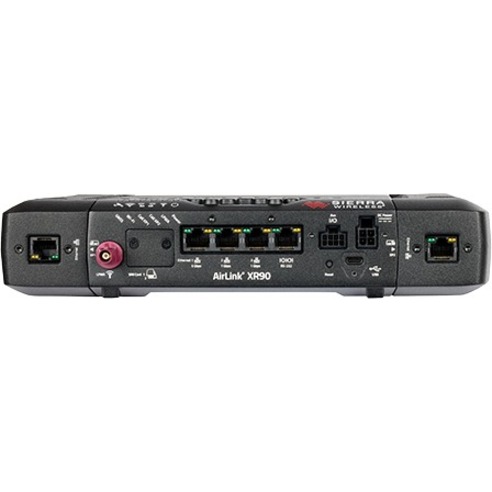

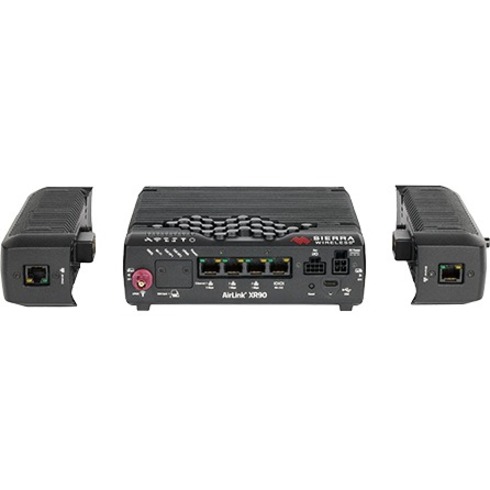

The supercharged AirLink XR90 is purpose-built for public safety and transit with available dual-5G cellular radios and dual independent 4x4 MIMO Wi-Fi 6 subsystems. The XR90 is the highest performing, most flexible router in the Sierra portfolio. It supports complete device-to-cloud security, reduces your total cost of ownership with AirLink® Management Service (ALMS) Out-of-Band management, and with the cartridged-based design, enables long-term expandability and upgradability.
A Fully Integrated Solution
The AirLink XR90 is a fully-supported, out-of-the-box solution complete with AirLink Premium for integrated device management, Advanced Mobility Reporting, 24/7 technical support and advanced device replacement. AirLink Connection Manager delivers complete VPN security while our AirLink Professional Services team maximizes your system performance and customer satisfaction.
Ideal Applications
Mobile mission critical applications in public safety, transit and field services. Delivers secure always-on Vehicle Area Networks (VANS) for:
• Buses/Transit
• Ambulance/EMS
• Law Enforcement
• Fire
• Utilities
• Private Networking
Benefits
• Designed for rugged mobile applications with Mil Standard aluminum die cast housing and adaptive power management
• Real-time connectivity with unmatched uplink and downlink speeds using Data Path Accelerated 5G, Wi-Fi 6 and 5 Gbps Ethernet technology
• "Always-on" connectivity using available dual cellular and dual Wi-Fi radios, and automatic failover using AirLink Cognitive Wireless
• Simplified set up and usability with AirLink OS and upgraded ALMS
• AirLink Premium with ALMS Out-of-Band Management provides zero-touch set up and reduced service calls advanced device replacement
Warranty
Additional Warranty Information: 1 year standard warranty with up to 5 years extended warranty with current AirLink Premium subscription. Unrestricted critical firmware updates. Limited Warranty: 1 Year
Highlights
Savor simultaneous downloading and seamless streaming
Access USB-compatible peripherals accross the wireless network via built-in USB port
Specifications
General Information
Manufacturer
Sierra Wireless
Manufacturer Part Number
1104785
Brand Name
Sierra Wireless
Product Line
AirLink
Product Model
XR90
Product Name
AirLink XR90 Modem/Wireless Router
Product Type
Modem/Wireless Router
Interfaces/Ports
Number of Network (RJ-45) Ports
4
USB
Yes
Network & Communication
Ethernet Technology
5 Gigabit Ethernet
VPN Supported
Yes
Multi-SIM Supported
Yes
Number of SIM Card Supported
2
Physical Characteristics
Height
2.1"
Width
8.7"
Depth
6.7"
Weight (Approximate)
4.54 lb
Technical Information
Wi-Fi Generation
Wi-Fi 6
Warranty
Limited Warranty
1 Year
Additional Warranty Information
1 year standard warranty with up to 5 years extended warranty with current AirLink Premium subscription. Unrestricted critical firmware updates.
Wireless Specifications
Broadband Transmission Technology
Ethernet, Cellular
Wireless LAN Standard
IEEE 802.11ax
ISM Band
Yes
UNII Band
Yes
ISM Maximum Frequency
2.40 GHz
UNII Maximum Frequency
5 GHz
Cellular Generation
5G
Cellular Data Connectivity Technology
LTE, HSDPA+
Miscellaneous
Package Contents
AirLink XR90 Modem/Wireless Router
DC Power Cable
LPWA Antenna
Quick Start Guide
AirLink Premium Leaflet
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
