4G - LTE 1900, LTE 1700, LTE 850, LTE 700, LTE 2600, LTE 600, LTE 2500, LTE 3500, LTE 3700 - LTE, WCDMA, UMTS, HSPA+, DC-HSPA+, LTE Cat 7 - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 226.56 MB/s Wireless Speed - 1 x Network Port - 1 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - DIN Rail Mountable
MSRP$950.00
$875.78
Save 8%In stock: 272
Genuine ERICSSON through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

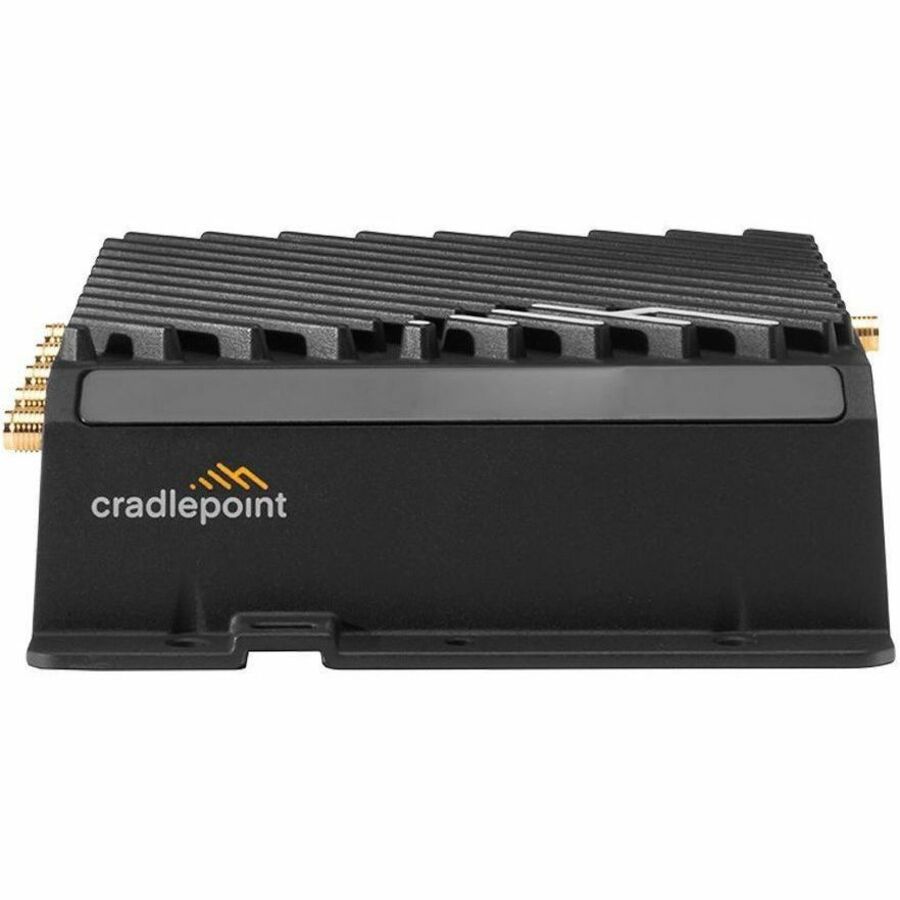

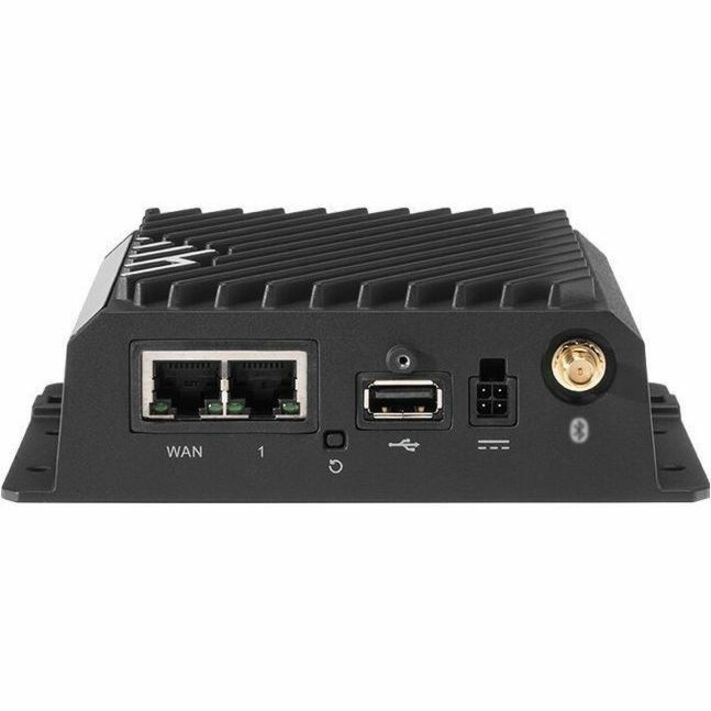

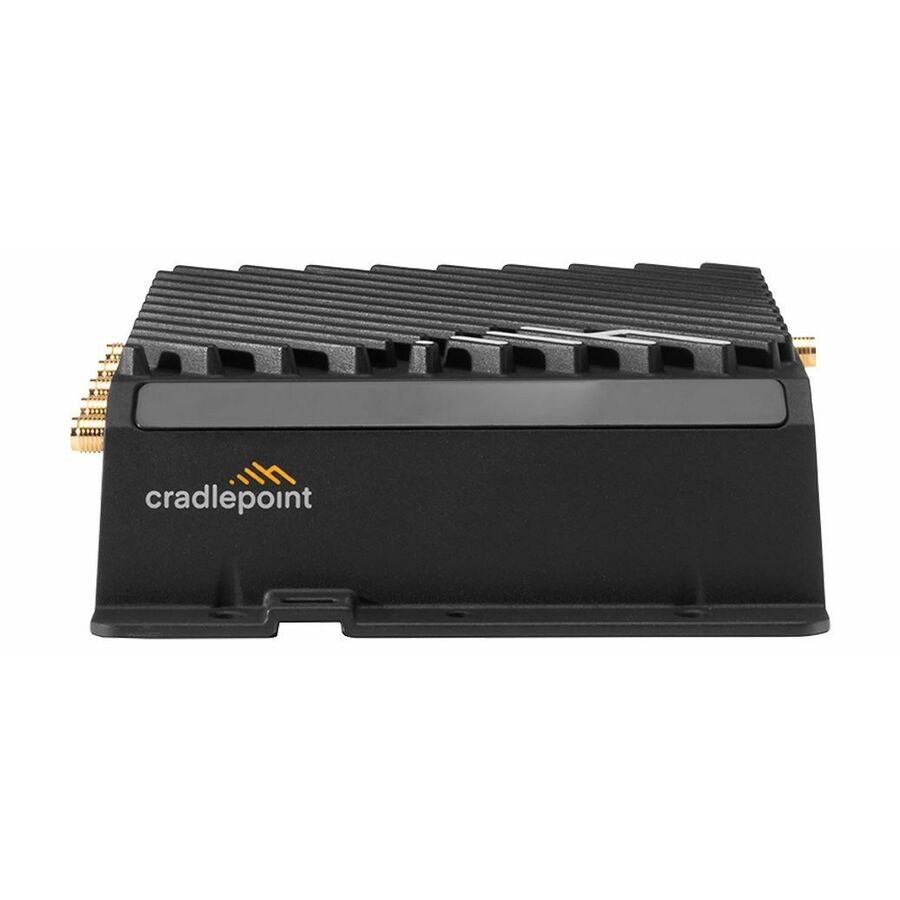

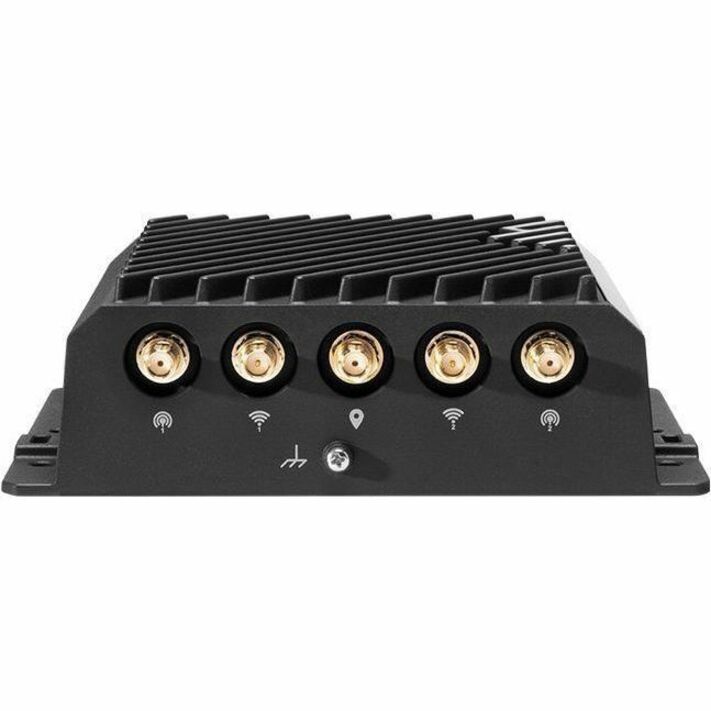

The Ericsson Cradlepoint R920 ruggedized router is a uniquely agile cellular networking solution that meets organizations' needsforflexible connectivity andproductstandardization for vehicles and IoT. The R920 is a ruggedized LTE networking platform available with either Mobile or Ruggedized IoT EricssonNetCloudService plans,providing features optimized for the needs of the differing deployments.
High-Performance Vehicle Connectivity
The Ericsson Cradlepoint R920 router with the Ericsson NetCloud Mobile Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. Combined with the Ericsson Cradlepoint RX20 managed accessory, the R920 can be field upgraded to include a second LTE or 5G modem. When coupled with the Advanced Mobile Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality such as location tracking and cellular coverage maps. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.
Ruggedized IoT Solution
When combined with the Ericsson NetCloud Ruggedized IoT Service plan, the R920 provides a versatile, ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. It can be deployed in a wide range of environmentally harsh IoT use cases such as kiosks, building automation, oil and gas, utility, and smart city infrastructure deployments. The ruggedized design and the CBRS band support make it ideal for private networks. In addition, the solution is highly extensible with APIs, SDKs, and integrations into IoT platforms, and the generous memory supports onboard edge containers. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.
Limited Warranty: Lifetime
| General Information | |
|---|---|
| Manufacturer | ERICSSON |
| Manufacturer Part Number | MA01-0920-C7A-NA |
| Brand Name | CradlePoint |
| Product Series | R920 |
| Product Model | R920-C7A |
| Product Name | R920-C7A Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
| Interfaces/Ports | |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| USB | Yes |
| Number of Broadband (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.6" |
| Width | 5.3" |
| Depth | 4.8" |
| Weight (Approximate) | 1.31 lb |
| Storage | |
| Flash Memory Capacity | 8 GB |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 6 |
| Network Band | Dual Band |
| Processor Core | Dual-core (2 Core) |
| Standard Memory | 921 MB |
| MU-MIMO Technology | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet, Cellular |
| Wireless LAN Standard | IEEE 802.11k/v/ax |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Cellular Generation | 4G |
| Cellular Network Supported | LTE 1900, LTE 1700, LTE 850, LTE 700, LTE 2600, LTE 600, LTE 2500, LTE 3500, LTE 3700 |
| Cellular Data Connectivity Technology | LTE, WCDMA, UMTS, HSPA+, DC-HSPA+, LTE Cat 7 |
| Total Wireless Transmission Speed | 226.56 MB/s |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 2 |
