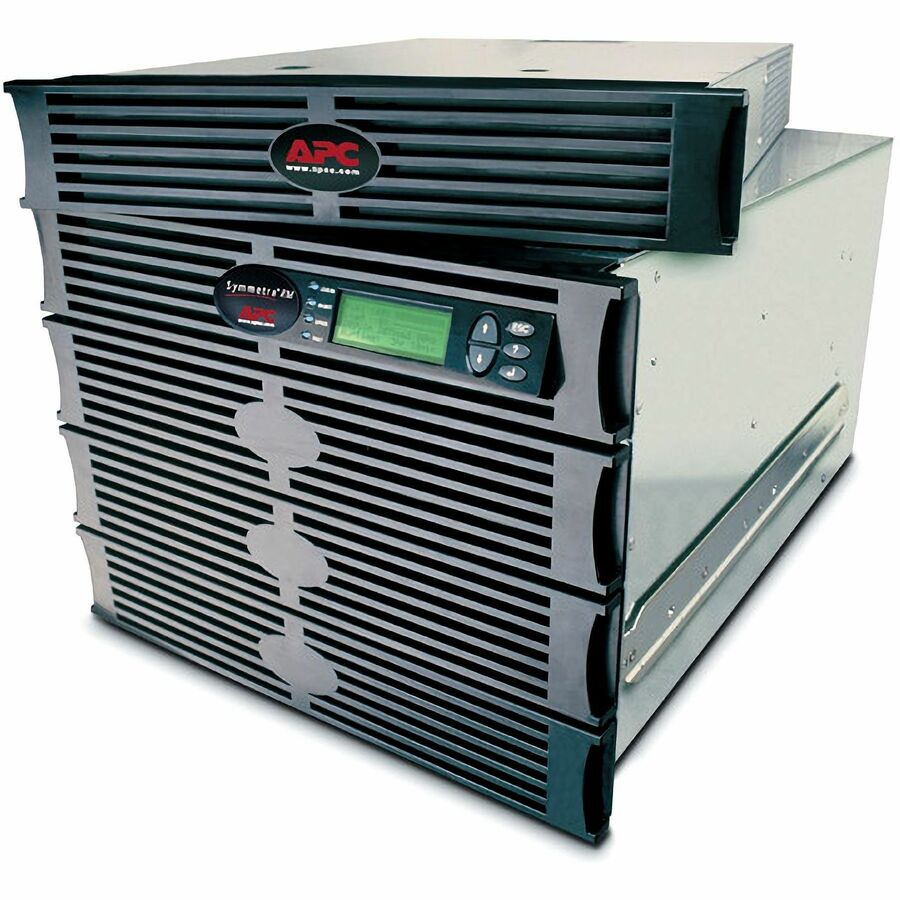

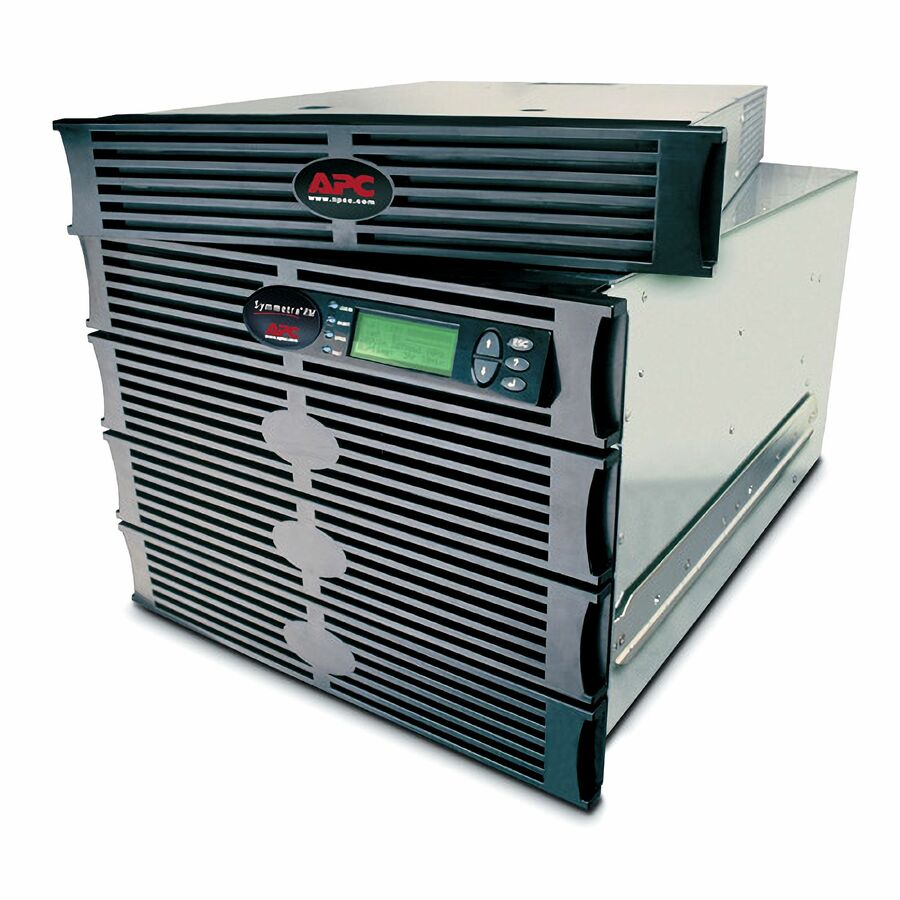

APC Symmetra RM 4kVA Scalable to 6kVA N+1 208/240V w/208 to 120V Step-Down Transformer

10U Rack-mountable - 4 Hour Recharge - 12.20 Minute Stand-by - 208 V AC Input - 120 V AC, 208 V AC Output - 12 x NEMA 5-20R, 2 x NEMA L6-20R - Sine Wave

SKU: SYH4K6RMT-P1
Category: Industrial UPS

MSRP$14,435.00

$9,263.33

Save 36%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SYH4K6RMT-P1
Category: Industrial UPS

Overview

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

Warranty

Additional Warranty Information: 2 years repair or replace, optional on-site warranties available, optional extended warranties available Limited Warranty: 2 Year

Specifications

Additional Warranty Information	2 years repair or replace, optional on-site warranties available, optional extended warranties available
Battery Chemistry	Lead Acid
Package Contents	Symmetra RM 4kVA UPS CD with software Rack mounting brackets Rack mounting support rails User manual
Product Type	Double Conversion Online UPS
Input Voltage	208 V AC
Manufacturer Part Number	SYH4K6RMT-P1
Limited Warranty	2 Year
Output Voltage	120 V AC, 208 V AC
Weight (Approximate)	324.67 lb
Dataline Protection	RJ-45
Form Factor	Rack-mountable
Status Indicators	Overload Replace Battery
Manufacturer	Schneider Electric SA
Product Name	Symmetra RM 4kVA UPS
Network Management	SNMP Manageable
Product Line	Symmetra
Thermal Dissipation	494.12 W
Waveform Type	Sine Wave
Product Series	RM
Rack Height	10U
Brand Name	APC by Schneider Electric
Plug/Connector Type	NEMA L6-30P (30A Twist-Lock), Hard Wire 3-wire
Output Frequency	60 Hz
Alarm	Low Battery, On Battery
Cord Length	10 ft
Height	17.5"
Width	19"
Depth	28.7"
Receptacle Type	NEMA L6-30P 30A
Environmentally Friendly	Yes
Maximum Operating Temperature	104°F (40°C)
Backup/Run Time (Half Load)	28.70 Minute
Backup/Run Time (Full Load)	12.20 Minute
Battery Characteristics	Spill-proof/Maintenance-free
Load Capacity (VA)	4000 VA
Number of Battery & Surge Outlets	14
Typical Battery Recharge Time	4 Hour
Product Color	Black
Receptacle Detail	12 x NEMA 5-20R, 2 x NEMA L6-20R
