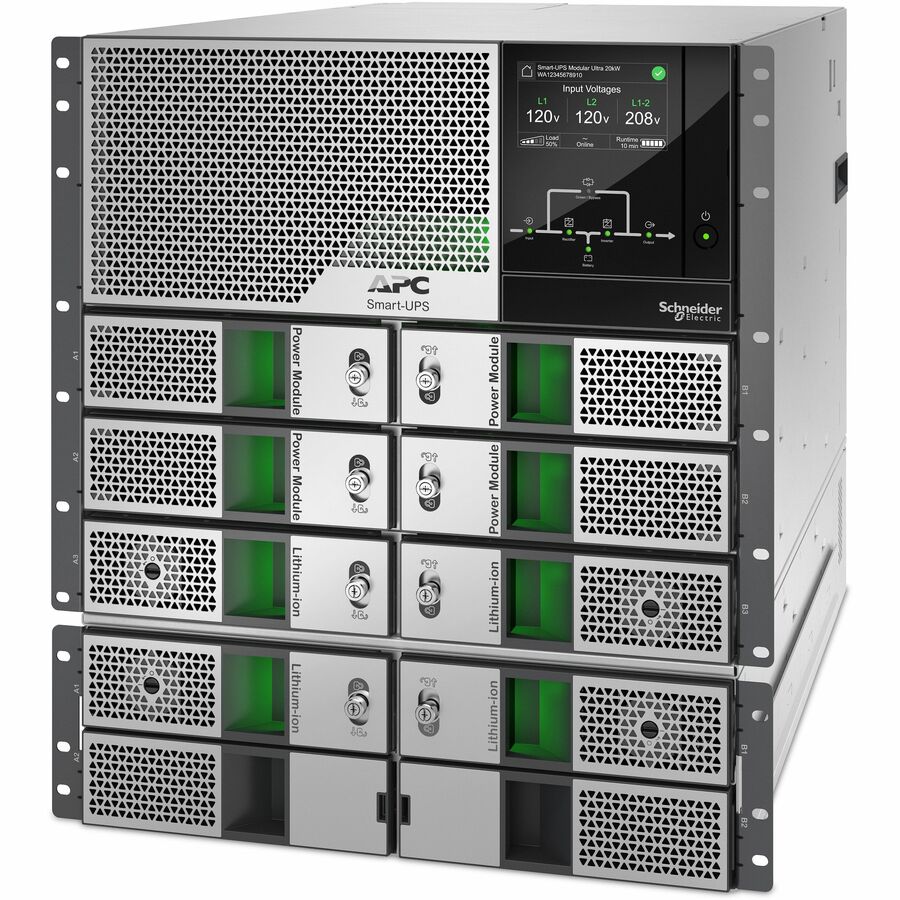

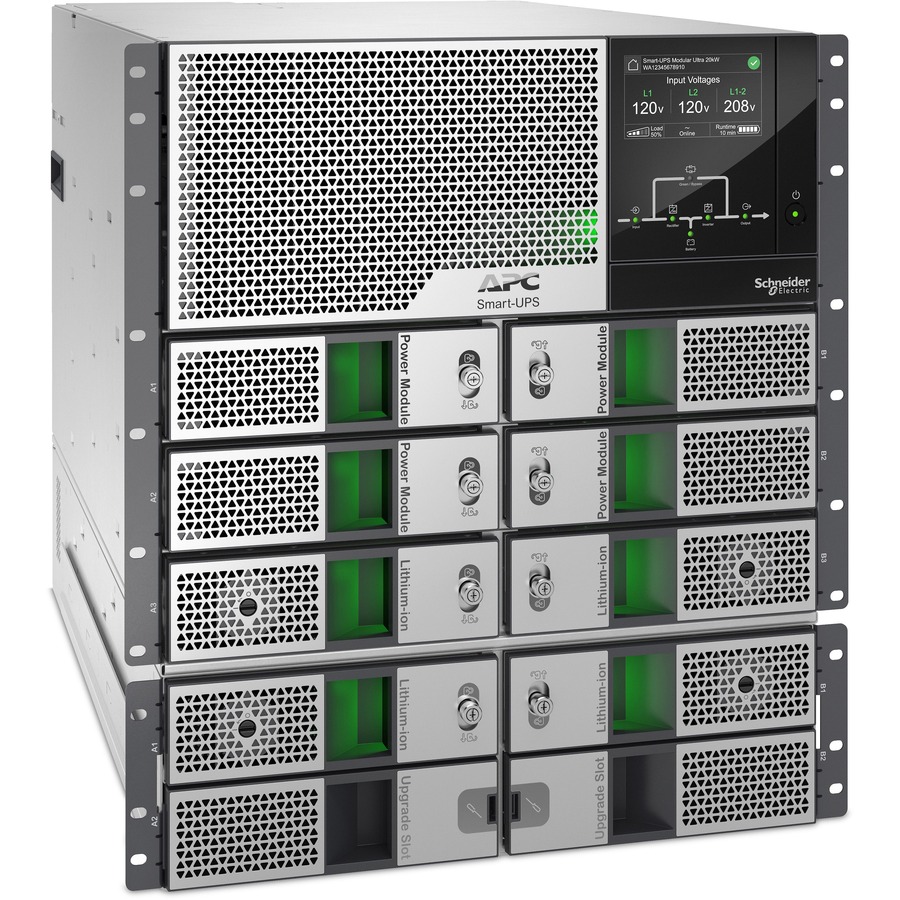

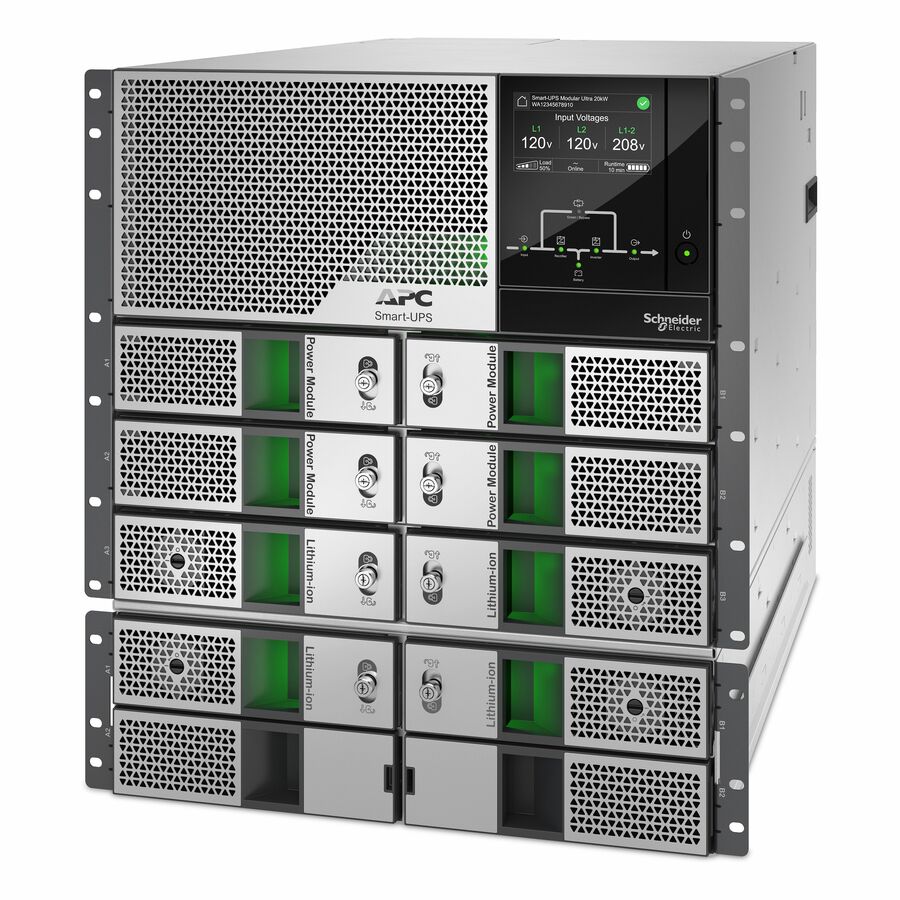

APC Smart-UPS Modular Ultra On-Line 20kW 12U Rackmount, Scalable N+1 Redundant, 208/240V, Touchscreen, Network Management Card
MSRP$73,340.00
$65,272.60
Save 11%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 9 and Nov 13, then process your delivery right after.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Smart-UPS Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 125A supports up to 20kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
More from the Manufacturer
APC Smart-UPS Modular Ultra (SRYL20K20RMXLT)
The APC Smart-UPS Modular Ultra 20kW configurable to 20kW N+1 with 120/208/240V split phase output. Its next generation semiconductor technology delivers up to 20kW in half the size of comparable UPSs. In addition to long lasting Lithium-ion batteries the weight is reduced by 60% in comparison to Lead Acid VRLA UPS. With the Embedded Network port you can monitor and manage your UPS anytime, anywhere.
Modular, scalable, redundant
With 20kW of scalable single phase power protection in 12U, Smart-UPS Modular Ultra gives you more room and 2.5x more power for IT equipment than comparable Modular UPS.
3x the life with Lithium-ion batteries
Lithium-ion lasts 3x longer than VRLA batteries and, under normal operating conditions, will not need replacement for the life of the UPS. Meaning you can save battery replacement AND labor costs up to 3x!
Visibility anytime, anywhere
Secure cloud monitoring with the EcoStruxure Ready Smart-UPS. PowerChute software for convenient monitoring and control.
Certainty in a connected world
Trusted for over 40 years Schneider Electric’s APC Brand has 120 million single-phase UPS installed worldwide. APC products are available in over 160 countries with 250 Service locations.
Hot Spots
FAQ
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure, ensuring data is available — whenever and wherever you need it.
Comparison Table
Limited Warranty: 5 Year
APC by Schneider Electric Smart-UPS Modular Ultra 20kW Scalable to 20kW N+1 Rackmount 208/240V
APC by Schneider Electric Smart-UPS Modular Ultra 20kW Scalable to 20kW N+1 Rackmount 208/240V
| Battery Information | |
|---|---|
| Number of Batteries | 4 |
| Battery Energy | 9230.4 kJ |
| Backup/Run Time (Full Load) | 5.52 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 60 dB |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRYL20K20RMXLT |
| Brand Name | APC |
| Product Name | Smart-UPS Modular Ultra 20kW Scalable to 20kW N+1 Rackmount 208/240V |
| Packaged Quantity | 1 Pack |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | Network Card |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Power Description | |
| Load Capacity (Watt) | 20 kW |
| Input Voltage | 208 V AC, 120 V AC, 240 V AC |
| Output Voltage | 120 V AC, 208 V AC, 240 V AC |
| Input Frequency | 70 Hz |
| Input Power Factor | 0.5 |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire (2PH+N+G) |
| Phase | Single Phase |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
