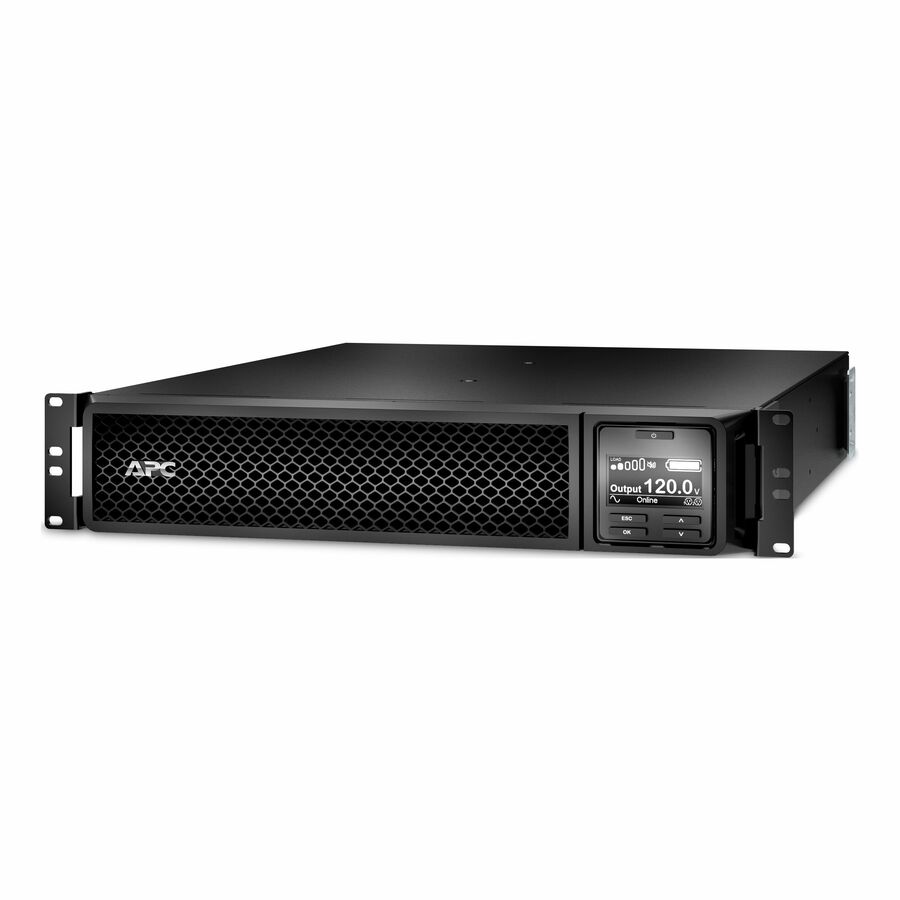

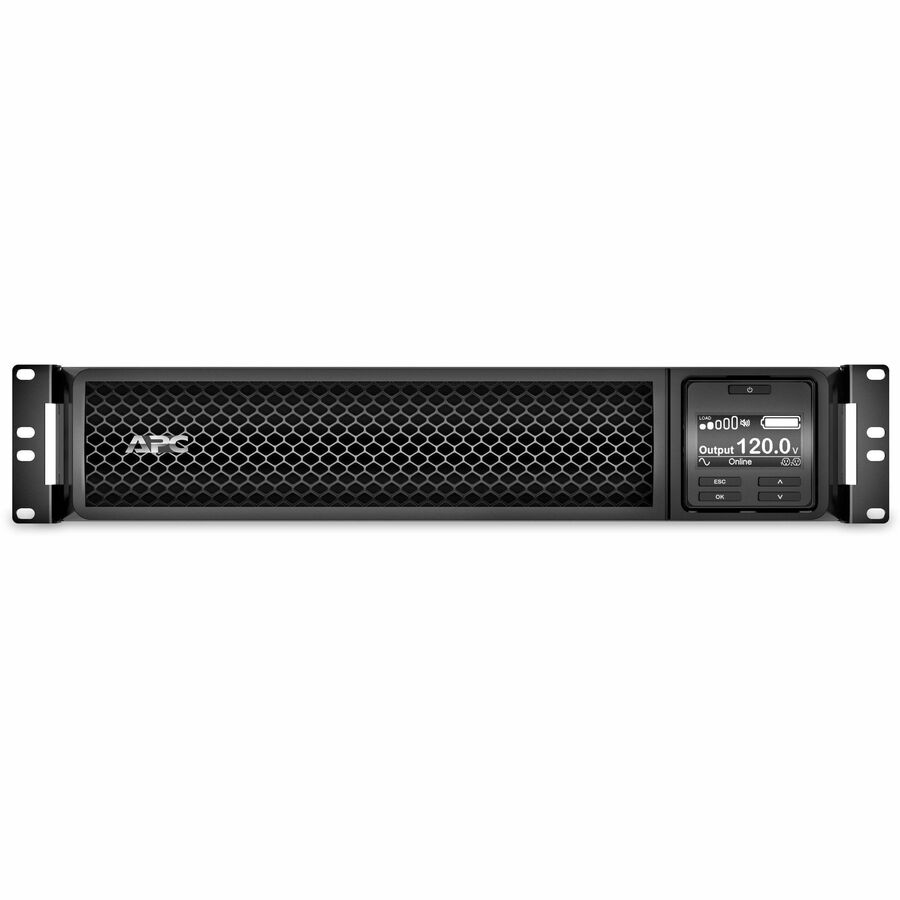

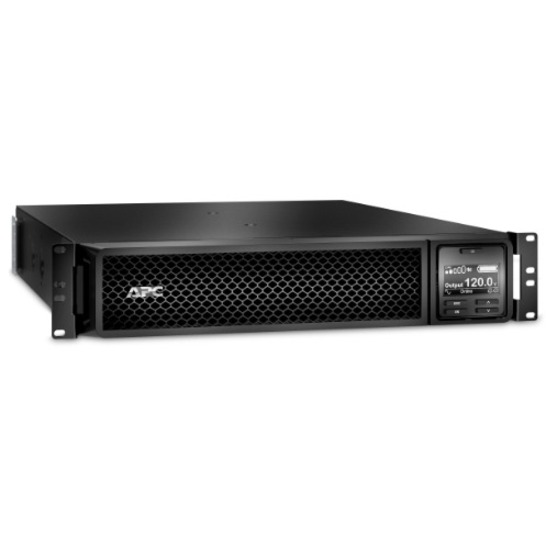

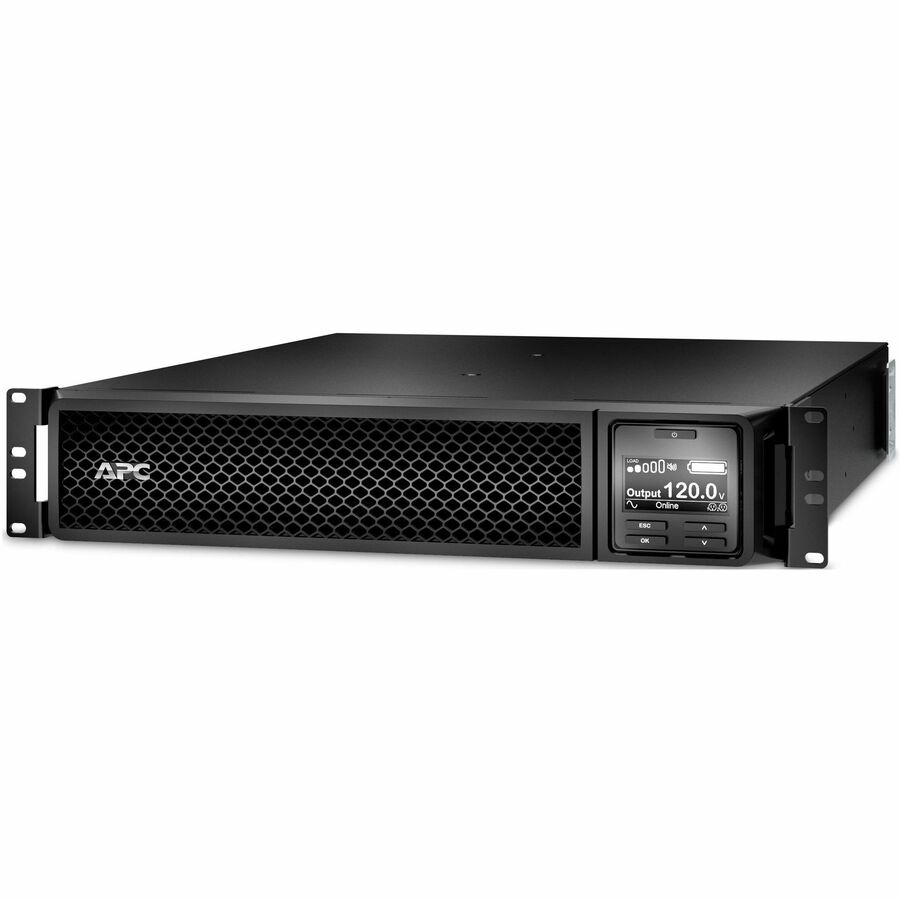

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit [TAA]
2U Rack-mountable - 3 Hour Recharge - 3.30 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - 1 x NEMA L5-20R, 6 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet - TAA Compliant
- SKU
- SRT2200RMXLAUS
- Category
- General Purpose UPS
MSRP$4,215.00
$2,837.53
Save 33%Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRT2200RMXLAUS
- Category
- General Purpose UPS
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
More from the Manufacturer
Key Features
Specifications and Software Capabilities
Hot Spots
Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions
SmartSlot™
Add an accessory card or a network management card
Interface ports
USB Type A and Serial (RJ45)
Extended runtime options
Connect up to 10 external battery packs for extended runtime needs

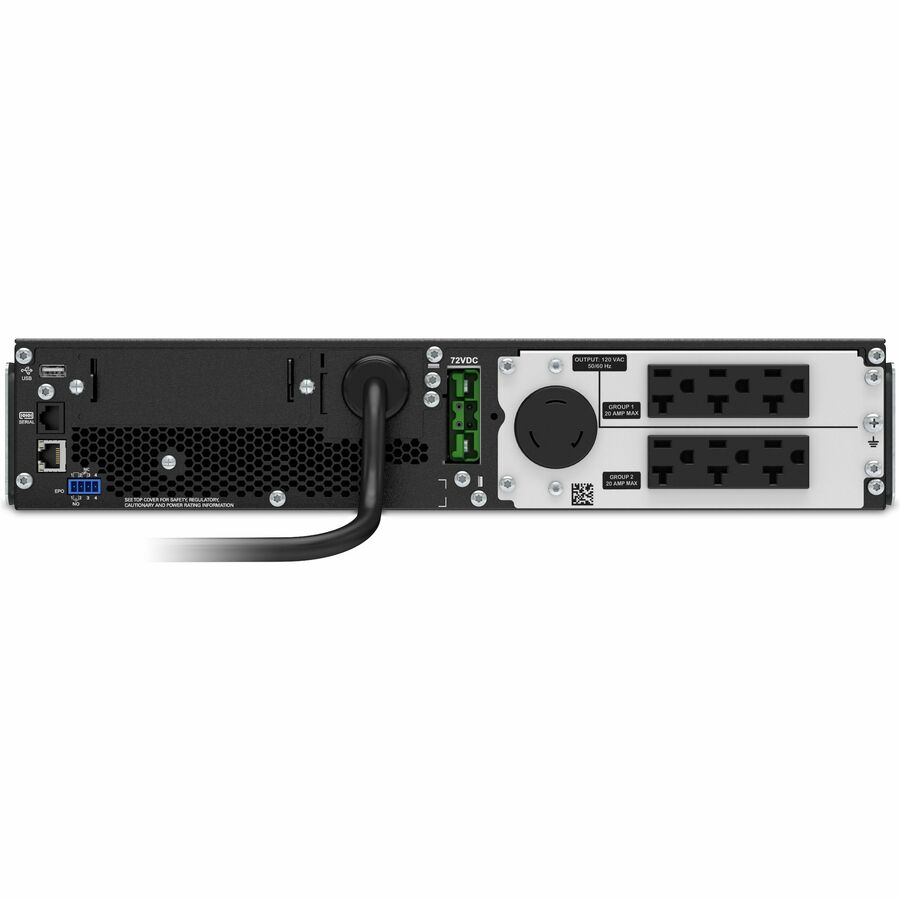

7 outlets in 2U
6 NEMA 5-20R and 1 NEMA L5-20R outlets, including 2 switched outlet groups
FAQ
Can I add external battery packs? How many?
Yes, Smart-UPS Ultra SRT2200RMXLAUS supports up to 10 APC external SRT72RMBP battery packs.
What are my options for UPS management and software?
Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Network Shutdown Software.
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.
Comparison Table
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Warranty
Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s) Limited Warranty: 3 Year
Highlights
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Specifications
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
|---|---|
| Application/Usage | Server, Router, Network Switch, Network Hub, Security System, Network Device, Voice/Data Network, Medical, ATM, VoIP Device |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | Powerchute Serial Edition |
| Product Type | Double Conversion Online UPS |
| Hot Swappable | Yes |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SRT2200RMXLAUS |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 55.01 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Model | SRT2200RMXLAUS |
| Product Name | Smart-UPS SRT 2200VA RM 120V |
| Product Line | Smart-UPS SRT |
| Surge Energy Rating | 340 J |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage Range | 108 V AC - 150 V AC |
| Country of Origin | United States |
| Cord Length | 5.91 ft |
| Height | 3.35" |
| Width | 17.01" |
| Depth | 22.99" |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20P |
| Environmentally Friendly | Yes |
| Network (RJ-45) | Yes |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1800 W |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Number of Battery & Surge Outlets | 7 |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Receptacle Detail | 1 x NEMA L5-20R, 6 x NEMA 5-20R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
