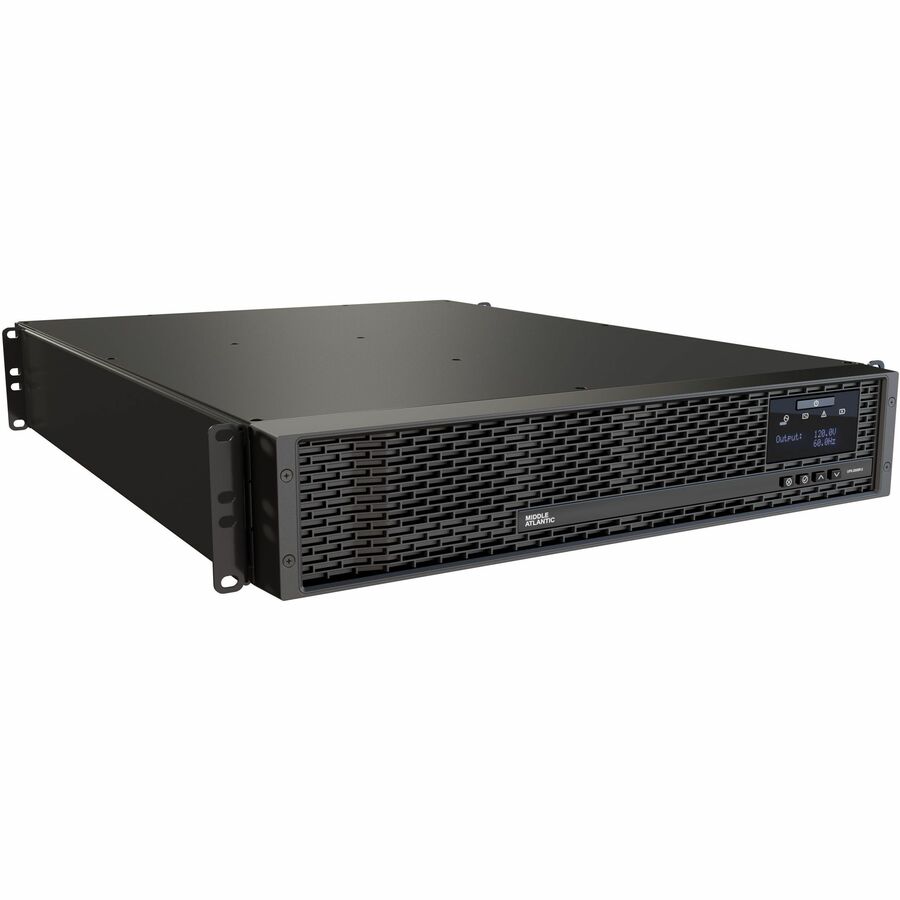

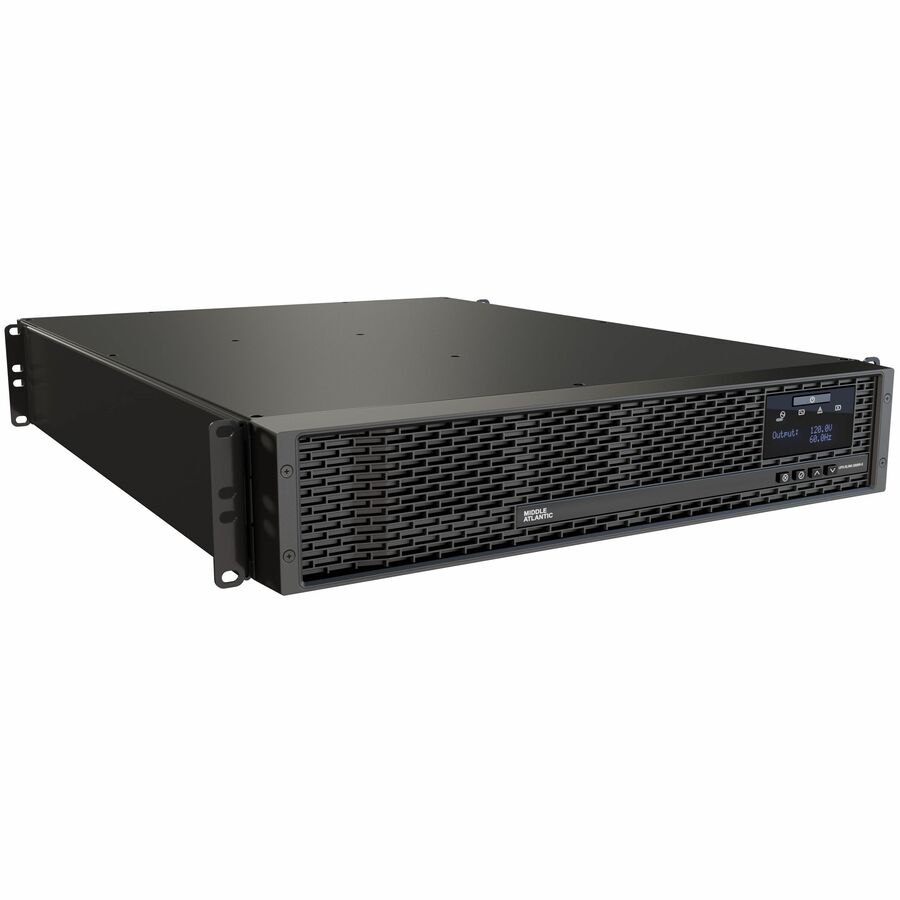

Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-20R Receptacle(s) - SNMP/Telnet/SSH, SNMPv3
MSRP$3,422.00
$2,426.18
Save 29%In stock: 206
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPS backups prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. 2000VA and 20 amp battery backup. 8 Outlet UPS backup with Bank Control, (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rails. The battery is already connected so just plug it in. Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power cord. Name, address, and date of birth, please? Easily locate the IP, MAC address, and device name via the front LCD screen. You can even see the battery installation date. Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards. Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system. RackLink Remote Management Built-In. Included RS232 port for control, (2) dry contact ports for alerts, 1 contact is defined to alert users of a battery switchover when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.
Additional Warranty Information: 2 Years Battery Limited Warranty: 3 Year
Middle Atlantic Products designs and manufactures innovative foundational products like system enclosures, tech-enabled furniture, and power distribution and backup to support integrated systems for residential, commercial, broadcast, government, education and security applications. Since 1979 Middle Atlantic is what great systems are built on.
| Battery Information | |
|---|---|
| DC System Voltage | 48 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free, Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Normal Mode AVR Mode Battery Mode Internal Fault Battery Fault |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Sound Emission | 50 dB |
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-2000R-2 |
| Brand Name | Middle Atlantic |
| Product Line | NEXSYS |
| Product Model | UPX-2000R-2 |
| Product Name | NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | SNMP/Telnet/SSH, SNMPv3 |
| Alarm | On Battery, Low Battery, Battery Disconnected, Fault, Overload |
| Physical Characteristics | |
| Height | 3.41" |
| Width | 17.32" |
| Depth | 23.62" |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 63.05 lb |
| Power Description | |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 1800 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 158 V AC |
| Output Voltage | 110 V AC, 120 V AC, 127 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 1000 J |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Transfer Time | 10 ms |
| Application/Usage | Desktop, Bank |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 Years Battery |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
