Overview

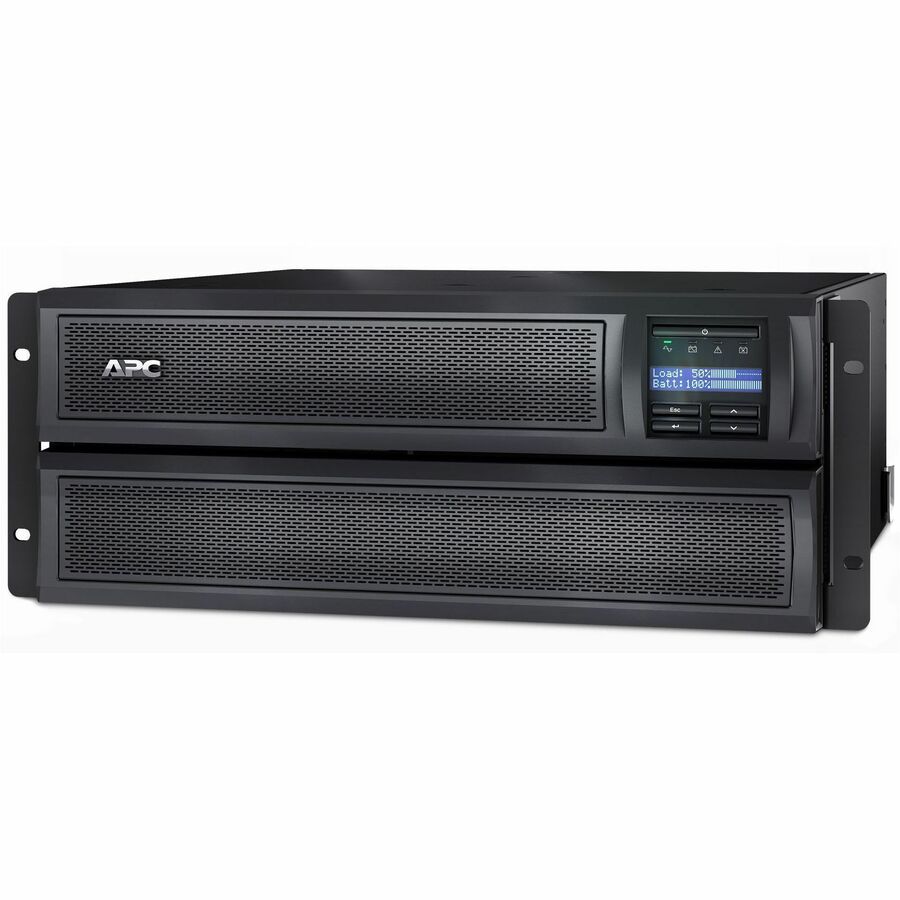

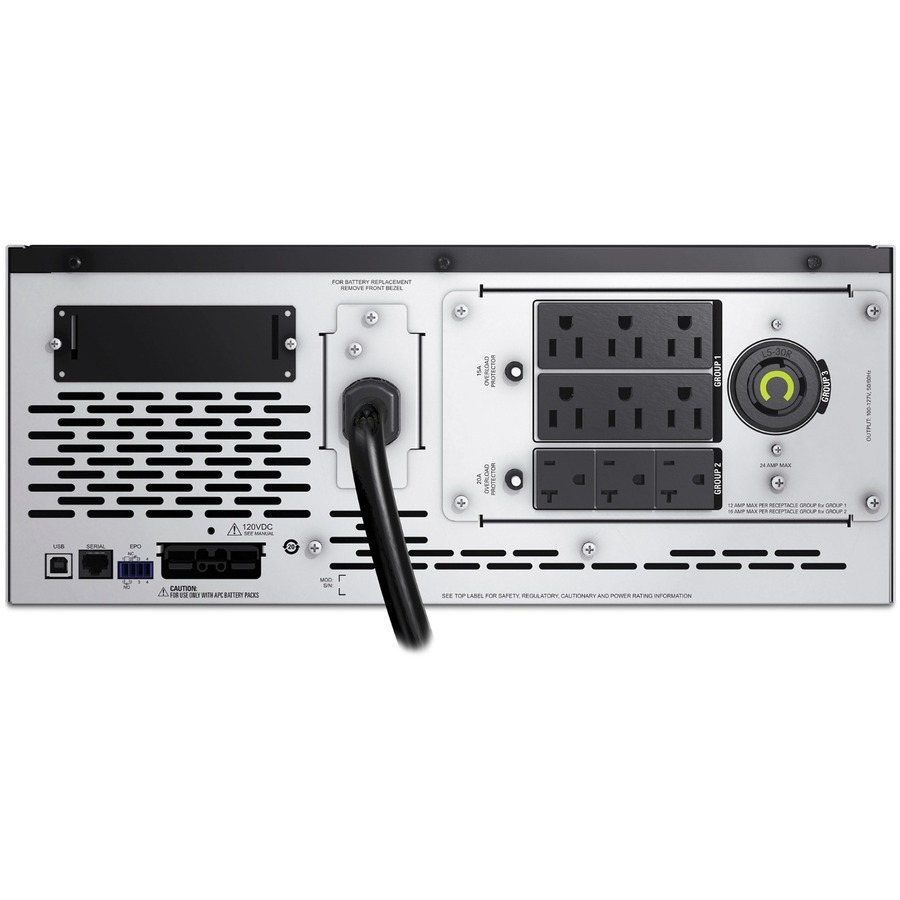

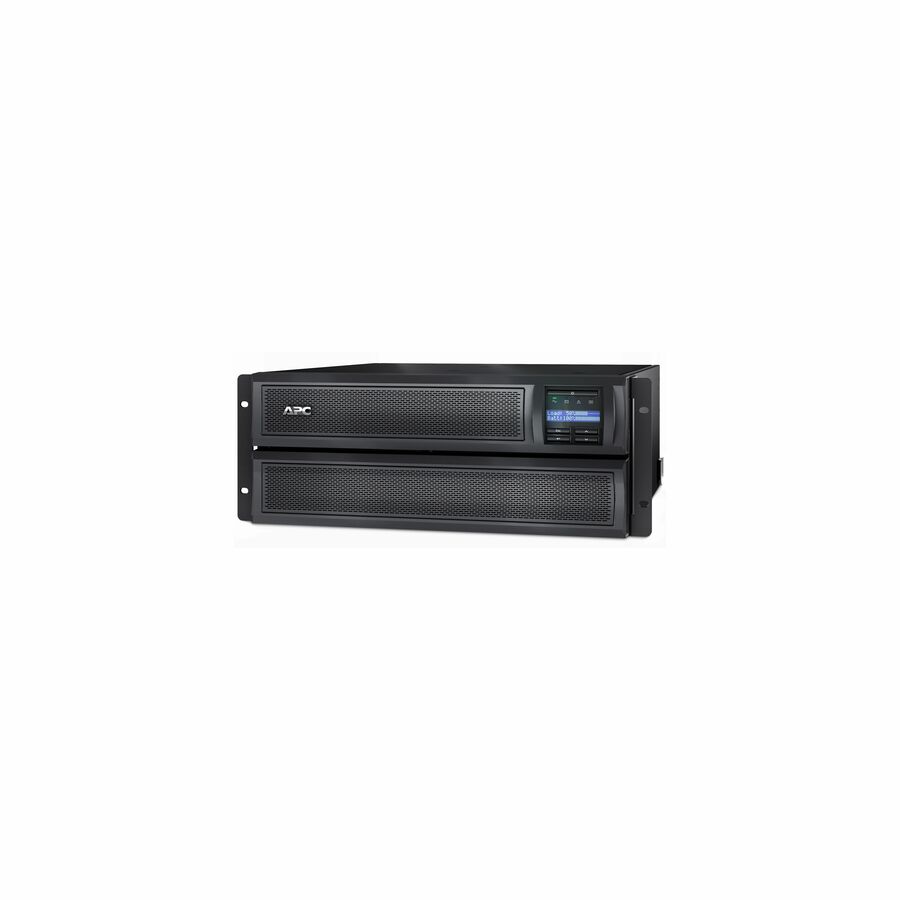

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Warranty
Limited Warranty: 3 Year
Highlights
2880VA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
User-selectable low voltage setting of 100V-127V
Add up to 10 external battery packs (SMX120BP)
Short depth UPS provides extra space for cable management
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
Ideal for servers, storage, networking & commercial applications
Specifications
Battery Information
Battery Chemistry
Lead Acid
Backup/Run Time (Half Load)
15.67 Minute
Battery Life
5 Year
Typical Battery Recharge Time
3 Hour
Environmental Conditions
Maximum Operating Elevation
10000 ft
Maximum Operating Temperature
104°F (40°C)
Maximum Storage Elevation
50000 ft
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity
0% - 95%
Sound Emission (A-Weighted)
55 dB(A)
Thermal Dissipation
80.89 W
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX3000RMX93
Brand Name
APC
Product Line
Smart-UPS
Product Name
Smart-UPS 3000VA Rack-mountable UPS
Product Type
Line-interactive UPS
Interfaces/Ports
USB (HID Compliant) Port
Yes
Management
Alarm
On Battery, Low Battery, Configurable Delay
Physical Characteristics
Product Color
Black
Height
17.01"
Width
7.01"
Depth
19.02"
Rack Height
4U
Form Factor
Rack-mountable
Weight (Approximate)
85.19 lb
Power Description
Load Capacity (VA)
2880 VA
Load Capacity (Watt)
2700 W
Input Voltage
120 V AC
Input Voltage Range
70 V AC - 153 V AC
Input Current
15 A
Output Voltage
120 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacle Type
NEMA L5-30P
Receptacle Detail
3 x NEMA 5-15R
Number of Battery & Surge Outlets
3
Cord Length
8 ft
Transfer Time
4 ms
Phase
Single Phase
Application/Usage
POS, Router, Switch, Hub, Network Device, Server
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
Smart-UPS 3000VA Rack-mountable UPS
User's Documentation In Electronic Format
Software Included
Powerchute Serial Edition
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS)
