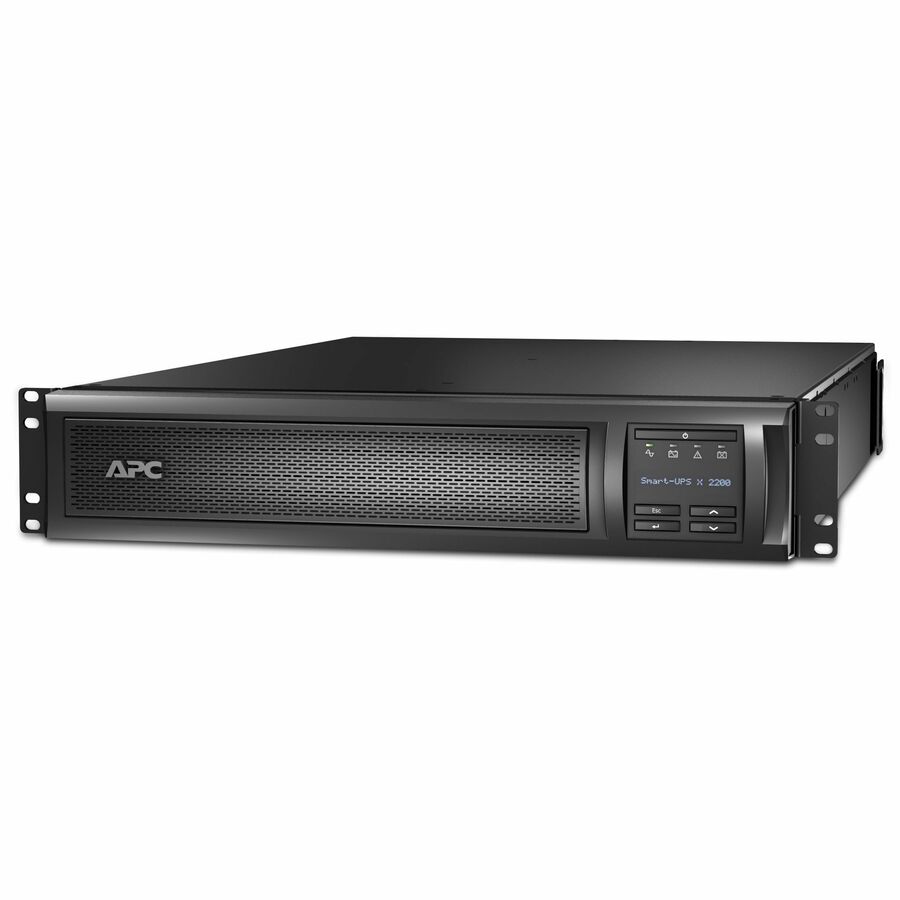

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 100V-127V, 6x 5-15R+2x 5-20R NEMA, SmartSlot, Extended runtime

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

Key Features

Hot Spots

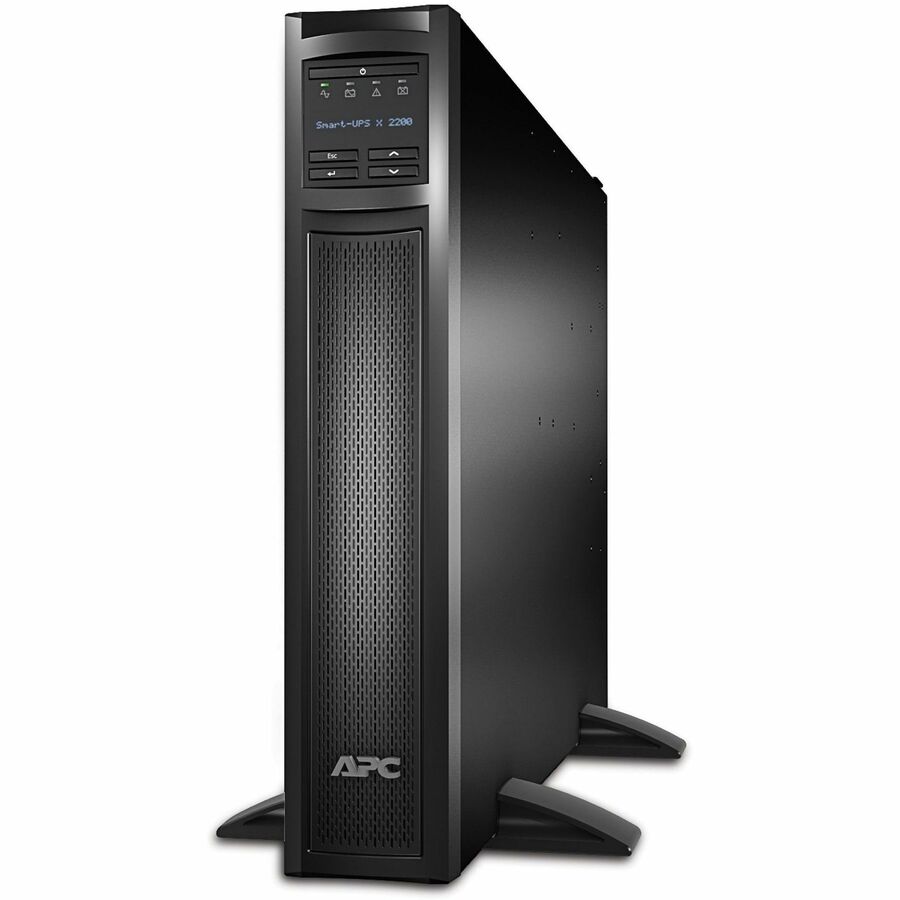

2U design with flexible installation

2U design saves valuable space for IT. Rackmount and tower.

Graphical LCD display

Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.

SmartSlot™ for network management card

Add a network management card or purchase an -NC model with a pre-installed AP9641 network card.

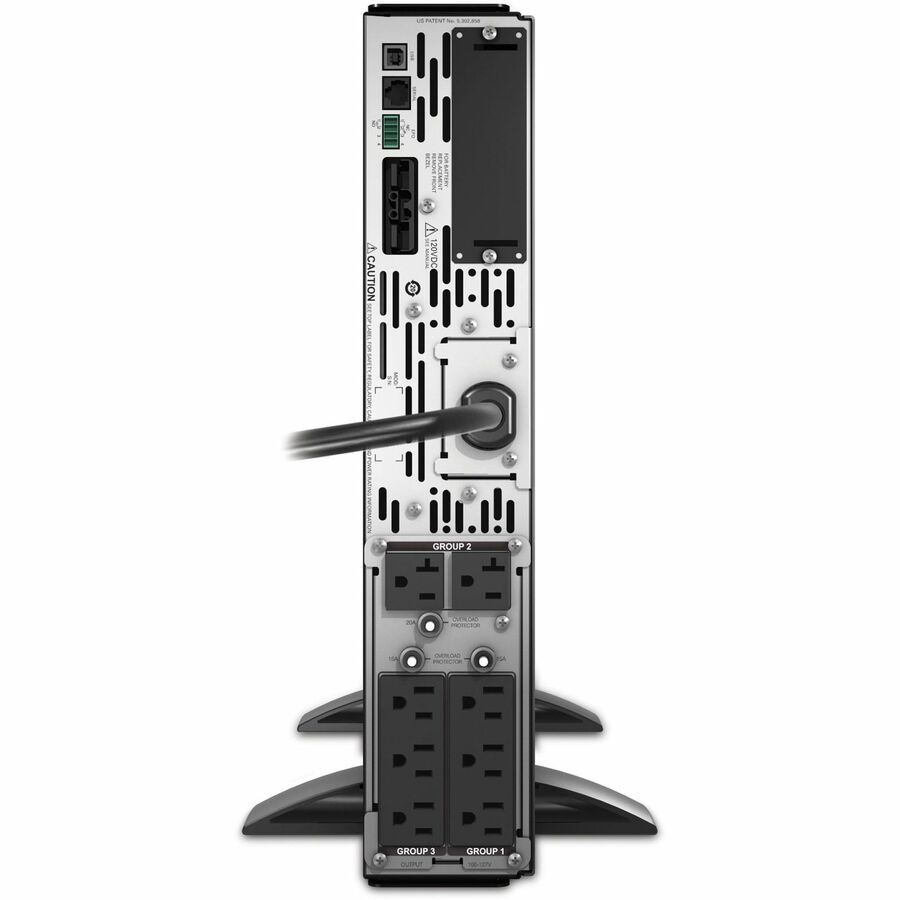

8 outlets in 2U

(6) NEMA 5-15R and (2) NEMA 5-20R outlets.

3 switched outlet groups

Control a group of output load receptacles independent from the main UPS.

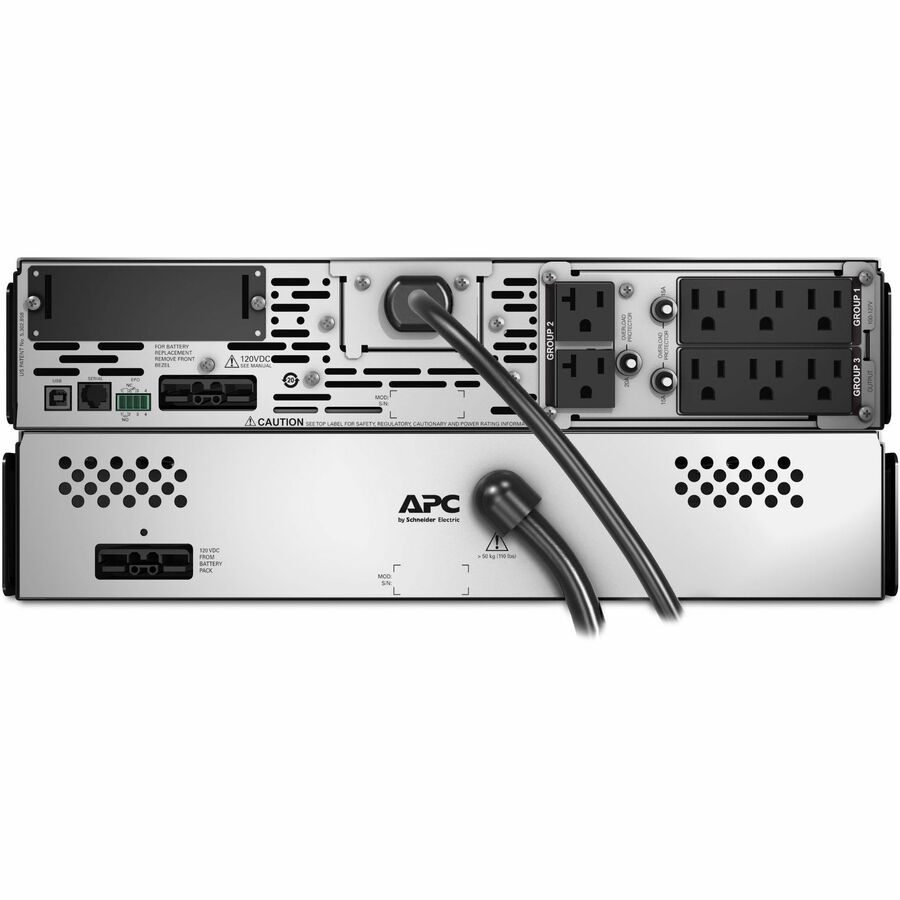

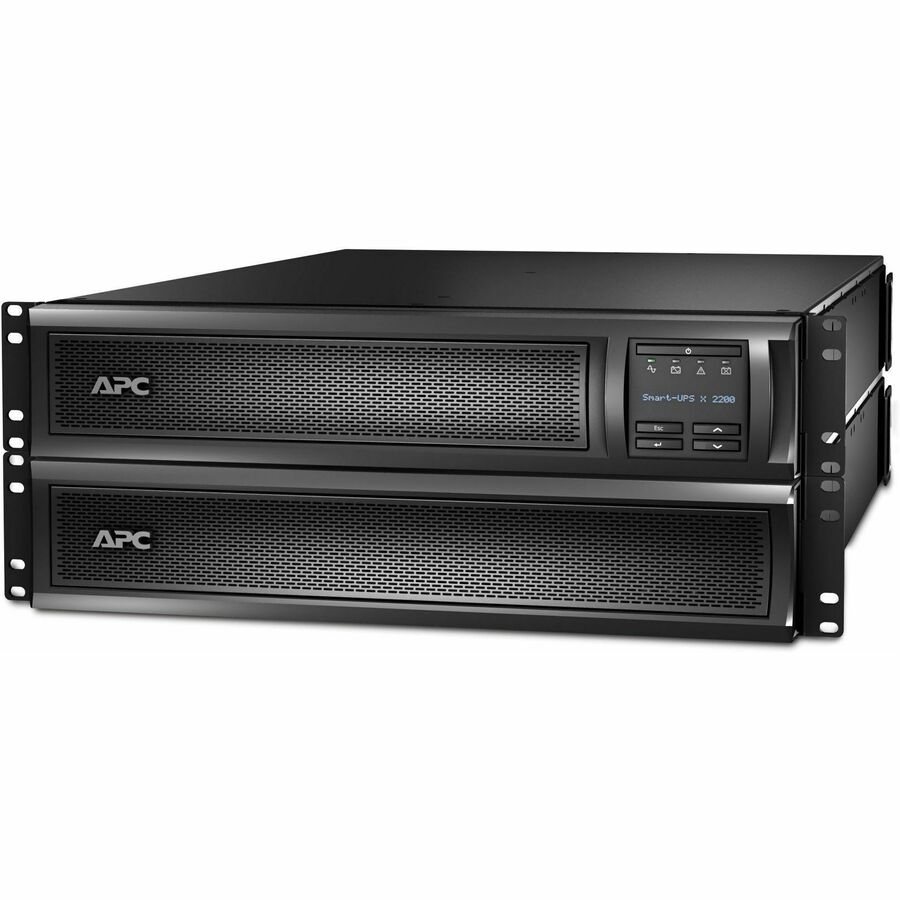

Extended runtime option

External battery pack connector for extended runtime needs.

FAQ

Can I add external battery packs? How many?

Yes, Smart-UPS SMX2200RMLV2U supports up to 10 APC external battery packs SMX120RMBP2U.

What are my options for UPS management and software?

Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.

Do all models come with a preinstalled Network Management Card?

Select models with an "NC" suffix come with the network management card preinstalled.

How does the 'green' mode operating mode increase efficiency?

APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.

What do switched outlet groups allow me to do?

Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off, and non-critical load shedding of equipment.

Does this UPS come with PowerChute Serial Shutdown software?

PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.
