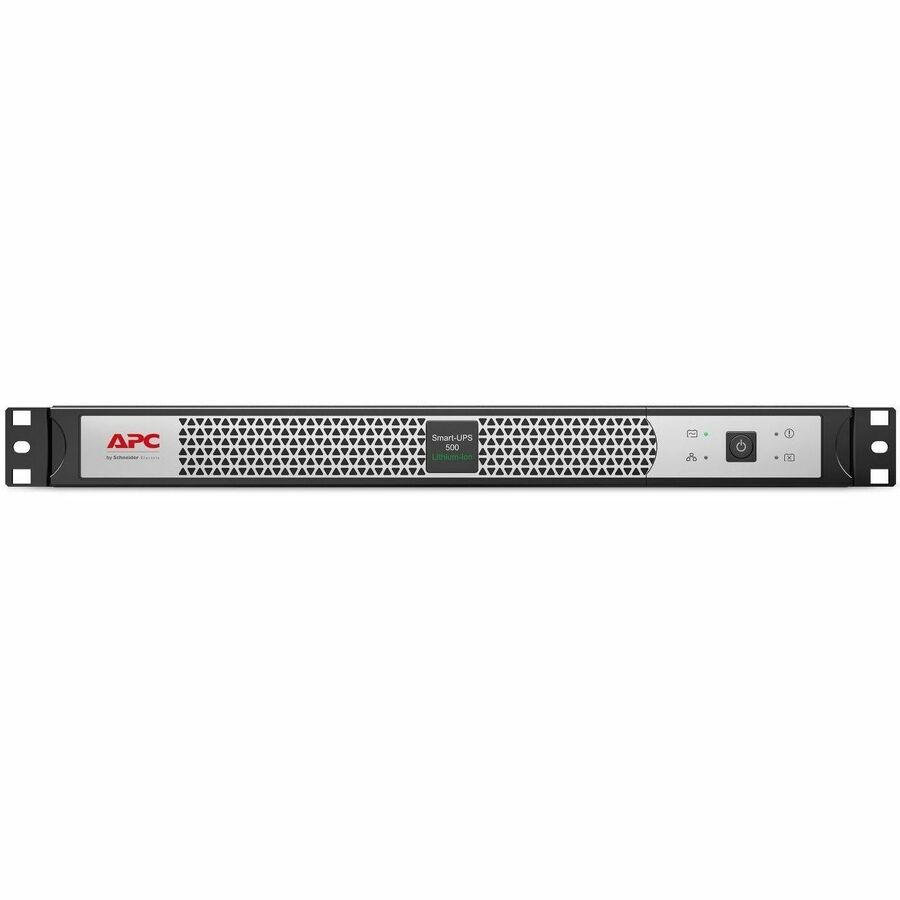

1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - Serial Port - 4 x NEMA 5-15R Receptacle(s) - 4 x Battery/Surge Outlet
MSRP$1,680.00
$1,495.20
Save 11%In stock: 81
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
More from the Manufacturer

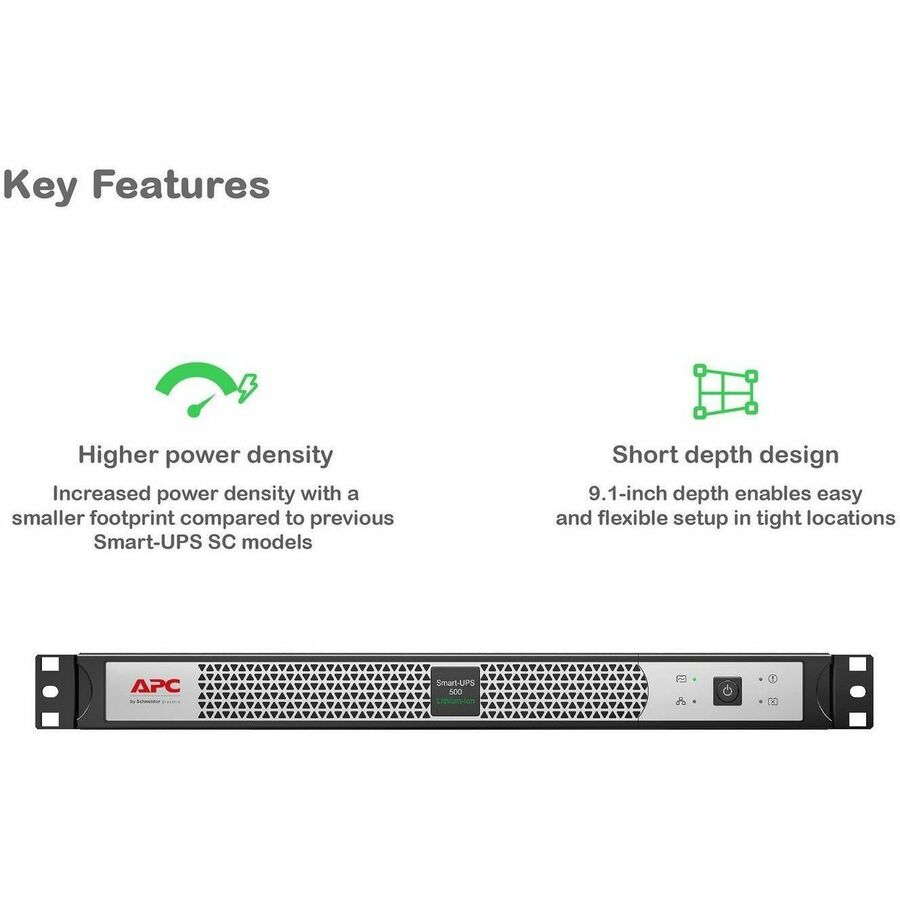

Key Features
Software and ports
FAQ
How long do Smart-UPS™ Lithium-ion batteries last?
The Lithium-Ion batteries used in Smart-UPS can last 8 to 10 years or 3000 charge / discharge cycles. Valve Regulated Lead Acid (VRLA) batteries typically last 3 to 5 years or 200 discharge cycles.
Are Lithium-ion and Lead Acid batteries the same weight?
No. Smart-UPS with Lithium-ion batteries are up to 65% lighter than Lead Acid VRLA UPS.
Can I replace the VRLA batteries on my existing UPS with Lithium-ion batteries?
No. Batteries for Smart-UPS with Lithium-ion are not compatible with Smart-UPS with VRLA batteries.
How long is the Smart-UPS Ultra warranty?
There is a 5-year warranty for both the electronics and the internal batteries.
How does SmartConnect advance plan differ from SmartConnect standard plan?
All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Limited Warranty: 5 Year
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 108 kJ |

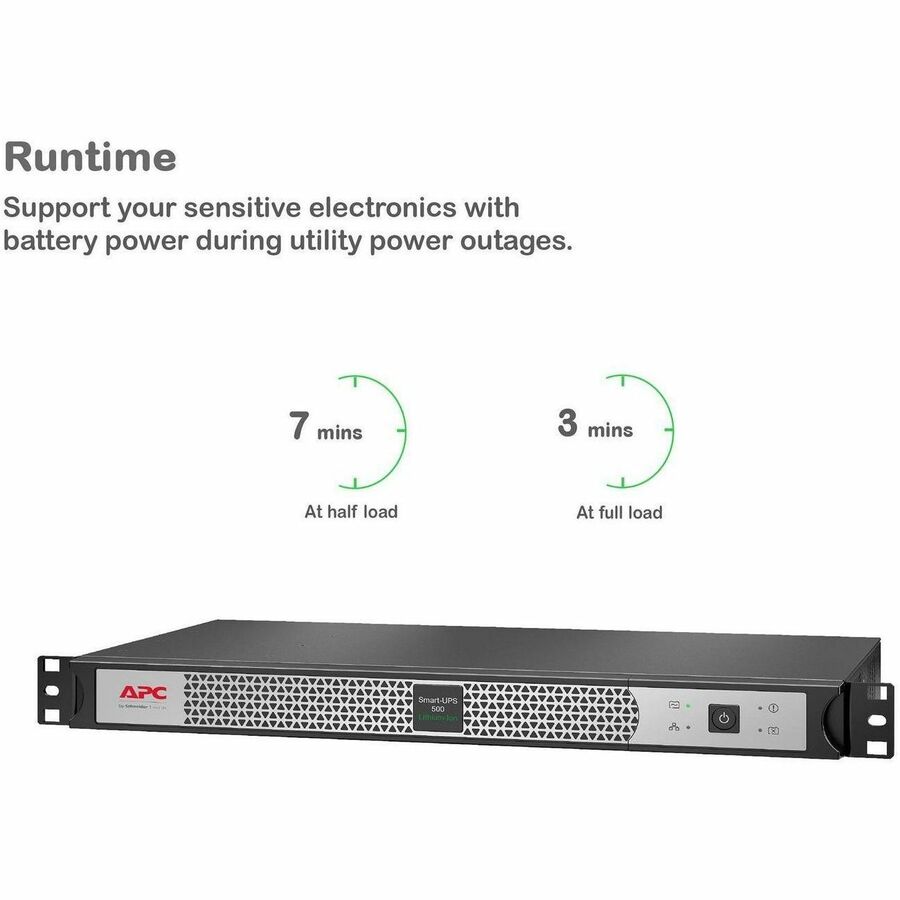

| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |

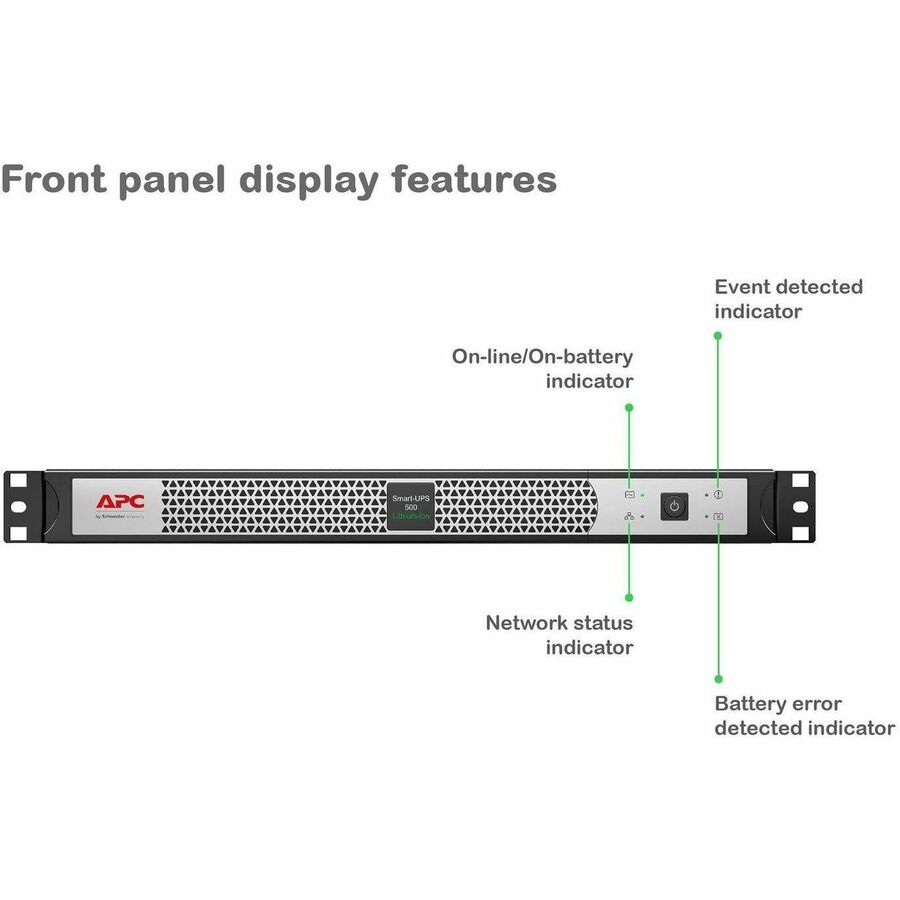

| Status Indicators | LED Status Display: On Battery On Line |
| Environmental Conditions | |
| Maximum Operating Elevation | 6561 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 49212 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SCL500RM1UNC |
| Brand Name | APC |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 500VA Rack-mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | On Battery, Low Battery, Configurable Delay |
| Physical Characteristics | |
| Product Color | Black, Silver |
| Height | 1.73" |
| Width | 17.01" |
| Depth | 9.13" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 9.30 lb |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 400 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |

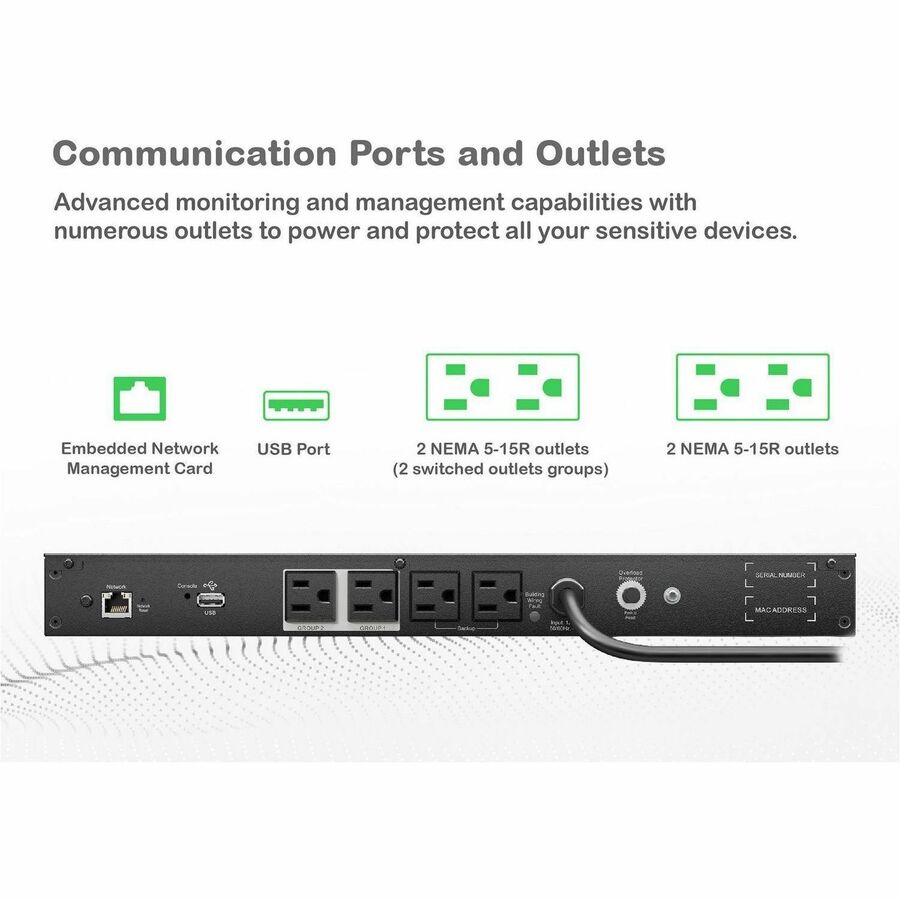

| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Overload Protection | Yes |
| Cord Length | 6 ft |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Server, POS Terminal, Router, Switch, Network Hub, IT Equipment, Network Device, Business, Storage System, Critical System, Security System, Communication System |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
